Got myself a problem on our '07 Xpic 2.0 16v Exclusive with auto climate control.
Whatever controls the outlet distribution, it is stuck blowing air from the high level vents only. I cannot get air to the screen.
I've got the lower facia off, and have located the stepper motor that varies the air temperature. That side of things are working fine.
But I cannot suss where the flaps are located that deflect the air to the required location.
What would be ideal is an exploded view of the air handling unit (under the radio), but I have not been able to find any such thing.
Could any of you guys help- vin is VF7**************[VIN obfuscated, can be read by forum staff]. Ta Muchly.
Picasso climate control air distribution
Moderator: RichardW
-
- (Donor 2020)
- Posts: 145
- Joined: 12 Jul 2017, 17:40
- Location: South London
- My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van - x 23
Picasso climate control air distribution
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
- GiveMeABreak
- Forum Admin Team
- Posts: 37331
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Picasso climate control air distribution
It will likely be the air mixer motors where the plastic gearing / cogs get worn between the stepper motor gear and the rods onnected to the flaps.

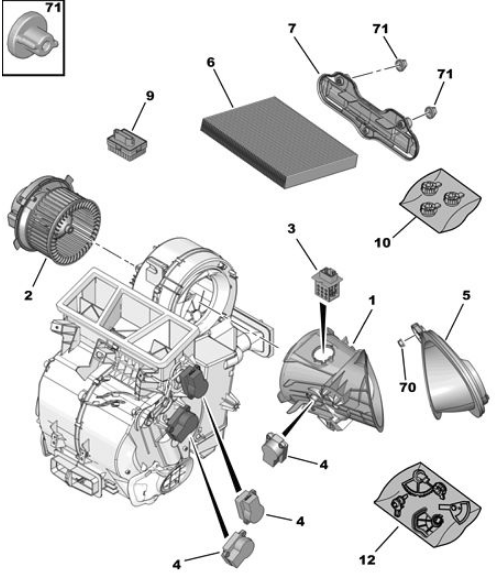

Items numbered 4
Items numbered 4
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2020)
- Posts: 145
- Joined: 12 Jul 2017, 17:40
- Location: South London
- My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van - x 23
Re: Picasso climate control air distribution
Thanks Marc. It looks like there are 3 of these stepper motors-
And its this parts view that confuses me, because it appears not to show the other motor that controls the hot/cold air mix. On top of that I have not yet been able to catch sight of these items marked 4. Maybe they are higher up and concealed by the upper facia.
And its this parts view that confuses me, because it appears not to show the other motor that controls the hot/cold air mix. On top of that I have not yet been able to catch sight of these items marked 4. Maybe they are higher up and concealed by the upper facia.
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
-
- Donor 2023
- Posts: 13743
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 3007
Re: Picasso climate control air distribution
As I see it, one motor would be for the external or recycled air option, one would be for the distribution of the air (which vents to use), while the last one would be for the management of the hot or cold levels. That doesn't mean I am right though!
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
