Good evening
I’ve got a 56 plate Xsara Picasso. Owned it for 6 years during which time it has given me very little in the way of trouble.
The week before Christmas the ABS non-function warning appeared on the dash. I’d had this once before & traces it to a faulty wheel speed sensor. Replaced it, fault cleared, happy days.
I assumed this could be a similar case.
Within a couple of days later it wouldn’t start. Battery was flat as a pancake. Charged it up over night only for it to go down again within 2 days.
Popped a new battery on but had the same again.
I’ve done a drain test but only saw a draw of about 0.03a once everything settled down.
Last week a friend with a diagbox read the faults for me.
It showed 3 wheel sensors faults (which seems rather unlikely) and something about ‘main relay fault’.
Initial thought is that a relay to the ABS is sticking on.
I’ve had a poke about under the bonnet & read through dozens of forum posts but can’t locate said relay.
Can anyone offer any advice?
Xsara Picasso ABS & battery problems
Moderator: RichardW
Re: Xsara Picasso ABS & battery problems
Does anybody ha r a pin out for the ABS plug?
There’s a multi page document of wiring diagrams hosted on a couple of sites but the pins don’t bare any resemblance to mine.
There’s a multi page document of wiring diagrams hosted on a couple of sites but the pins don’t bare any resemblance to mine.
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: Xsara Picasso ABS & battery problems
Post or PM your VIN and I'll have a look for you.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Xsara Picasso ABS & battery problems
Thanks - will do shortly
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: Xsara Picasso ABS & battery problems

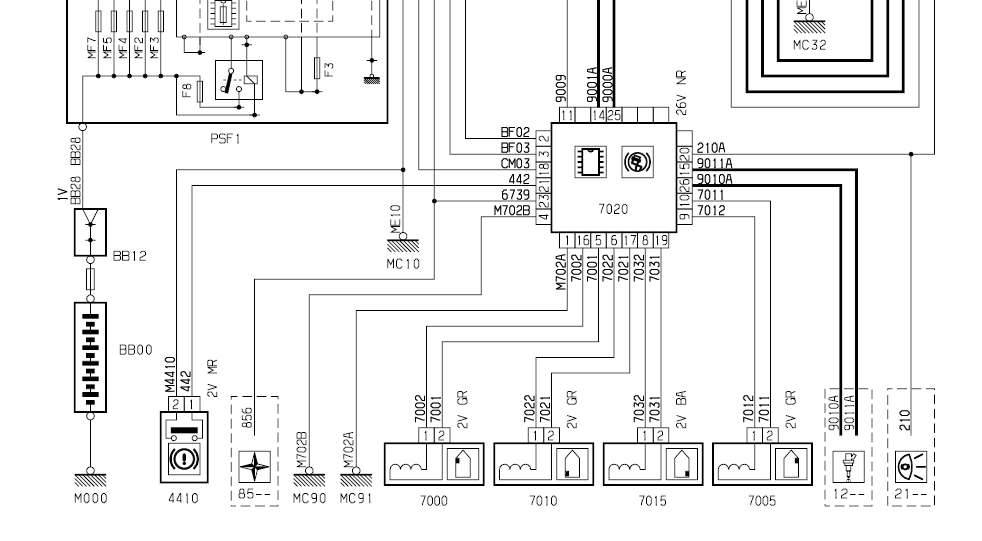

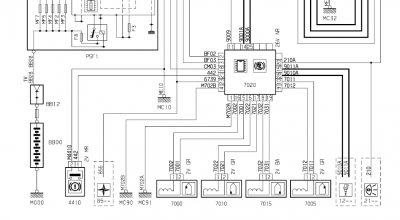

Here's the ABS block main part Matt:
Click to Zoom Diagram 11: 9009 : K4 stability control / ABS variable damping diagnostic line bus
14: 9001A : Low Intersystem / Can bus
25: 9000A : High Intersystem / Can bus
20: 210A : stoplamps control
15: 9011A : Low Intersystem 2 Can bus
26: 9010A : High Intersystem 2 Can bus
10: 7011 : Right-hand front wheel speed signal
9: 7012 : Right-hand front wheel speed signal reference
19: 7031 : Right-hand rear wheel speed signal
8: 7032 : Right-hand rear wheel speed signal reference
17: 7021 : Left-hand rear wheel speed signal
6: 7022 : Left-hand rear wheel speed signal reference
5: 7001 : Left-hand front wheel speed signal
16: 7002 : Left-hand front wheel speed signal reference
1: M702A : earth 702
4: M702B : earth 702
23: 6739 : Vehicle speed info
21: 442 : Brake fluid level info
18: CM03 : engine fuse box + after ignition output
3: BF03 (to Maxi Fuse 3)
2: BF02 : maxi-fuse output service battery positive (to Maxi Fuse 2)
Click to Zoom Diagram 11: 9009 : K4 stability control / ABS variable damping diagnostic line bus
14: 9001A : Low Intersystem / Can bus
25: 9000A : High Intersystem / Can bus
20: 210A : stoplamps control
15: 9011A : Low Intersystem 2 Can bus
26: 9010A : High Intersystem 2 Can bus
10: 7011 : Right-hand front wheel speed signal
9: 7012 : Right-hand front wheel speed signal reference
19: 7031 : Right-hand rear wheel speed signal
8: 7032 : Right-hand rear wheel speed signal reference
17: 7021 : Left-hand rear wheel speed signal
6: 7022 : Left-hand rear wheel speed signal reference
5: 7001 : Left-hand front wheel speed signal
16: 7002 : Left-hand front wheel speed signal reference
1: M702A : earth 702
4: M702B : earth 702
23: 6739 : Vehicle speed info
21: 442 : Brake fluid level info
18: CM03 : engine fuse box + after ignition output
3: BF03 (to Maxi Fuse 3)
2: BF02 : maxi-fuse output service battery positive (to Maxi Fuse 2)
Please Don't PM Me For Technical Help
Marc
Marc
Re: Xsara Picasso ABS & battery problems
Thanks very much - will get on it in the morning (and hopefully avoid the snow this time)
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: Xsara Picasso ABS & battery problems

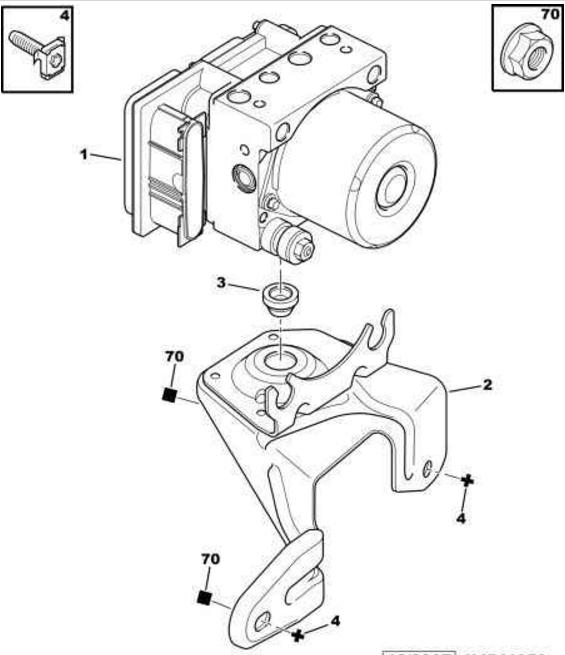

Matt - the ABS block is as below and is part number 4541 J5 for your information.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Xsara Picasso ABS & battery problems
Thanks again.
All points to the ABS module. There’s a few at local breakers albeit with slightly different part numbers but it looks like they’re cross compatible.
All points to the ABS module. There’s a few at local breakers albeit with slightly different part numbers but it looks like they’re cross compatible.
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: Xsara Picasso ABS & battery problems
You need to watch them as there are completely different versions according to equipement ABS / ESP - so be aware - always replace with the same part or you will likely have issues - they are not all the same and will have to code anything different.
