Hydraulic Hose going into sphere leaking...
Hi,

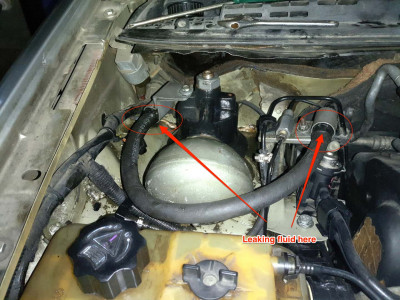

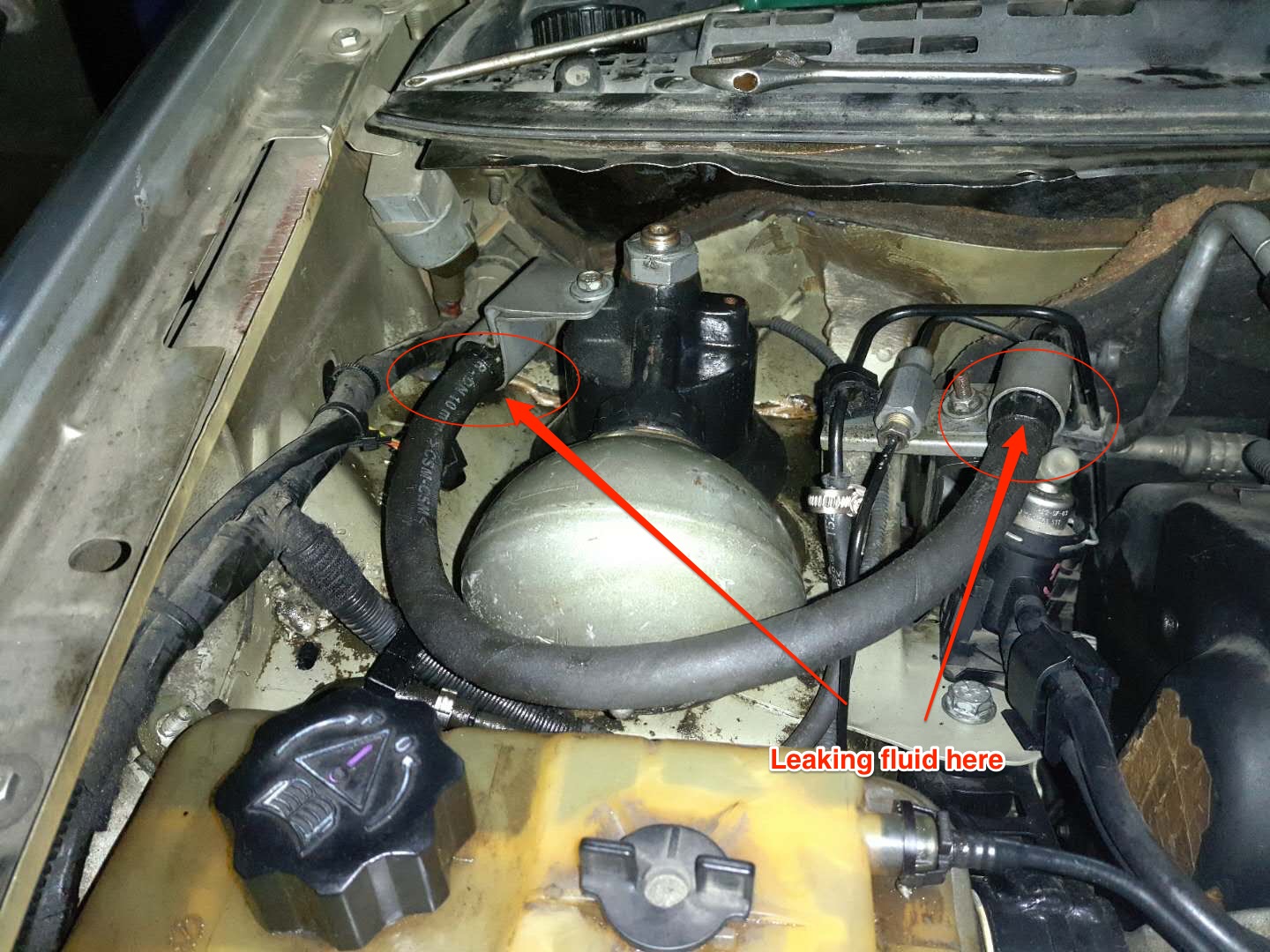

Please see attached photo of the hydraulic hose that is leaking. Beside purchasing one that is from Citroen (which is very difficult here in mainland China), have anyone repair this connection using other methods? It looks like hoses / crimp connection from a forklift. Does anyone know the connection size / thread of the hose and ends? Any suggestions is appreciated. Thank you.
Alvin
Please see attached photo of the hydraulic hose that is leaking. Beside purchasing one that is from Citroen (which is very difficult here in mainland China), have anyone repair this connection using other methods? It looks like hoses / crimp connection from a forklift. Does anyone know the connection size / thread of the hose and ends? Any suggestions is appreciated. Thank you.
Alvin
- GiveMeABreak
- Forum Admin Team
- Posts: 37300
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5711
Re: Hydraulic Hose going into sphere leaking...
Hi Alvin

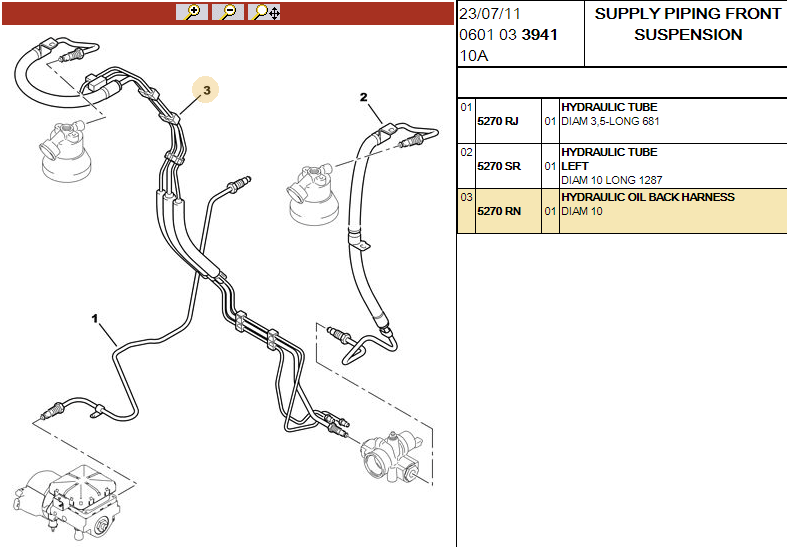

As you can see, that particular pipe (part number 3 in the diagram) officially comes as a complete back harness, unlike the opposite tube which can be bought separately.
Click to zoom Because it is part of the complete harness, it costs £403.54 inc. VAT from Citroen UK! (and is still available). As you can see from the part number (5270 RN) it is 10 mm in diameter.

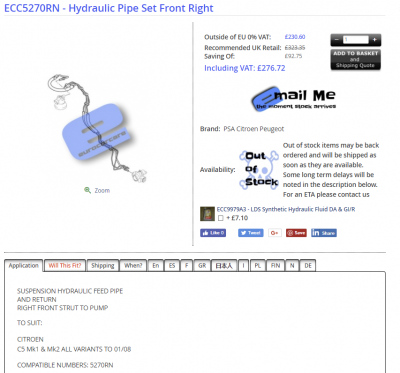

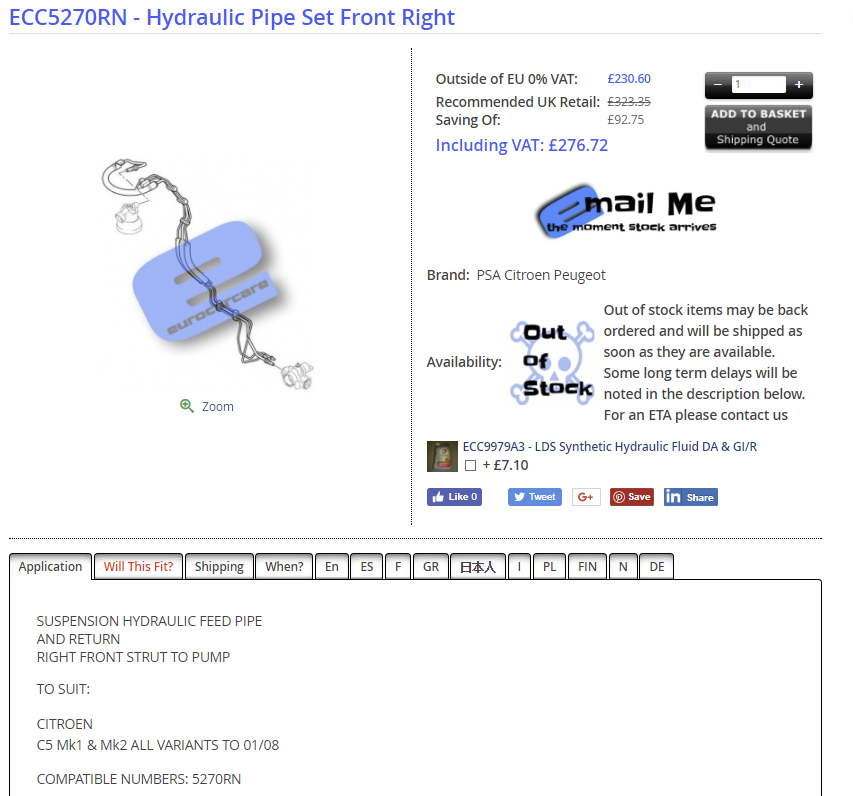

There is another supplier Eurocarcare that does a lot of Citroen suspension parts and they sell this harness for £230.60 (which is the outside Europe, VAT - free price):
http://www.eurocarcare.net/lds-hydrauli ... right.html
It is out of stock with them - but contact them for an ETA - details in the link above ^
As you can see, that particular pipe (part number 3 in the diagram) officially comes as a complete back harness, unlike the opposite tube which can be bought separately.
Click to zoom Because it is part of the complete harness, it costs £403.54 inc. VAT from Citroen UK! (and is still available). As you can see from the part number (5270 RN) it is 10 mm in diameter.
There is another supplier Eurocarcare that does a lot of Citroen suspension parts and they sell this harness for £230.60 (which is the outside Europe, VAT - free price):
http://www.eurocarcare.net/lds-hydrauli ... right.html
It is out of stock with them - but contact them for an ETA - details in the link above ^
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 109
- Joined: 16 Apr 2017, 00:10
- Location: Hong Kong
- My Cars: 2005 Citroen C5 II
- x 3
Re: Hydraulic Hose going into sphere leaking...
Marc,
I just fainted. But will continue on to purchase this part to restore this car.
Thanks you for your help.
I just fainted. But will continue on to purchase this part to restore this car.
Thanks you for your help.
- GiveMeABreak
- Forum Admin Team
- Posts: 37300
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5711
Re: Hydraulic Hose going into sphere leaking...
I’ve never needed to have this pipe replaced on previous cars so can’t say how it is assembled / joined at the leaking joints. I know you are in the former Hong Kong, so am guessing C5 part availability is scarce from breakers. Besides, if you did find one, I’m not sure how difficult a job it would be to remove and attach without contaminating!
There may be some other suppliers but whether they ship over there is another matter. Best of luck, but have you tried to get it looked at by a local hydraulic company? I was wondering if they might be able to check or redo the seal for you?
There may be some other suppliers but whether they ship over there is another matter. Best of luck, but have you tried to get it looked at by a local hydraulic company? I was wondering if they might be able to check or redo the seal for you?
Please Don't PM Me For Technical Help
Marc
Marc
-
- Moderating Team
- Posts: 11574
- Joined: 02 Apr 2005, 16:11
- Location: Charmouth,Dorset
- My Cars: Currently:
C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red
In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars. - x 1204
Re: Hydraulic Hose going into sphere leaking...
A second hand one from the breakers would be a lot cheaper.
Peter
Peter
- GiveMeABreak
- Forum Admin Team
- Posts: 37300
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5711
Re: Hydraulic Hose going into sphere leaking...
He's in Hong Kong or China as it is now Peter - spare part availability from a breakers is not like it is here unfortunately
Please Don't PM Me For Technical Help
Marc
Marc
-
- Moderating Team
- Posts: 11574
- Joined: 02 Apr 2005, 16:11
- Location: Charmouth,Dorset
- My Cars: Currently:
C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red
In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars. - x 1204
Re: Hydraulic Hose going into sphere leaking...
Ah, sorry, my comprehension is not so good nowadays.
Peter
Peter
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Hydraulic Hose going into sphere leaking...
A hydraulic specialist might be able to make up a new flexible hose for you, with a suitable compression fitting at the steel pipe end. Let them take a look at the hose and where it is fitted.
Such a fitting (and hose) needs to be able to handle up to 200bar pressure (system pressure is 150-170bar usually).
Such a fitting (and hose) needs to be able to handle up to 200bar pressure (system pressure is 150-170bar usually).
Chris
-
- Posts: 109
- Joined: 16 Apr 2017, 00:10
- Location: Hong Kong
- My Cars: 2005 Citroen C5 II
- x 3
Re: Hydraulic Hose going into sphere leaking...
I am actually working in mainland China, near Shanghai. Luckily, I do get breaker car parts that are imported from Japan into Hong Kong, then grey marketed into China. However, I do run out of luck on parts that are not left and drive compatible (My car is left hand drive). Also, pretty much most mechanic here do want to touch the C5 or C6 with hydraulic suspension. I will first try to go to a hydraulic equipment specialist to see if they have the right hose and connections, as Marc is correct, and I am afraid that it will leak again.
Can someone let me also know if there is some sort of filter / screen that is in the pump that can be cleaned out? I was hoping to flush and clean the hydraulic system when hoses are replaced.
Thanks.
Can someone let me also know if there is some sort of filter / screen that is in the pump that can be cleaned out? I was hoping to flush and clean the hydraulic system when hoses are replaced.
Thanks.
- GiveMeABreak
- Forum Admin Team
- Posts: 37300
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5711
Re: Hydraulic Hose going into sphere leaking...
Not like the older LHM systems. Prevention of any contamination is better than cure, so protect the tank and any pipes from getting any oil, dirt, grease, dust in. Always seal the ends of any pipes with a clean protective plastic bag or similar to stop anything getting in. Never reuse any recovered LDS fluid from the system. Always use new fluid.
Please Don't PM Me For Technical Help
Marc
Marc
- Sloppysod
- Donor 2024
- Posts: 996
- Joined: 23 May 2015, 23:35
- Location: North Wales
- My Cars: Citroens
1 x GS, 1 x GSX (Banger raced), 1 x GSA,
2 x CX Famililles, 1 x CX GTI,
BX, XM, Xantia, C5 Mk1,
C4 (Coupe), C4 (B7),
C5 (X7)
Renault
R4 Van
Fuego
Clio Campas - x 216
Re: Hydraulic Hose going into sphere leaking...
Hi Alvin, I had this pipe go on my Mk1 C5, I thought I would be clever and get a local hydraulic specialist to make a pipe up to replace the flex, ihe made the pipe with the correct fitting at the sphere end and supplied me with a compression union so I could join it to the pipe coming up from behind the engine. However, it worked fine for a number of months then started to weep, I think LDS is a finer oil than the pipe was designed for, so be careful.
As I did not want to pay Citroen (new) prices I got a tube from the Breakers and replaced with a lot of swearing and without removing too much.
Good luck
As I did not want to pay Citroen (new) prices I got a tube from the Breakers and replaced with a lot of swearing and without removing too much.
Good luck
Stu
"Some cause happiness wherever they go, others whenever they go"Oscar Wilde (1854-1900)
Major interventions
C5 Steering rack @ 58,000 mi
4 discs & Pads @ 63,585 mi
2 (AM6) oil exchanges @ 58,876 & 72,378 mi
"Some cause happiness wherever they go, others whenever they go"Oscar Wilde (1854-1900)
Major interventions
C5 Steering rack @ 58,000 mi
4 discs & Pads @ 63,585 mi
2 (AM6) oil exchanges @ 58,876 & 72,378 mi
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Hydraulic Hose going into sphere leaking...
Citroen fitted almost all of their high pressure hydraulic joints/unions with not only an olive for the male thread to bear down on, but a rubber sleeve that would compress as it was tightened, and compress (seal) further under the fluid pressure. Interestingly, they don't have to be tightned with huge force to provide a good seal. Standard metal-to-metal compression fittings will tend to open up under very high pressure, and go leaky.

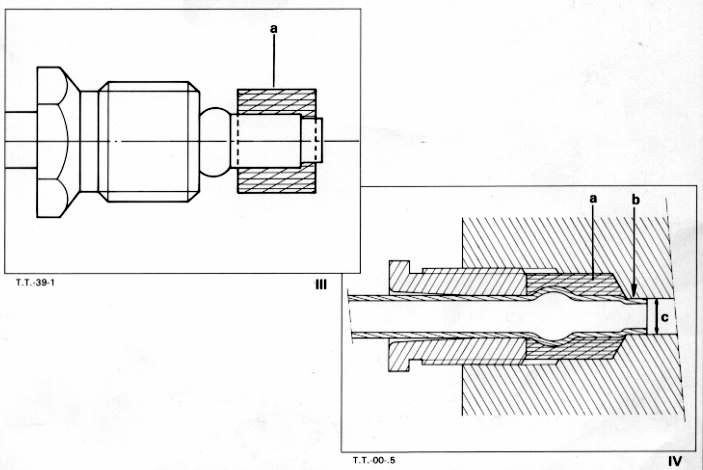

Citroen workshop manuals contain drawings of the olive-and-sleeve arrangement, which isn't complicated:
a = the compressible rubber sleeve
b & c = centralising/alignment arrangement
Diagram shows how a pipe would be connected to a threaded valve, for example.
A pipe-to-pipe connection could be made up similarly.
Citroen workshop manuals contain drawings of the olive-and-sleeve arrangement, which isn't complicated:
a = the compressible rubber sleeve
b & c = centralising/alignment arrangement
Diagram shows how a pipe would be connected to a threaded valve, for example.
A pipe-to-pipe connection could be made up similarly.
Chris
-
- Posts: 1366
- Joined: 30 Oct 2012, 22:37
- Location: Chelmsford, Essex
- My Cars: Two C5's...
Lots of CXs...
A couple of Xantia...
A C2...
Lots of Prelude's...
And a Sunny! - x 66
- Contact:
Re: Hydraulic Hose going into sphere leaking...
AlvinCitroenC5 wrote: ↑04 Jan 2018, 05:09 Also, pretty much most mechanic here do want to touch the C5 or C6 with hydraulic suspension.
That's pretty consistent all round the world
--
Iain
1x '85 CX GTi Turbo s1 (metallic blue)
2x '85 CX GTi Turbo s2 t1 (metallic silver & grey)
'88 CX GTi Turbo s2 T2 (metallic light blue)
CX DTR T2 Safari (silver)
2x '96 Xantia Activa (Black & metallic green)
'01 C5 2.0 HDi LX Estate (Blue)
Iain
1x '85 CX GTi Turbo s1 (metallic blue)
2x '85 CX GTi Turbo s2 t1 (metallic silver & grey)
'88 CX GTi Turbo s2 T2 (metallic light blue)
CX DTR T2 Safari (silver)
2x '96 Xantia Activa (Black & metallic green)
'01 C5 2.0 HDi LX Estate (Blue)
-
- Moderating Team
- Posts: 11574
- Joined: 02 Apr 2005, 16:11
- Location: Charmouth,Dorset
- My Cars: Currently:
C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red
In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars. - x 1204
Re: Hydraulic Hose going into sphere leaking...
Having driven CX's for about 10 years, XM's for 15 and C5's for to long I'm fairly familiar with their hydraulics. Compared with the electronic wizardry on modern cars its relatively simple. I suppose there just aren't enough about now to warrant mechanics training for them.
Peter
Peter
-
- Posts: 109
- Joined: 16 Apr 2017, 00:10
- Location: Hong Kong
- My Cars: 2005 Citroen C5 II
- x 3
Re: Hydraulic Hose going into sphere leaking...
As a gift to my mechanic who is a Peugeot specialist to continue to solider on to work on my vehicle (There is no true Citroen specialist where I am, as the true difference is the suspension system), I have bought him a huge amount of oil absorbing sand, shovel, broom, garbage bags, and my own garbage bin for the used oil absorbing sand. I think a pair of new steel toe shoes is warranted. It is the 3 time my hydraulic oil has dumped all over is shop floor.
