C5 x7 163 Diag
hi all, just spent an hour outside in the cold..

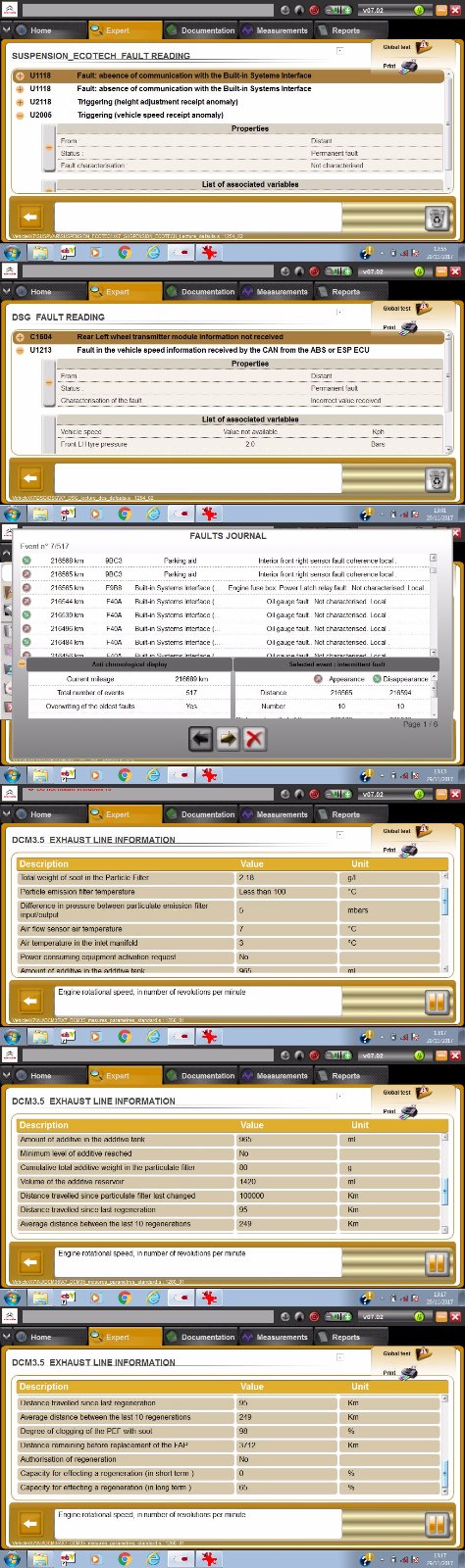

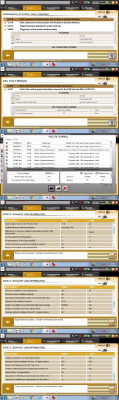

anything interesting below? The ride of the car has never quite been right to me, I have never (knowingly) experienced a re-gen, and recently I have noticed a slight misfire under slight loads, or rather a judder.. I dont know if this is engine or gearbox ....
Appreciate there are a few things at once there!
I have been using the spare wheel for a while, although now back to normal..
anything interesting below? The ride of the car has never quite been right to me, I have never (knowingly) experienced a re-gen, and recently I have noticed a slight misfire under slight loads, or rather a judder.. I dont know if this is engine or gearbox ....
Appreciate there are a few things at once there!
I have been using the spare wheel for a while, although now back to normal..
Re: C5 x7 163 Diag
I would be very impressed if you did notice the car re gening & that in my opinion is one of the biggest problems with DPF systems, you have no idea the regen is taking place which means you can interupt the process without realising which is not good. I know some manufacturers (Toyota for one) are now making you aware the regen is in progress & not to interupt it.
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: C5 x7 163 Diag
The systems work slightly differently, depending on Engine type and Engine ECU John.
The system can memorise patterns of driving for the last 5 regeneration attempts and monitors levels of soot to determine when and how regeneration occurs.
If it still doesn't succeed with regeneration, then it sends a message to the screen - 'Risk of Particle Filter Clogging':- So you will get a message if it isn't able to regenerate after several failed attempts / long periods of idling etc.
"The aim is to encourage the customer to adapt his driving to facilitate particle filter regeneration.
Within 100 kilometres after the message appears, the customer must drive for at least 3 minutes at a speed greater than 50 km/h which should cause the message to disappear.
Failure to comply with this recommendation will lead to the following fault: Clogged particle filter.
The engine management ECU informs the BSI1 which requests activation of the following components :
Ascertaining the required level of regeneration assistance
There are two types of regeneration assistance, depending on the thermal status of the exhaust line :
Level 1 regeneration assistance (cartographic maps for cold exhaust pipe and catalytic converter) (catalytic converter pre-heating, up to 250°C)
Level 2 regeneration assistance (mapping for hot exhaust line. Temperature higher than 250°C)
Level 1 regeneration assistance
When the monitoring function estimates that the soot level is considerable and that the capability of the engine to regenerate the particle filter (driving conditions, temperature, etc.) is sufficient, it requests the activation of the level 1 regeneration assistance.
When each activation request is issued, the engine management ECU carries out the following operations :
The principle is identical to the level 1 regeneration assistance, but the addition of post-injections allows the temperature of the exhaust gas to be higher.
The change from level 1 to level 2 regeneration assistance depends on the following conditions :
We sometimes forget all the technical wizardry going on under the bonnet - as for the most part customers shouldn't need to be aware of all this - as long as they act on the messages and warning provided.
The system can memorise patterns of driving for the last 5 regeneration attempts and monitors levels of soot to determine when and how regeneration occurs.
If it still doesn't succeed with regeneration, then it sends a message to the screen - 'Risk of Particle Filter Clogging':- So you will get a message if it isn't able to regenerate after several failed attempts / long periods of idling etc.
"The aim is to encourage the customer to adapt his driving to facilitate particle filter regeneration.
Within 100 kilometres after the message appears, the customer must drive for at least 3 minutes at a speed greater than 50 km/h which should cause the message to disappear.
Failure to comply with this recommendation will lead to the following fault: Clogged particle filter.
The engine management ECU informs the BSI1 which requests activation of the following components :
- Request to switch on the particle filter clogged warning light
- Request to display a message on the multifunction screen (antipollution problem)
Ascertaining the required level of regeneration assistance
There are two types of regeneration assistance, depending on the thermal status of the exhaust line :
Level 1 regeneration assistance (cartographic maps for cold exhaust pipe and catalytic converter) (catalytic converter pre-heating, up to 250°C)
Level 2 regeneration assistance (mapping for hot exhaust line. Temperature higher than 250°C)
Level 1 regeneration assistance
When the monitoring function estimates that the soot level is considerable and that the capability of the engine to regenerate the particle filter (driving conditions, temperature, etc.) is sufficient, it requests the activation of the level 1 regeneration assistance.
When each activation request is issued, the engine management ECU carries out the following operations :
- Prohibition of regulation of EGR (exhaust gas recycling)
- Request for activation of electrical consumers (Heated rear screen ; Heated mirrors ; electric cooling fan unit)
- Under-setting the main injection to increase the exhaust temperature
- Manipulation of the air mixer
The principle is identical to the level 1 regeneration assistance, but the addition of post-injections allows the temperature of the exhaust gas to be higher.
The change from level 1 to level 2 regeneration assistance depends on the following conditions :
- Exhaust temperature
- Until the temperature has reached 250°C
We sometimes forget all the technical wizardry going on under the bonnet - as for the most part customers shouldn't need to be aware of all this - as long as they act on the messages and warning provided.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2021)
- Posts: 4625
- Joined: 27 Nov 2005, 19:07
- Location: Kent / Susssex
- My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong - x 39
Re: C5 x7 163 Diag
thanks both
Wheeler, I think I just expected a regen to be something obvious, like 60mpg in 3rd for 10 minutes followed by a load of black stuff out of exhaust and a warning on the dash that a regening was taking place.. I dont know why I thought that would happen
but, it seems I have nothing to worry about when looking at the screenshots above.. the regen happens, i never get anti pollution messages, the DPF is almost full, the Eolys has a bit left to go, and all seems ok
Yes Marc, when I dismantled my spare engine, there is a lot of compliacted (to me) pipes and things on it! must be a lot happening when the engine is running.
I will concentrate a little on the other 2 issues with the screenshot.. the 4 ecotech errors, and the log showing engine bay power latch relay fault.. what ever a power latch relay is..
J
Wheeler, I think I just expected a regen to be something obvious, like 60mpg in 3rd for 10 minutes followed by a load of black stuff out of exhaust and a warning on the dash that a regening was taking place.. I dont know why I thought that would happen
but, it seems I have nothing to worry about when looking at the screenshots above.. the regen happens, i never get anti pollution messages, the DPF is almost full, the Eolys has a bit left to go, and all seems ok
Yes Marc, when I dismantled my spare engine, there is a lot of compliacted (to me) pipes and things on it! must be a lot happening when the engine is running.
I will concentrate a little on the other 2 issues with the screenshot.. the 4 ecotech errors, and the log showing engine bay power latch relay fault.. what ever a power latch relay is..
J
-
- (Donor 2021)
- Posts: 4625
- Joined: 27 Nov 2005, 19:07
- Location: Kent / Susssex
- My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong - x 39
Re: C5 x7 163 Diag
please could someone tell me what PN 352O.W1 is?
I am hoping it's a passenger side lower arm for the X7..
thankyou in advance
I am hoping it's a passenger side lower arm for the X7..
thankyou in advance
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: C5 x7 163 Diag
It's a left hand front wishbone up to RPO 11983 and for metallic sprung vehicles not Hydractive. If you want the correct part number John I'll need your VIN, as there are a load of different ones (Aluminium Subframe, Steel Subframe) and each from different years, so best check to be safe.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2021)
- Posts: 4625
- Joined: 27 Nov 2005, 19:07
- Location: Kent / Susssex
- My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong - x 39
Re: C5 x7 163 Diag
many thanks Marc, VIN 530461
Could do with PN for rear lower engine mount too
Could do with PN for rear lower engine mount too
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
-
- (Donor 2021)
- Posts: 4625
- Joined: 27 Nov 2005, 19:07
- Location: Kent / Susssex
- My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong - x 39
Re: C5 x7 163 Diag
oops
this is from the V5 Marc
VF7**************[VIN obfuscated, can be read by forum staff]
this is from the V5 Marc
VF7**************[VIN obfuscated, can be read by forum staff]
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: C5 x7 163 Diag

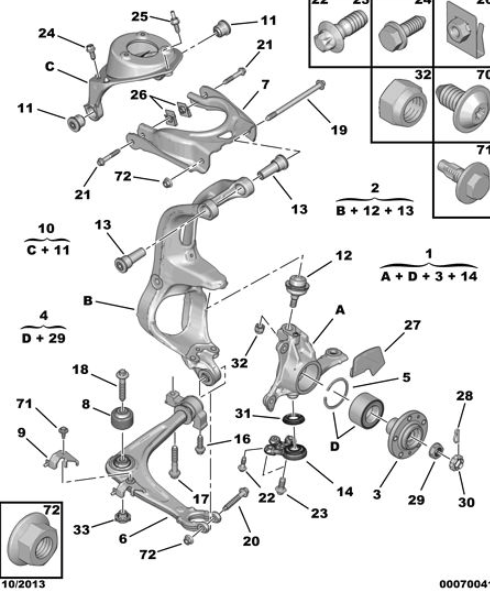

Ok so here's the wishbones,part 6:
Left: Part 3520 X6
Right: Part 3521 T7
Both 209.68 each - inclusive of VAT
Left: Part 3520 X6
Right: Part 3521 T7
Both 209.68 each - inclusive of VAT
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: C5 x7 163 Diag

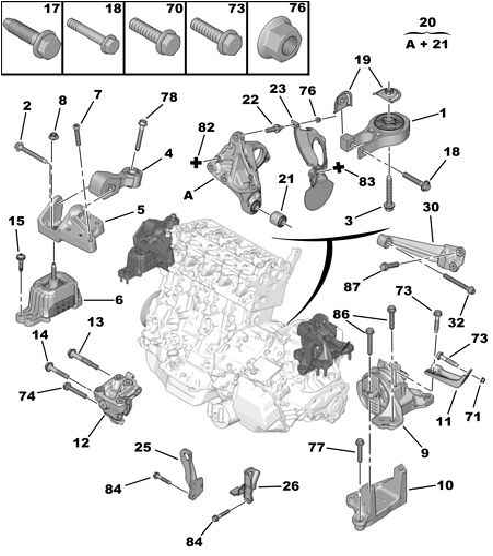

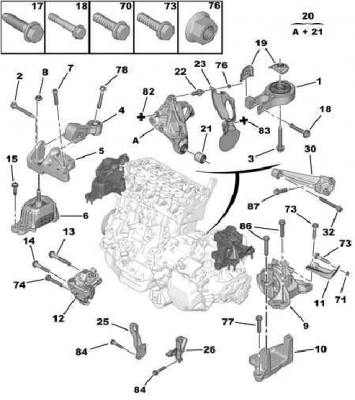

As for the engine Mount - let me know which part (s)using the identifiers from the diagram and I'll get the part numbers and prices John.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2021)
- Posts: 4625
- Joined: 27 Nov 2005, 19:07
- Location: Kent / Susssex
- My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong - x 39
Re: C5 x7 163 Diag
Many thanks Marc
the engine mount I think is this one.. it certainly looks like this
https://www.ebay.co.uk/itm/PEUGEOT-407- ... SwONBZBGCF
the engine mount I think is this one.. it certainly looks like this
https://www.ebay.co.uk/itm/PEUGEOT-407- ... SwONBZBGCF
-
- (Donor 2021)
- Posts: 4625
- Joined: 27 Nov 2005, 19:07
- Location: Kent / Susssex
- My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong - x 39
Re: C5 x7 163 Diag
good.. Mr Auto does the lower arm.. No idea why it's also listed for a pug!> but will take a punt, if it's wrong it can go back
http://www.mister-auto.co.uk/en/suspens ... 12665.html
that will do for now, I did think of just doing the bad bush (rear) but I cant be arzd
http://www.mister-auto.co.uk/en/suspens ... 12665.html
that will do for now, I did think of just doing the bad bush (rear) but I cant be arzd
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: C5 x7 163 Diag
jgra1 wrote: ↑04 Dec 2017, 14:57 Many thanks Marc
the engine mount I think is this one.. it certainly looks like this
https://www.ebay.co.uk/itm/PEUGEOT-407- ... SwONBZBGCF
And I suppose it would help if I actually included the diagram John!
If it's Number (1) it's called an 'Anti Torque Link'
If so it is part 1806 H4 and is £73.30 inc. from Citroen
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2021)
- Posts: 4625
- Joined: 27 Nov 2005, 19:07
- Location: Kent / Susssex
- My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong - x 39
Re: C5 x7 163 Diag
'And I suppose it would help if I actually included the diagram John! '
I did wonder
yes that's him.. oops of course an anti torque link! used to be (may be still is) up on the right of the engine on earlier C5's and Xant v6's maybe.. anyway, the engine rocks more than I would like and that part looks pants
have seen that part number on listings..
I did wonder
yes that's him.. oops of course an anti torque link! used to be (may be still is) up on the right of the engine on earlier C5's and Xant v6's maybe.. anyway, the engine rocks more than I would like and that part looks pants
have seen that part number on listings..
