C5 x7 - Under tray bolts - what goes where!

[Garysz]

Have done first oil change on, the new to me Citroen C5 2008 x7. Alarmingly found that the undertray had only 3 bolts holding it on, so ordered a full set, which arrived today with a variety of bolts, clips and fixings. However have no diagram as to what bolts go where. Has anyone a diagram they might share or even a written description.

Thanks in advance

[citroenguy]

What engine is it?
Or Pm me the VIN and i'll get a piccy for the specific car.

[bobins]

This should make it as clear as mud

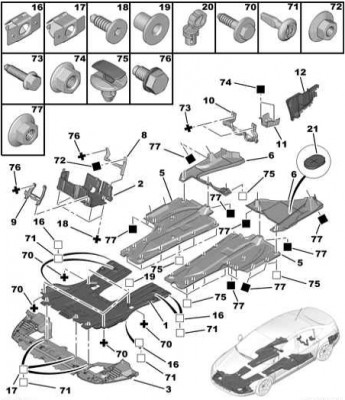

Undertray - Fair use (PSA)

[Garysz]

The car is a 2.0hdi 138.

Excellent. Just what I was looking for. Thanks very much.

Hopefully it will not rain this weekend, not much fun laying on your back under a car in the cold wet and dark!
