Citroen c5 x7 front break pad sensor
Moderator: RichardW
Citroen c5 x7 front break pad sensor
Helo my frends o have one question. I have Citroen c5 x7 2012 BL562351 and i went to change front break pada and mz dealer said that in my car is missing installation for sensors for break pad is that possible that my car doesnt have that instalation and if can somone send mi the diagram and part number of that instalation thanks.
- GiveMeABreak
- Forum Admin Team
- Posts: 37433
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: Citroen c5 x7 front break pad sensor

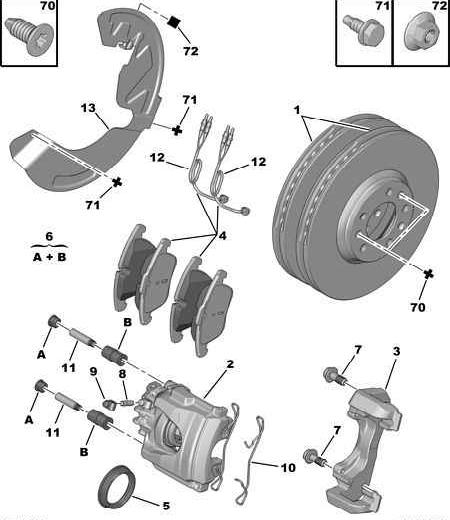

The Brake pad wear harness is available as a separate part (number 12 in the diagram). It is likely that the harness has either been snipped off or removed by somebody as according to your VIN, the harness was fitted to your vehicle.
It is part number 4433 03 and in the UK costs £17.69 (Excluding VAT)
It is part number 4433 03 and in the UK costs £17.69 (Excluding VAT)
Please Don't PM Me For Technical Help
Marc
Marc
- bobins
- Donor 2023
- Posts: 5743
- Joined: 05 Jul 2012, 18:07
- Location: Midhurst, West Sussex
- My Cars: Kia Sportage
Mazda BT-50
Land Rover SIII SWB
V-F-R800
SL320
MX5 - x 2895
Re: Citroen c5 x7 front break pad sensor
On my C5 the connectors for the front brake pad sensors are only fitted on the left hand side of the car. I think the genuine Citroen replacement pads come with enough leads (number 12 in picture above) to connect up both left and right sides of the cars, but these pads are used in a lot of different models of cars (Peugeot, Citroen and others) and some of them will have connectors on both sides of the car. Check both sides of your car to see if there are two small connectors to plug in the leads as they may only be present on one side.
Sadly no longer a C5 owner
- GiveMeABreak
- Forum Admin Team
- Posts: 37433
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: Citroen c5 x7 front break pad sensor
Yes, I've checked on the wiring diagrams and 'goggi10' only has a left hand brake wear indicator. I suspect this is because he has the manual handbrake with standard metallic suspension.

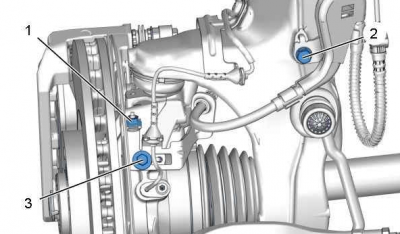

My car has it on both sides as denoted by the wiring diagram:
My car has it on both sides as denoted by the wiring diagram:
Please Don't PM Me For Technical Help
Marc
Marc
Re: Citroen c5 x7 front break pad sensor
Thanks guys but i cant locate the jack where i can plug wire from pad. Can you send me a picture were is it
- GiveMeABreak
- Forum Admin Team
- Posts: 37433
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: Citroen c5 x7 front break pad sensor

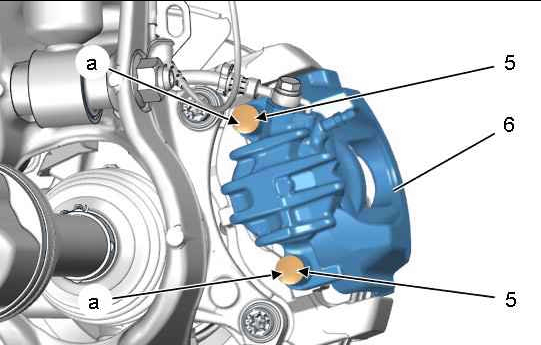

Here you go:

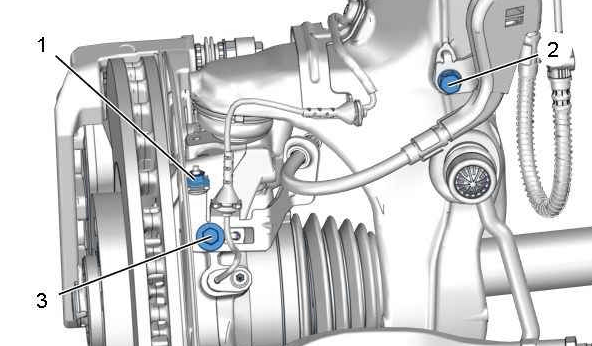

From the other side:
From the other side:
Please Don't PM Me For Technical Help
Marc
Marc
- bobins
- Donor 2023
- Posts: 5743
- Joined: 05 Jul 2012, 18:07
- Location: Midhurst, West Sussex
- My Cars: Kia Sportage
Mazda BT-50
Land Rover SIII SWB
V-F-R800
SL320
MX5 - x 2895
Re: Citroen c5 x7 front break pad sensor

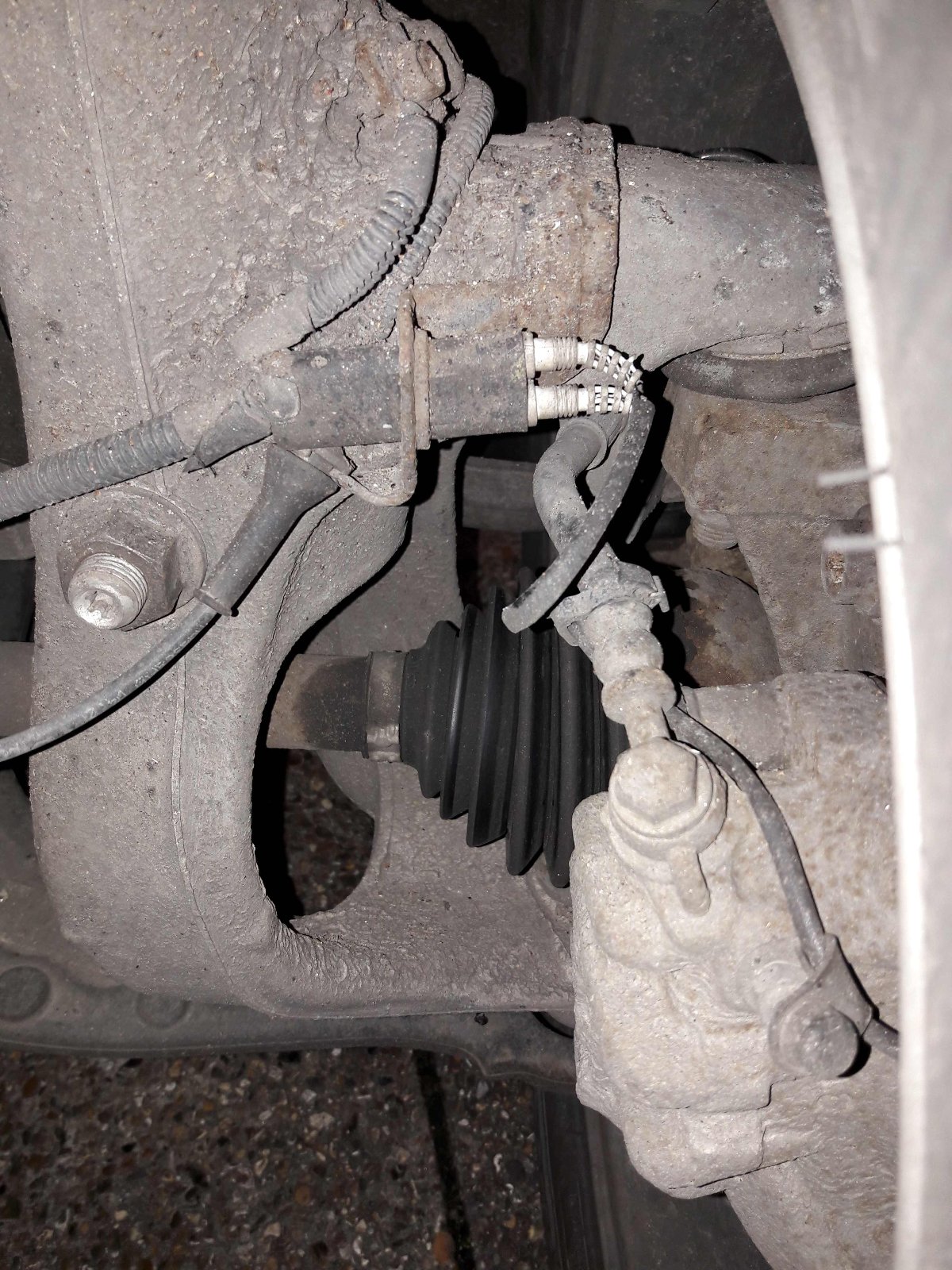

This is taken from my 2009 C5. The photo is taken from in front of and above the front left hand wheel / suspension. The two white connectors are the warning wires - they are one end of item 12 in the previous parts diagram Givemeabreak posted up. They might be missing on yours, or they might be a different colour. If the 2 hole black rubber socket that they push into isn't attached to your car then you probably haven't got the brake warning wiring fitted.
