Xantia steering rack seal

Post by xantos »

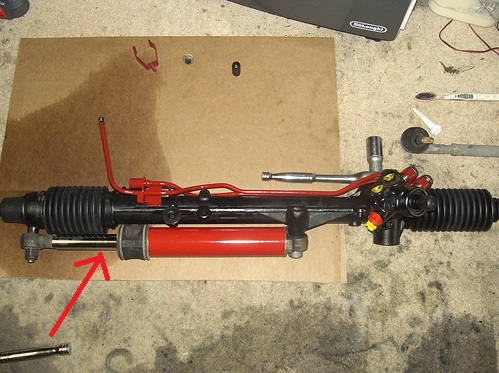

Does anybody know the dimension of oil seal on steering rack? Not the gaitor used from XM (shown in the picture) but the one that prevents oil leakage from cylinder that is arrow pointed (like driveshaft seals...).


Mine is weeping and I would like to change it.

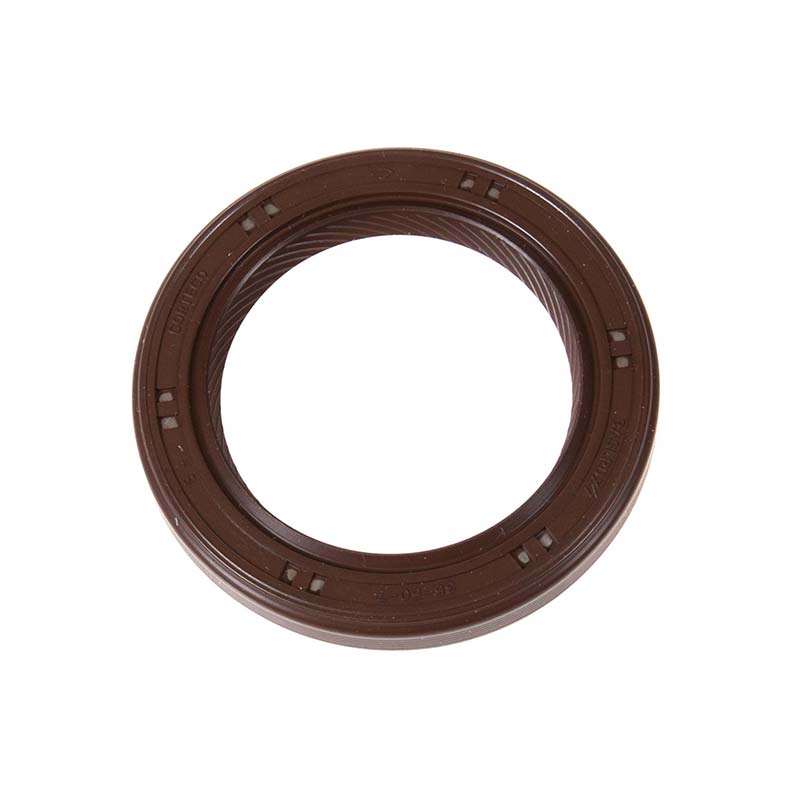

The seal looks like this...

Xantia Break 1.9TD (jammed b****!)
Xantia Activa 2.0 TCT + LPG (1998) (peeing b****!) RIP
Xantia Activa 2.0 TCT (1998) (burnt b****!)
Xantia Activa 3.0 V6 (1998) (not a b****! yet :-D )
C4 Exclusive 2.0 HDi (gear shifting b****!)
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Xantia steering rack seal

Post by GiveMeABreak »

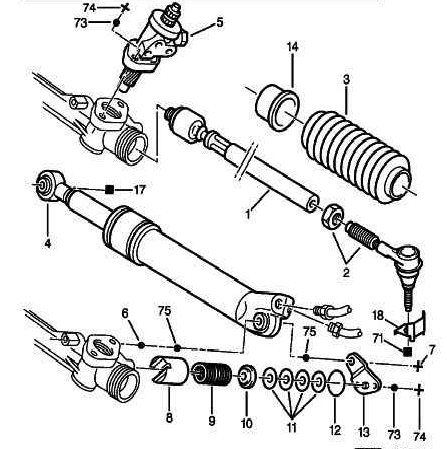

What part on the diagram? and what is your VIN?
Xantia Rack Parts.PNG
Please Don't PM Me For Technical Help

Marc
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Xantia steering rack seal

Post by GiveMeABreak »

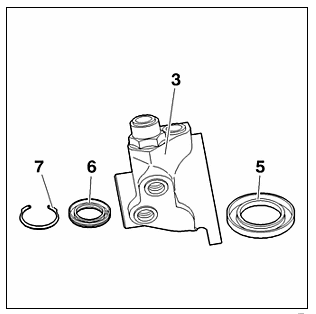

The only 'lipped seals' I can see is in the steering pinion valve (5 & 6):
Xantia Lipped Seal.PNG
Please Don't PM Me For Technical Help

Marc
User avatar
xantos
Posts: 409
Joined: 02 Apr 2013, 10:05
Location: Slovenia
My Cars: Xantia 1.9TD Break non-hydractive (1999)
Xantia 3.0 V6 Activa (1998)
C4 2.0 HDi Exclusive Mk2 (2010)
x 10

Re: Xantia steering rack seal

Post by xantos »

Part not shown in the picture...

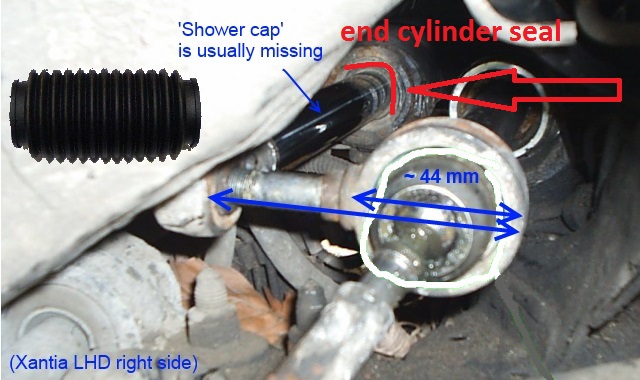

It's this little bugger (end cylinder seal)...

Xantia Break 1.9TD (jammed b****!)
Xantia Activa 2.0 TCT + LPG (1998) (peeing b****!) RIP
Xantia Activa 2.0 TCT (1998) (burnt b****!)
Xantia Activa 3.0 V6 (1998) (not a b****! yet :-D )
C4 Exclusive 2.0 HDi (gear shifting b****!)
Online
User avatar
CitroJim
A very naughty boy
Posts: 49532
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Xantia steering rack seal

Post by CitroJim »

Xantos, just measure the old one and buy a generic replacement from the many vendors of oil seals on the Internet... The seal will be nothing special.
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Xantia steering rack seal

Post by GiveMeABreak »

Sounds like Jim's suggestion is the way to go, as I can't see the seal listed anywhere - and without a reference, it could be one of many on the general seals catalogue.

The whole Cylinder part (if it is 4005 A2 - and I would have to check from your VIN) is still available @ £229 excluding VAT in the UK - but if 4005 A1 - that is not NFP.
Please Don't PM Me For Technical Help

Marc
Online
User avatar
CitroJim
A very naughty boy
Posts: 49532
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Xantia steering rack seal

Post by CitroJim »

I believe the complete cylinder remains available as it was used over quite a wide range of PSA vehicles and still may be..
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Xantia steering rack seal

Post by GiveMeABreak »

Yes Jim, but available in a few flavours / sizes depending on RPO according to service.
Please Don't PM Me For Technical Help

Marc
User avatar
xantos
Posts: 409
Joined: 02 Apr 2013, 10:05
Location: Slovenia
My Cars: Xantia 1.9TD Break non-hydractive (1999)
Xantia 3.0 V6 Activa (1998)
C4 2.0 HDi Exclusive Mk2 (2010)
x 10

Re: Xantia steering rack seal

Post by xantos »

CitroJim wrote: 25 Oct 2017, 12:06 Xantos, just measure the old one and buy a generic replacement from the many vendors of oil seals on the Internet... The seal will be nothing special.


Agreed, but it's hard to measure without getting all messy :-D

I thought that maybe someone would know and I can order the part and when changing it get messy just once :roll:

Not that I don't like getting messy.

Messi Messi Messi... God Lord am getting bonkers from all that Citroen sh**. :rofl2:

Xantia Break 1.9TD (jammed b****!)
Xantia Activa 2.0 TCT + LPG (1998) (peeing b****!) RIP
Xantia Activa 2.0 TCT (1998) (burnt b****!)
Xantia Activa 3.0 V6 (1998) (not a b****! yet :-D )
C4 Exclusive 2.0 HDi (gear shifting b****!)
Online
User avatar
CitroJim
A very naughty boy
Posts: 49532
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Xantia steering rack seal

Post by CitroJim »

xantos wrote: 25 Oct 2017, 13:39
I thought that maybe someone would know and I can order the part and when changing it get messy just once :roll:

Not that I don't like getting messy.


:lol:

It's a fact of life Xantos - to fix cars successfully one must first get messy ;) :twisted: :lol:
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
xantos
Posts: 409
Joined: 02 Apr 2013, 10:05
Location: Slovenia
My Cars: Xantia 1.9TD Break non-hydractive (1999)
Xantia 3.0 V6 Activa (1998)
C4 2.0 HDi Exclusive Mk2 (2010)
x 10

Re: Xantia steering rack seal

Post by xantos »

CitroJim wrote: 25 Oct 2017, 15:16 :lol:

It's a fact of life Xantos - to fix cars successfully one must first get messy ;) :twisted: :lol:


Yeah I know I know. I just thought I might get away this time (maybe I still will (nah)). Ahhh the joy of Citroen ownership. No shortcuts :-D
Xantia Break 1.9TD (jammed b****!)
Xantia Activa 2.0 TCT + LPG (1998) (peeing b****!) RIP
Xantia Activa 2.0 TCT (1998) (burnt b****!)
Xantia Activa 3.0 V6 (1998) (not a b****! yet :-D )
C4 Exclusive 2.0 HDi (gear shifting b****!)
Online
User avatar
CitroJim
A very naughty boy
Posts: 49532
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Xantia steering rack seal

Post by CitroJim »

xantos wrote: 25 Oct 2017, 15:42
CitroJim wrote: 25 Oct 2017, 15:16 :lol:

It's a fact of life Xantos - to fix cars successfully one must first get messy ;) :twisted: :lol:


Yeah I know I know. I just thought I might get away this time (maybe I still will (nah)). Ahhh the joy of Citroen ownership. No shortcuts :-D


Sadly not :( I keep hoping to get away with it every time but it never happens... As you say, the joys of Citroen ownership :twisted:

It's all part of the fun :wink: :roll: :)
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
xantos
Posts: 409
Joined: 02 Apr 2013, 10:05
Location: Slovenia
My Cars: Xantia 1.9TD Break non-hydractive (1999)
Xantia 3.0 V6 Activa (1998)
C4 2.0 HDi Exclusive Mk2 (2010)
x 10

Re: Xantia steering rack seal

Post by xantos »

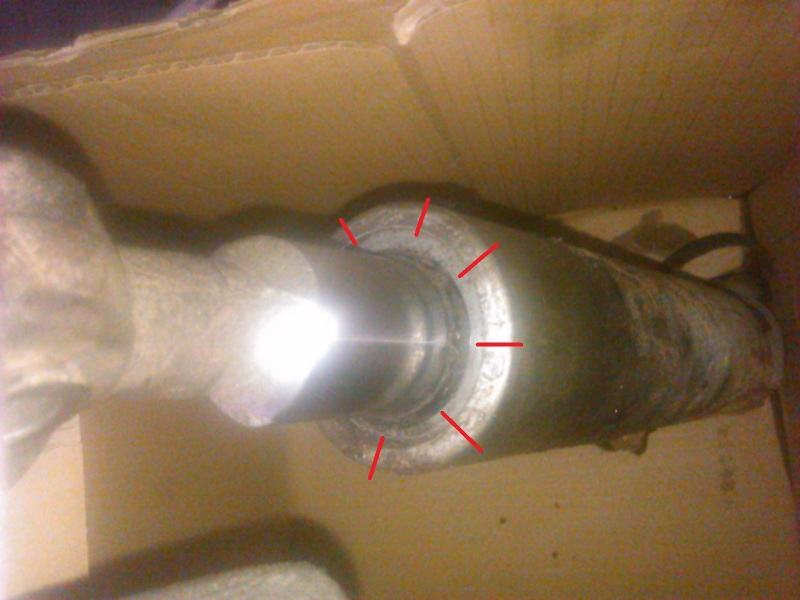

Today I dismantled steering cylinder from a used steering rack that I have on stock (from TCT Activa). The first thin I noticed is that it is thicker than mine. About 28mm in diameter and mine is 24mm (1.9 TD non-hydractive).

But what I try to say is fu**** Citroen engineers. Look what those bas**** did. :evil: The seal is not changeable without cutting into the cylinder. The same thing as with activa sc.car cylinders... Oh well did try to cut corners that someone would know the dimensions of seal, but now I have another corner in front. Ahhh the joy! :-D

Xantia Break 1.9TD (jammed b****!)
Xantia Activa 2.0 TCT + LPG (1998) (peeing b****!) RIP
Xantia Activa 2.0 TCT (1998) (burnt b****!)
Xantia Activa 3.0 V6 (1998) (not a b****! yet :-D )
C4 Exclusive 2.0 HDi (gear shifting b****!)
Online
User avatar
CitroJim
A very naughty boy
Posts: 49532
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Xantia steering rack seal

Post by CitroJim »

Xantos, all I can say is :evil: and :(
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
xantos
Posts: 409
Joined: 02 Apr 2013, 10:05
Location: Slovenia
My Cars: Xantia 1.9TD Break non-hydractive (1999)
Xantia 3.0 V6 Activa (1998)
C4 2.0 HDi Exclusive Mk2 (2010)
x 10

Re: Xantia steering rack seal

Post by xantos »

Was thinking... If I cut the strut carefully where it is shown in the picture, open it like a can, replace seal and then tap back the material do you think I would get away with it? 8-[
