Can someone let me know what each maxi-fuse location does. I am having trouble finding what each location connects.
My radiator fan is currently not working, thus, before removing a melted fuse there I want to ensure I know what fuse location does what.
Thank you.
Maxi Fuse, each unit's function
Moderator: RichardW
-
AlvinCitroenC5
- Posts: 109
- Joined: 16 Apr 2017, 00:10
- Location: Hong Kong
- My Cars: 2005 Citroen C5 II
- x 3
Maxi Fuse, each unit's function
- Attachments
-
-
wurlycorner
- Posts: 1366
- Joined: 30 Oct 2012, 22:37
- Location: Chelmsford, Essex
- My Cars: Two C5's...
Lots of CXs...
A couple of Xantia...
A C2...
Lots of Prelude's...
And a Sunny! - x 66
- Contact:
Re: Maxi Fuse, each unit's function

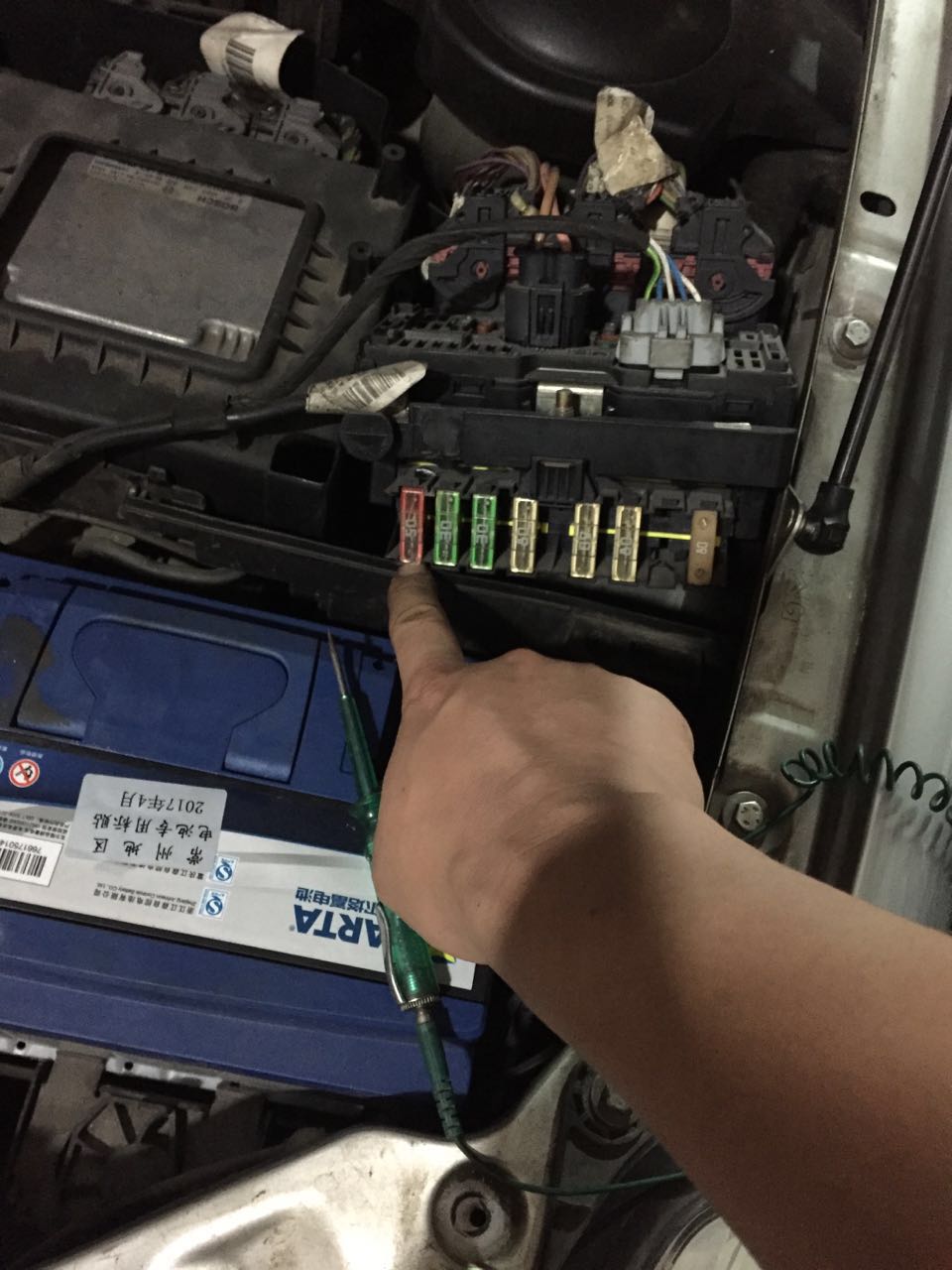

MF1 (the 50amp fuse on the furthest left - the one you are pointing at in that pic) is the radiator fuse.
If that fuse has blown, before you replace it, check that the fan isn't seized/turns freely - it's quite a common problem on these, as they get older.
Also check for corrosion on the plugs/relay connectors inside the black plastic box to the right hand side of the radiator fan (when viewed from in front of the car)
If that fuse has blown, before you replace it, check that the fan isn't seized/turns freely - it's quite a common problem on these, as they get older.
Also check for corrosion on the plugs/relay connectors inside the black plastic box to the right hand side of the radiator fan (when viewed from in front of the car)
--
Iain
1x '85 CX GTi Turbo s1 (metallic blue)
2x '85 CX GTi Turbo s2 t1 (metallic silver & grey)
'88 CX GTi Turbo s2 T2 (metallic light blue)
CX DTR T2 Safari (silver)
2x '96 Xantia Activa (Black & metallic green)
'01 C5 2.0 HDi LX Estate (Blue)
Iain
1x '85 CX GTi Turbo s1 (metallic blue)
2x '85 CX GTi Turbo s2 t1 (metallic silver & grey)
'88 CX GTi Turbo s2 T2 (metallic light blue)
CX DTR T2 Safari (silver)
2x '96 Xantia Activa (Black & metallic green)
'01 C5 2.0 HDi LX Estate (Blue)
-
AlvinCitroenC5
- Posts: 109
- Joined: 16 Apr 2017, 00:10
- Location: Hong Kong
- My Cars: 2005 Citroen C5 II
- x 3
Re: Maxi Fuse, each unit's function
Thank you. Would anyone enlighten me what the other fuses does? Thanks.
-
myglaren
- Forum Admin Team
- Posts: 25450
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4917
Re: Maxi Fuse, each unit's function
I have just had mine out - bought a new 40A fuse as I was under the impression that this was the value for the radiator fan.
I should have one here as I bought a spare when fitting the electric seats but couldn't find it, wanted one on hand before disconnecting the battery.
I have no idea which does what unfortunately.
While the battery was disconnected checked every fuse in the car as the front fag lighter socket died a few weeks ago (load of small screws fell into it.
All fuses were intact and now the glovebox light works again but fag lighter still dead.
Lost the actual fag lighter years ago and only use it for the satnav and USB phone charger/temperature and voltage display.
I should have one here as I bought a spare when fitting the electric seats but couldn't find it, wanted one on hand before disconnecting the battery.
I have no idea which does what unfortunately.
While the battery was disconnected checked every fuse in the car as the front fag lighter socket died a few weeks ago (load of small screws fell into it.
All fuses were intact and now the glovebox light works again but fag lighter still dead.
Lost the actual fag lighter years ago and only use it for the satnav and USB phone charger/temperature and voltage display.
Re: Maxi Fuse, each unit's function

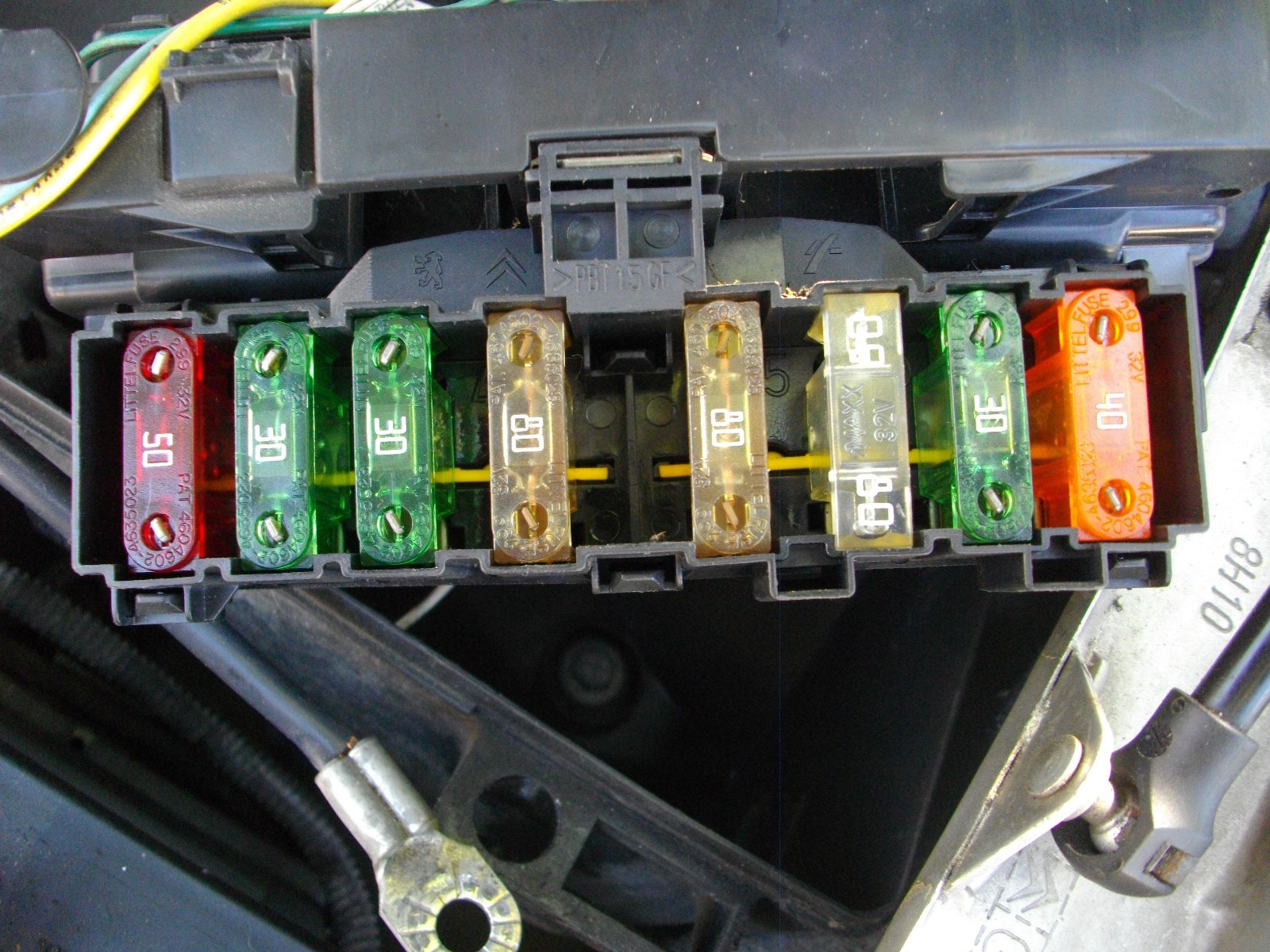

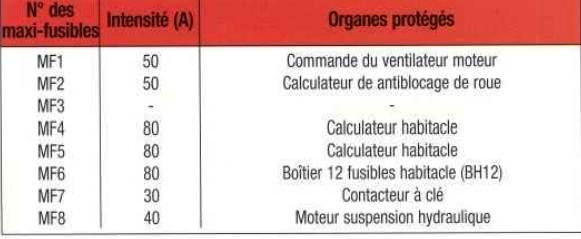

MF1 Engine cooling fan 50 Amps.
MF2 ABS brake calculator 50 Amps.
MF4 Interior 80 Amps.
MF5 Interior 80 Amps.
MF6 Interior fuse box 80 Amps.
MF7 Ignition switch 30 Amps.
MF8 Suspension pump 40 Amps.
http://i132.photobucket.com/albums/q23/ ... fuse_8.jpg
http://i132.photobucket.com/albums/q23/ ... _fuses.jpg
MF2 ABS brake calculator 50 Amps.
MF4 Interior 80 Amps.
MF5 Interior 80 Amps.
MF6 Interior fuse box 80 Amps.
MF7 Ignition switch 30 Amps.
MF8 Suspension pump 40 Amps.
http://i132.photobucket.com/albums/q23/ ... fuse_8.jpg
http://i132.photobucket.com/albums/q23/ ... _fuses.jpg
Last edited by Clogzz on 05 Jul 2017, 03:01, edited 2 times in total.
2002 C5 2.0i AL4 230,000 km 76372389
-
AlvinCitroenC5
- Posts: 109
- Joined: 16 Apr 2017, 00:10
- Location: Hong Kong
- My Cars: 2005 Citroen C5 II
- x 3
Re: Maxi Fuse, each unit's function
Much appreciate the explanation. However, notice that on my car's fuse box, there is no fuse in the ignition spot, but my engine did run. Is there a difference between my car and yours? I find that my car was worked on by a butcher before, so if this is not proper, I rather thanks the time to re wire the car properly. Thanks.
-
myglaren
- Forum Admin Team
- Posts: 25450
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4917
Re: Maxi Fuse, each unit's function
Odd that mine has a fuse in position 3.
I have only inserted the two fuses for the electric seats - MF4 & MF5. The rest are as they came with the car.
I have only inserted the two fuses for the electric seats - MF4 & MF5. The rest are as they came with the car.
