C-matic gearbox challenge

Post by odedn »

Hi,
Recently I decided to convert my GSA 1981 to C-matic as it was years ago.
I got gearbox out of GSA 1983 which included parking lock gear which is different from earlier models.
I found out that it is hard to find litrature or photos on C-matic gearbox, especially regarding G type.
Strange question ;

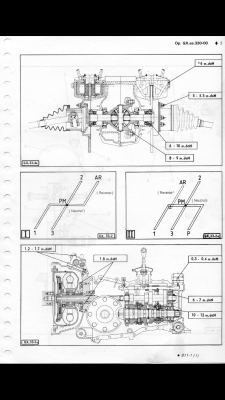

The gear shifter/selector movements with my gearbox does not Mach any of both schems shown below.
All photos shows parking lock stage with the left shaft backwords.
According to the book manuel, the parking lock gear achieved by moving the shifter to the right and backwords....but mine is achieved by moving it to the right and forward. The first gear and reverse gear are the same as shown at 2 scheme.
I wonder if it is a mistake...or we are facing some kind of self evolution...
Attachments

User avatar
Stonehopper
Posts: 259
Joined: 24 Feb 2012, 17:10
x 30

Re: C-matic gearbox challenge

Post by Stonehopper »

Are you compensating for the fact that moving the gear lever in the car forward or backward, moves the gear lever on the gearbox the opposite way? I know this is the situation with the manual gearbox, but only assume it is the same with the C-matic.

odedn
Posts: 26
Joined: 10 Apr 2015, 06:21
x 1

Re: C-matic gearbox challenge

Post by odedn »

Thank you Derek.

Is anyone have Gs/Gsa C-matic ?
I would like to have photos of the components in the car and share knowledge.

Thanks

odedn
Posts: 26
Joined: 10 Apr 2015, 06:21
x 1

Re: C-matic gearbox challenge

Post by odedn »

Hi,
The shifter was stuck.
Plastic part is broken. That part control the reverse switch lights.
I am looking for this part used or new, if anyone can assist.
Thanks,
Attachments

User avatar
Stickyfinger
Donor 2016
Posts: 10005
Joined: 28 Mar 2013, 22:05
x 732

Re: C-matic gearbox challenge

Post by Stickyfinger »

Get that 3D printed, there are many people who can do that for you quite cheaply.

User avatar
xantia_v6
Forum Admin Team
Posts: 7219
Joined: 09 Nov 2005, 23:03
x 375

Re: C-matic gearbox challenge

Post by xantia_v6 »

Would a 3D printed part have the temperature/oil resistance needed?

odedn
Posts: 26
Joined: 10 Apr 2015, 06:21
x 1

Re: C-matic gearbox challenge

Post by odedn »

Hi
I already considered that idea and got the same impression that plastics that used with 3d are not fit high temperature invayerment.
The Cmatic gearbox comes with radiator to cool the fluids.
Another option is to shape it by CNC and by hand. Complex part.
Or maybe to give up and implement a reverse switch manualy.
I believe that new part is not achievable. But maybe someone has in his back yard unused old tackle gearbox...

User avatar
white exec
Moderating Team
Posts: 5876
Joined: 21 Dec 2015, 13:46
x 960

Re: C-matic gearbox challenge

Post by white exec »

If re-creating that part is not an option, and its only function is to actuate the reverse light switch, would it be possible to start with a clean sheet, and fit a switch to another part of the shift/gearlever mechanism, which would operate when R was selected?

User avatar
Stickyfinger
Donor 2016
Posts: 10005
Joined: 28 Mar 2013, 22:05
x 732

Re: C-matic gearbox challenge

Post by Stickyfinger »

If not 3D printed, then if you have all the parts of the piece, get it milled out of nylon....any good machine shop can "pantograph" a flat part like that very quickly.
