2010 C5, pre heat remote?

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
Quackers
Posts: 399
Joined: 11 Nov 2005, 12:58
Location: Staffordshire, Newcastle Under Lyme
My Cars: 2010 Citroen C5 3.0 V6 Exclusive + Navi
2009 Citroen C6 2.7 V6 Exclusive + Lounge Pack
2007 Citroen C5 2.2 (173) Exclusive + Navi
2000 Citroen Xantia Activa
x 17

2010 C5, pre heat remote?

Post by Quackers »

Just picked up my new car, a C5 3.0 V6 Exclusive + Navi and reading through the handbook it says you can get the car to pre heat so as soon as i start it there should be toasty air coming out the vents, great for those winter mornings. Now i have looked everywhere and there is no remote hiding in the car, so before i go to Citroen and try to order a replacement, is this something thats standard on the Exclusive or is it an option pack? The manual does not say anything about it being an option.

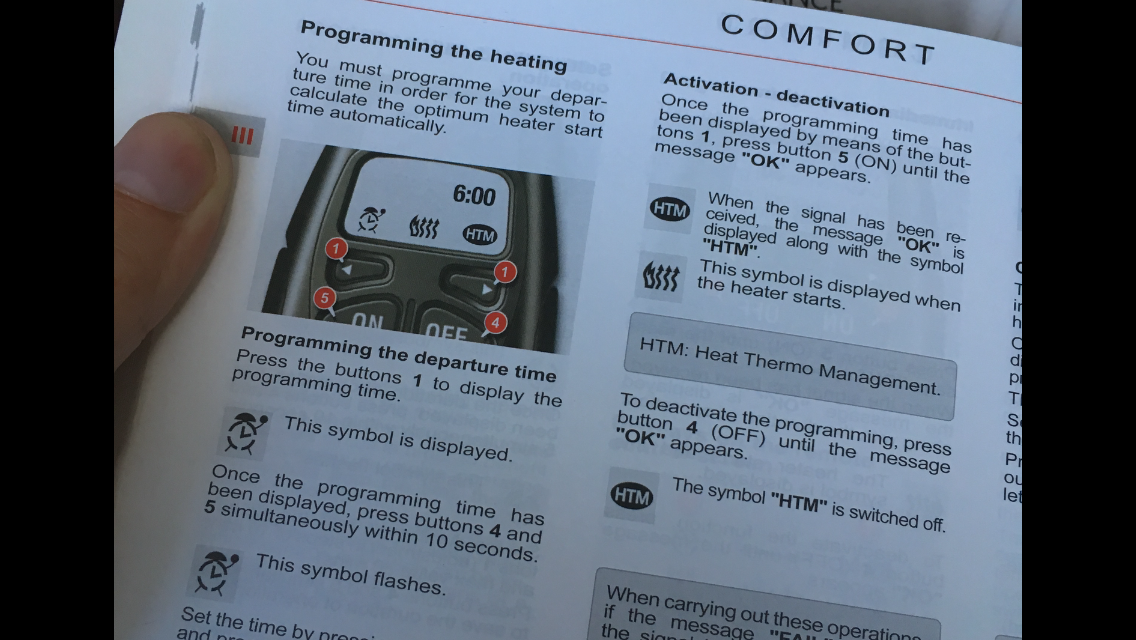

Here is a pic of what i'm talking about.
wheeler
Posts: 6835
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 715

Re: 2010 C5, pre heat remote?

Post by wheeler »

Normally only an option in colder countries like the scandinavian countries,
Xantippa
Posts: 490
Joined: 05 Feb 2012, 15:51
Location: Finland
My Cars: Now:
C5 X7 HDi 240 Exclusive Tourer
ZOE 22kwh Intense
Before:
C4 1,6 Coupe Automatic
C5 X7 HDi136 Exclusive Sedan A
Xantia HDi110 Berline
Xantia 1,8SX Berline
x 28

Re: 2010 C5, pre heat remote?

Post by Xantippa »

Additional heater comes as standard at least in Finland. On first C5 X7 it didn't have clock or remote, and it did only work when motor running, but remote/clock with pre-heating became standard around 2010.

At least in Germany some cars do have additional heater, so it has been an option you can order when buying new car.
wheeler
Posts: 6835
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 715

Re: 2010 C5, pre heat remote?

Post by wheeler »

Yes quite a few of the models come with the additional webasto heater. Xantias, C8, Synergie & C5 etc but ive never seen a UK spec one with the remote control or progamable timer. They normally just run automatically when the engine is on & the outside temperature is very low.
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: 2010 C5, pre heat remote?

Post by white exec »

In the UK (maybe elsewhere) SFAIR it is illegal to have/leave a vehicle engine running while unattended, so a simple remote or timed engine start would not be legal.

Do any cars still have mains-powered block heaters fitted? Rover P6 had the facility for this (threaded plug in the block). There was also the 3kW Kenlowe HotStart, I remember.
Chris
elma
Posts: 3745
Joined: 13 May 2007, 02:17
Location: United Kingdom
My Cars: Undisclosed
x 287

Re: 2010 C5, pre heat remote?

Post by elma »

Not sure that's the case. A friend had a BMW that came with all of that stuff. It was a uk model and he bought it new. We used to be quite envious in winter as we all left work and he had the only warm car.
Maybe this is why American BMWs keep catching fire!
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: 2010 C5, pre heat remote?

Post by Harlequin »

It only starts the webasto on newer cars , whereas on older xantia and synergie HDi it needed the engine running iirc
Simon
wheeler
Posts: 6835
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 715

Re: 2010 C5, pre heat remote?

Post by wheeler »

white exec wrote:In the UK (maybe elsewhere) SFAIR it is illegal to have/leave a vehicle engine running while unattended, so a simple remote or timed engine start would not be legal.

The webasto heaters (with the right kit/spec) can be timed to come on or remote controled to come on independently of the engine so no legal issues. They pre heat the coolant without running the engine.
Quackers
Posts: 399
Joined: 11 Nov 2005, 12:58
Location: Staffordshire, Newcastle Under Lyme
My Cars: 2010 Citroen C5 3.0 V6 Exclusive + Navi
2009 Citroen C6 2.7 V6 Exclusive + Lounge Pack
2007 Citroen C5 2.2 (173) Exclusive + Navi
2000 Citroen Xantia Activa
x 17

Re: 2010 C5, pre heat remote?

Post by Quackers »

Is there anyway to tell if my car has this fitted? I don't want to look silly at Citroen ordering a replacement remote for something my car does not have. :lol:
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: 2010 C5, pre heat remote?

Post by Harlequin »

Have you ever noticed a clicking followed by a mini jet engine in the winter?
Simon
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: 2010 C5, pre heat remote?

Post by Harlequin »

Simon
Quackers
Posts: 399
Joined: 11 Nov 2005, 12:58
Location: Staffordshire, Newcastle Under Lyme
My Cars: 2010 Citroen C5 3.0 V6 Exclusive + Navi
2009 Citroen C6 2.7 V6 Exclusive + Lounge Pack
2007 Citroen C5 2.2 (173) Exclusive + Navi
2000 Citroen Xantia Activa
x 17

Re: 2010 C5, pre heat remote?

Post by Quackers »

Harlequin wrote:Have you ever noticed a clicking followed by a mini jet engine in the winter?


Only got the car on Saturday so not experienced it in winter yet.
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: 2010 C5, pre heat remote?

Post by Harlequin »

I think there's a small exhaust on the bottom of the passenger side wing ?
Simon
Hell Razor5543
Donor 2023
Posts: 13714
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2990

Re: 2010 C5, pre heat remote?

Post by Hell Razor5543 »

If you were to post up your VIN I am confident that somebody with the relevant access will be able to look it up and let you know.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Xantippa
Posts: 490
Joined: 05 Feb 2012, 15:51
Location: Finland
My Cars: Now:
C5 X7 HDi 240 Exclusive Tourer
ZOE 22kwh Intense
Before:
C4 1,6 Coupe Automatic
C5 X7 HDi136 Exclusive Sedan A
Xantia HDi110 Berline
Xantia 1,8SX Berline
x 28

Re: 2010 C5, pre heat remote?

Post by Xantippa »

Heater is installed in front of the left front wheel. There is an hole under bumper that has got metallic pipe/tube which is exhaust for webasto. Under 5C that automatic heater should start up automatically when motor is started, and you should feel warm blow from that exhaust pipe. Webasto on C5 runs quite silently, so it's not possible to tell wether it's running or not by noise when motor running.

If you have heater, but no remote/clock, then you might also need water pump to make it pre-heater. If its Webasto Venturi (aka. smoke machine), it doesn't have water pump to circulate engine coolant, and you cannot use it for pre-heating.

Btw, I just bought new Binar 5D -heater (russian webasto) for 350€ for my HDi240. 8-)
