Where does this hose go??

Post by spacial awareness »

Hello, I am a newbie on here.

I have just acquired a 2007 Berlingo 1.6HDI 90bhp Multispace. Very low miles and in lovely condition. However, I removed the undertray to change the oil and found a small hose loose just hanging there. I traced it back and the other end is connected to what I understand is the fuel filter, Delphi HDF 939.
The car performs extremely well pulling as it should and there are no diesel smells or leaks but surely this hose must go somewhere. I have searched all around for a vacant orifice but no joy.
Does anyone have any idea?
I have attached a few photos and one of them shows the length of the hose laying across the engine cover.
Thank you very much in advance.
Ade

https://goo.gl/photos/CHddEc3GYywbD7Nx6
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36993
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Where does this hose go??

Post by GiveMeABreak »

Hi and welcome to the Forum,
That's the sort of hose used for the air conditioning to drain away condensation.

Post up your VIN and I'll see what I can see :wink:
Please Don't PM Me For Technical Help

Marc
spacial awareness
Posts: 15
Joined: 20 Mar 2017, 19:38
Location: Casares, Costa Del Sol
My Cars: Berlingo Multispace 1.6HDI '07
Megane Scenic 2 2.0 16v '04
Trafic 2100D high top '93
Kangoo 1.5dci '07
BX 16RS '88
Xantia 1.9TD '98 my current project

Countless Cortina's & Cavaliers back in the halcyon days of company cars
Passat B5 1.9TDI '98
Honda Accord Aerodeck CB8 '93
Mercedes W124 E300 diesel '94
Opel Zafira 2.0 di '02
C-Max 2.0tdci '05
Doblo 1.9jtd '06 (the most frugal vehicle I ever owned)
Mitsubishi Shogun 3.0V6 '98 (the thirstiest vehicle I ever owned)
Focus Mk2 2 1.8tdci estate, my current daily transport.
x 2

Re: Where does this hose go??

Post by spacial awareness »

Thanks for the reply, I agree it is only a flimsy hose although why would an air con drip pipe be connected to the fuel filter? Anyway I'll run it with the A.C. running tomorrow and see if it drips water. Cheers.
Just seen you're asking for the VIN I will do that too. By the way it's a Spanish car, we live in spain and UK.
Ade
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36993
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Where does this hose go??

Post by GiveMeABreak »

It might not be - but there are a few different 1.6 engines on these - I'll need your VIN to get the right one then I can what's there.
Please Don't PM Me For Technical Help

Marc
Gibbo2286
(Donor 2020)
Posts: 7168
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Where does this hose go??

Post by Gibbo2286 »

Maybe a drain hose for the water trap in the fuel filter.
This from another forum:

http://forums.outandaboutlive.co.uk/for ... ter/26590/
Last edited by Gibbo2286 on 22 Mar 2017, 18:22, edited 1 time in total.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
Hell Razor5543
Donor 2023
Posts: 13726
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Where does this hose go??

Post by Hell Razor5543 »

I wonder (but I am WONDERING, not sure) if that pipe is to allow any water in the diesel to drain away?
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
spacial awareness
Posts: 15
Joined: 20 Mar 2017, 19:38
Location: Casares, Costa Del Sol
My Cars: Berlingo Multispace 1.6HDI '07
Megane Scenic 2 2.0 16v '04
Trafic 2100D high top '93
Kangoo 1.5dci '07
BX 16RS '88
Xantia 1.9TD '98 my current project

Countless Cortina's & Cavaliers back in the halcyon days of company cars
Passat B5 1.9TDI '98
Honda Accord Aerodeck CB8 '93
Mercedes W124 E300 diesel '94
Opel Zafira 2.0 di '02
C-Max 2.0tdci '05
Doblo 1.9jtd '06 (the most frugal vehicle I ever owned)
Mitsubishi Shogun 3.0V6 '98 (the thirstiest vehicle I ever owned)
Focus Mk2 2 1.8tdci estate, my current daily transport.
x 2

Re: Where does this hose go??

Post by spacial awareness »

VIN is :- VF7**************[VIN obfuscated, can be read by forum staff]
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36993
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Where does this hose go??

Post by GiveMeABreak »

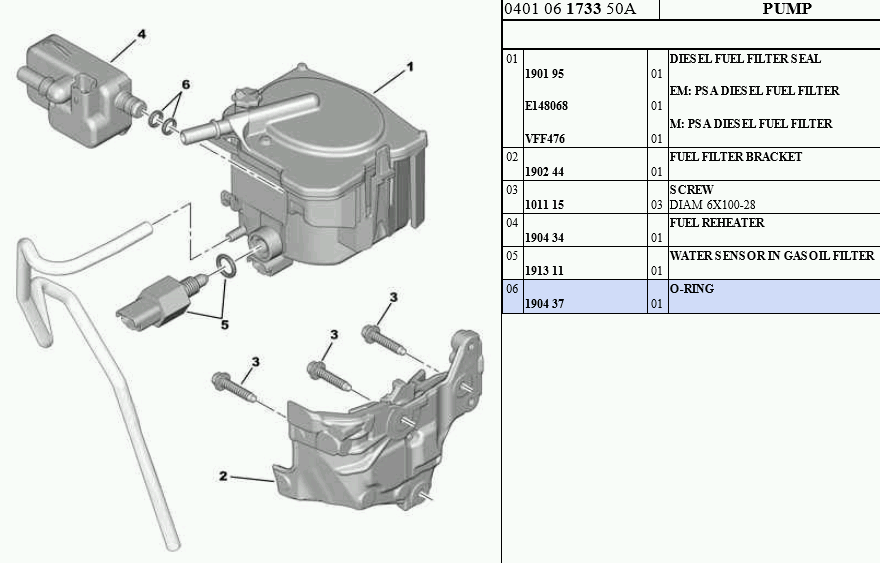

Berlingo Strainer Fuel Priming Pump
