Xantia Mk1 headlights relay location?

[aerodynamica]

Hi all, I have a problem with one of the headlights, it blows the bulb and now the fuse. I there must be a short somewhere - I think it's either at the connector to the headlight block or inside the bulb fitting itself as the voltage measured at the connector is fine and at the bulb connector. I wonder if the dip and main have two seperate earths as there are two earth connections at the multi plug.

[Stickyfinger]

his thread may help, I would strongly advise to rewire the headlamp circuit.............

viewtopic.php?t=52577

[RichardW]

Wiring diag in my BOL shows two earth wires at the lamp unit, but spliced together for a single earth (albeit one per light unit) at the main earth board behind the battery. There's no relay on MK1 lights - they are wired direct via the switch.

[CitroJim]

Graeme, I can't now as I'm just waiting to start a 10k run but when I get home I can post up the full wiring diagrams if that will help...

Now to go and run in the rain... It's going to be fun!

[aerodynamica]

Thanks all, and good luck Jim!

[CitroJim]

Here you go Graeme:

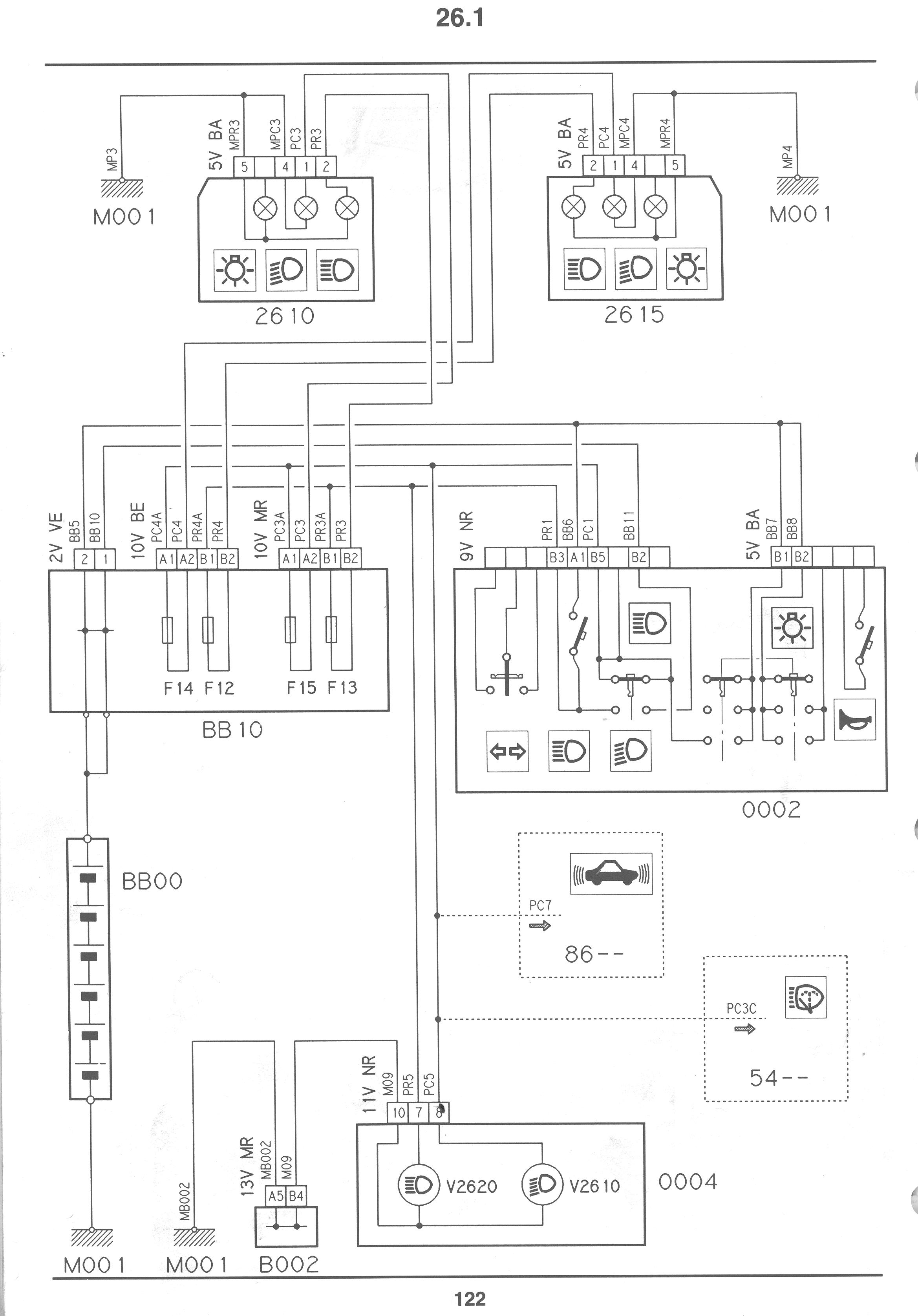

Headlights Circuit

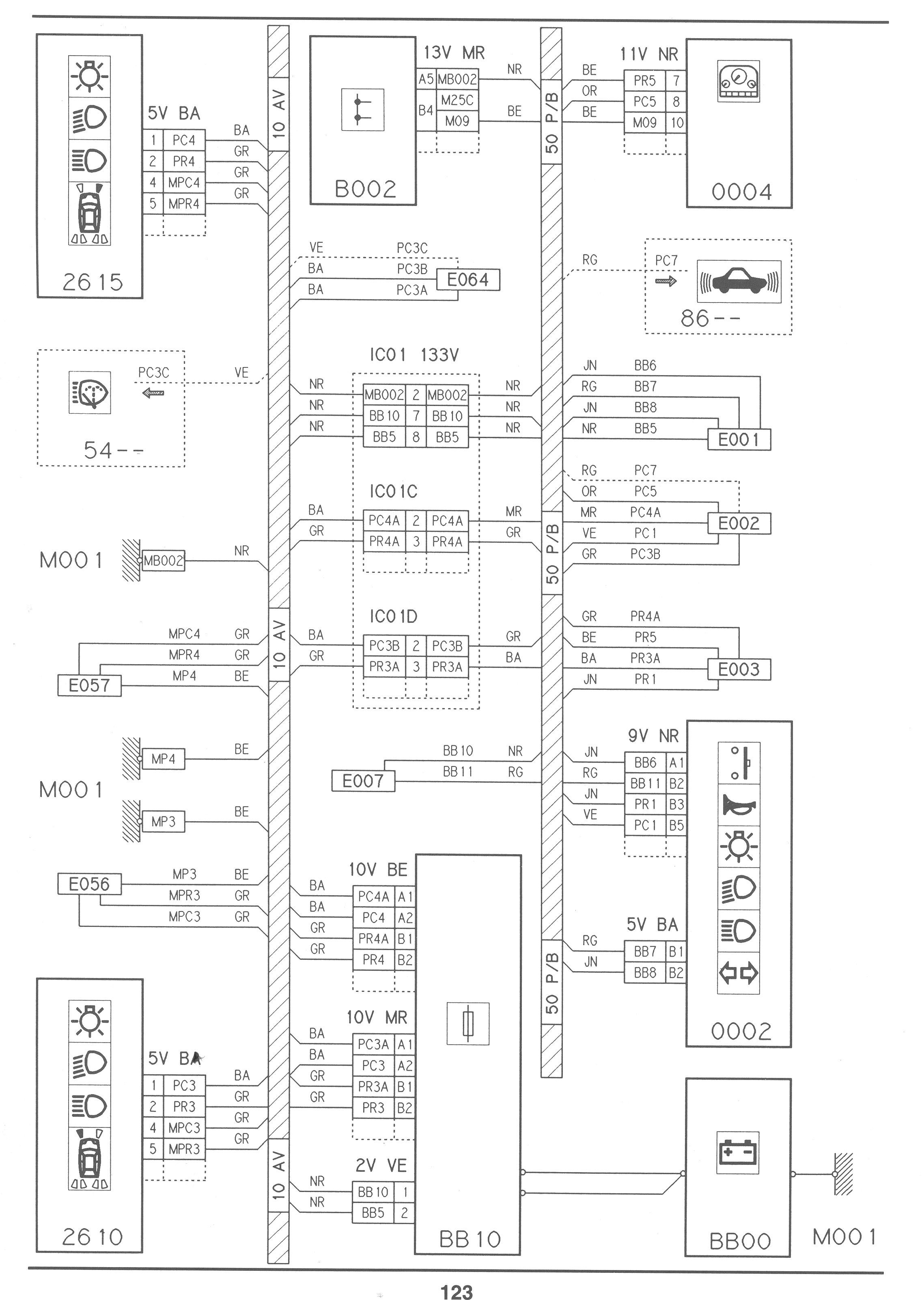

Headlights Harnesses (Looms)

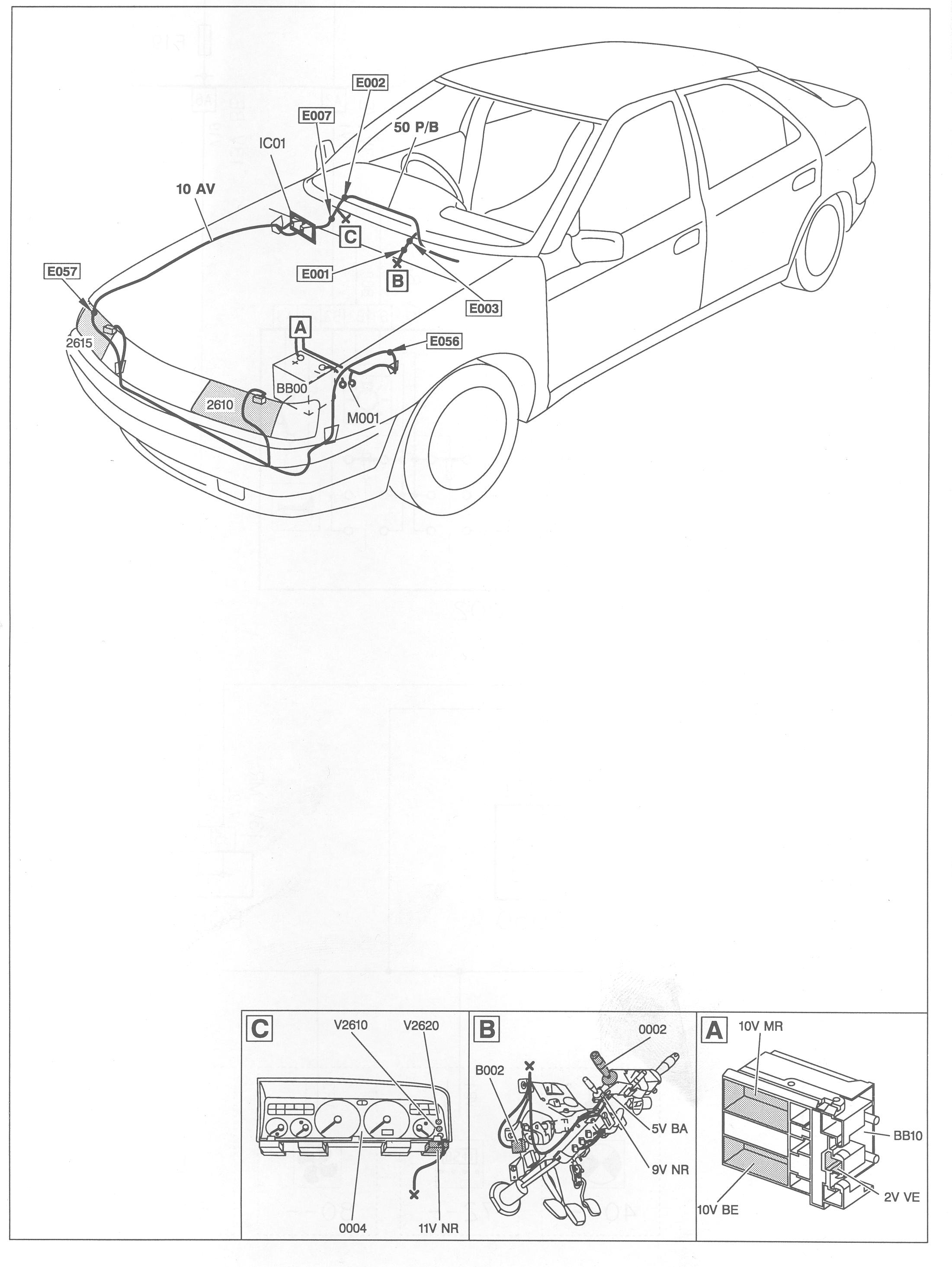

And the Component Locations

Run was good See my blog!

[aerodynamica]

Ah nice one Jim!
