Xantia Screen washer pump not working

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
jvwykes
Posts: 33
Joined: 04 Dec 2010, 16:11
Location: United Kingdom
My Cars:
x 8

Xantia Screen washer pump not working

Post by jvwykes »

Hello Folks

Need some help with fault finding why my washer pump no longer works.

I've tested the pump connection to washer bottle using a known working pump.

Swapped the steering column switch for another, still nothing.

Wipers function

Fuse checked and OK

Any ideas what else to check, is there a relay hidden somewhere that could have failed?
User avatar
CitroJim
A very naughty boy
Posts: 49531
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Xantia Screen washer pump not working

Post by CitroJim »

S1 or S2 Xantia?

I can supply wiring diagrams as I've been here before...

I very much suspect you have a break in the wiring loom between the source of power, the switch and the motor... The diagrams will assist as they also have detailed loom (harness) wiring diagrams...

Before I can supply I need to know the series and preferably the RP Number/age of the car to ensure the right ones are supplied....
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
jvwykes
Posts: 33
Joined: 04 Dec 2010, 16:11
Location: United Kingdom
My Cars:
x 8

Re: Xantia Screen washer pump not working

Post by jvwykes »

Hello Citroen Jim

Its a 1999 HSI SX series 2

regards

James
User avatar
CitroJim
A very naughty boy
Posts: 49531
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Xantia Screen washer pump not working

Post by CitroJim »

James, I'll dig out the diagrams as soon as I can. Shame it's not an S1 as I have those immediately available but for the S2 I need to fire up the scanner...

I'll get it done as soon as I can..
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
CitroJim
A very naughty boy
Posts: 49531
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Xantia Screen washer pump not working

Post by CitroJim »

James, here are the diagrams:

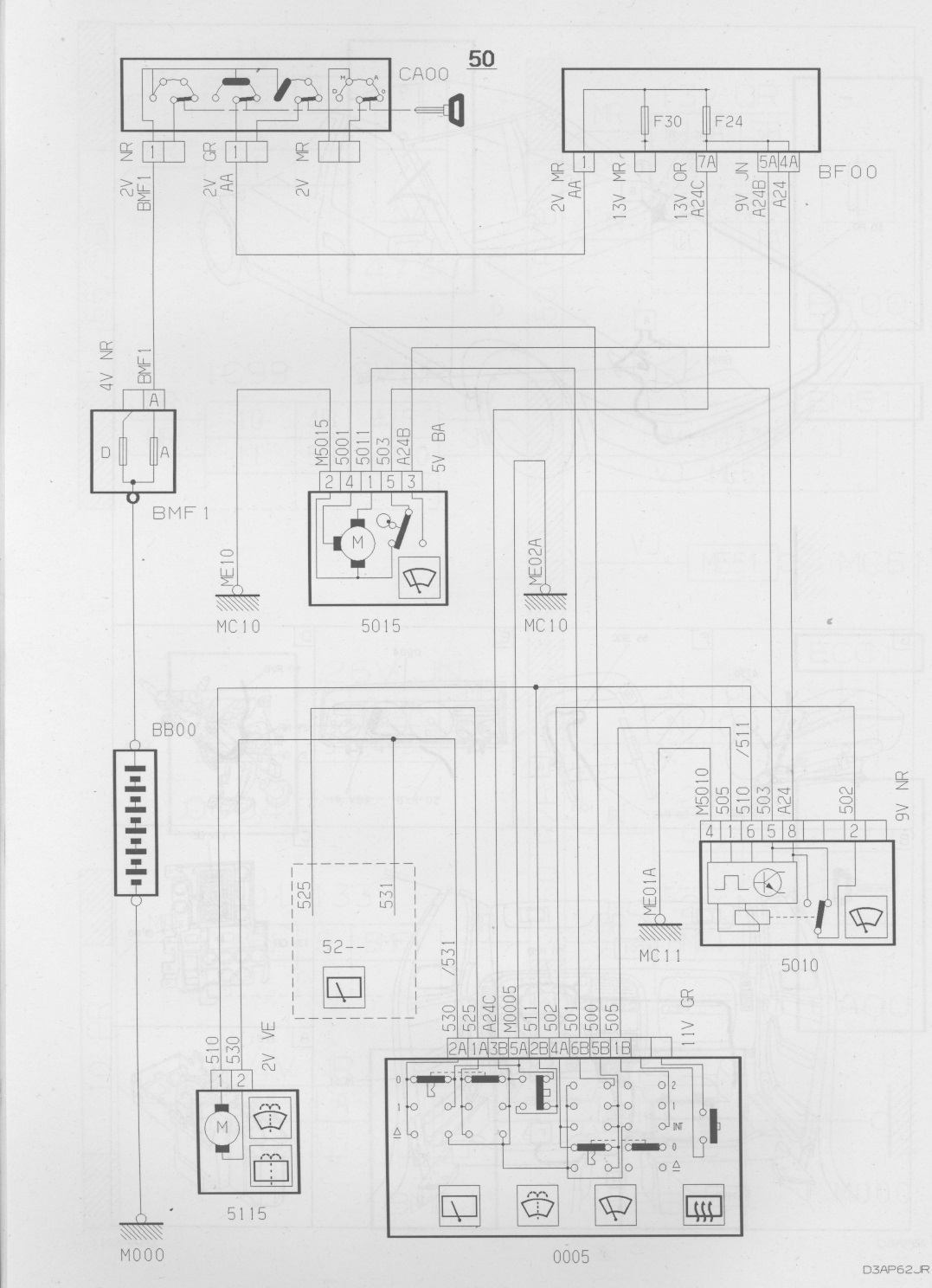

S2 Wash Wipe Circuit

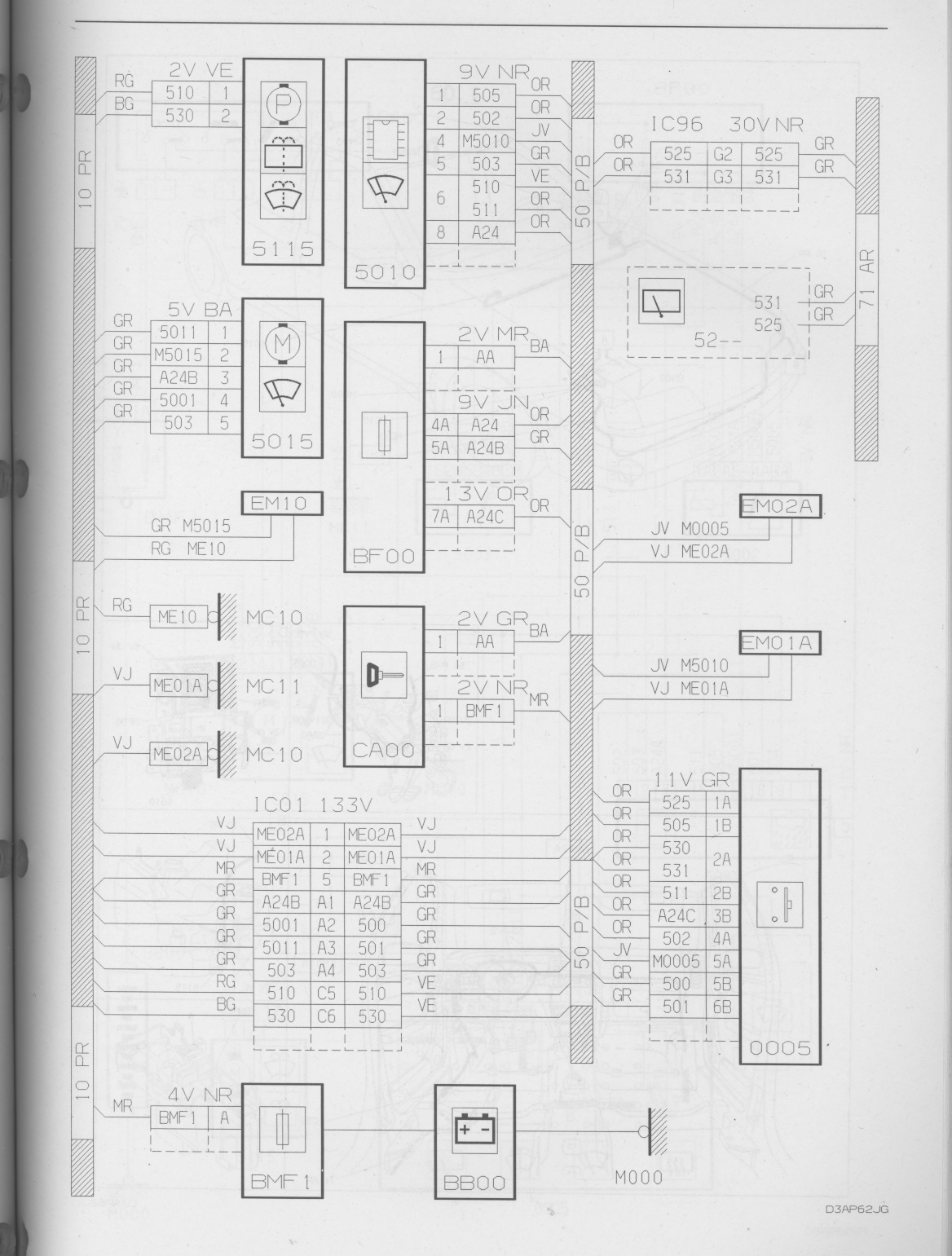

S2 Wash Wipe Harnesses

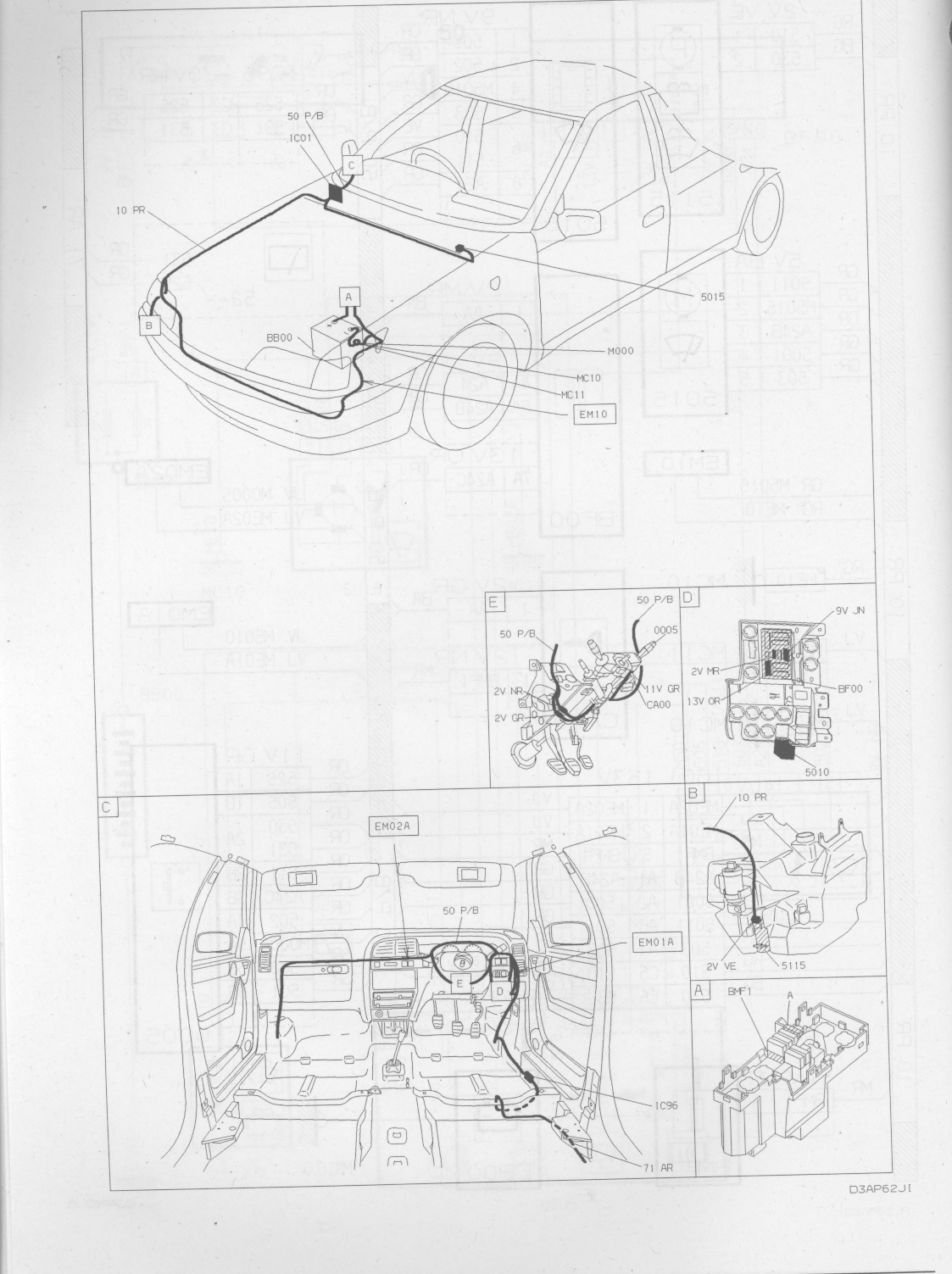

S2 Wash Wipe Locations
