C5 DPF fault

Post by Harlequin »

Heya - got an 02 reg C5 exclusive estate - 2.2HDi

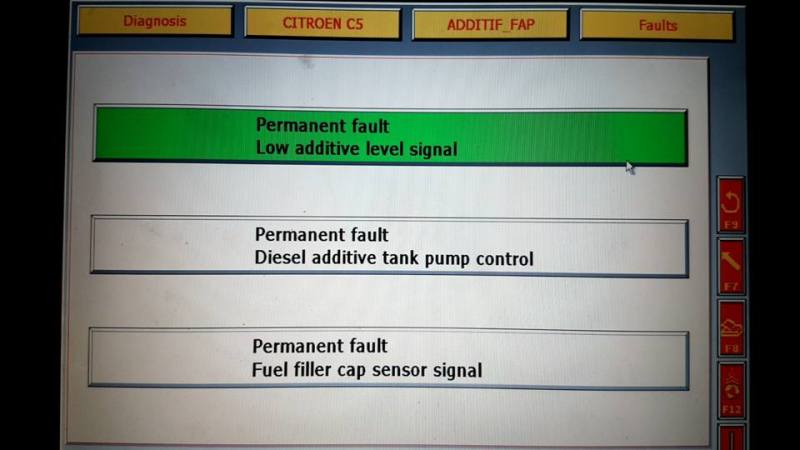

it has a DPF fault (and ESP fault )

put some DPX42 in the tank , tried the reset method (reset amount in lexia , reset faults , put some fuel in to move needle, then run regeneration)

but I'm still getting perm faults


and

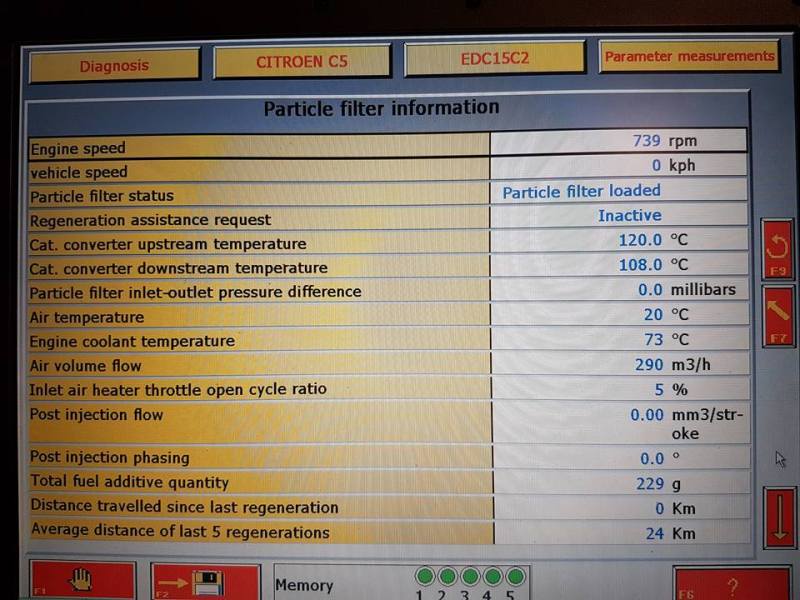

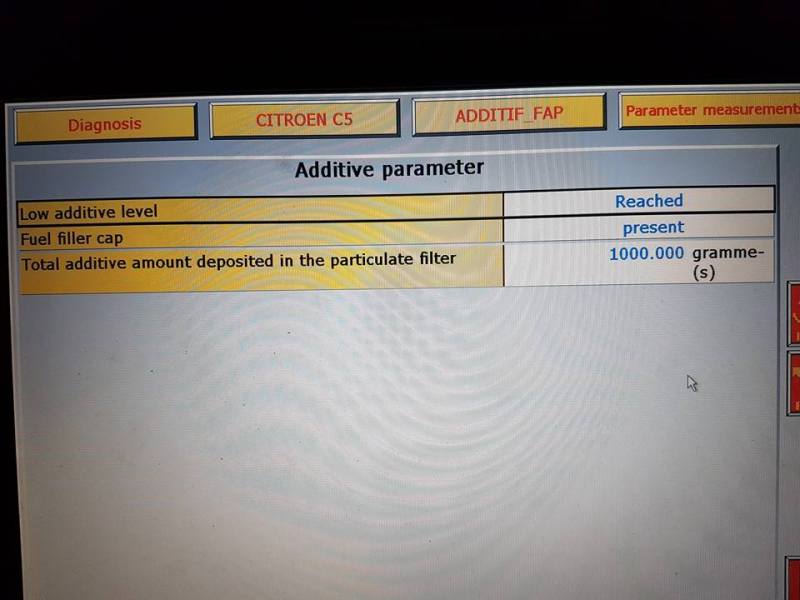

I changed level to 1000 grams , yet the above says 229?

and


any idea`s?
Simon
RichardW
Forum Treasurer
Posts: 10795
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 977

Re: C5 DPF fault

Post by RichardW »

Early 2.2s were notoriously difficult to reset the additive - often a new ECU is required....

The figure in the bottom screen is, I think, the amount of additive that has been deposited in the filter rather than the amount of fresh fluid in the tank.
Richard W
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: C5 DPF fault

Post by Harlequin »

i think you could be right about that :( - defap?
Simon
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36828
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5600

Re: C5 DPF fault

Post by GiveMeABreak »

Did you have a look at this procedure - it is listed under the C8 for a 2004 model - and could well be the same for your car before the process changed on later models without an additive ECU? This procedure just mentions resetting the additive level, not entering the quantity filled - and Richard is right, although ambiguous, that figure is I think what has been injected, not what you have refilled. So I think you need to reset this to zero. Please let us know how you get on if you decide to give this procedure a try.

Reinitialise the information from the engine ECU on the total quantity of additive ; Follow the diagnostic equipment procedure :
  • Select the "diagnosis" function
  • "choice of vehicle"
  • Enter the vehicle’s RPO N°
  • Global test
  • Injection selection
  • Diesel engine
  • Aftersales orders, particle filter Reinitialisation of the total additive amount (reset)
  • Read then delete the additive total quantity parameter.
  • Carry out a reading of the engine ECU fault codes.
  • Simulate a filling of the fuel tank in order to switch off the Particle Filter warning lamp :
  • Opening of the fuel filler cap
  • Add 5 litres of diesel fuel
  • Closing of the fuel filler cap
    Check the status of the particle filter in parameter measures, using the same method as for a repair (particle filter/additive ECU in the parameters: Particle Filter Status and Particle Filter Inlet/Outlet Pressure Difference) :
    If the particulate emission filter is regenerated : Correct
    If not : Check the sensor and the sealing of the exhaust line
Please Don't PM Me For Technical Help

Marc
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: C5 DPF fault

Post by Harlequin »

total amount all reset to zero , all codes wiped , engine light went off for a moment then came back one , same errors as before
Simon
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: C5 DPF fault

Post by Harlequin »

been offered a second hand ecu - will it work?
Simon
RichardW
Forum Treasurer
Posts: 10795
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 977

Re: C5 DPF fault

Post by RichardW »

It's not coded AFAIK so it could work - however, there are 2 types (well 3 actually, but the earlier one is replaced by a middle one); and it's possible that a used replacement will also refuse to be re-set. If possible I would check it works before parting with any hard earned. Here are the part details:

1525 AZ
01
- SINCE RPO 09492 UNTIL RPO 09869
FOR EOLYS 176 (DPX10) (£227.51)
1525 CZ
01
- SINCE RPO 09870 (£131.46)

Prices included, as they are still allegedly available....
Richard W
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: C5 DPF fault

Post by Harlequin »

mines an early one - using DPX42 rpo is 09250 , so potentially drop in second hand ecu , go through replacement ecu in lexia and voila?
Simon
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: C5 DPF fault

Post by Harlequin »

part numbers of dpf ecu is 9645029780
Simon
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36828
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5600

Re: C5 DPF fault

Post by GiveMeABreak »

There's also a 1525 AS listed for 2.2 2002 - what's you VIN Simon?
Edited Part No
Please Don't PM Me For Technical Help

Marc
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: C5 DPF fault

Post by Harlequin »

76251762
Simon
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36828
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5600

Re: C5 DPF fault

Post by GiveMeABreak »

Actually it's a 1525 AS (my error) - which is the additive Control box that I have listed for your VIN - currently available for £152.28 (£182.74 Inc.) from Citroen. The other part number for 1525 AS is 9646216380 - which is not the one you have quoted Simon??
As Richard Says the 1525 AZ is a replacement part.

This is a tricky one - but there is one on the bay here for less (new):
http://www.ebay.co.uk/itm/PEUGEOT-307-E ... 1608517519
Is it possible the wrong one has been previously fitted?
Please Don't PM Me For Technical Help

Marc
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: C5 DPF fault

Post by Harlequin »

I read it from lexia which read the ID from the ecu itself
Simon
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36828
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5600

Re: C5 DPF fault

Post by GiveMeABreak »

I can't find the alternative number for the 1525AZ Simon, I'm guessing there aren't too many replacement ones about on the market. As for configuration - according to the documents there are a set of configuration tables if replacing the additive ECU - and they recommend writing all the previous values down. Configuration is via Internet - the only thing I have on the tables is for one of the Computers listed (EAS100 or EAS 200). The tables are the engine type, and against these are the 'Distance travelled by the particulate emission filter' in kms which shows the number in grams of Eolys 176 or DPX 42 'deposited in the filter'. I don't know if these are of any help or not.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36828
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5600

Re: C5 DPF fault

Post by GiveMeABreak »

Harlequin wrote:i think you could be right about that :( - defap?
I wouldn't, will likely fail the new MOT checks coming in Simon, as not legal to remove now for cars on public roads at any rate.
