Hi

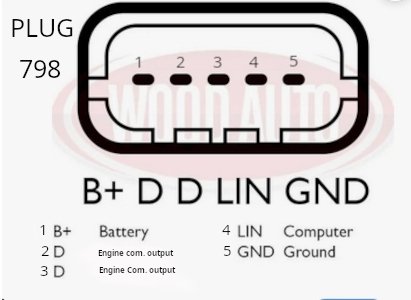

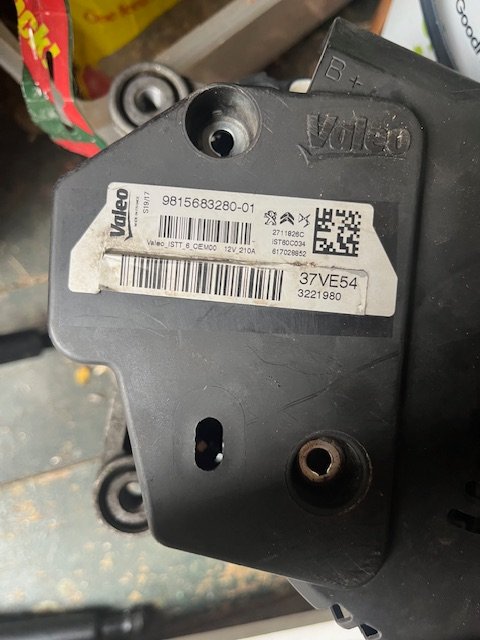

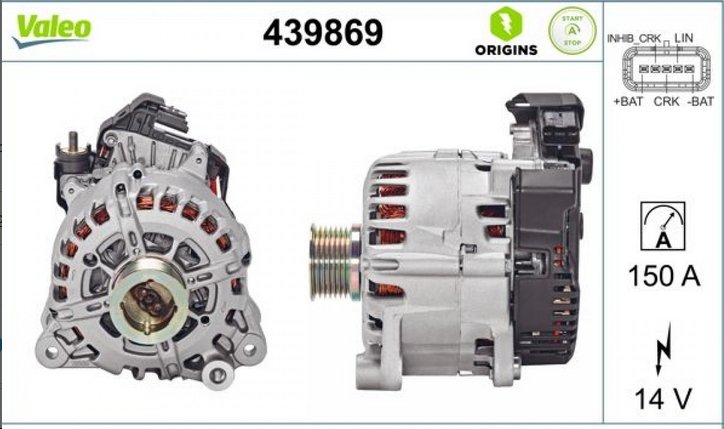

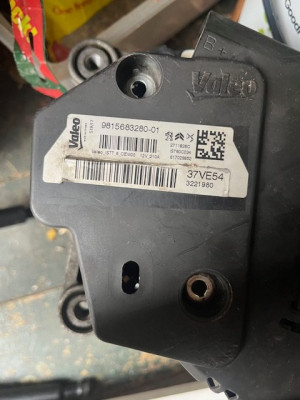

Please dont laugh at me. I have a Valeo alternator that I've dismantled from my donor Xantia and I want to use it as a battery charger. I've installed it on a plate with a 3 phase motor to drive it. so far so good. now, my question is how to wire it. I've seen that it has 3 terminals - B+, D+ and a third one that I cant see how it's marked. could you please let me know how it have to be done? I guess that the B+ terminal should be connected to the battery + terminal.
Thanx for your help.
Valeo alternator
Moderator: RichardW
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Valeo alternator
The third terminal is voltage-sensing, and should (also) be connected directly to your battery + terminal.
The reason for the separate wire, when installed in a car, is to sense the battery voltage accurately. This can't be done (decently) down the main alternator-to-battery cable, because this will frequently be carrying a hefty current, and will therefore have a voltage-drop along it. Hence the extra small wire.
______
Good fun to build something like that. Back in the 60s, the GPO Telephone Exchange on Ealing Green ran some of its exchange equipment from 2v DC. Amazingly, this was created from a huge 2v dynamo, directly coupled to a 240v motor, and a room full of lead-acid battery as backup.
The reason for the separate wire, when installed in a car, is to sense the battery voltage accurately. This can't be done (decently) down the main alternator-to-battery cable, because this will frequently be carrying a hefty current, and will therefore have a voltage-drop along it. Hence the extra small wire.
______
Good fun to build something like that. Back in the 60s, the GPO Telephone Exchange on Ealing Green ran some of its exchange equipment from 2v DC. Amazingly, this was created from a huge 2v dynamo, directly coupled to a 240v motor, and a room full of lead-acid battery as backup.
Chris
-
- Posts: 314
- Joined: 09 Oct 2010, 05:02
- Location: Israel
- My Cars: Xantia 2.0l 16v 2001 petrol
C5 mkII 2.0l petrol sx pack 2007
C5 x7 saloon petrol 2010 - x 6
Re: Valeo alternator
Hi Chris
Thanks for the reply. one more question - to where should be the third terminal connected to?
Thanks for the reply. one more question - to where should be the third terminal connected to?
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Valeo alternator
B (or B+) goes to battery + terminal, and is the main alternator output.
D (or D+) operates the IGN dash warning light. This must be connected for the alternator to work.
Connect this terminal to one side of a small 12v tungsten bulb (about 1W will do), and from the other side of the bulb to a switch, and from there to Battery + terminal. When you turn the switch on, the bulb will light (indicating no alternator output), but will extinguish when you start the alternator up.
Turn off this switch when system not in use, or you can drain any connected battery. It's the equivalent of turning off your IGN switch.
Ground (-) connection for the battery is from the alternator's frame.
There may or may not be a W terminal, which is a feed to a dash tachometer.
Sorry if I misunderstood you about the 'third wire'. Some alternators have this tiny wire and terminal, some don't. The latter sense the battery voltage from the main output cable.
D (or D+) operates the IGN dash warning light. This must be connected for the alternator to work.
Connect this terminal to one side of a small 12v tungsten bulb (about 1W will do), and from the other side of the bulb to a switch, and from there to Battery + terminal. When you turn the switch on, the bulb will light (indicating no alternator output), but will extinguish when you start the alternator up.
Turn off this switch when system not in use, or you can drain any connected battery. It's the equivalent of turning off your IGN switch.
Ground (-) connection for the battery is from the alternator's frame.
There may or may not be a W terminal, which is a feed to a dash tachometer.
Sorry if I misunderstood you about the 'third wire'. Some alternators have this tiny wire and terminal, some don't. The latter sense the battery voltage from the main output cable.
Chris
-
- Posts: 314
- Joined: 09 Oct 2010, 05:02
- Location: Israel
- My Cars: Xantia 2.0l 16v 2001 petrol
C5 mkII 2.0l petrol sx pack 2007
C5 x7 saloon petrol 2010 - x 6
Re: Valeo alternator
Thanx for the comprehensive explanation.
-
- (Donor 2020)
- Posts: 7217
- Joined: 08 Jun 2011, 18:04
- Location: GL15***
- My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE - x 2520
Re: Valeo alternator
My younger brother had an alternator set up with a windmill to charge his batteries.
