Xantia S2 CD changer?

Unread post by HDI »

Is the wiring for the CD changer in place in Xantia S2's that did not have it fitted at the factory? Asking because I'm buying an LX spec Xantia HDI which doesn't have a changer, but I have a changer and head unit from an Exclusive spec Xantia and would like to fit that.
Now using '00 Xantia LX HDI, pov spec :(
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident :(
'99 Xantia HDI 110 Exclusive, RIP :(
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped :( )
& a couple of Peugeots !
User avatar
CitroJim
A very naughty boy
Posts: 54809
Joined: 30 Apr 2005, 23:33
x 8204

Re: Xantia S2 CD changer?

Unread post by CitroJim »

Generally, I don't think so... Best to assume not...

The S1 CD Changer wiring is part of the main loom and very difficult to split out... I think the S2 cd changer wiring is entirely separate and easier to remove/replace...

Hope so!
Jim

A bit of a Citroen AX fan...
User avatar
xantia_v6
Forum Admin Team
Posts: 10870
Joined: 09 Nov 2005, 22:03
x 1423

Re: Xantia S2 CD changer?

Unread post by xantia_v6 »

I remember stripping the CD changer out of an S2, and the cable is separate all the way to the head, so is unlikely to be factory fitted except with a changer.
User avatar
GiveMeABreak
(Donor 2016)
Posts: 41989
Joined: 15 Sep 2015, 19:38
x 6963

Re: Xantia S2 CD changer?

Unread post by GiveMeABreak »

My SX Xantia had the CD Changer factory fitted and this was located in the boot on the driver's side wall - so the wiring for that travelled all the way to the front as noted ^^.
Please note, I'm no longer active on the Forum, so won't respond to messages.

Marc
Hell Razor5543
(Donor 2023)
Posts: 14270
Joined: 01 Apr 2012, 09:47
x 3282

Re: Xantia S2 CD changer?

Unread post by Hell Razor5543 »

While it is possible that an SX variant could have the wiring in place (it is for some of the other optional extras, such as heated powered front seats), it is not definite. It is unlikely that an LX variant would have that wiring though, as it was a much more basic version, with less in the options list.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
ex C5 2.0HDi VTR
ex C5 2.0HDi VTR
ex C5 2.2HDi VTX+

Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
GiveMeABreak
(Donor 2016)
Posts: 41989
Joined: 15 Sep 2015, 19:38
x 6963

Re: Xantia S2 CD changer?

Unread post by GiveMeABreak »

Standard kit on the SX model over the LX was the CD Changer, Rear Electric Windows, Automatic Front Rain Sensitive Wipers, Twin Electrically Heated Door Mirrors on the electrical side and although not relevant, Rear Spolier, Alcantara Upholstery & Front Armrest.
Please note, I'm no longer active on the Forum, so won't respond to messages.

Marc
HDI
Posts: 1468
Joined: 22 Sep 2009, 15:46
x 7

Re: Xantia S2 CD changer?

Unread post by HDI »

Thanks guys. Don't think I can bothered to run the cable for the changer then, it would also mean removing it from the SX, hmm, don't think so! Would I assume correctly that the head unit from the SX will fit straight in? The one in this LX is crap!!
Now using '00 Xantia LX HDI, pov spec :(
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident :(
'99 Xantia HDI 110 Exclusive, RIP :(
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped :( )
& a couple of Peugeots !
User avatar
CitroJim
A very naughty boy
Posts: 54809
Joined: 30 Apr 2005, 23:33
x 8204

Re: Xantia S2 CD changer?

Unread post by CitroJim »

Yes, fully interchangeable but I'd go for the CD changer - running the cable is not that hard..
Jim

A bit of a Citroen AX fan...
User avatar
Stickyfinger
(Donor 2016)
Posts: 11769
Joined: 28 Mar 2013, 21:05
x 1982

Re: Xantia S2 CD changer?

Unread post by Stickyfinger »

Alasdair
Activa, the Moose Dodger
HDI
Posts: 1468
Joined: 22 Sep 2009, 15:46
x 7

Re: Xantia S2 CD changer?

Unread post by HDI »

CitroJim wrote:Yes, fully interchangeable but I'd go for the CD changer - running the cable is not that hard..
Not hard but time consuming, something I don't have much of :?
Now using '00 Xantia LX HDI, pov spec :(
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident :(
'99 Xantia HDI 110 Exclusive, RIP :(
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped :( )
& a couple of Peugeots !
HDI
Posts: 1468
Joined: 22 Sep 2009, 15:46
x 7

Re: Xantia S2 CD changer?

Unread post by HDI »

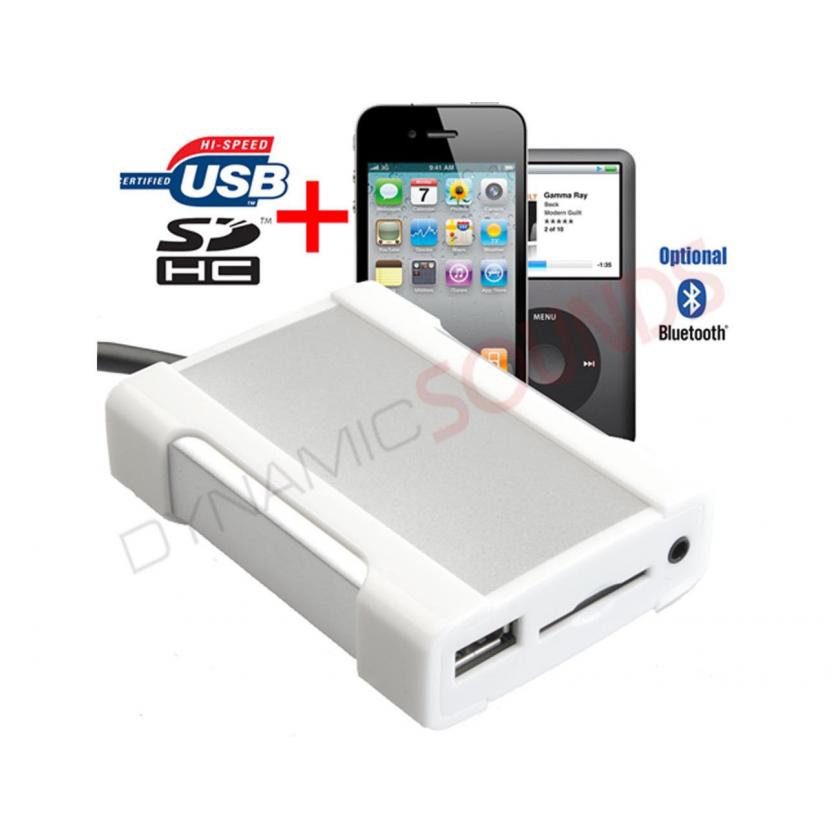

Stickyfinger wrote:Or fit one of these ?
https://www.dynamicsounds.co.uk/xcarlin ... 86634.html

I would but all my sounds are on CD or Vinyl and I don't have a smart phone or similar so I'd have to transfer to PC then stick. Whereas I have a whole load of stuff already on copy CD's for the car. Just another time thing.
Now using '00 Xantia LX HDI, pov spec :(
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident :(
'99 Xantia HDI 110 Exclusive, RIP :(
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped :( )
& a couple of Peugeots !
HDI
Posts: 1468
Joined: 22 Sep 2009, 15:46
x 7

Re: Xantia S2 CD changer?

Unread post by HDI »

Just exchanged the head unit for the one out of the demised SX. The CD changer cable is not present :( Also, the head unit is not fully compatible, as in the connector for the steering wheel controls is different on the SX head unit, so I will be without the steering wheel controls. Strange considering they are both 2000 MY. I'll check the Exclusive head unit I have tomorrow.
