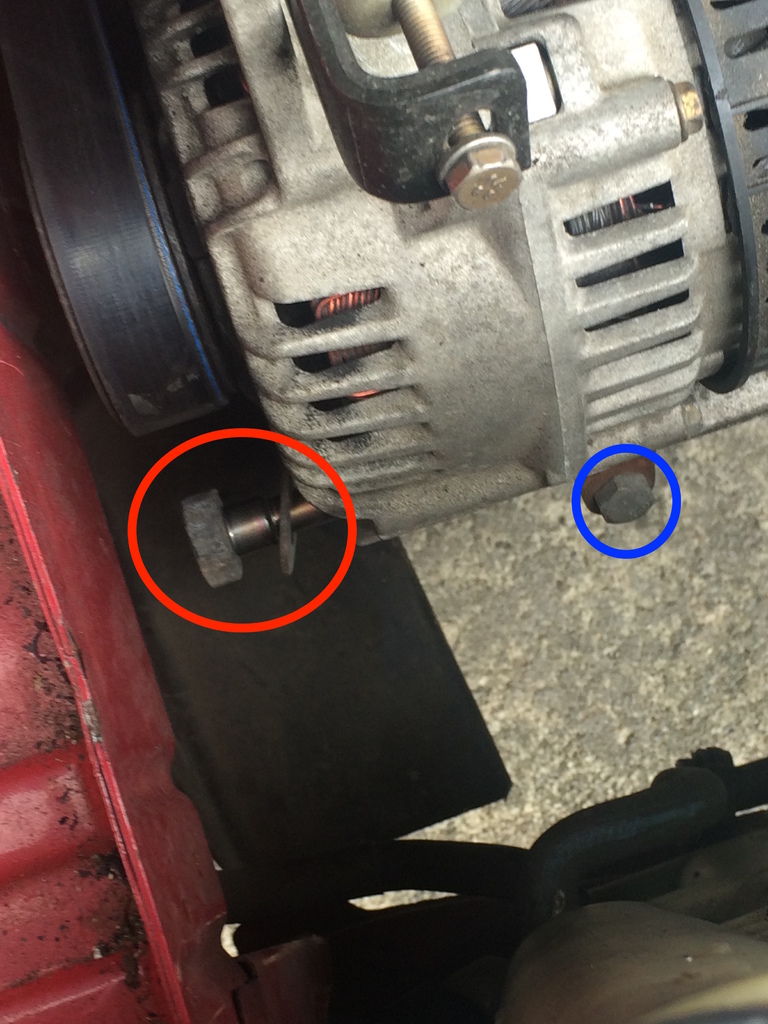

I'm pretty sure its the alternator mount and should be all the way in (circled in red). I recently had the alternator belt changed and it looks like its not been tightened up although the bolt doesn't feel loose. the other bolt (circled in blue) going into the alternator was also working loose so I have tightened. Is it worth applying some thread locker or is that going to cause problems?
The washer rattles around when running.
Should I screw this in somehow? I dont have any manual at the moment and have little experience with these engines.
It's a ZX 1.9D
Thanks
Should this be loose?
Moderator: RichardW
- jimmymarsbar
- (Donor 2016)
- Posts: 139
- Joined: 04 Apr 2016, 11:45
- Location: Thackley, West Yorks
- My Cars: 307 2.0 hdi 110
Megane Estate 1.5dCi - x 13
- Contact:
Re: Should this be loose?
It certainly doesn't look right.
For the red circle - is there a mounting bracket between the head of the bolt and the alternator?
The top bolt (uncircled) looks dodgy too......
I'd be temtped to take it back to the garage and get them to sort it. If you're able to, try tightening the bolts and see if they wind in. If they don't, whoever has had the alternator off has banged any old bolts in (although the heads do look as expected), or they're cross-threaded or corroded.
Compare the depths - if you've got a 1" deep hole and a bolt thats 1 3/4" long, you'll be best replacing them, as they're not meant to fit
For the red circle - is there a mounting bracket between the head of the bolt and the alternator?
The top bolt (uncircled) looks dodgy too......
I'd be temtped to take it back to the garage and get them to sort it. If you're able to, try tightening the bolts and see if they wind in. If they don't, whoever has had the alternator off has banged any old bolts in (although the heads do look as expected), or they're cross-threaded or corroded.
Compare the depths - if you've got a 1" deep hole and a bolt thats 1 3/4" long, you'll be best replacing them, as they're not meant to fit
-
- (Donor 2021)
- Posts: 4625
- Joined: 27 Nov 2005, 19:07
- Location: Kent / Susssex
- My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong - x 39
Re: Should this be loose?
Looks like the alternator may not be perfectly straight and the red bolt isnt home. The belt tension will need to be released to fit it correctly.. that is just an idea though john
Re: Should this be loose?
The garage is way down in Leamington and the car is in York. I wanted to do the work myself originally tbh but it was inconvenient for me to get down to the car at the time. I know a good Citroen Peugeot specialist in York I can ask for clarification also
Belt tension could be the cause
There is no mounting bracket that bolt goes straight into the alternator
What workshop manual is best for these? Are there any online? I have an XUD Haynes manual but it's more for Visa and BX
Cheers
Belt tension could be the cause
There is no mounting bracket that bolt goes straight into the alternator
What workshop manual is best for these? Are there any online? I have an XUD Haynes manual but it's more for Visa and BX
Cheers
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Should this be loose?
The top bolt looks like the alternator belt tensioning bolt.
Relax it, so it is not pulling the alternator forward against the belt.
The bottom bolt (red) appears to be the pivot bolt for the alternator, on which it can swing fore and aft.
This bolt should be slackened slightly (NOT as in the photo!) to allow the alternator to swing.
When tightened, the (red) bolt head should close up on to the alternator casing, and lock it into position.
It is possible some clod has either used a wrong (red) bolt here, or not screwed it home far enough.
Sort the red bolt first.
Then use the top bolt to apply tension to the belt.
Finally, tighten the red bolt.
Unsure what the blue bolt is. May be nothing to do with alternator belt setting.
ZX 1.9D not too much different from BX 1.9D, so if you have the Haynes manual for that, it should help.
Hope helpful and accurate.
Relax it, so it is not pulling the alternator forward against the belt.
The bottom bolt (red) appears to be the pivot bolt for the alternator, on which it can swing fore and aft.
This bolt should be slackened slightly (NOT as in the photo!) to allow the alternator to swing.
When tightened, the (red) bolt head should close up on to the alternator casing, and lock it into position.
It is possible some clod has either used a wrong (red) bolt here, or not screwed it home far enough.
Sort the red bolt first.
Then use the top bolt to apply tension to the belt.
Finally, tighten the red bolt.
Unsure what the blue bolt is. May be nothing to do with alternator belt setting.
ZX 1.9D not too much different from BX 1.9D, so if you have the Haynes manual for that, it should help.
Hope helpful and accurate.
Chris
Re: Should this be loose?
I completely removed the pivot bolt and put it back in. This time it tightened all the way up to the alternator. It either must have worked loose (unlikely) or just wasn't tightened up in the first place. I think the bolt is correct although It does protrude somewhat out the other side now.
That makes sense. I'll slacken off the bolt and retension to be sure.
The manual i have is specifically for the citroen diesel engine. However inside it says it mostly applies to Visa and BX. The alternator instructions were extremely brief! This explanation was much better as I now understand what each bolt does.
I dont think the bottom one affects tension. It holds the alternator bracket on I think.
Thanks very much
That makes sense. I'll slacken off the bolt and retension to be sure.
The manual i have is specifically for the citroen diesel engine. However inside it says it mostly applies to Visa and BX. The alternator instructions were extremely brief! This explanation was much better as I now understand what each bolt does.
I dont think the bottom one affects tension. It holds the alternator bracket on I think.
Thanks very much
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Should this be loose?
Glad you've sussed it. Haynes can be annoyingly vague at times.
You now know which garage not to revisit!
You now know which garage not to revisit!
Chris
-
- Moderating Team
- Posts: 11563
- Joined: 02 Apr 2005, 16:11
- Location: Charmouth,Dorset
- My Cars: Currently:
C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red
In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars. - x 1199
Re: Should this be loose?
I would agree that the alternator is not bolted up square, if you slacken the belt tension with the bolt throug the bracket at the top of the alternator you should be able to screw the bottom bolt in - provided it hasn't been cross threaded but I think that unlikely.
Peter
