Hi all, I was wondering if anyone has the Citroen factory or dealer service manuals for the early Mk1 Xantia. I am hoping someone might be able to scan the wiring circuit for the hydractive II layout (specifically the pin outs of the two multi plugs at the ECU and the wire colours/ markings)
I have comprehensive service manuals for all XM models including the Hydractive I and II so can glean some info from that but the wiring colour markings will no doubt be different.
Thanks in advance!
Graeme
Xantia VSX factory manual page scan request
Moderator: RichardW
-
aerodynamica
- Donor 2023
- Posts: 1300
- Joined: 26 Dec 2007, 18:10
- Location: Glasgow
- Lexia Available: Yes
- My Cars: 2008 C5 Exclusive Tourer
1993 Xantia 1.9 TD VSX Mk1 Sinker A.K.A Slugmobile 13'
'Old Katy'
previous convictions: totaling 52litres of LHM in one go:
1968 ID19B 'Old Polly' Stellar white
1993 Xantia 1.9 TD SX Mk1 Sinker Silver
1992 XM 2.0 SEi Turbo Manual Anthracite Grey
1982 CX 20 Pallas 'Old Goldy'
1993 XM 2.1 SD Auto Light blue
1993 Xantia 1.9 TD SX Mk1 Sinker light Blue
1982 BX 16 TRS 'Cyril' Vallelunga Red
1995 Xantia 1.9 D SX Auto Dark green
1977 CX 2400 Pallas C-Matic 'Aphrodite' Regatta Blue
1982 GSA Pallas SE Silver Pearl
1980 CX 2000 Reflex Vallelunga Red
1978 CX 2400 Pallas C-Matic 'Prometheus' Midnight blue
1984 BX 14E 'Cecil the slugmobile' Maroon
1987 Fiat Panda 'the mighty panda' - x 98
Xantia VSX factory manual page scan request
Graeme M
2008 C5 Exclusive Tourer 2.0 HDi
2008 C5 Exclusive Tourer 2.0 HDi
-
aerodynamica
- Donor 2023
- Posts: 1300
- Joined: 26 Dec 2007, 18:10
- Location: Glasgow
- Lexia Available: Yes
- My Cars: 2008 C5 Exclusive Tourer
1993 Xantia 1.9 TD VSX Mk1 Sinker A.K.A Slugmobile 13'
'Old Katy'
previous convictions: totaling 52litres of LHM in one go:
1968 ID19B 'Old Polly' Stellar white
1993 Xantia 1.9 TD SX Mk1 Sinker Silver
1992 XM 2.0 SEi Turbo Manual Anthracite Grey
1982 CX 20 Pallas 'Old Goldy'
1993 XM 2.1 SD Auto Light blue
1993 Xantia 1.9 TD SX Mk1 Sinker light Blue
1982 BX 16 TRS 'Cyril' Vallelunga Red
1995 Xantia 1.9 D SX Auto Dark green
1977 CX 2400 Pallas C-Matic 'Aphrodite' Regatta Blue
1982 GSA Pallas SE Silver Pearl
1980 CX 2000 Reflex Vallelunga Red
1978 CX 2400 Pallas C-Matic 'Prometheus' Midnight blue
1984 BX 14E 'Cecil the slugmobile' Maroon
1987 Fiat Panda 'the mighty panda' - x 98
Re: Xantia VSX factory manual page scan request
Right, I have found some documents on Hydractive II as a pdf of 'training modules' and the full pin out description for everything on the two connectors is there. It is simply the wiring diagram I am after now to find the colour/ markings of the hydractive II wires to and from the connectors.
Graeme M
2008 C5 Exclusive Tourer 2.0 HDi
2008 C5 Exclusive Tourer 2.0 HDi
-
CitroJim
- A very naughty boy
- Posts: 49662
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6208
- Contact:
Re: Xantia VSX factory manual page scan request
I have it Graeme, I'll see if I can sort it out. FWIW, all S1 Hydractive wiring is the same....
These are for the S1 Activa but apart from the third (Activa) electrovalve, they're the same...

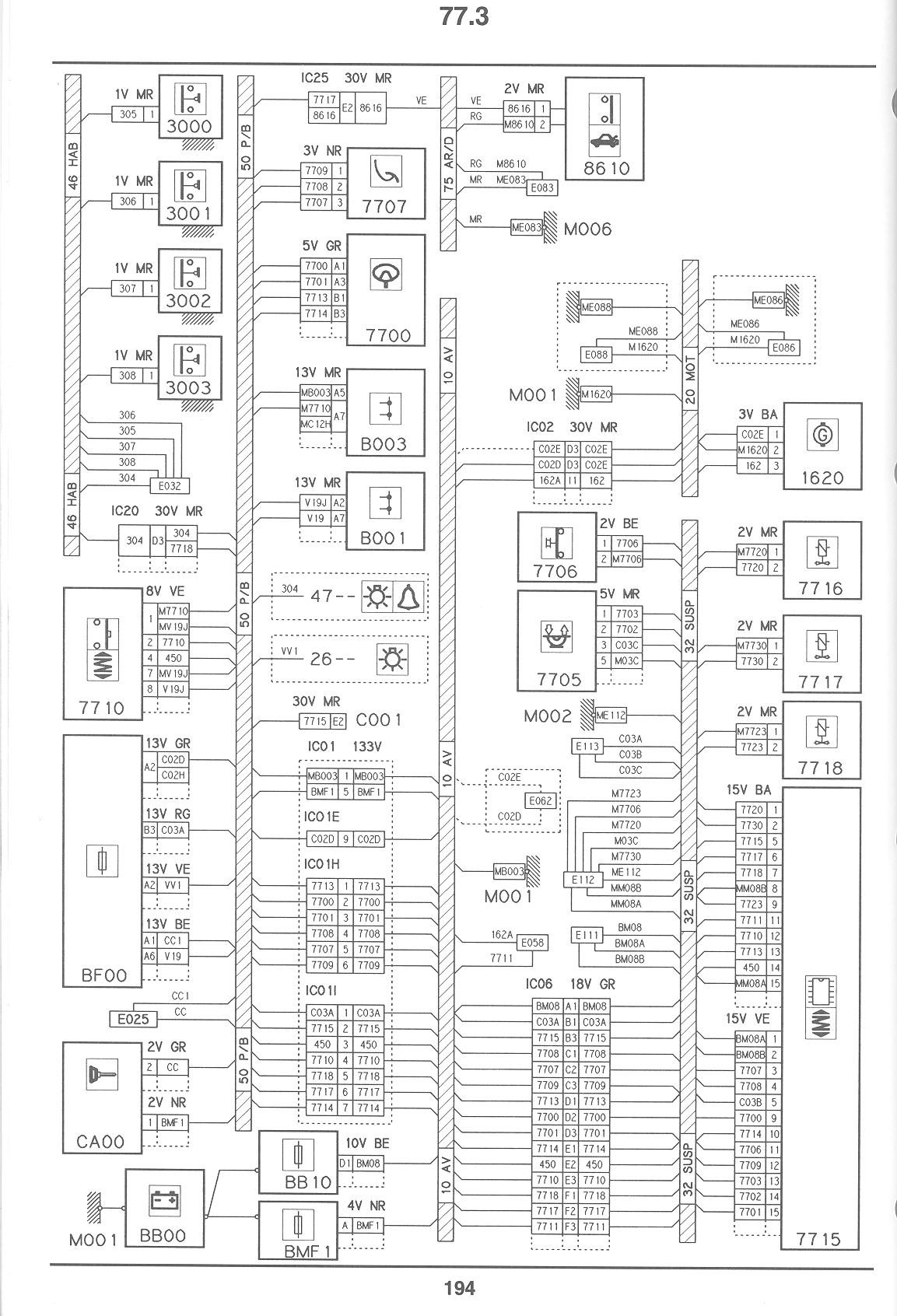

Circuit Diagram
Harnesses

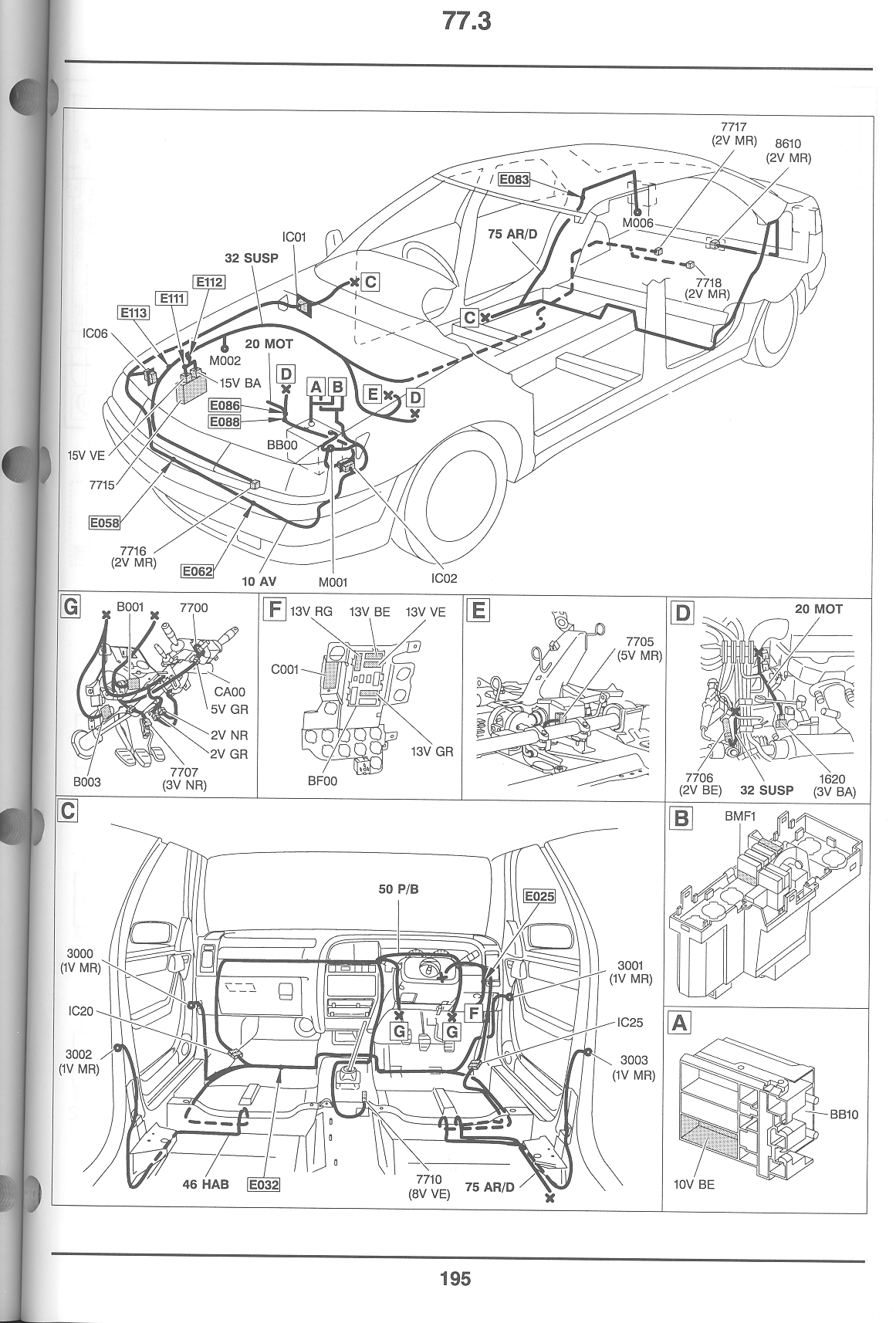

Location Diagram
