My Xantia sinker has a leak from the nsr sphere cylinder. The sphere and O ring are fine and the leak is not from there.
There was a constant drip from the cylinder area but when I pulled the clip out and pulled the boot back the LHM flooded out.

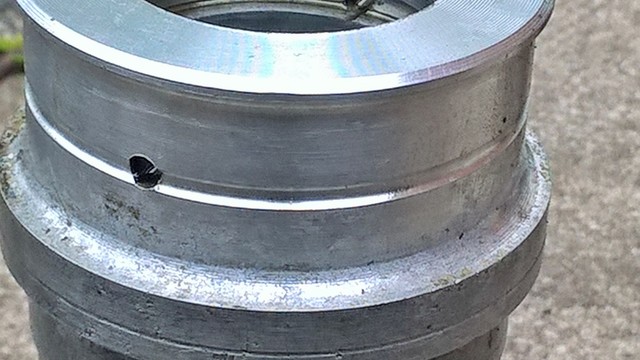

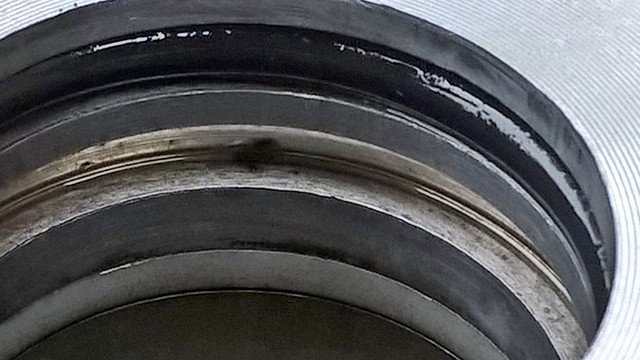

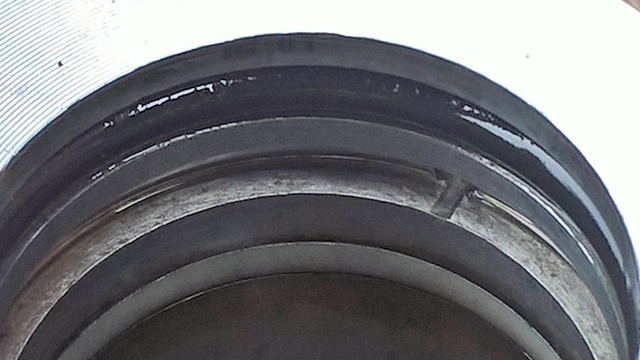

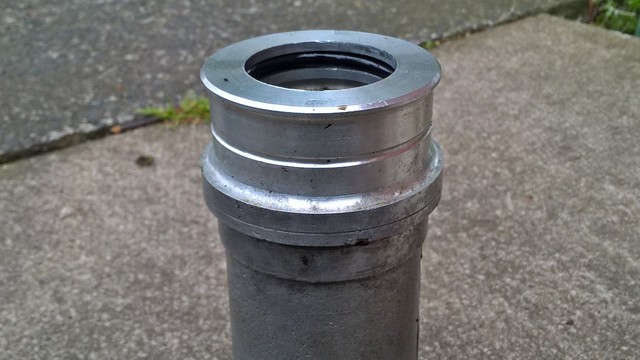

These are the photo's of the cylinder
There are only two seals inside the cylinder, a black one at the top and a white one further down. Service.Citroen says there should be three!
Can anyone confirm that I'm missing a seal before I scout the country for a set?
