Hi
I have a Xantia MK II 2.0 16V automatic. I am looking for the pin assignment for the engine ECU connector . Does anyone have it ?
Thanks
Zohar
Xantia - Engine ECU connector pin assignment needed
Moderator: RichardW
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Xantia - Engine ECU connector pin assignment needed
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
- CitroJim
- A very naughty boy
- Posts: 49526
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6160
- Contact:
Re: Xantia - Engine ECU connector pin assignment needed
Yes, what ECU is it exactly Zohar?
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Re: Xantia - Engine ECU connector pin assignment needed
Hi Jim
The engine is XU10J4R, the ECU is Bosch MP 5.2
Thanks
Zohar
The engine is XU10J4R, the ECU is Bosch MP 5.2
Thanks
Zohar
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
- CitroJim
- A very naughty boy
- Posts: 49526
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6160
- Contact:
Re: Xantia - Engine ECU connector pin assignment needed
Zohar,

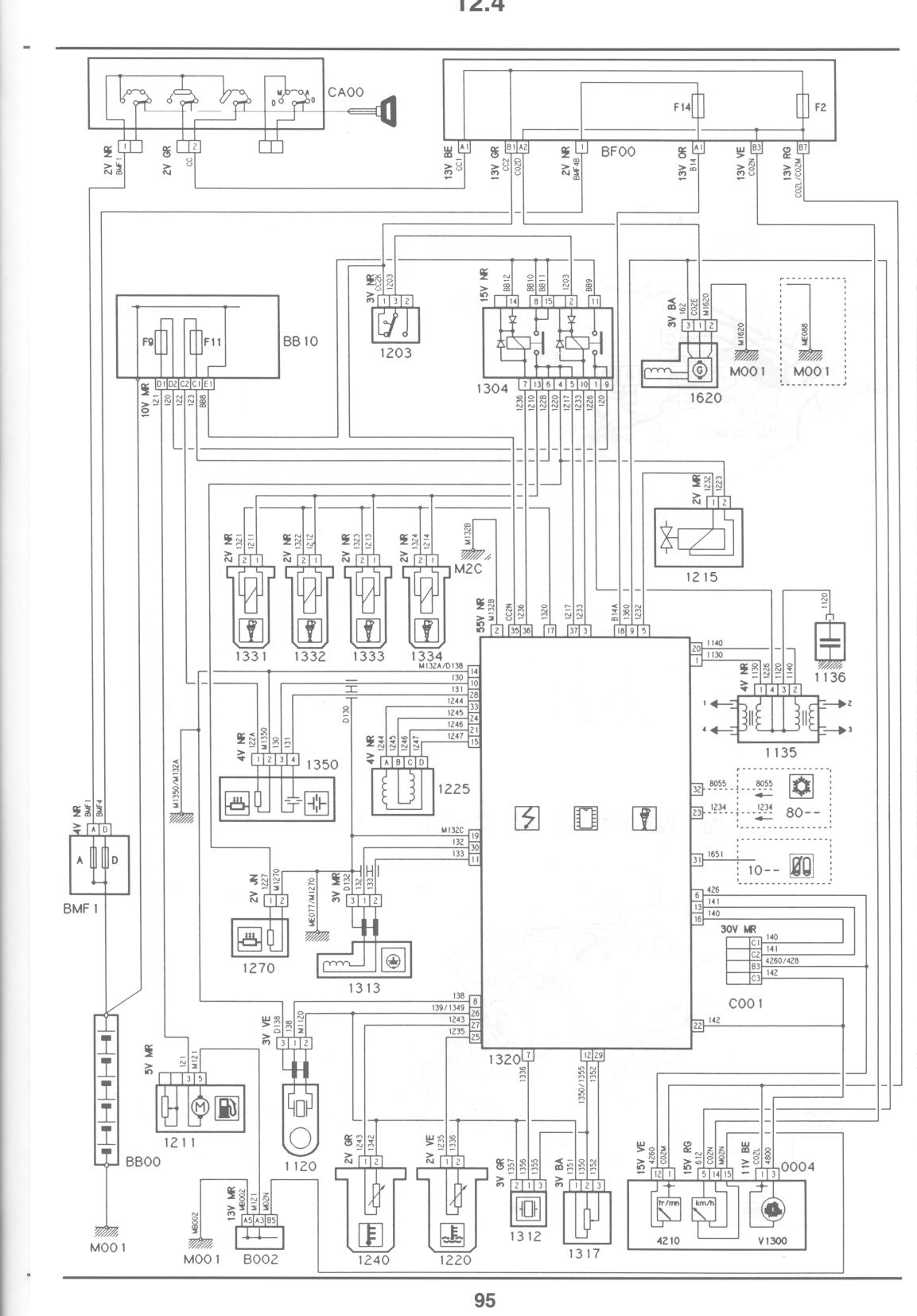

Here's the diagram for the MP5.1 system on the 2.0l 16v
Not sure if the MP5.2 differs in any appreciable way. I can look later if need be...
Here's the diagram for the MP5.1 system on the 2.0l 16v
Not sure if the MP5.2 differs in any appreciable way. I can look later if need be...
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Re: Xantia - Engine ECU connector pin assignment needed
Hi Jim
Thanks for the prompt response. I'll check if it matches with the wring on my car. Do you have the legend for the diagram ?
Thanks
Thanks for the prompt response. I'll check if it matches with the wring on my car. Do you have the legend for the diagram ?
Thanks
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
- CitroJim
- A very naughty boy
- Posts: 49526
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6160
- Contact:
Re: Xantia - Engine ECU connector pin assignment needed
I have some of them Zohar..lancia58 wrote:Hi Jim
Do you have the legend for the diagram ?

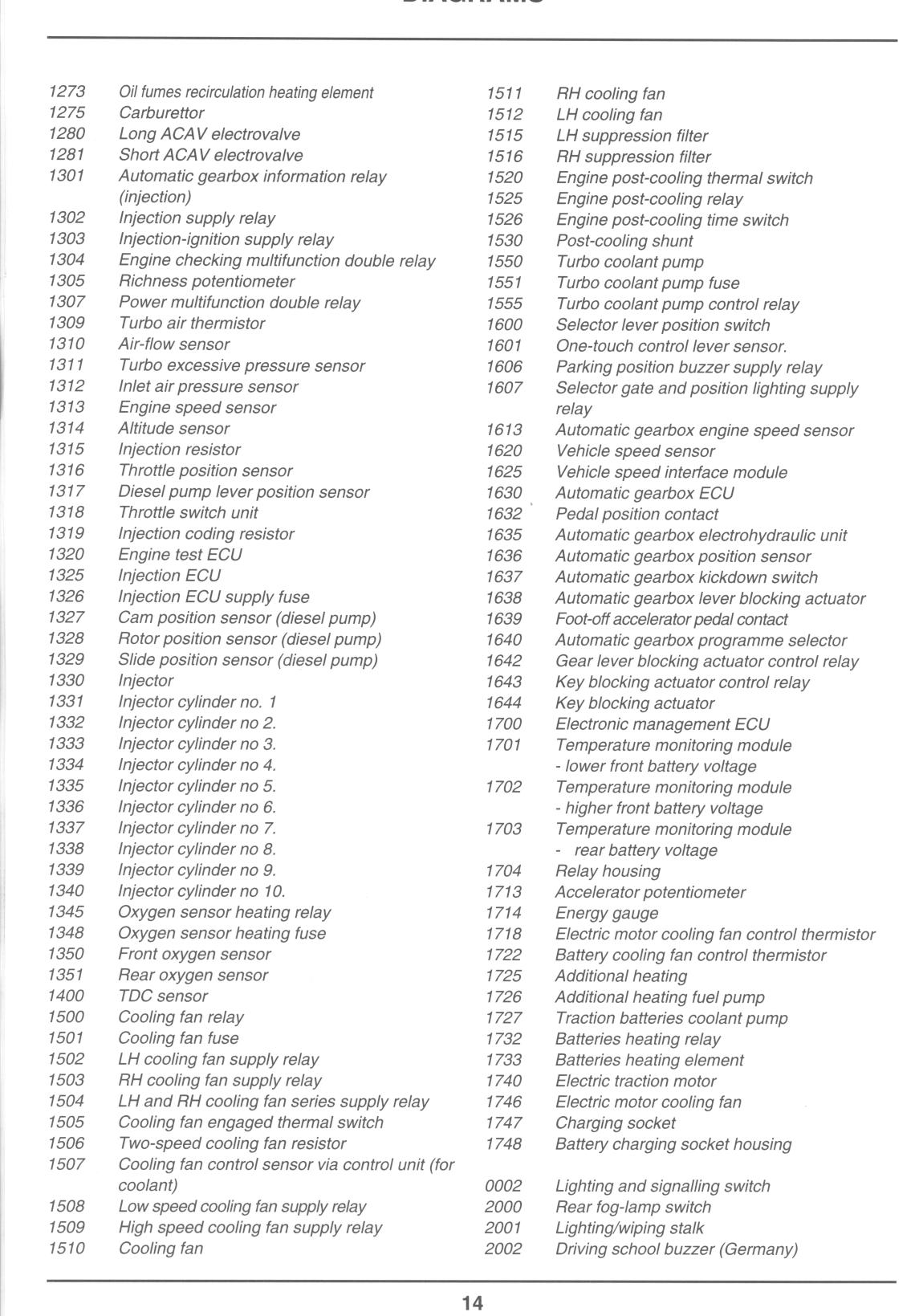

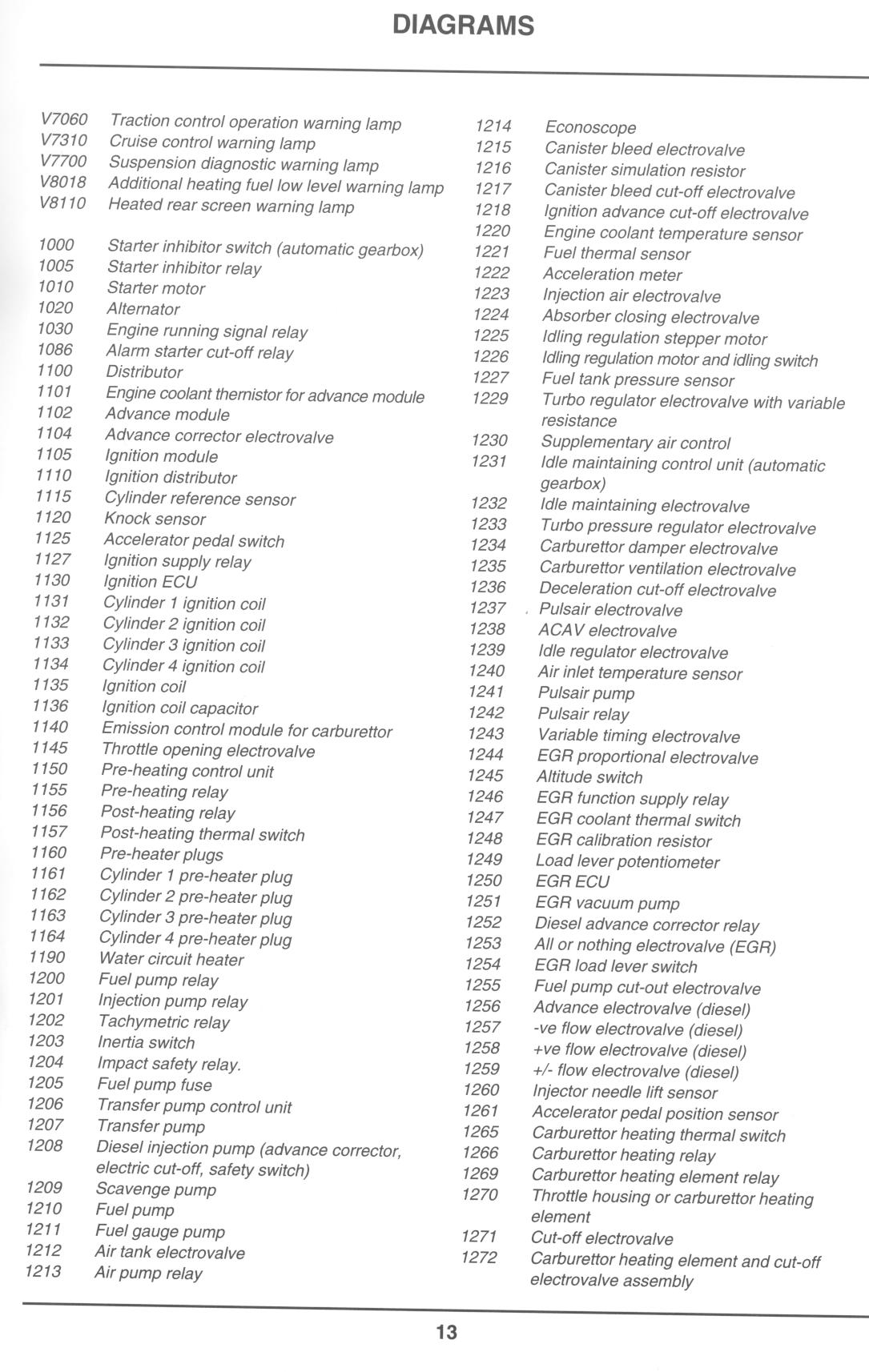

Legends Page 1
