Xantia HDi fuel pump removal

Post by Skull »

SHMBO has put petrol in my diesel [-X Luckily it's only been primed but not started ....it was near empty so at least 75% of what's in there is petrol.

Tried syphoning through the filler but can't get anything out so probably a severe bend or anti-theft device fitted.

Decided to gain access for syphoning through the fuel filter but the locking ring looks to be over-tightened 3/4 of a turn looking at the alignment marks.

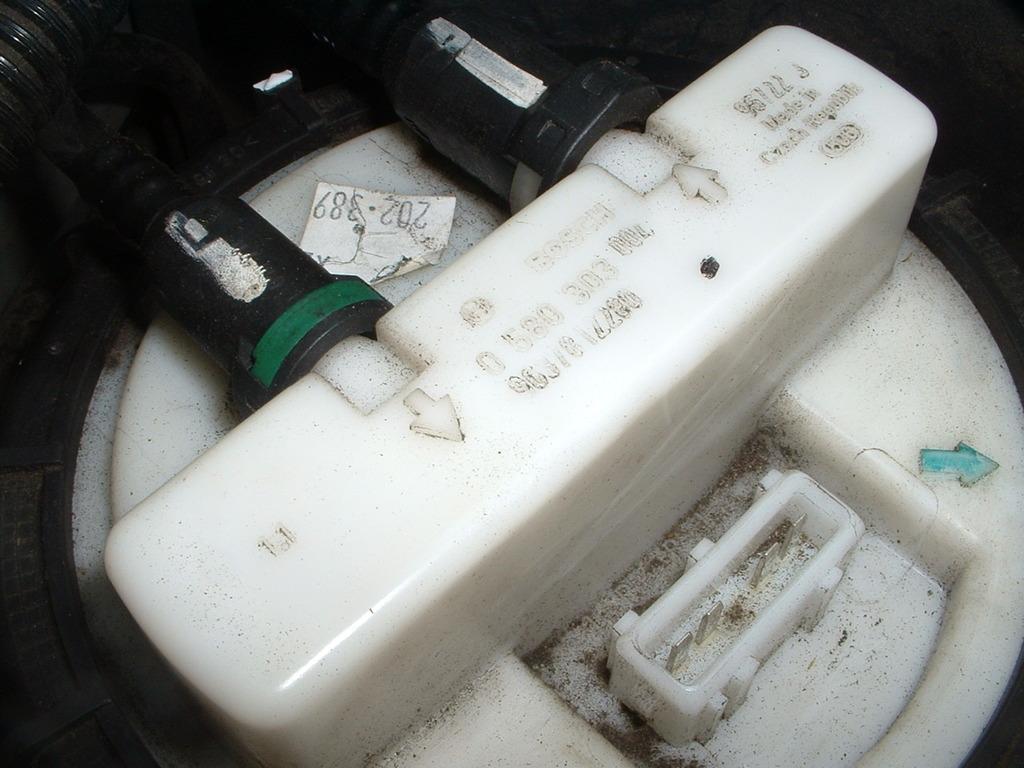

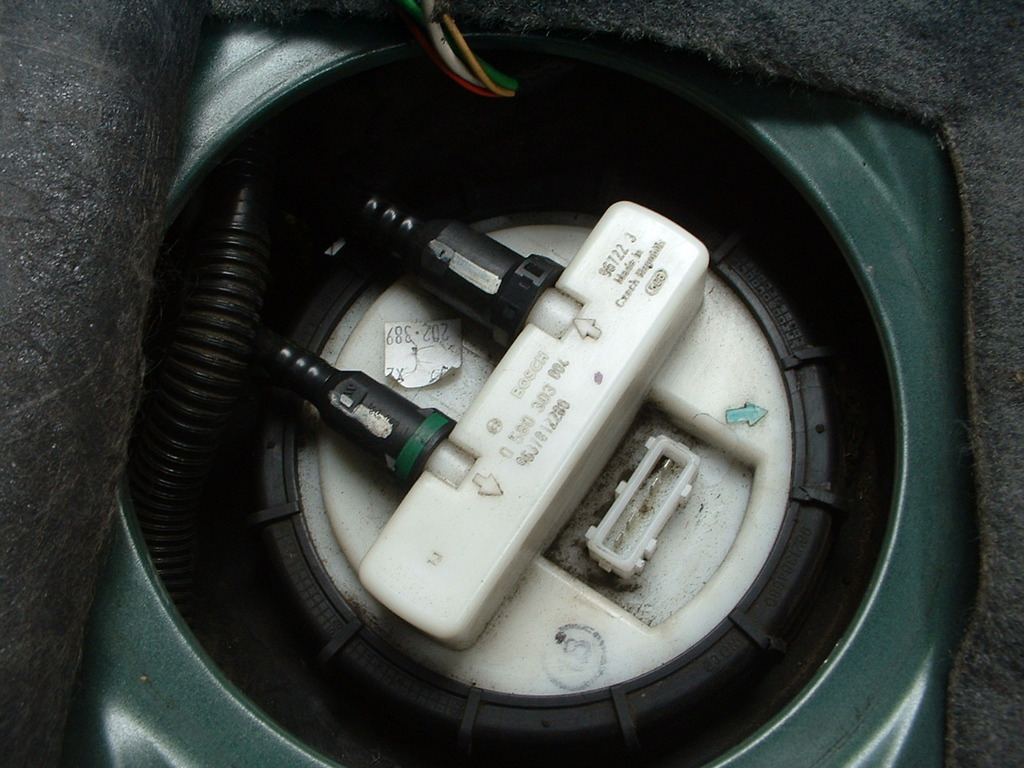

Green arrow on pump body and white arrow about 11 o' clock on locking ring in this photo ....



Tried the blunt screwdriver 'trick' but it's just breaking the tabs off :roll:

My old AX was similar but smaller this one is about 140mm diameter and the fuel pipe connectors are different looks like I need a special tool but no idea which type ... any advice or someone near Darlington Co Durham with the necessary tools :?:


If I can get the fuel lines off without damage I can probably make a tool for the locking ring or just break it off and replace (153120) £2.71 + new seal ....
On my 4th Citroën Xantia (X2 HDi (110))
Citroën sAXo Memphis Mk II
Gone
Xantia x3 (2.0i TCT Activa)(2.1 TD SX)(1.9 TD Estate)
Xsara HDi VTR Coupe / Saxo 1.1i / BX 1.9 d / 4 x AX's (1.4D /1.5D)
2 x 406 (1.9 TD Estate/2.1 TD Saloon) 405 1.9 D Estate 306 1.9 XTDT Hatch
electronmirror
(Donor 2022)
Posts: 246
Joined: 27 Oct 2005, 20:42
Location: Berkshire,'tween Reading+Bracknell
My Cars: C5 2.0 (163) diesel Exclusive Tourer 2010
Xantia Exclusive HDI Estate
x 27

Re: Xantia HDi fuel pump removal

Post by electronmirror »

The fuel lines are very easy to remove.
Firstly, tie a piece of string around the the fuel pipes 'cos when you release the locking tab there's a good chance they will try and fall down the side of the tank and then become a pain to retrieve :( .

Next use a small bladed screwdriver and depress the green plastic tab you can see in your photo, at the same time pull the pipe off. If it won't come off you've not depressed the green locking tab enough. Do ensure the ends of the fuel pipes are covered to prevent ingress of dirt while you work on the next part.

The tabbed locking ring can be removed using a screwdriver and small hammer. The secret is to tap gently at 4 different points 180 degrees apart around the circumference. It may take a few minutes but it will unscrew. Yes you may break a few tabs but there are lots of them :-D

Before replacing the locking ring, thoroughly clean the threads on ring and tank and lightly grease. It makes the reassembly job so much easier.

The fuel pipes are then just a push fit back onto the pump stub pipes and you should hear them click into place. Check for leaks before replacing the big cover.

Good luck :-D
Ted
2010 C5 2.0 diesel(163) Exclusive Tourer (118,000miles)
1999 Xantia Exclusive Estate 110 Hdi Mauritius Blue with self peeling lacquer finish (276,174miles)

1991 XM Prestige 2.0 Auto(157,000 miles) gone but not forgotten
User avatar
Skull
Donor 2024
Posts: 939
Joined: 02 Aug 2013, 13:35
Location: Darlington Co Durham
My Cars: Citroën Xantia XII HDi
Citroën AX XII

Missing AX 1.4D Echo
x 223

Re: Xantia HDi fuel pump removal

Post by Skull »

electronmirror Thanks for the prompt response ..... I will give that a try thanks for the string tip :wink:
On my 4th Citroën Xantia (X2 HDi (110))
Citroën sAXo Memphis Mk II
Gone
Xantia x3 (2.0i TCT Activa)(2.1 TD SX)(1.9 TD Estate)
Xsara HDi VTR Coupe / Saxo 1.1i / BX 1.9 d / 4 x AX's (1.4D /1.5D)
2 x 406 (1.9 TD Estate/2.1 TD Saloon) 405 1.9 D Estate 306 1.9 XTDT Hatch
User avatar
Skull
Donor 2024
Posts: 939
Joined: 02 Aug 2013, 13:35
Location: Darlington Co Durham
My Cars: Citroën Xantia XII HDi
Citroën AX XII

Missing AX 1.4D Echo
x 223

Re: Xantia HDi fuel pump removal

Post by Skull »

electronmirror Many Thanks - easy when you know how, she's only had an idle so far but sounds normal [-o<
On my 4th Citroën Xantia (X2 HDi (110))
Citroën sAXo Memphis Mk II
Gone
Xantia x3 (2.0i TCT Activa)(2.1 TD SX)(1.9 TD Estate)
Xsara HDi VTR Coupe / Saxo 1.1i / BX 1.9 d / 4 x AX's (1.4D /1.5D)
2 x 406 (1.9 TD Estate/2.1 TD Saloon) 405 1.9 D Estate 306 1.9 XTDT Hatch
electronmirror
(Donor 2022)
Posts: 246
Joined: 27 Oct 2005, 20:42
Location: Berkshire,'tween Reading+Bracknell
My Cars: C5 2.0 (163) diesel Exclusive Tourer 2010
Xantia Exclusive HDI Estate
x 27

Re: Xantia HDi fuel pump removal

Post by electronmirror »

=D>
Ted
2010 C5 2.0 diesel(163) Exclusive Tourer (118,000miles)
1999 Xantia Exclusive Estate 110 Hdi Mauritius Blue with self peeling lacquer finish (276,174miles)

1991 XM Prestige 2.0 Auto(157,000 miles) gone but not forgotten
citroenxm
Posts: 8061
Joined: 30 Dec 2004, 23:10
Location: Somewhere in North Wales, Anglesey
My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto

2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising
x 70

Re: Xantia HDi fuel pump removal

Post by citroenxm »

Ive drained a tank from under the bonnet. If you detach the pipes at the filter at the engine you can then open the ecu box lift out the double relay and remove it.. You then conbect two pins which are all numbered in the plug and the pump will run constantly.. Cant remember the two now 1 and 18 possibly..
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
