James, I hope you enjoy the thread all the way through... It's quite a tale and it shows how much easier a 1.9TD/BE3 clutch is to do!!!

Excellent progress today though, it's amazing how a bit of sunshine makes everything better...

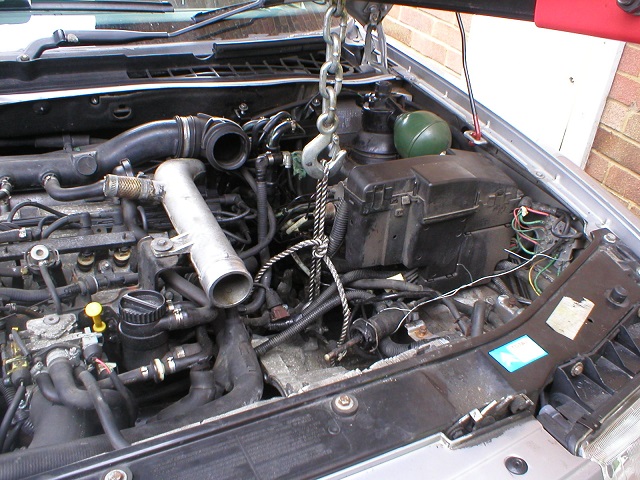

Gearbox is now split from the engine (after finding the hidden bellhousing bolt - again :twisted: It gets me very time...) and we see a classic release bearing pull-out... New clutch is ready to go in after I've jumped on the lathe and made up a special stubby alignment tool...

With the gearbox in that position there is just room to do the job with the aforementioned stubby alignment tool...


In the picture you can just see the release bearing on the guide tube rather than where it should be - clipped into the clutch diaphragm spring...

Lunchtime now, will continue later...
User avatar
daviemck2006
Donor 2020
Posts: 4909
Joined: 04 Dec 2010, 19:45
x 344

Re: Davie's Activa Clutch

Post by daviemck2006 »

Good work Jim. I'll bet the bugger of a bolt kept jumping about too!
User avatar
CitroJim
A very naughty boy
Posts: 43889
Joined: 30 Apr 2005, 23:33
x 1780

Re: Davie's Activa Clutch

Post by CitroJim »

daviemck2006 wrote:Good work Jim. I'll bet the bugger of a bolt kept jumping about too!
Yes, the bloody thing kept finding new places to hide!!!!
superloopy
Posts: 3303
Joined: 30 Mar 2005, 03:25

Re: Davie's Activa Clutch

Post by superloopy »

I can't believe that's enough space to fit a clutch Jim.

Is that the clutch plate on the flywheel to the left then if the bearing is, as you say, on the guide tube?

I'm learning i think!
User avatar
xantos
Posts: 409
Joined: 02 Apr 2013, 10:05
x 7

Re: Davie's Activa Clutch

Post by xantos »

I can't believe either that someone can change a clutch like that... :shock:

But sir Jim is probably so tinny he can fit in the gearbox to tighten the clutch in place :-D
User avatar
CitroJim
A very naughty boy
Posts: 43889
Joined: 30 Apr 2005, 23:33
x 1780

Re: Davie's Activa Clutch

Post by CitroJim »

The clutch failed because the release bearing seized up and every time the clutch was disengaged a massive strain was put on the C Clip that holds the release bearing into the diaphragm spring.. Over time it heated up very severely (which you can see in the pictures) and failed. You can see how distorted, how hot it's been and how bent it is.. Amazed it didn't make a racket...


The clutch itself is OK...


These are the ropes now holding the gearbox secure whilst the crane, which does get in the way, is out of the way...

xantiamanic wrote:I can't believe that's enough space to fit a clutch Jim.
xantos wrote:I can't believe either that someone can change a clutch like that... :shock:

But sir Jim is probably so tinny he can fit in the gearbox to tighten the clutch in place :-D
Well, believe me, you can! This is the Team WFA method and it has been done twice in the past like this... It is a bit fiddly but it's a lot easier than trying to remove the gearbox with the engine in place - that is a very difficult task indeed.

I did need to disconnect the gear selector cables and found the easiest way was to disconnect the ball-ends and then remove the place holding the cables onto the back of the gearbox complete - saved fiddling around with the cable retaining clips...
xantiamanic wrote: Is that the clutch plate on the flywheel to the left then if the bearing is, as you say, on the guide tube?
Yes, that's the flywheel and clutch cover on the left...
xantiamanic wrote:I'm learning i think!
That's excellent Mike :D

That's all for today... Off to have a shower now and fix the workshop radio which packed up this afternoon. I then need to fix my stereo tuner in the living room which also packed up shortly afterward :evil:
User avatar
CitroJim
A very naughty boy
Posts: 43889
Joined: 30 Apr 2005, 23:33
x 1780

Re: Davie's Activa Clutch

Post by CitroJim »

Interestingly, the old clutch is a LUK and the new one going in is also a LUK :)

Pretty certain it's the original clutch too...
User avatar
daviemck2006
Donor 2020
Posts: 4909
Joined: 04 Dec 2010, 19:45
x 344

Re: Davie's Activa Clutch

Post by daviemck2006 »

There was absolutely no warning of it going. It was smooth, no noises vibration. Just clutch in, away to pull out of a junction when it went. I was only 1 mile from home so started it in gear and the box is so smooth clutchless changes were no problem. I could have driven it all the way to Jims without the clutch if I had had to! Here's hoping the replacement sees another 128000 miles [GRINNING FACE WITH SMILING EYES]

Sent from my SM-G361F using Tapatalk
superloopy
Posts: 3303
Joined: 30 Mar 2005, 03:25

Re: Davie's Activa Clutch

Post by superloopy »

CitroJim wrote:Interestingly, the old clutch is a LUK and the new one going in is also a LUK :)

Pretty certain it's the original clutch too...
LUK is specified as oem on service.citroen although i'd always look for Valeo myself (what am I talking about :? )

I know it's a no-goer but if the original clutch was found to be ok would it be possible to just replace the release bearing?

What's that gizmo you've got coat-hangered to the earthplate on the wing?
User avatar
CitroJim
A very naughty boy
Posts: 43889
Joined: 30 Apr 2005, 23:33
x 1780

Re: Davie's Activa Clutch

Post by CitroJim »

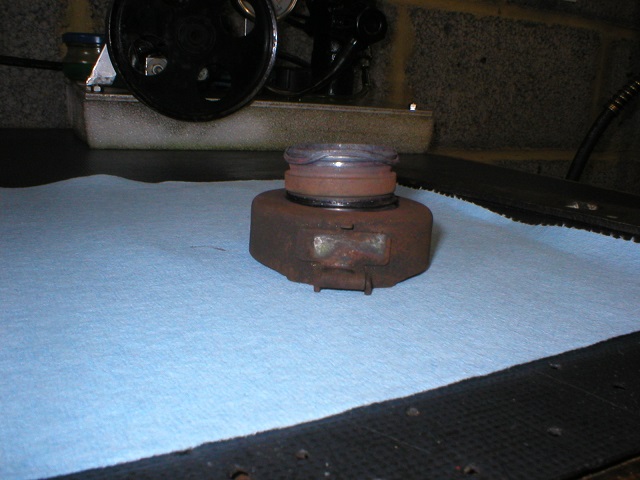

Davie, judging by the state of the bearing, new and old shown for comparison in the picture below, I'd have expected some odd noise and odd feeling but your experience is the same as all the others that have gone like this - absolutely no warning at all...
