mk1 Xantia alarm ecu location
Merry Christmas all, it's boxing day so inevitably I'm out in the garage having resisted it's charms since before Xmas
Anyway I need to look at the alarm ecu because I acquired a new IR remote that doesn't seem to be able to code to the sensor in the ceiling. Central locking all works via the for lock, as does dead locks.
So I suppose the central locking circuitry is all good. I think the recoding of the remote is dealt with by the alarm ECU (?) so need to check it's In good condition.
I expected to find the ECU under the passenger seat but the space appears empty. The alarm does work as I found out after reconnecting the battery. The override button works fine.
The IR remote is a new old stock item with no key blade fitted, has batteries and power and the IR sender can be seen to ' light' separate from the red led. I'm certain the remote works and sure its the correct type for mk1 (2 buttons, red led, and manufacturers name on the printed circuit is the same as the one on my previous Xantia. ) so all the sensible checks have been made.
Also: I'm reprogramming this by switching the ignition to 1 then aiming the remote to the sensor and holding for 40 sec. I'm sure this was what I had to do back in 2007 with my old 1.9d N-reg. Tried also with ignition switch to 2, and also pressing and releasing remote as well as holding it.
I am assuming the ceiling-mounted IR receiver functions.
So! I can't reprogram the remote!
Any help/ past experience greatly received!!
Anyway I need to look at the alarm ecu because I acquired a new IR remote that doesn't seem to be able to code to the sensor in the ceiling. Central locking all works via the for lock, as does dead locks.
So I suppose the central locking circuitry is all good. I think the recoding of the remote is dealt with by the alarm ECU (?) so need to check it's In good condition.
I expected to find the ECU under the passenger seat but the space appears empty. The alarm does work as I found out after reconnecting the battery. The override button works fine.
The IR remote is a new old stock item with no key blade fitted, has batteries and power and the IR sender can be seen to ' light' separate from the red led. I'm certain the remote works and sure its the correct type for mk1 (2 buttons, red led, and manufacturers name on the printed circuit is the same as the one on my previous Xantia. ) so all the sensible checks have been made.
Also: I'm reprogramming this by switching the ignition to 1 then aiming the remote to the sensor and holding for 40 sec. I'm sure this was what I had to do back in 2007 with my old 1.9d N-reg. Tried also with ignition switch to 2, and also pressing and releasing remote as well as holding it.
I am assuming the ceiling-mounted IR receiver functions.
So! I can't reprogram the remote!
Any help/ past experience greatly received!!
Graeme M
2008 C5 Exclusive Tourer 2.0 HDi
2008 C5 Exclusive Tourer 2.0 HDi
-
- Donor 2023
- Posts: 1300
- Joined: 26 Dec 2007, 18:10
- Location: Glasgow
- Lexia Available: Yes
- My Cars: 2008 C5 Exclusive Tourer
1993 Xantia 1.9 TD VSX Mk1 Sinker A.K.A Slugmobile 13'
'Old Katy'
previous convictions: totaling 52litres of LHM in one go:
1968 ID19B 'Old Polly' Stellar white
1993 Xantia 1.9 TD SX Mk1 Sinker Silver
1992 XM 2.0 SEi Turbo Manual Anthracite Grey
1982 CX 20 Pallas 'Old Goldy'
1993 XM 2.1 SD Auto Light blue
1993 Xantia 1.9 TD SX Mk1 Sinker light Blue
1982 BX 16 TRS 'Cyril' Vallelunga Red
1995 Xantia 1.9 D SX Auto Dark green
1977 CX 2400 Pallas C-Matic 'Aphrodite' Regatta Blue
1982 GSA Pallas SE Silver Pearl
1980 CX 2000 Reflex Vallelunga Red
1978 CX 2400 Pallas C-Matic 'Prometheus' Midnight blue
1984 BX 14E 'Cecil the slugmobile' Maroon
1987 Fiat Panda 'the mighty panda' - x 98
Re: mk1 Xantia alarm ecu location
Actually, perhaps its the ceiling IR receiver that learns the code? Just looked at that and it looks grubby it's covered in some semi-set kind of gray sealant and a bit of duct tape like it's been a bodge effort to keep water off it.. No sign of any leaks tho (it has been like a hurricane here)
Graeme M
2008 C5 Exclusive Tourer 2.0 HDi
2008 C5 Exclusive Tourer 2.0 HDi
- chinkostu
- Posts: 1180
- Joined: 24 Sep 2014, 09:41
- Location: cheshire
- My Cars: N Xantia 1.9TD SX
03 Fiesta 1.4 Zetec - x 30
Re: mk1 Xantia alarm ecu location
They can be iffy to reprogram. Do you have a plip key already that works? I had to turn my ignition on and press the raised button while pointing it fairly close to the receiver. Took me a good hour to get both going, had one to lock and one to unlock at one point. But eventually it stuck, think i turned the key and pressed one key, then a small pause then the second key.
The central locking ecu is between the seats under the console, mine also has the alarm one under the passenger seat/rear passenger footwell. The roof mounted reciever can be swapped out without affecting the keys.
By the way citroen still supply cut blades for these keys!
The central locking ecu is between the seats under the console, mine also has the alarm one under the passenger seat/rear passenger footwell. The roof mounted reciever can be swapped out without affecting the keys.
By the way citroen still supply cut blades for these keys!
Stu
Cars
1995 Xantia 1.9TD SX in (faded) Red
2003 Fiesta 1.4 Zetec in GREEEEEEEN
2001 206 1.9 LX
2001 Saxo VTR
1999 Saxo 1.1 East coast
1999 Punto
1996 306 1.8 XN Auto
1996 Fiesta 1.3
Cars
1995 Xantia 1.9TD SX in (faded) Red
2003 Fiesta 1.4 Zetec in GREEEEEEEN
2001 206 1.9 LX
2001 Saxo VTR
1999 Saxo 1.1 East coast
1999 Punto
1996 306 1.8 XN Auto
1996 Fiesta 1.3
-
- Donor 2023
- Posts: 1300
- Joined: 26 Dec 2007, 18:10
- Location: Glasgow
- Lexia Available: Yes
- My Cars: 2008 C5 Exclusive Tourer
1993 Xantia 1.9 TD VSX Mk1 Sinker A.K.A Slugmobile 13'
'Old Katy'
previous convictions: totaling 52litres of LHM in one go:
1968 ID19B 'Old Polly' Stellar white
1993 Xantia 1.9 TD SX Mk1 Sinker Silver
1992 XM 2.0 SEi Turbo Manual Anthracite Grey
1982 CX 20 Pallas 'Old Goldy'
1993 XM 2.1 SD Auto Light blue
1993 Xantia 1.9 TD SX Mk1 Sinker light Blue
1982 BX 16 TRS 'Cyril' Vallelunga Red
1995 Xantia 1.9 D SX Auto Dark green
1977 CX 2400 Pallas C-Matic 'Aphrodite' Regatta Blue
1982 GSA Pallas SE Silver Pearl
1980 CX 2000 Reflex Vallelunga Red
1978 CX 2400 Pallas C-Matic 'Prometheus' Midnight blue
1984 BX 14E 'Cecil the slugmobile' Maroon
1987 Fiat Panda 'the mighty panda' - x 98
Re: mk1 Xantia alarm ecu location
Thanks! Well, no I don't have a second remote - only a key. So what you found was that it takes many attempts? When I did this with my 95 Xantia it worked first time! In, igntion on, remote poit at receiver, half a minute later it was done.
Hmm. How much does the stealer ask for the blank key to be cut?
Hmm. How much does the stealer ask for the blank key to be cut?
Graeme M
2008 C5 Exclusive Tourer 2.0 HDi
2008 C5 Exclusive Tourer 2.0 HDi
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 71
Re: mk1 Xantia alarm ecu location
There is two box's for the locking Greame, the box under the PASSENGER seat carpet, useually needs the seat uplifting to find it, controls the alarm side of things but there is ALSO a box between the front seats, centre console, towards the rear, lift out the cubby box that sits over and around the sunroof and rear window switch's and there should be another box with two plugs in it.. this box is also central locking related too...
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
-
- Donor 2023
- Posts: 1300
- Joined: 26 Dec 2007, 18:10
- Location: Glasgow
- Lexia Available: Yes
- My Cars: 2008 C5 Exclusive Tourer
1993 Xantia 1.9 TD VSX Mk1 Sinker A.K.A Slugmobile 13'
'Old Katy'
previous convictions: totaling 52litres of LHM in one go:
1968 ID19B 'Old Polly' Stellar white
1993 Xantia 1.9 TD SX Mk1 Sinker Silver
1992 XM 2.0 SEi Turbo Manual Anthracite Grey
1982 CX 20 Pallas 'Old Goldy'
1993 XM 2.1 SD Auto Light blue
1993 Xantia 1.9 TD SX Mk1 Sinker light Blue
1982 BX 16 TRS 'Cyril' Vallelunga Red
1995 Xantia 1.9 D SX Auto Dark green
1977 CX 2400 Pallas C-Matic 'Aphrodite' Regatta Blue
1982 GSA Pallas SE Silver Pearl
1980 CX 2000 Reflex Vallelunga Red
1978 CX 2400 Pallas C-Matic 'Prometheus' Midnight blue
1984 BX 14E 'Cecil the slugmobile' Maroon
1987 Fiat Panda 'the mighty panda' - x 98
Re: mk1 Xantia alarm ecu location
Thanks but the central locking all works fine - it's just the recoding of the remote that isn't working. By the way had excellent results modifying the 2 height corrector cradles...
Graeme M
2008 C5 Exclusive Tourer 2.0 HDi
2008 C5 Exclusive Tourer 2.0 HDi
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 71
Re: mk1 Xantia alarm ecu location
Brill Graeme, hope thats honest and not excellent as crap results!
I cant remember if the roof recivier stores the code of the locking box...
I cant remember if the roof recivier stores the code of the locking box...
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
-
- Posts: 1366
- Joined: 30 Oct 2012, 22:37
- Location: Chelmsford, Essex
- My Cars: Two C5's...
Lots of CXs...
A couple of Xantia...
A C2...
Lots of Prelude's...
And a Sunny! - x 66
- Contact:
Re: mk1 Xantia alarm ecu location
Bought one just a couple of months ago. Unfortunately I can't lay my hands on the receipt right now, but it was under £20 iirc.aerodynamica wrote: Hmm. How much does the stealer ask for the blank key to be cut?
Note that although they still do the keys, they don't do the fitting rivet for them anymore
--
Iain
1x '85 CX GTi Turbo s1 (metallic blue)
2x '85 CX GTi Turbo s2 t1 (metallic silver & grey)
'88 CX GTi Turbo s2 T2 (metallic light blue)
CX DTR T2 Safari (silver)
2x '96 Xantia Activa (Black & metallic green)
'01 C5 2.0 HDi LX Estate (Blue)
Iain
1x '85 CX GTi Turbo s1 (metallic blue)
2x '85 CX GTi Turbo s2 t1 (metallic silver & grey)
'88 CX GTi Turbo s2 T2 (metallic light blue)
CX DTR T2 Safari (silver)
2x '96 Xantia Activa (Black & metallic green)
'01 C5 2.0 HDi LX Estate (Blue)
- chinkostu
- Posts: 1180
- Joined: 24 Sep 2014, 09:41
- Location: cheshire
- My Cars: N Xantia 1.9TD SX
03 Fiesta 1.4 Zetec - x 30
Re: mk1 Xantia alarm ecu location
Yea i had to recover my rivet unfortunately. They do need identification for cut keys.
I had 2 plips to program so mine was a pain. But as far as i know its ign on, within 20 seconds press button on plip close to receiver, then ign off and lock alarm car. Mine took quite a few attempts to do both though, from what i can tell it might roll the saved plips so you could eventually roll it back so no previous ones are saved, which is what i think happened with mine.
I had 2 plips to program so mine was a pain. But as far as i know its ign on, within 20 seconds press button on plip close to receiver, then ign off and lock alarm car. Mine took quite a few attempts to do both though, from what i can tell it might roll the saved plips so you could eventually roll it back so no previous ones are saved, which is what i think happened with mine.
Stu
Cars
1995 Xantia 1.9TD SX in (faded) Red
2003 Fiesta 1.4 Zetec in GREEEEEEEN
2001 206 1.9 LX
2001 Saxo VTR
1999 Saxo 1.1 East coast
1999 Punto
1996 306 1.8 XN Auto
1996 Fiesta 1.3
Cars
1995 Xantia 1.9TD SX in (faded) Red
2003 Fiesta 1.4 Zetec in GREEEEEEEN
2001 206 1.9 LX
2001 Saxo VTR
1999 Saxo 1.1 East coast
1999 Punto
1996 306 1.8 XN Auto
1996 Fiesta 1.3
-
- Donor 2023
- Posts: 1300
- Joined: 26 Dec 2007, 18:10
- Location: Glasgow
- Lexia Available: Yes
- My Cars: 2008 C5 Exclusive Tourer
1993 Xantia 1.9 TD VSX Mk1 Sinker A.K.A Slugmobile 13'
'Old Katy'
previous convictions: totaling 52litres of LHM in one go:
1968 ID19B 'Old Polly' Stellar white
1993 Xantia 1.9 TD SX Mk1 Sinker Silver
1992 XM 2.0 SEi Turbo Manual Anthracite Grey
1982 CX 20 Pallas 'Old Goldy'
1993 XM 2.1 SD Auto Light blue
1993 Xantia 1.9 TD SX Mk1 Sinker light Blue
1982 BX 16 TRS 'Cyril' Vallelunga Red
1995 Xantia 1.9 D SX Auto Dark green
1977 CX 2400 Pallas C-Matic 'Aphrodite' Regatta Blue
1982 GSA Pallas SE Silver Pearl
1980 CX 2000 Reflex Vallelunga Red
1978 CX 2400 Pallas C-Matic 'Prometheus' Midnight blue
1984 BX 14E 'Cecil the slugmobile' Maroon
1987 Fiat Panda 'the mighty panda' - x 98
Re: mk1 Xantia alarm ecu location
Thanks all, will have a further go
Graeme M
2008 C5 Exclusive Tourer 2.0 HDi
2008 C5 Exclusive Tourer 2.0 HDi
-
- Donor 2023
- Posts: 1300
- Joined: 26 Dec 2007, 18:10
- Location: Glasgow
- Lexia Available: Yes
- My Cars: 2008 C5 Exclusive Tourer
1993 Xantia 1.9 TD VSX Mk1 Sinker A.K.A Slugmobile 13'
'Old Katy'
previous convictions: totaling 52litres of LHM in one go:
1968 ID19B 'Old Polly' Stellar white
1993 Xantia 1.9 TD SX Mk1 Sinker Silver
1992 XM 2.0 SEi Turbo Manual Anthracite Grey
1982 CX 20 Pallas 'Old Goldy'
1993 XM 2.1 SD Auto Light blue
1993 Xantia 1.9 TD SX Mk1 Sinker light Blue
1982 BX 16 TRS 'Cyril' Vallelunga Red
1995 Xantia 1.9 D SX Auto Dark green
1977 CX 2400 Pallas C-Matic 'Aphrodite' Regatta Blue
1982 GSA Pallas SE Silver Pearl
1980 CX 2000 Reflex Vallelunga Red
1978 CX 2400 Pallas C-Matic 'Prometheus' Midnight blue
1984 BX 14E 'Cecil the slugmobile' Maroon
1987 Fiat Panda 'the mighty panda' - x 98
Re: mk1 Xantia alarm ecu location
Tonight I was resealing a headliught and cleaning the rear light seals and greasing them up - getting a little water in through the off side rear light.. Anyway, back to the IR plip thing. A new pair of batteries saw no difference save for the red led pulsing stronger. I had a closer look at the IR receiver. And... it seems there's a problem!

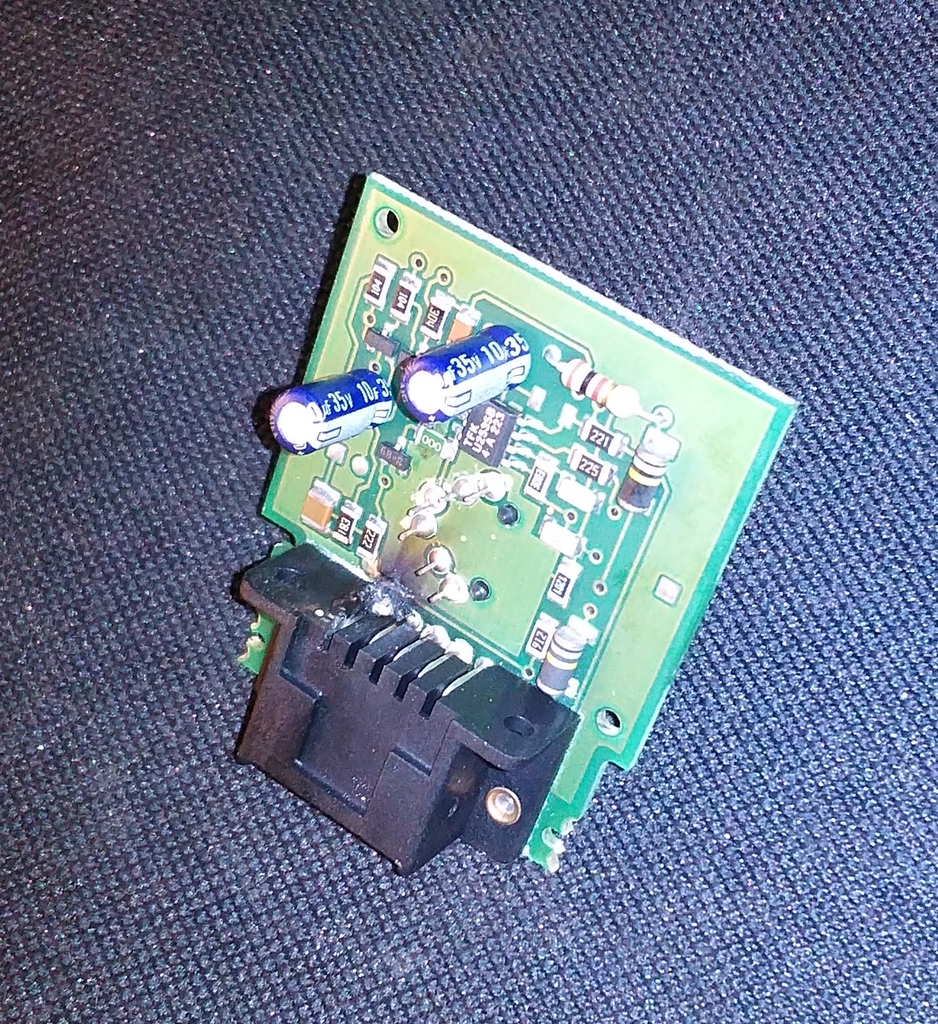

This is what greeted me upon inspection:

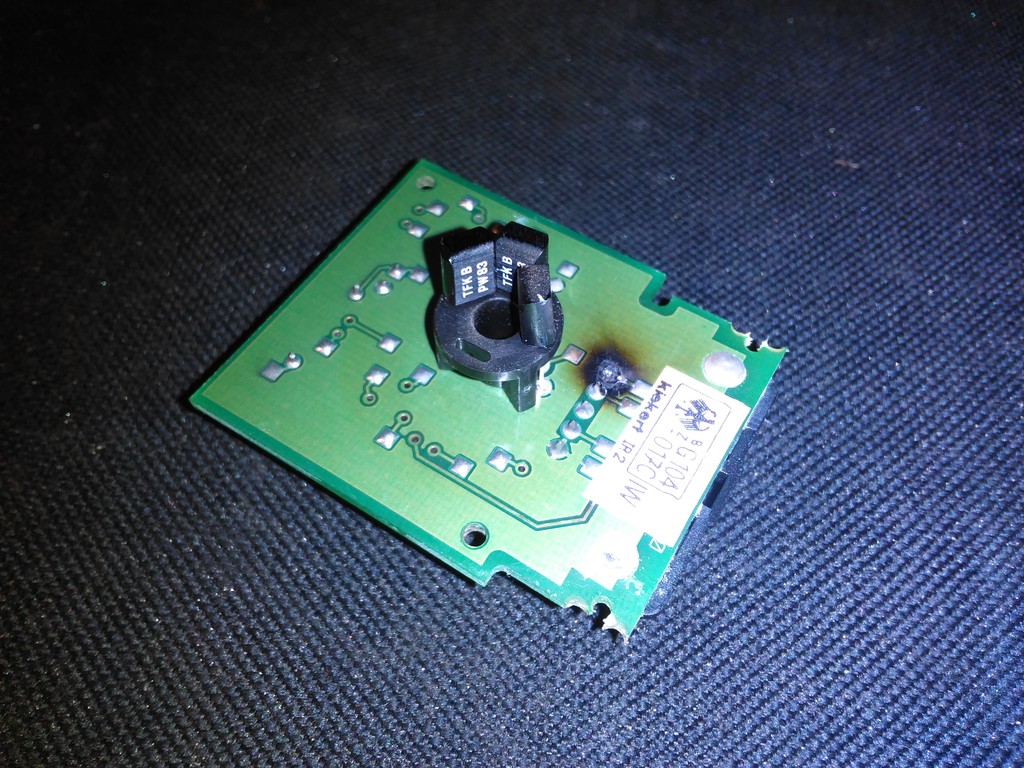

An obviously burned-out track. The other side revealed the solder burned away:
So I now need to find a replacement IR receiver! Paul?
This is what greeted me upon inspection:
An obviously burned-out track. The other side revealed the solder burned away:
So I now need to find a replacement IR receiver! Paul?
Graeme M
2008 C5 Exclusive Tourer 2.0 HDi
2008 C5 Exclusive Tourer 2.0 HDi
- chinkostu
- Posts: 1180
- Joined: 24 Sep 2014, 09:41
- Location: cheshire
- My Cars: N Xantia 1.9TD SX
03 Fiesta 1.4 Zetec - x 30
Re: mk1 Xantia alarm ecu location
Looks like someones gone at it with a soldering iron, no obvious component failure anywhere (blown caps or melted plastics!)
Someones bound to have a spare. Otherwise you might have to run a length of wire to replace the burnt track!
Someones bound to have a spare. Otherwise you might have to run a length of wire to replace the burnt track!
Stu
Cars
1995 Xantia 1.9TD SX in (faded) Red
2003 Fiesta 1.4 Zetec in GREEEEEEEN
2001 206 1.9 LX
2001 Saxo VTR
1999 Saxo 1.1 East coast
1999 Punto
1996 306 1.8 XN Auto
1996 Fiesta 1.3
Cars
1995 Xantia 1.9TD SX in (faded) Red
2003 Fiesta 1.4 Zetec in GREEEEEEEN
2001 206 1.9 LX
2001 Saxo VTR
1999 Saxo 1.1 East coast
1999 Punto
1996 306 1.8 XN Auto
1996 Fiesta 1.3
- xantia_v6
- Forum Admin Team
- Posts: 9084
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 834
Re: mk1 Xantia alarm ecu location
I think it is just a fatigued solder joint that has gone high resistance, then been passing enough current to get very hot. I suspect that the copper PCB track is not even damaged. It can't hurt to try resoldering it and see what happens.
-
- Donor 2023
- Posts: 1300
- Joined: 26 Dec 2007, 18:10
- Location: Glasgow
- Lexia Available: Yes
- My Cars: 2008 C5 Exclusive Tourer
1993 Xantia 1.9 TD VSX Mk1 Sinker A.K.A Slugmobile 13'
'Old Katy'
previous convictions: totaling 52litres of LHM in one go:
1968 ID19B 'Old Polly' Stellar white
1993 Xantia 1.9 TD SX Mk1 Sinker Silver
1992 XM 2.0 SEi Turbo Manual Anthracite Grey
1982 CX 20 Pallas 'Old Goldy'
1993 XM 2.1 SD Auto Light blue
1993 Xantia 1.9 TD SX Mk1 Sinker light Blue
1982 BX 16 TRS 'Cyril' Vallelunga Red
1995 Xantia 1.9 D SX Auto Dark green
1977 CX 2400 Pallas C-Matic 'Aphrodite' Regatta Blue
1982 GSA Pallas SE Silver Pearl
1980 CX 2000 Reflex Vallelunga Red
1978 CX 2400 Pallas C-Matic 'Prometheus' Midnight blue
1984 BX 14E 'Cecil the slugmobile' Maroon
1987 Fiat Panda 'the mighty panda' - x 98
Re: mk1 Xantia alarm ecu location
Hiya, it looks more like it shorted out between two of the connections to the plug - I think maybe due to water ingress. Anyway, I might be able to resolder itas it's only one track
Graeme M
2008 C5 Exclusive Tourer 2.0 HDi
2008 C5 Exclusive Tourer 2.0 HDi
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 71
Re: mk1 Xantia alarm ecu location
Yes.. got a fair few about.. I owe someone else one as well. . Ill get one found for you greame!
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
