Mmm........C5 rear brakes.
Just getting teeth into this now. The pesky long bolts. That is not a great design is it guys? A long and stretchy bolt that the caliper hangs onto? I know they are 10.5 but a bit of an ask.
Apart from the corrosion that pushes the caliper off the swinging arm plate, the forces must bend and stretch that bolt badly as well?
My 4 bolts only have half of the heads on them. I had to weld large nuts on them to remove.
On the fourth bolt the beggar broke It went on outside face of caliper.......flush. I will grind a lump out of caliper tomorrow and get another nut on it. I miss my oxy/acy smoke spanner
Apart from the corrosion that pushes the caliper off the swinging arm plate, the forces must bend and stretch that bolt badly as well?
My 4 bolts only have half of the heads on them. I had to weld large nuts on them to remove.
On the fourth bolt the beggar broke It went on outside face of caliper.......flush. I will grind a lump out of caliper tomorrow and get another nut on it. I miss my oxy/acy smoke spanner
Citroen C5 1.6 HDI 110bhp Estate 06 plate
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
Re: Mmm........C5 rear brakes.
The same basic design has been used for a number of models for decades, complete with the corrosion problems. Why they didn't modify them based on experience and feedback is a mystery - even fitting an 'official' gasket would have been a step in the right direction.
I suspect they took it as far as it would go with the C5, and the Loctite coated bolts, which are the biggest cause of removal problems, were a last resort. Perhaps there were problems with the prototypes, and it was too late to re-design the calipers (or rather re-specify, as they're bought-in).
I suppose over time the shear forces on the bolts when braking diminish, as the caliper becomes bonded in place with corrosion!
I suspect they took it as far as it would go with the C5, and the Loctite coated bolts, which are the biggest cause of removal problems, were a last resort. Perhaps there were problems with the prototypes, and it was too late to re-design the calipers (or rather re-specify, as they're bought-in).
I suppose over time the shear forces on the bolts when braking diminish, as the caliper becomes bonded in place with corrosion!
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 70
Re: Mmm........C5 rear brakes.

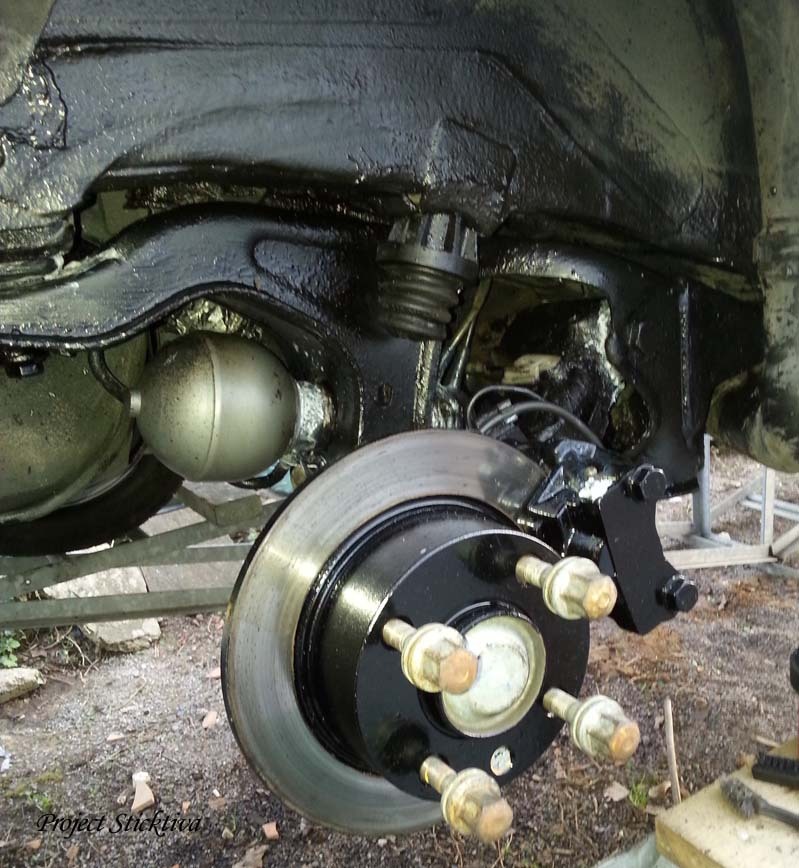

The Xm appears to be the only model that doesnt suffer this caliper problem.. the reason? The caliper face Does NOT cover across the whole of the two mating faces.. the caliper only contacts the arm face in the areas where the bolts pass through... no other lhm citroen used the design .. unless cx do too. One lhm cit ive had nothing to do with yet..
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: Mmm........C5 rear brakes.
C5x7 does it in a different way does it not ?
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 70
Re: Mmm........C5 rear brakes.
X7 isnt an LHM cit and is is more a 407 as the suspension is complete swappable to springs n dampers.. even on exclusive hydraulic equipt cars the hand brake is still on the rear so the x7 actually breaks the rules of trailing arms rear and handbrake on front setup that all lhm and mk.1 c5 have
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
Re: Mmm........C5 rear brakes.
Because of wishbone suspension?C5x7 does it in a different way does it not ?
I did a paint job on the new calipers and bolts. Etch primer on caliper side, contact face, then 2 coats of engine block enamel. Same with bolts and their new washers .
Left the thread for the loctite. That is all that the job needed at the factory. Good, suitable paint will stop ally/ steel corrosion.
Ha ha.............all part of Citroen ownership. Good maintenance from PO''s and their garages would have prevented this easily mind. Why do we end up doing these jobs in winter? Masochism is your answer
Citroen C5 1.6 HDI 110bhp Estate 06 plate
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: Mmm........C5 rear brakes.
C5 is the only one that suffers...Xantia does not have the problem either does it ? (hope not )The Xm appears to be the only model that doesnt suffer this caliper problem
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
-
- Donor 2023
- Posts: 13727
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 2993
Re: Mmm........C5 rear brakes.
Sorry Alasdair, but the Xantia does suffer that weird corrosion as well;Stickyfinger wrote:C5 is the only one that suffers...Xantia does not have the problem either does it ? (hope not )The Xm appears to be the only model that doesnt suffer this caliper problem
http://www.frenchcarforum.co.uk/forum/v ... =3&t=38467
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: Mmm........C5 rear brakes.
bu44er, will need to keep a check on that then , I do know they are OK atm however
Last edited by Stickyfinger on 01 Dec 2015, 20:04, edited 1 time in total.
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Re: Mmm........C5 rear brakes.
Does the Xanty have an ally caliper? I have only ever changed the pads mind you on my previous models.
On the C5. Why did Citroen put a 2 part locking compound into caliper bolt holes? Was it to fill the gap as the reamed caliper holes are bigger than bolt dia? This would tighten the whole thing up and stop the caliper just relying on head of bolt. I find it hard to believe it was just to stop galvanic corrosion. The zinc coated bolt would have done that. Nope...........it's a bloomer I think.
On the C5. Why did Citroen put a 2 part locking compound into caliper bolt holes? Was it to fill the gap as the reamed caliper holes are bigger than bolt dia? This would tighten the whole thing up and stop the caliper just relying on head of bolt. I find it hard to believe it was just to stop galvanic corrosion. The zinc coated bolt would have done that. Nope...........it's a bloomer I think.
Citroen C5 1.6 HDI 110bhp Estate 06 plate
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
-
- Donor 2023
- Posts: 13727
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 2993
Re: Mmm........C5 rear brakes.
When I get around to doing the rear brakes on my C5, I intend to put some baking parchment between the calliper and the trailing arm. With luck this should act as a thin gasket between the two, but be able to handle any heat generated.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Re: Mmm........C5 rear brakes.
That'll do it James.
Citroen C5 1.6 HDI 110bhp Estate 06 plate
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 70
Re: Mmm........C5 rear brakes.
Yes xantia calipers are alloy and alloy corrode they do which is what pushes the caliper out... the arm mounting face itself doesnt get harmed!!
As said only XM DO Not suffer from it ... xantia c5 and I think bx do it..
the C5 can and does cause the most damage because there is even less clearence between caliper and disk the caliper if left can take the disk out on the back so it cant be seen. Ive seen this on a c5.. though I have not on a xantia.. so its even more critical.
I don't think there is enough clearence to fit a spacer or insulating spacer to prevent it.
As said only XM DO Not suffer from it ... xantia c5 and I think bx do it..
the C5 can and does cause the most damage because there is even less clearence between caliper and disk the caliper if left can take the disk out on the back so it cant be seen. Ive seen this on a c5.. though I have not on a xantia.. so its even more critical.
I don't think there is enough clearence to fit a spacer or insulating spacer to prevent it.
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
Re: Mmm........C5 rear brakes.
Yes.I don't think there is enough clearence to fit a spacer or insulating spacer to prevent it.
Only James's baking paper or my paint would work. Even with piston pushed right in, there is only just enough room to get the brake pad and shim into that space. It is an interference fit.
Citroen C5 1.6 HDI 110bhp Estate 06 plate
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
Re: Mmm........C5 rear brakes.
All I did a few years ago when I encountered the corrosion build up on my Xantia's caliper interface (before FCF existed I expect), was to clean off the white oxidation and smear the caliper face and the mating face on the trailing arm with copaslip grease. Not had to revisit to redo
