Xantia - LHM reservoir leak

Post by lancia58 »

Hi

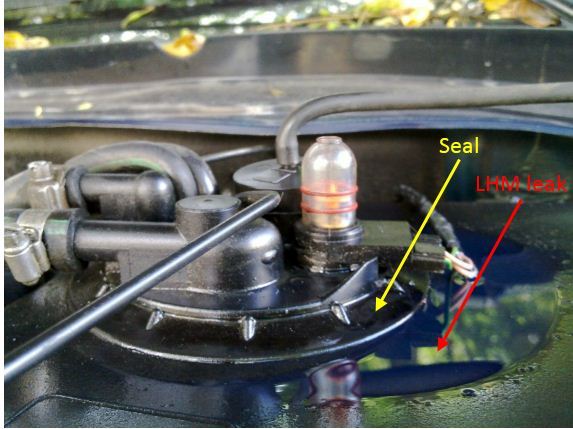

There is an LHM leak between the reservoir block and the reservoir. I changed the seal to a new one but it steal leaks. A year ago or so I replaced the reservoir block with a new one ( found a cheap deal on eBay ) and I think since then the leak becomes worse. The block came with a new seal but it leaked. So I bought a new seal and it still leaks. What can be done to stop the leak ?



Thanks
Zohar
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Xantia - LHM reservoir leak

Post by xantia_v6 »

To solve that problem, I cleaned and degreased the top of the tank and the bottom of the reservoir, and then reassembled with a thin smear of black silicone sealant (I think I used Loctite 5910, anything would probably do).
User avatar
Zelandeth
Donor 2024
Posts: 4731
Joined: 16 Nov 2014, 23:36
Location: Milton Keynes
My Cars: 2006 Peugeot Partner Escapade 1.6HDi.
1988 Renault 25 Monaco 2.0i.
1985 Sinclair C5.
1984 Trabant 601S.
1975 Rover 3500.
1973 AC Model-70.
x 1403
Contact:

Re: Xantia - LHM reservoir leak

Post by Zelandeth »

That's an interesting one. The LHM level in the tank is generally low enough that the seal there is more to keep dust and grime out of the tank than the LHM in.

Are you sure that the leak isn't coming from one of the return hoses and simply pooling on the top of the tank? Certain that I recall hearing at least one incident of the plastic barb onto which the hoses fit cracking and causing a leak.
Current fleet:
06 Peugeot Partner Escapade 1.6HDi, 88 Renault 25 Monaco, 85 Sinclair C5, 84 Trabant 601S, 75 Rover 3500, 73 AC Model 70.
User avatar
chinkostu
Posts: 1180
Joined: 24 Sep 2014, 09:41
Location: cheshire
My Cars: N Xantia 1.9TD SX
03 Fiesta 1.4 Zetec
x 30

Re: Xantia - LHM reservoir leak

Post by chinkostu »

Zelandeth wrote:That's an interesting one. The LHM level in the tank is generally low enough that the seal there is more to keep dust and grime out of the tank than the LHM in.

Are you sure that the leak isn't coming from one of the return hoses and simply pooling on the top of the tank? Certain that I recall hearing at least one incident of the plastic barb onto which the hoses fit cracking and causing a leak.
This happened to me, i hadn't quite nipped the clamp up and it leaked all over the top.
Stu

Cars
1995 Xantia 1.9TD SX in (faded) Red
2003 Fiesta 1.4 Zetec in GREEEEEEEN
2001 206 1.9 LX
2001 Saxo VTR
1999 Saxo 1.1 East coast
1999 Punto :oops:
1996 306 1.8 XN Auto :?
1996 Fiesta 1.3 #-o
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Xantia - LHM reservoir leak

Post by xantia_v6 »

Zelandeth wrote:That's an interesting one. The LHM level in the tank is generally low enough that the seal there is more to keep dust and grime out of the tank than the LHM in.
It depends how much enthusiasm you put into your driving :wink:
User avatar
Old-Guy
Posts: 1798
Joined: 11 Sep 2008, 12:08
Location: Gloucestershire
My Cars: 2011 Grand C4 Picasso VTR+ 1.6HDi in Kyanos Blue
1995 Xantia Estate SX 1.9TD in Vert Vega "The Green Lady" - now owned by XanTom
1998 Xantia 2.1 VXD Estate in Mauritius Blue - R.I.P. (terminal tin-worm)
x 17

Re: Xantia - LHM reservoir leak

Post by Old-Guy »

I think this problem is a combination of two things:

1. Over time, the top of the reservoir gets permanently distorted downwards under the pressure of the spring clip.

2. If the LHM is correctly topped up to the mark when the spheres (and the Nitrogen in them) are cold, if the level is checked again when the spheres are hot (rise in ambient temperature coupled with doing enough miles to get the hydraulic system thoroughly warmed), then the reservoir will be over-filled.

For some years now, I have avoided topping-up over half-way between the marks and I no longer get any leakage from the top seal.
2011 Grand C4 Picasso VTR+ 1.6HDi in Kyanos Blue
1995 Xantia Estate SX 1.9TD in Vert Vega "The Green Lady" - after 11 years now owned by XanTom
1998 Xantia 2.1 VXD Estate in Mauritius Blue - R.I.P. (terminal tin-worm)
User avatar
CitroJim
A very naughty boy
Posts: 49534
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6163
Contact:

Re: Xantia - LHM reservoir leak

Post by CitroJim »

None of mine have ever sealed that well except on my last V6...

Guy, I believe you are correct..
Jim
