C5 X7 Towbar fitting instructions and ?
and do you recognise the type (make) so I can find fitting instructions...or maybe you have some ?
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
-
- Locked user account
- Posts: 1750
- Joined: 31 Oct 2013, 17:07
- Location: Somewhere
- My Cars: A used Citroen
- x 27
Re: C5 X7 Towbar fitting instructions and ?
It's one of the fixed types, but to be honest, doesn't look like genuine Citroen to me (at least not from the Accessory catalog) ... why are there 2 sockets for the trailer (one black one white)? The genuine wiring kit only has one (the only difference being 7 or 13 pin)
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: C5 X7 Towbar fitting instructions and ?
yes mate, I am sure it is not a Citroen issue, it was £20
Even if it has some surface rust the welds etc are very good, machine made or a very neat hand for a 12 year old.
Just wondered about fitting instructions if anybody knows the design....
QQ ??, quickest way with rear bumper off ?
Even if it has some surface rust the welds etc are very good, machine made or a very neat hand for a 12 year old.
Just wondered about fitting instructions if anybody knows the design....
QQ ??, quickest way with rear bumper off ?
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: C5 X7 Towbar fitting instructions and ?
Cheers Addo.....any tricks to the bumper, it looks like a clip breaker if you go the wrong way
....will be on my own ...but I will have an old carpet down .
....will be on my own ...but I will have an old carpet down .
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
-
- Locked user account
- Posts: 1750
- Joined: 31 Oct 2013, 17:07
- Location: Somewhere
- My Cars: A used Citroen
- x 27
Re: C5 X7 Towbar fitting instructions and ?
I can upload the bumper removal if necessary, it's simple, but not that simple actually (some cutting required on the lower spoiler)
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: C5 X7 Towbar fitting instructions and ?
that would be fantastic, NP cutting with my Dremel.
thank you, as per normal I am probably "over planning for problems" again
thank you, as per normal I am probably "over planning for problems" again
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
-
- Forum Treasurer
- Posts: 10813
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 984
Re: C5 X7 Towbar fitting instructions and ?
Looks like a Witter bar to me. Fitting instructions, inc bumper removal: Here
Electrics you will just have to make the best of - does it look like a plug in job? I wouldn't bother with the grey socket, unless you plan a bit of shed dragging
Electrics you will just have to make the best of - does it look like a plug in job? I wouldn't bother with the grey socket, unless you plan a bit of shed dragging
Richard W
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: C5 X7 Towbar fitting instructions and ?
Richard....SPOT on mate....thanks.
I have a "smart" relay box coming with the bar....will have my friend up the road wire it in for me and check the fitting for safety sake.
I have a "smart" relay box coming with the bar....will have my friend up the road wire it in for me and check the fitting for safety sake.
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
-
- Locked user account
- Posts: 1750
- Joined: 31 Oct 2013, 17:07
- Location: Somewhere
- My Cars: A used Citroen
- x 27
Re: C5 X7 Towbar fitting instructions and ?
Here's what I've got on the X7 Tourer bumpers:
http://www.filedropper.com/c5bump" onclick="window.open(this.href);return false;
http://www.filedropper.com/c5bump2" onclick="window.open(this.href);return false;
http://www.filedropper.com/c5bump" onclick="window.open(this.href);return false;
http://www.filedropper.com/c5bump2" onclick="window.open(this.href);return false;
- XUD9
- Posts: 13
- Joined: 10 Mar 2020, 20:30
- Location: Sofia, Bulgaria
- My Cars: Citroen BX 4WD 1.9D 1989
Citroen Xantia 1.9TD XA2 1995
Citroen Traction Avant 11BL 1948
Citroen 2CV6 Club 1986
Citroen C5 X7 2.0HDI 140 2012 - x 5
Re: C5 X7 Towbar fitting instructions and ?
Hey guys
I just bought a towing bar for my C5 X7 (estate) . It's Brink - hidden under the bumper, when folded. I've got the additional ECU and the harness. Looks OEM...
Everything linked with the installation is clear, except wires route. I don't see holes, caps in the trunk or close to the ECU module in the back (guess that's Trailer relay unit, because I see it in DiagBox) .
So, do I need to drill a hole somewhere?
Thank you in advance!
I just bought a towing bar for my C5 X7 (estate) . It's Brink - hidden under the bumper, when folded. I've got the additional ECU and the harness. Looks OEM...
Everything linked with the installation is clear, except wires route. I don't see holes, caps in the trunk or close to the ECU module in the back (guess that's Trailer relay unit, because I see it in DiagBox) .
So, do I need to drill a hole somewhere?
Thank you in advance!
-
- (Donor 2022)
- Posts: 183
- Joined: 02 Nov 2010, 20:50
- Location: Stafford
- My Cars: 00 Xantia 2.0 HDI 90 bhp Estate 237k Gone to New Home
07 C5 2.0 HDI 138 Exclusive Estate 211k. Gearbox selector failed.
10 C5 2.0 HDI 138 Auto Exclusive Estate. Px'd
13 C5 2.0 HDI 160 Manual Exclusive Tourer. - x 13
Re: C5 X7 Towbar fitting instructions and ?
Hi,
Just seen your post.
We have 2013 X7 Tourer (Estate). It has a factory fitted tow bar and the wiring is cable tied on top of the tow bar and passes towards the exhaust. It then passes through a right angle forward behind a plastic cover, at this point it will be vertically under the tail light, it does not appear in the boot or spare wheel well. I would guess that it comes into the car behind the small stowage pocket adjacent to the wheel arch.
I think with the bumper off and or the interior trim removed you will have more visibility of any suitable grommet.
Hope that helps
Andy.
Just seen your post.
We have 2013 X7 Tourer (Estate). It has a factory fitted tow bar and the wiring is cable tied on top of the tow bar and passes towards the exhaust. It then passes through a right angle forward behind a plastic cover, at this point it will be vertically under the tail light, it does not appear in the boot or spare wheel well. I would guess that it comes into the car behind the small stowage pocket adjacent to the wheel arch.
I think with the bumper off and or the interior trim removed you will have more visibility of any suitable grommet.
Hope that helps
Andy.
If it can happen it will.
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: C5 X7 Towbar fitting instructions and ?
Original PSA units have instructions for fitting all the components - but without knowing the type you have I can't help you as there were different electrical harnesses depending on options and for certain vehicles. If you put your VIN up here, I can narrow it down a bit to the official options for the X7 and your build date and provide you with a link to PDF instructions that may help.XUD9 wrote: ↑19 Sep 2020, 18:09 Hey guys
I just bought a towing bar for my C5 X7 (estate) . It's Brink - hidden under the bumper, when folded. I've got the additional ECU and the harness. Looks OEM...
Everything linked with the installation is clear, except wires route. I don't see holes, caps in the trunk or close to the ECU module in the back (guess that's Trailer relay unit, because I see it in DiagBox) .
So, do I need to drill a hole somewhere?
Thank you in advance!
Please Don't PM Me For Technical Help
Marc
Marc
- XUD9
- Posts: 13
- Joined: 10 Mar 2020, 20:30
- Location: Sofia, Bulgaria
- My Cars: Citroen BX 4WD 1.9D 1989
Citroen Xantia 1.9TD XA2 1995
Citroen Traction Avant 11BL 1948
Citroen 2CV6 Club 1986
Citroen C5 X7 2.0HDI 140 2012 - x 5
Re: C5 X7 Towbar fitting instructions and ?
Guys, towbar installed!
Rear bumper was removed, also all carpets and plastics in the trunk. There are a coupe of holes from the factory, covered with strong tape, but too small...
So I decided to drill another one as Andy said - behind the tail light, at the bottom. Parking sensors wires are "coming inside" the same place, but on the left side, under the left tail light.
The hole was covered with primer, just in case. I found a rubber seal for the harness, like the one for the parking sensors. The ECU and all connectors matched perfectly. Now I'm ready for towing the Traction Avant ))

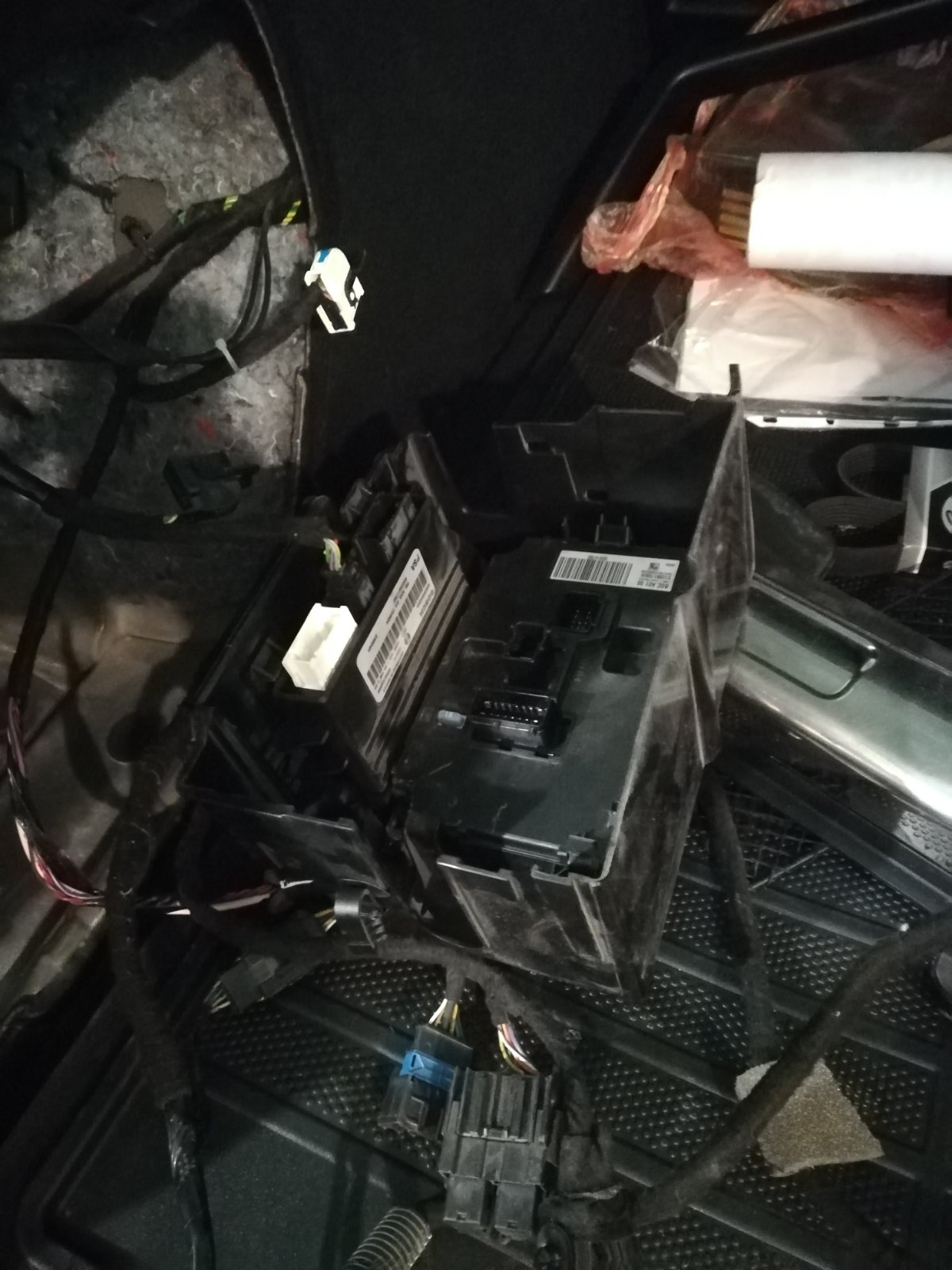

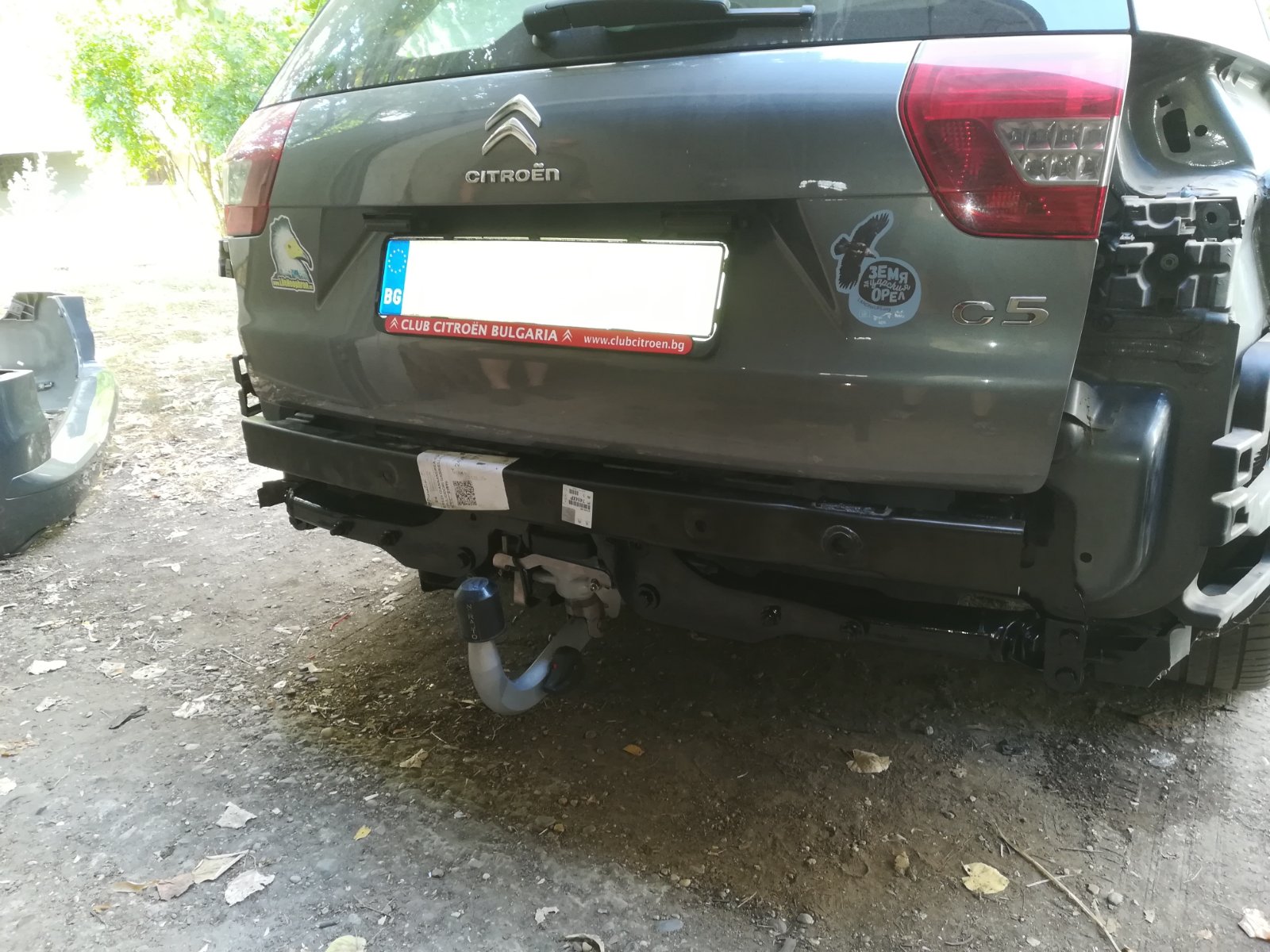

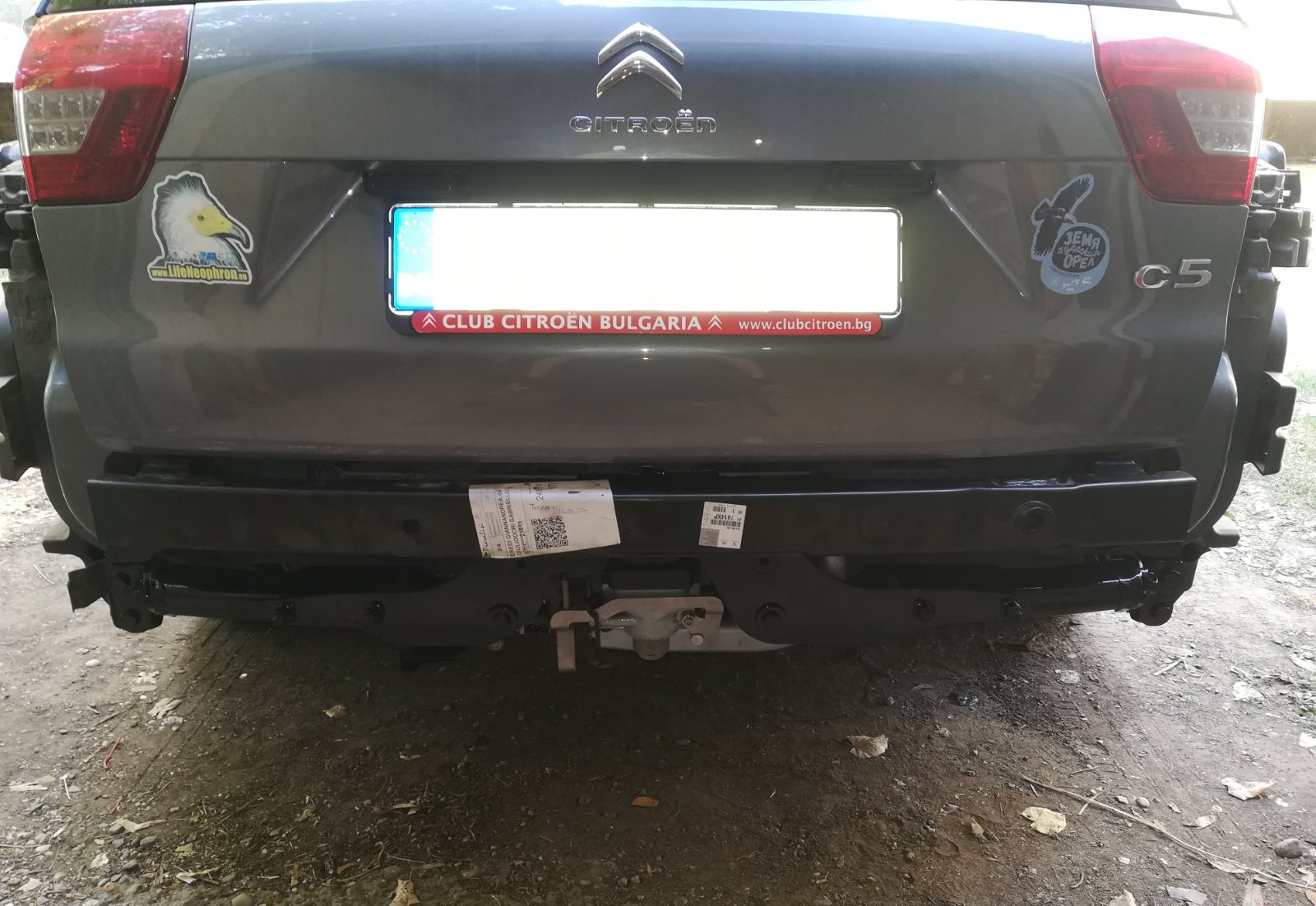

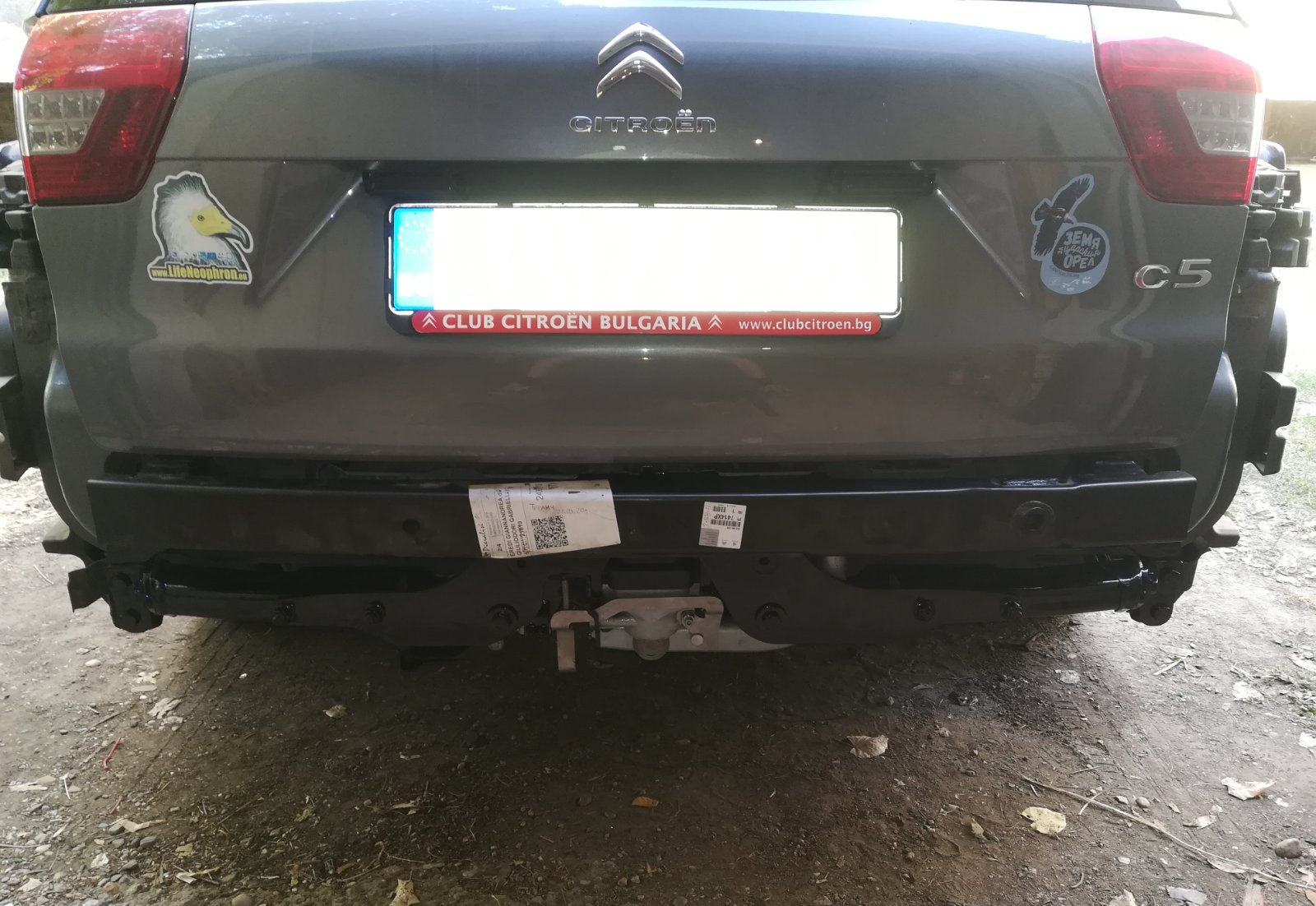

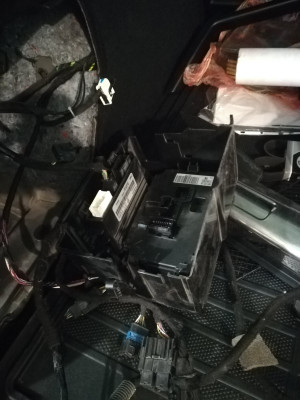

PP: Here's how it looks
Rear bumper was removed, also all carpets and plastics in the trunk. There are a coupe of holes from the factory, covered with strong tape, but too small...
So I decided to drill another one as Andy said - behind the tail light, at the bottom. Parking sensors wires are "coming inside" the same place, but on the left side, under the left tail light.
The hole was covered with primer, just in case. I found a rubber seal for the harness, like the one for the parking sensors. The ECU and all connectors matched perfectly. Now I'm ready for towing the Traction Avant ))
PP: Here's how it looks
