Identifying LHM return pipe
Hi all,

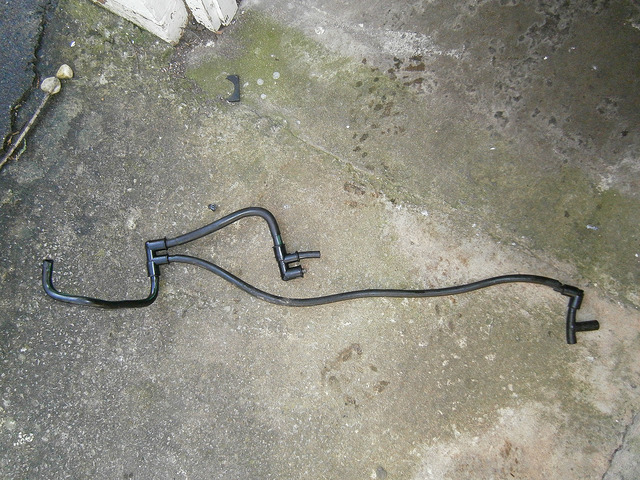

I'm having trouble identifying this pipe that I've removed from my '98 Xantia 1.9TD, it's a return pipe to the LHM reservoir but I need to either get a part number or be pointed in the direction of someone who can help, as I need to order a new one...There's a few on Ebay but they don't look the same as this. It runs from the top of the reservoir down behind, splitting into two to attach to narrow gauge hard piping just down from the reservoir and also to a narrow gauge line that runs under the car to the rear. At this point it also splits off to attach to some even narrower gauge pipe work. Yes, before the more eagle eyed of you ask, it has been cut at the one end. Suffice to say it didn't leave the factory like that!
P3030218 by nitrosurf1701, on Flickr
Thanks in advance!
I'm having trouble identifying this pipe that I've removed from my '98 Xantia 1.9TD, it's a return pipe to the LHM reservoir but I need to either get a part number or be pointed in the direction of someone who can help, as I need to order a new one...There's a few on Ebay but they don't look the same as this. It runs from the top of the reservoir down behind, splitting into two to attach to narrow gauge hard piping just down from the reservoir and also to a narrow gauge line that runs under the car to the rear. At this point it also splits off to attach to some even narrower gauge pipe work. Yes, before the more eagle eyed of you ask, it has been cut at the one end. Suffice to say it didn't leave the factory like that!
P3030218 by nitrosurf1701, on Flickr
Thanks in advance!
Re: Identifying LHM return pipe
GSF only have the strut return pipe listed, can't find any other LHM related pipe work at all!
