If I wire internal lights to 2nd battery I lose IR locking

Post by kenbw2 »

I've got a leisure battery installed so as not to drain the starting battery when using internal electrics such as lights, stereo and cigarette lighters. I have a voltage switched relay to charge it, and use spade connectors into the outlet on the fuse box to wire up the electrics off the leisure battery. Those are solved problems and I'm not looking for advice on those.

The manual states:

- Fuse F15, 20A, "Central Locking, Timer, Window and opening roof relays
- Fuse F30, 15A, "PLIP, Hazard Warning Switch, Lights on Audible Warning Buzzer, Glove box lighting, Telephone, Spot Lamp"

I have a confusing situation though.

- Fuse F15 is for the centrally switched internal lights, not ignition switched
- Fuse F30 is for the individually switched internal lights, ignition switched
- Fuse F30 is also marked as "PLIP", which I gather is the remote locking

I'd like to power F30 from the leisure battery. If I do though, I seem to lose remote locking. If F30 is disconnected though, I get it back, which makes no sense.

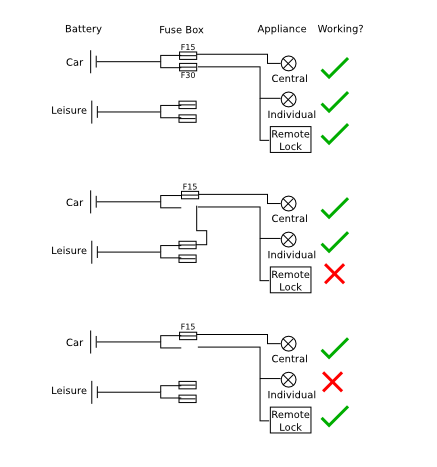

Here's a handy diagram that explains it all:


What's going on?
Last edited by kenbw2 on 19 Feb 2015, 00:46, edited 1 time in total.
Peter.N.
Moderating Team
Posts: 11563
Joined: 02 Apr 2005, 16:11
Location: Charmouth,Dorset
My Cars: Currently:

C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red

In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars.
x 1199

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by Peter.N. »

Very neat circuit diagram! I can only suggest you are putting a permanent supply where there should be a switched one, have you checked to see if there is any power on F30 with the ignition off?

Peter
kenbw2
(Donor 2017)
Posts: 271
Joined: 23 Dec 2014, 00:24
Location: Bradford
My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing

Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated
x 23

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by kenbw2 »

I'd assume though that a circuit that's ignition switched is the same with a permanent feed, except that it's on when it'd normally be off. I don't see how that'd stop it working
Peter.N.
Moderating Team
Posts: 11563
Joined: 02 Apr 2005, 16:11
Location: Charmouth,Dorset
My Cars: Currently:

C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red

In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars.
x 1199

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by Peter.N. »

I also would have thought so but having been a TV engineer for 50 years I have learn't that logic doesn't always apply. Is there any part of the circuits that is connected to a permanent supply, is there possible a diode in the circuit preventing the flow of current in one direction. You really need a full diagram of the circuits and an understanding of how they work - I don't have either I'm afraid.

Peter
ekjdm14
(Donor 2020)
Posts: 1810
Joined: 19 Jan 2015, 17:42
Location: Congleton
Lexia Available: Yes
My Cars: '95 Xantia 1.9D automatic - 109k one of two remaining
'03 206 GTi180 - 97k in pieces being brought back up to snuff
'03 206 1.9TD - home-built veg-fuelled B-road bruiser
'99 306 SE 2.0i cabriolet - 92k awaiting service work ready for next summer
'97 306 XS 1.6i 3 door, Bianca White, from dead 12 years & seized solid to road legal in 7 days
x 212

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by ekjdm14 »

maybe the feed fro F30 is an ignition supply to the alarm/locking to stop the alarm being accidentally armed/set off whilst the vehicle is driving, the IR must have a separate non-switched supply for it's actual functioning, this F30 supply is simply an interlock?

Don't know if I've described what's in my head very well, but sure someone else could word it better if I've lost you lol
'95 Xantia LX 1.9D-auto, Black, 109k
'03 206 GTi180 94k in surgery
'03 206 1.1S XUD9TE/veg project :mrgreen:
'99 306 2.0SE cabriolet 95k summer toy
'97 306 XS 1.6i 99k sat 12 years, fixed in 7 days, 150mile maiden voyage :rofl2:
kenbw2
(Donor 2017)
Posts: 271
Joined: 23 Dec 2014, 00:24
Location: Bradford
My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing

Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated
x 23

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by kenbw2 »

According to this thread, there's a relay in there for "8) Impact central locking opening relay". At a guess, I'd say F30 is ignition switched, and powering that relay inhibits the circuit.

Could I theoretically bypass the central locking relay by removing it and/or bridging it with a wire?
dnsey
Posts: 1538
Joined: 20 Oct 2004, 01:39
Location:
My Cars:
x 19

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by dnsey »

No doubt it's the logic that prevents you from locking the doors if one of them is open (and the interior light is therefore on). You're effecively 'backfeeding' the system by connecting your battery to the lights.
I think you'll need to completely isolate the lights from the door switches in order to fit your battery.
kenbw2
(Donor 2017)
Posts: 271
Joined: 23 Dec 2014, 00:24
Location: Bradford
My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing

Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated
x 23

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by kenbw2 »

Ah, that explains why the locking and the lights are linked on the same fuse. To be honest I don't like the don't-lock-if-the-door-is-open feature (my 106 didn't have it) so I'd be happy to see that go.

What do you mean by backfeeding the system?
dnsey
Posts: 1538
Joined: 20 Oct 2004, 01:39
Location:
My Cars:
x 19

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by dnsey »

Normally, the locking system will sense when the doors are open by detecting the voltage from the door switches (which also operates the interior lights). By connecting your battery, you are introducing an equivalent voltage into the circuit, so the system 'thinks' the doors are open.
When you remove the fuse, of course, the link to the locking system is broken, so it works normally - your experiment shows that there's another feed which actually operates the locks, and F30 is common only to the door-sensing part of the circuit.
dnsey
Posts: 1538
Joined: 20 Oct 2004, 01:39
Location:
My Cars:
x 19

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by dnsey »

To be clear, the above is just guesswork, but with many years involved in electronics, it's a fairly educated guess :wink:
BTW, what's the vehicle? Although the principle holds, if it has a BSI, the reality will probably be more complex.
kenbw2
(Donor 2017)
Posts: 271
Joined: 23 Dec 2014, 00:24
Location: Bradford
My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing

Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated
x 23

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by kenbw2 »

I can see what you're saying, even if it's not the door switches there could be a whole array of things involved. In this case I don't think the door switches are the problem, as when the doors are open the system locks and then unlocks, as opposed to just not working. Grr, why do they not just give me a wire =/ One option available to me is to use the centrally switched ones. They're not preferable as they're for some reason not as bright, but also time out after 10 minutes or so - maybe I could bypass the relay for that?

It's a '96 Synergie btw, the one with the 1.9TD.
Peter.N.
Moderating Team
Posts: 11563
Joined: 02 Apr 2005, 16:11
Location: Charmouth,Dorset
My Cars: Currently:

C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red

In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars.
x 1199

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by Peter.N. »

Strip out the multiplex and hard wire it. :?

Peter
kenbw2
(Donor 2017)
Posts: 271
Joined: 23 Dec 2014, 00:24
Location: Bradford
My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing

Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated
x 23

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by kenbw2 »

Sounds good. What does that mean? :)
wheeler
Posts: 6847
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by wheeler »

There's no BSI or multiplexing on a Synergie. It may however have a CPH unit that controls the central locking & interior lighting, cant remember the changeover year. I think the change over was when the remote locking moved from IR plip to RF plip.
I think the problem here is that on almost all cars that I can think of with remote central locking the remote doesn't work when the ignition is switched on or the engine is running, I would assume that the circuit that does the ignition operated interior lights also provides the locking system with its ignition feed to stop the plip operating when ignition is on, by giving this circuit a permanent live it thinks you have switched the ignition on therefore disables the plip from operating hence the reason the central locking works but the plip doesent. Sound feasible ? if its not CPH operated you need to locate the central locking control unit & isolate the now permanent live (but previously ignition) feed.
kenbw2
(Donor 2017)
Posts: 271
Joined: 23 Dec 2014, 00:24
Location: Bradford
My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing

Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated
x 23

Re: If I wire internal lights to 2nd battery I lose IR locki

Post by kenbw2 »

Yea that sounds like a workable theory. Could the answer to that though lie in one of those relays in my glove box? Maybe if I bridge, or disconnect one of those it'll remove that voltage detection part
