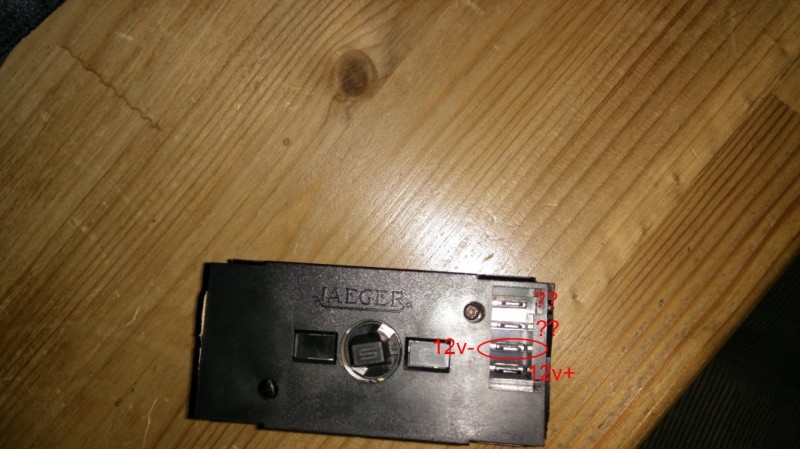

Hi, I got a BX time clock to fit into my AX. I can't find the pinout of the clock itself
from up to down:
1. ??
2. connects to the time adjust buttons (12v+ or 12v-)
3. 12v -
4. 12v + (illumination or .....)
bx clock wiring pinout
