In most of the new cars, there are build in Follow me type lights, and as many things in Xantia that are out of the list.

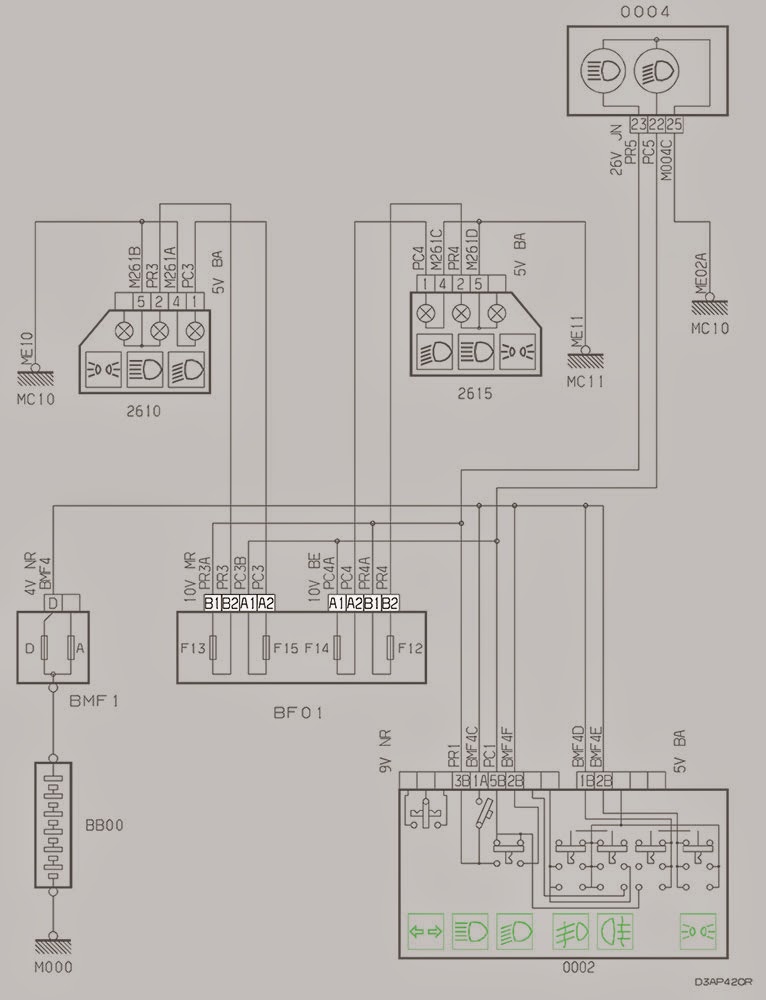

My first "hack" was to add relays to Low / High Beam Lights and to take the amperes out of the stalk switch in the cabin. What i have done was first to remove the original 10A fuses (A1-A2, B1-B2)
On A1/B1 pin are the relay controls, from relays out via 10A fuses goes to A2/B2.

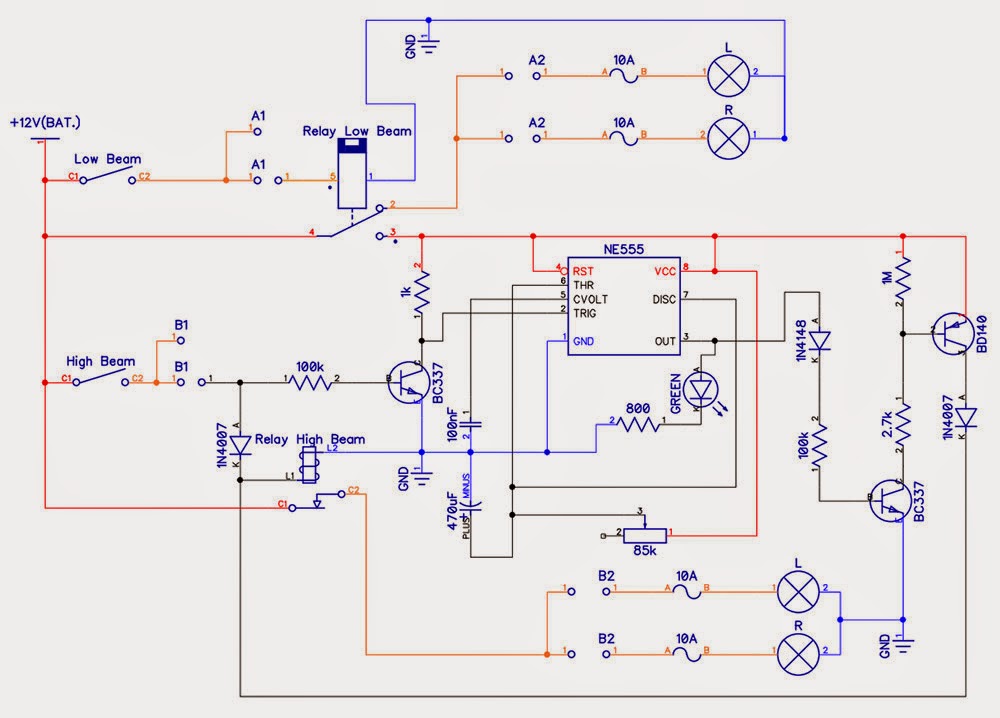

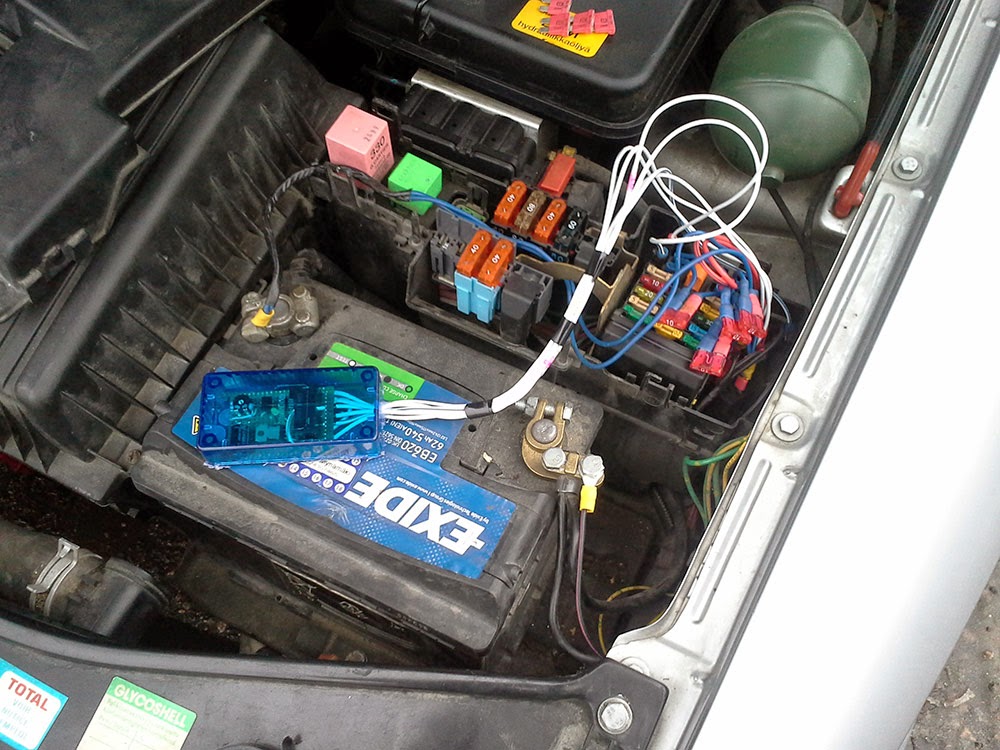

Later on(few months), it come the circuit for "follow me", based on NE555 timer and variable resistor.With the second one you can change the delay based on: T(sec) = 1.1xR(ohms)xC(farads) or in my case:
T(sec) = 1.1 x 80 000Ohms x 0.00047Farads = 41.36sec
Maybe the circuit is far from perfect but do the job, and it can be added to any car(for old for sure, new one.. have no clue).
Feel free to test,modify and use.
Good luck
Xantia II - follow me lights
Moderator: RichardW
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: Xantia II - follow me lights
....really, never seen that on any carIn most of the new cars, there are build in Follow me type lights
and
err, nice work, very neat....... but why ?
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Re: Xantia II - follow me lights
Most new cars have it. Even the Ford Scorpio from years ago had them.Stickyfinger wrote:....really, never seen that on any carIn most of the new cars, there are build in Follow me type lights
Good idea as long as you're parked in the direction you want to walk in after you get out the car..
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: Xantia II - follow me lights
Ahhhh......my mistake, I thought it was a headlamp flasher .....
Thinking of another subject altogether
Thinking of another subject altogether
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- longgo
- Posts: 42
- Joined: 06 Jun 2013, 10:06
- Location: Finland
- My Cars: was Xantia I LPG
now - Xantia II
wish DS23 - x 3
- Contact:
Re: Xantia II - follow me lights
Flasher - no. Just add some guide light. I find it handy if you walk towards garage door, home,.. pull the stalk, lock the car and go ..
Stickyfinger - that follow me is much nicer, though the word should be again with F.. but slightly away of follow

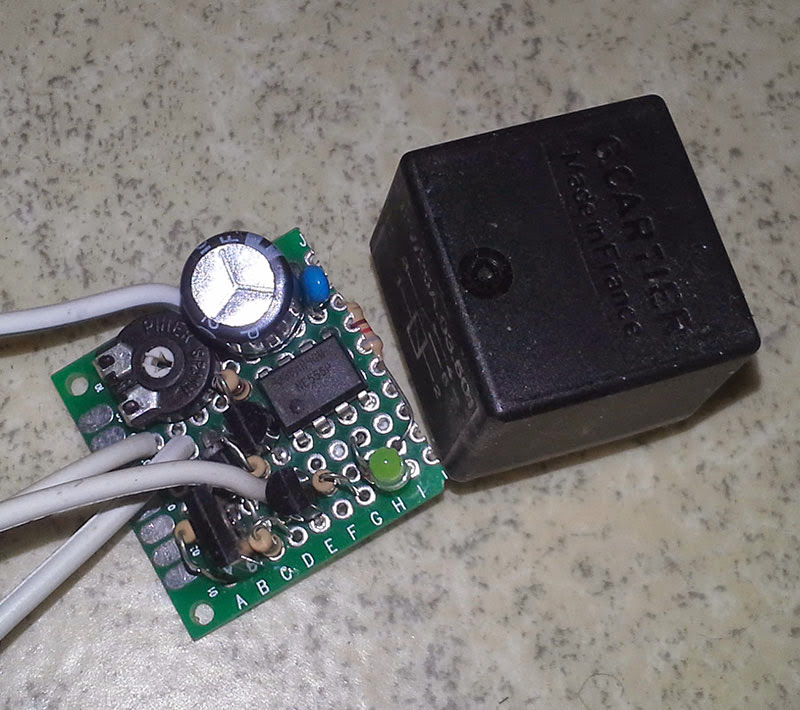

And small "update" or i revisit little the diagram and made new board:
Stickyfinger - that follow me is much nicer, though the word should be again with F.. but slightly away of follow
And small "update" or i revisit little the diagram and made new board:
- longgo
- Posts: 42
- Joined: 06 Jun 2013, 10:06
- Location: Finland
- My Cars: was Xantia I LPG
now - Xantia II
wish DS23 - x 3
- Contact:
Re: Xantia II - follow me lights
Hi again folks,
That module was working fine until one evening was so cold outside and rainy. The next morning i found my car with lights on. The problem was 1.8V that was passing through that last power transistor. So, if you choose to make that s**t is better replace the last BD140 transistor with Mosfet or like me with micro relay:

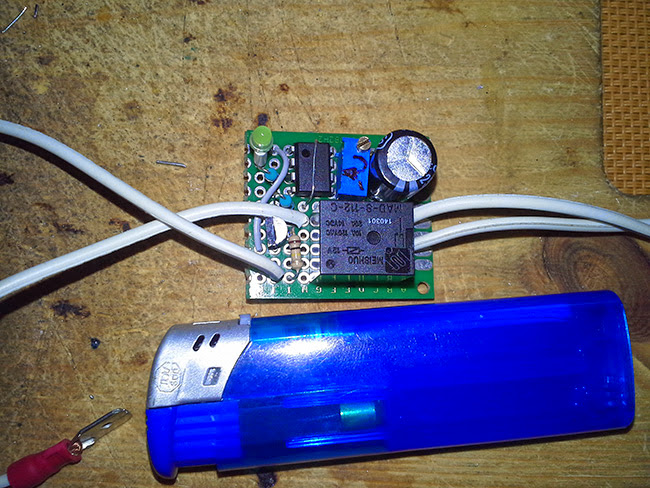

The size of it is 1.1 x 1.5cm and can bi driven straight from output pin of NE555 timer.It doesn`t need any additional transistors or so, because consumption of that relay coil is around 43-50mA which is far below 200mA that ne555 can handle.
The normal big car relays are more often around 50-60Ohms coils so there is better to have something in between. That`s why suggested P-mosfet instead relay.
That module was working fine until one evening was so cold outside and rainy. The next morning i found my car with lights on. The problem was 1.8V that was passing through that last power transistor. So, if you choose to make that s**t is better replace the last BD140 transistor with Mosfet or like me with micro relay:
The size of it is 1.1 x 1.5cm and can bi driven straight from output pin of NE555 timer.It doesn`t need any additional transistors or so, because consumption of that relay coil is around 43-50mA which is far below 200mA that ne555 can handle.
The normal big car relays are more often around 50-60Ohms coils so there is better to have something in between. That`s why suggested P-mosfet instead relay.
-
- (Donor 2020)
- Posts: 2504
- Joined: 29 May 2008, 15:59
- Location: Zomerzet UK
- My Cars:
- x 54
Re: Xantia II - follow me lights
I'm impressed!
We used to play around with 555 timers at school, there was a time when I could knock up both an astable and monostable circuit off the top of my head but I'm well out of practice now!
Good work
We used to play around with 555 timers at school, there was a time when I could knock up both an astable and monostable circuit off the top of my head but I'm well out of practice now!
Good work
Kev
'19 C4 Cactus 130 Flair
'19 C4 Cactus 130 Flair
Re: Xantia II - follow me lights
Another impovement at Xantia is to close the electric windows when you lock the car if you have impulse relay module. Is no need for aditional circuit ...only a wire to link the window module to actuator.
- longgo
- Posts: 42
- Joined: 06 Jun 2013, 10:06
- Location: Finland
- My Cars: was Xantia I LPG
now - Xantia II
wish DS23 - x 3
- Contact:
Re: Xantia II - follow me lights
Even better - to add also "option" if start to rain to self close the windows as on C5 Well not so useful actually.
About that to close the windows simultaneously with doors lock is actually easy possible with some of the aftermarket central lock systems or just to add from xantia 1 automatic window module to any other door than driver`s. After that only one pulse from the central lock should do the job.. i guess
Actually i think will be more interesting to add option if you lock the car and still keep the lock button on the remote to start closing the windows..and vice versa
About that to close the windows simultaneously with doors lock is actually easy possible with some of the aftermarket central lock systems or just to add from xantia 1 automatic window module to any other door than driver`s. After that only one pulse from the central lock should do the job.. i guess
Actually i think will be more interesting to add option if you lock the car and still keep the lock button on the remote to start closing the windows..and vice versa
