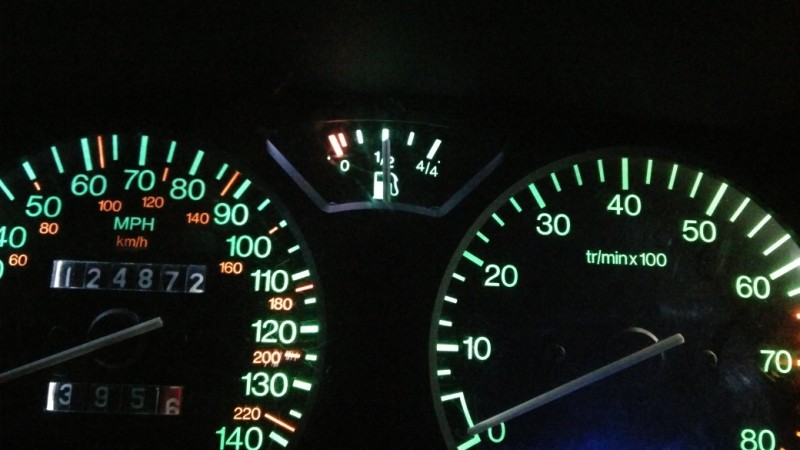

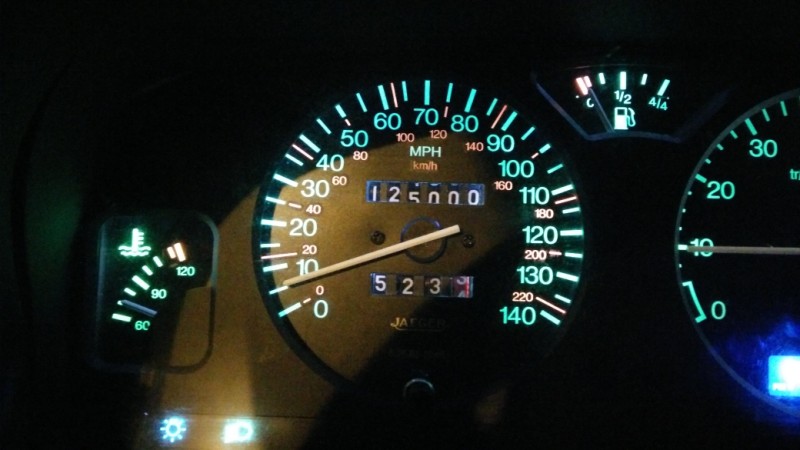

Hi, I have an issue with my fuel guage. When I put on contact it says on 4/4 even when I swap another cluster.
Citroen AX 1.4 TGS E2 1994 with 124.000mls = 200.000km on the clock.
Things I have tried so far:
- disconnect the fuel sender (nothing happens)
- another cluster (nothing)
Does anyone know the pinout of the three pins in the sender?
is it:
- GND
- Low fuel
- Fuel guage
or
- + 12V
- low fuel
- Fuel guage
citroen AX fuel guage issue
Moderator: RichardW
- jsp
- Posts: 327
- Joined: 04 Dec 2014, 02:05
- Location: Netherlands
- My Cars: AX 3x 10E 1.4 GTI 5drs 1.0i
CX 2x GTI turbo
ID 19 1960
Now:
1960 ID 19
1984 CX GTI Turbo 1
1987 CX GTI Turbo 2
1987 AX 10E Pino
1994 AX 1.4 5dr TGS GTI
1994 AX 1.0 3dr Escapade
1996 AX 1.1 3dr spot Burgundy
1996 AX 1.1 5dr Verte
2003 peugeot 206 xs leather with auto A/C - x 12
citroen AX fuel guage issue
My Citroens update:
http://www.frenchcarforum.co.uk/forum/v ... 14&t=50070
http://www.frenchcarforum.co.uk/forum/v ... 14&t=50070
- Zelandeth
- Donor 2024
- Posts: 4722
- Joined: 16 Nov 2014, 23:36
- Location: Milton Keynes
- My Cars: 2006 Peugeot Partner Escapade 1.6HDi.
1988 Renault 25 Monaco 2.0i.
1985 Sinclair C5.
1984 Trabant 601S.
1975 Rover 3500.
1973 AC Model-70. - x 1399
- Contact:
Re: citroen AX fuel guage issue
Sounds to me as though there's a short to ground on the line between the instrument panel and the gauge sender unit on the tank.
The gauge is basically just an ammeter. The sender unit in the tank is a variable resistor, presenting a high resistance when the fuel level is low, and a low resistance when the level is high. If the wire between the gauge and the tank is broken and just left "floating" it would show as empty permanently, if however it is shorted to ground (the car's body in this case), it will bypass the sender entirely and show as full.
Afraid I don't know where that wiring is routed in the AX, but working on intuition alone, I'd probably start at the tank end, especially where the wiring passes through the bodywork into the main loom. Had it fail there many years ago on a Metro anyway!
The gauge is basically just an ammeter. The sender unit in the tank is a variable resistor, presenting a high resistance when the fuel level is low, and a low resistance when the level is high. If the wire between the gauge and the tank is broken and just left "floating" it would show as empty permanently, if however it is shorted to ground (the car's body in this case), it will bypass the sender entirely and show as full.
Afraid I don't know where that wiring is routed in the AX, but working on intuition alone, I'd probably start at the tank end, especially where the wiring passes through the bodywork into the main loom. Had it fail there many years ago on a Metro anyway!
Current fleet:
06 Peugeot Partner Escapade 1.6HDi, 88 Renault 25 Monaco, 85 Sinclair C5, 84 Trabant 601S, 75 Rover 3500, 73 AC Model 70.
06 Peugeot Partner Escapade 1.6HDi, 88 Renault 25 Monaco, 85 Sinclair C5, 84 Trabant 601S, 75 Rover 3500, 73 AC Model 70.
Re: citroen AX fuel guage issue
The wiring loom on an AX runs like this...
Dash pod out on to the main dash harness
Connectors at the n/s A pillar
A grey ribbon cable that runs under the carpet
splits off near the rear seats
through a grommet (i think) and then along the top of the tank
Dash pod out on to the main dash harness
Connectors at the n/s A pillar
A grey ribbon cable that runs under the carpet
splits off near the rear seats
through a grommet (i think) and then along the top of the tank
2006 C5 HDi 170
1998 Xantia Activa S1
1971 D Special
2006 C3 1.6 HDi SX,
1998 Xantia Activa S1
1971 D Special
2006 C3 1.6 HDi SX,
A 1/3 of Team WFA 'Clarkson'CitroJim wrote: I'm a pink fairy
- jsp
- Posts: 327
- Joined: 04 Dec 2014, 02:05
- Location: Netherlands
- My Cars: AX 3x 10E 1.4 GTI 5drs 1.0i
CX 2x GTI turbo
ID 19 1960
Now:
1960 ID 19
1984 CX GTI Turbo 1
1987 CX GTI Turbo 2
1987 AX 10E Pino
1994 AX 1.4 5dr TGS GTI
1994 AX 1.0 3dr Escapade
1996 AX 1.1 3dr spot Burgundy
1996 AX 1.1 5dr Verte
2003 peugeot 206 xs leather with auto A/C - x 12
Re: citroen AX fuel guage issue

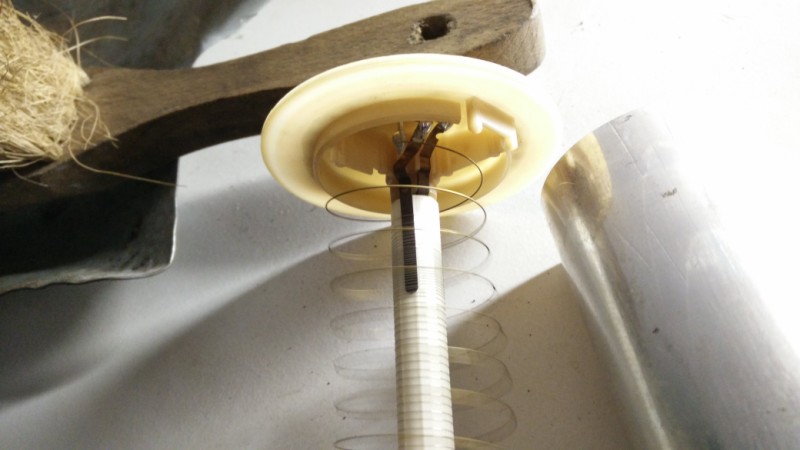

Ok got the fuel leveller out and I have ''shunt'' wired the fuel guage. I hope the middle one is the correct one.
