TDC Sensor ?
Moderator: RichardW
- froggy
- Donor 2023
- Posts: 640
- Joined: 05 Jul 2010, 20:24
- Location: too far from citrojim"s
- My Cars: S2 Xantia Forte 185435.
Peugeot 306 Meridian, the boss. - x 2
TDC Sensor ?
Hi, trying to locate the TDC Sensor ( sorry....but Iam a bit green ! ) I have a rev counter that works one time , then not another ! thanks in advance Terry. I have found a sensor close to the top of the gearbox.......would that be it ?
Terry
Xantia TD lx series1 SORN
Peugeot 306 meridian [ the boss]
Xantia HDI Forte 1997 CC
Xantia TD lx series1 SORN
Peugeot 306 meridian [ the boss]
Xantia HDI Forte 1997 CC
-
- Moderating Team
- Posts: 11574
- Joined: 02 Apr 2005, 16:11
- Location: Charmouth,Dorset
- My Cars: Currently:
C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red
In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars. - x 1204
Re: TDC Sensor ?
You might find the problem is with the connector just above it - if this is on the Xantia.
Peter
Peter
- froggy
- Donor 2023
- Posts: 640
- Joined: 05 Jul 2010, 20:24
- Location: too far from citrojim"s
- My Cars: S2 Xantia Forte 185435.
Peugeot 306 Meridian, the boss. - x 2
Re: TDC Sensor ?

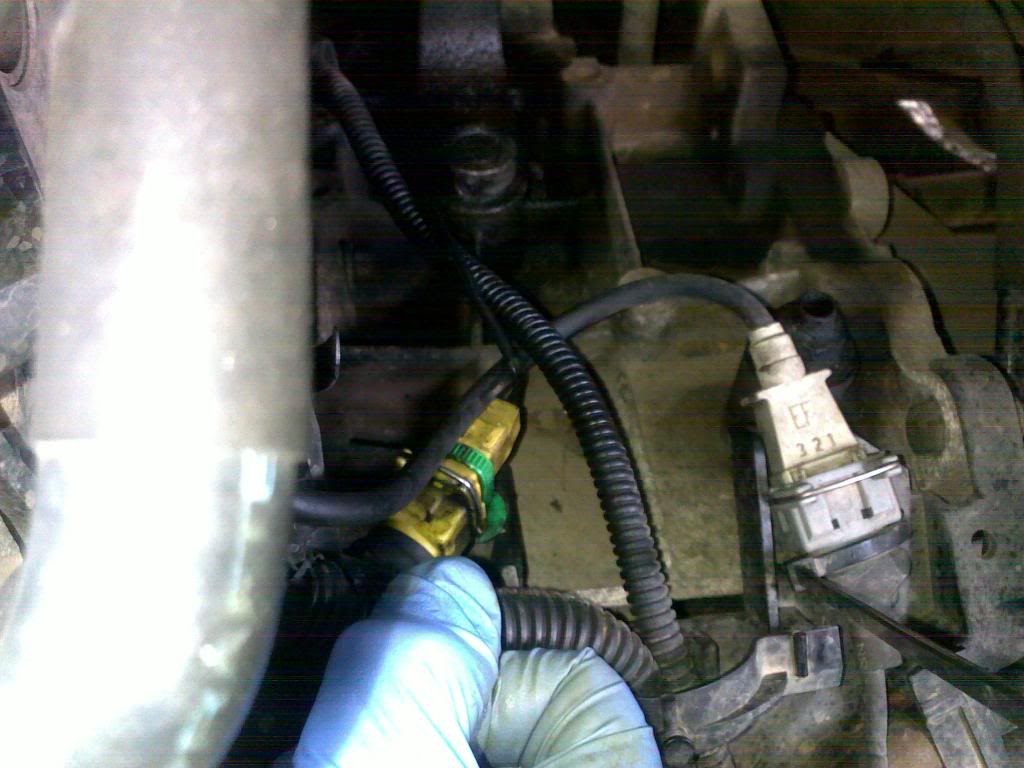

is this the sensor ?
Terry
Xantia TD lx series1 SORN
Peugeot 306 meridian [ the boss]
Xantia HDI Forte 1997 CC
Xantia TD lx series1 SORN
Peugeot 306 meridian [ the boss]
Xantia HDI Forte 1997 CC
- froggy
- Donor 2023
- Posts: 640
- Joined: 05 Jul 2010, 20:24
- Location: too far from citrojim"s
- My Cars: S2 Xantia Forte 185435.
Peugeot 306 Meridian, the boss. - x 2
Re: TDC Sensor ?
Terry
Xantia TD lx series1 SORN
Peugeot 306 meridian [ the boss]
Xantia HDI Forte 1997 CC
Xantia TD lx series1 SORN
Peugeot 306 meridian [ the boss]
Xantia HDI Forte 1997 CC
- froggy
- Donor 2023
- Posts: 640
- Joined: 05 Jul 2010, 20:24
- Location: too far from citrojim"s
- My Cars: S2 Xantia Forte 185435.
Peugeot 306 Meridian, the boss. - x 2
Re: TDC Sensor ?
one on the left .....sorry !
Terry
Xantia TD lx series1 SORN
Peugeot 306 meridian [ the boss]
Xantia HDI Forte 1997 CC
Xantia TD lx series1 SORN
Peugeot 306 meridian [ the boss]
Xantia HDI Forte 1997 CC
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 71
Re: TDC Sensor ?
The TDC sensor is a THREE PIN BROWN plug in the same area Terry.
The sensor itself is accessed from under the car. Get it up on ramps, lie under the car, look up and above where the drivers drive shaft goes into the Gearbox Diff, look above there, and theres a 10mm bolt, this holds the clamp that holds the black sensor head. undo the bolt a few turns, then twiddle the sensor out. It could well be a dirty head.. Clean it up, push it back in BUT NOT ALL The way, as the end can get damaged if too far in!
The sensor itself is accessed from under the car. Get it up on ramps, lie under the car, look up and above where the drivers drive shaft goes into the Gearbox Diff, look above there, and theres a 10mm bolt, this holds the clamp that holds the black sensor head. undo the bolt a few turns, then twiddle the sensor out. It could well be a dirty head.. Clean it up, push it back in BUT NOT ALL The way, as the end can get damaged if too far in!
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 71
Re: TDC Sensor ?
Depends on the age of the car superloopy.
Early mechanical TD cars had the TDC sensor purely for the Rev counter as I said above. The TDC Crank Sensor on top of the bell house was added when the Pump got an ECU to control timing, from around 1997 ...
This replaced the flywheel TDC sensor in the "side of the diff"
Early mechanical TD cars had the TDC sensor purely for the Rev counter as I said above. The TDC Crank Sensor on top of the bell house was added when the Pump got an ECU to control timing, from around 1997 ...
This replaced the flywheel TDC sensor in the "side of the diff"
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 71
Re: TDC Sensor ?
Prehaps the ECU came sooner then.. or they are "inter compatible" ??
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
- froggy
- Donor 2023
- Posts: 640
- Joined: 05 Jul 2010, 20:24
- Location: too far from citrojim"s
- My Cars: S2 Xantia Forte 185435.
Peugeot 306 Meridian, the boss. - x 2
Re: TDC Sensor ?
cheers guys
Terry
Xantia TD lx series1 SORN
Peugeot 306 meridian [ the boss]
Xantia HDI Forte 1997 CC
Xantia TD lx series1 SORN
Peugeot 306 meridian [ the boss]
Xantia HDI Forte 1997 CC
