Dyane / Arcadiane bonnet release cable / rod question
Hello all
I have a bit missing somewhere. People have been telling me that for years, but now there's also one on the Acadiane. Am surprised there aren't more spare parts left over after the rebuild....
The bonnet latch is released by pulling a rod inside the vehicle. This is about 14" long and has a loop at one end (inside) and a 90° bend at the other. The latch mechanism has a cable attached to it with a bolt and two differently sized nuts at one end. This cable is somehow attached to the rod. There must be at least one missing part. You can see from the photo that these two items won't naturally fit together.
Any advice is most welcome. Am always happy to pass on what knowledge I have about old Citroëns, although it's limited to 2cv6s and this Acadiane. Photos of my current vehicle are in my other post.
I have a bit missing somewhere. People have been telling me that for years, but now there's also one on the Acadiane. Am surprised there aren't more spare parts left over after the rebuild....
The bonnet latch is released by pulling a rod inside the vehicle. This is about 14" long and has a loop at one end (inside) and a 90° bend at the other. The latch mechanism has a cable attached to it with a bolt and two differently sized nuts at one end. This cable is somehow attached to the rod. There must be at least one missing part. You can see from the photo that these two items won't naturally fit together.
Any advice is most welcome. Am always happy to pass on what knowledge I have about old Citroëns, although it's limited to 2cv6s and this Acadiane. Photos of my current vehicle are in my other post.
Last edited by harvestmouse on 19 Feb 2014, 15:44, edited 1 time in total.
Re: Dyane / Arcadiane bonnet release cable / rod question
if i recall correctly there should be a a length of metal about 3inch's in length, and like a channel/three sided,
the lower end has like a small key hole shaped hole in it that the rod locates into, the top end just a hole for the cable to go through,
then about half way down it has another hole which sits onto a peg/stud on the inner wing,
i think it similar to the GS type
the lower end has like a small key hole shaped hole in it that the rod locates into, the top end just a hole for the cable to go through,
then about half way down it has another hole which sits onto a peg/stud on the inner wing,
i think it similar to the GS type
Regards, malcolm.
current ride a BX 1.7 TZD estate
1986 MK1 BX 1.9na D Auto(in Mothman Andy's stable )
layed up roppy 1.9TD XANT estate, now gone to meet her maker
purple and lilac metalic 2CV(VIOLET)registered to her in doors
1972 DS special been layed up aprox 31 years
current ride a BX 1.7 TZD estate
1986 MK1 BX 1.9na D Auto(in Mothman Andy's stable )
layed up roppy 1.9TD XANT estate, now gone to meet her maker
purple and lilac metalic 2CV(VIOLET)registered to her in doors
1972 DS special been layed up aprox 31 years
- old'uns
- Posts: 558
- Joined: 06 Mar 2010, 20:21
- Location: Cannock / 72800 sarthe
- My Cars: '02 C5 - gone
'09 X7 - gone
CMax - X7 replacement - gone
Acadiane - lost to a V5c applicant
'06 C5 VTR auto est
'90 Honda Beat
'73 ST70 Dax
'75 ST Dax - 120 powered - x 127
Re: Dyane / Arcadiane bonnet release cable / rod question

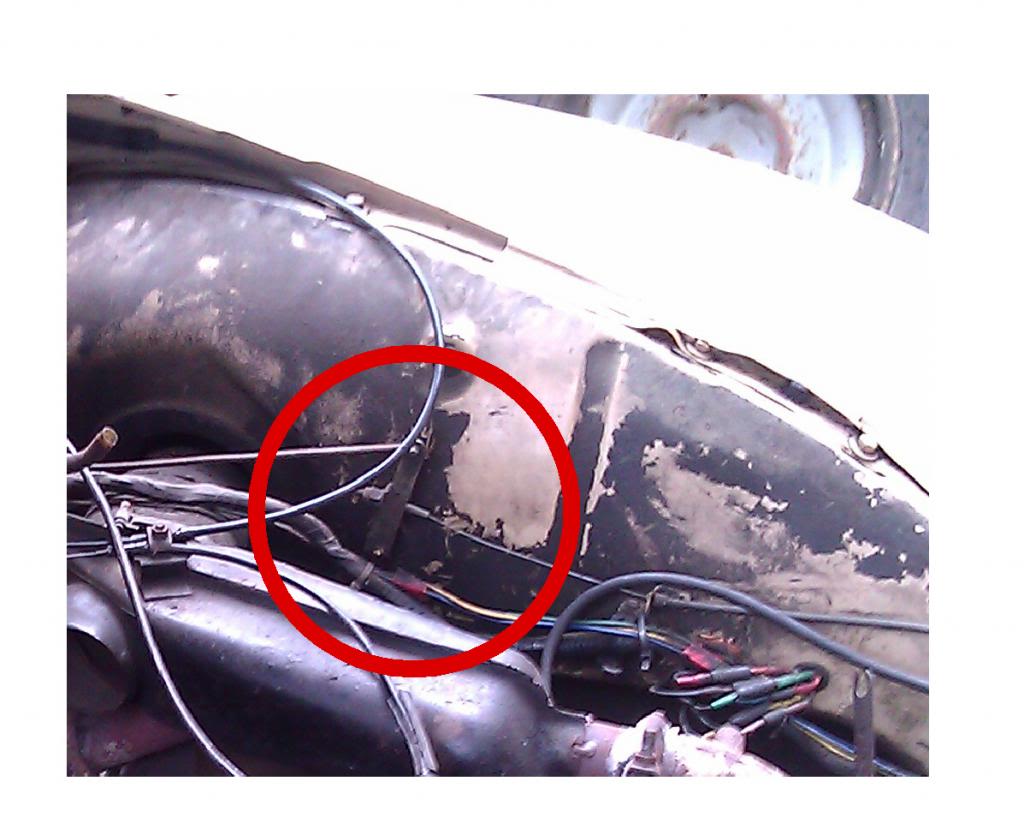

something like this?
