Remove old heated matrix xantia s2

[xf1ref]

Hello all,
In the begining of this year my windscreen was steamed every day and I discover that the heat matrix is broken.
I managed to dismantle the dashboard but now I don't know what should I do next to remove that matrix
Please give me some advices.

[Hell Razor5543]

I would hold on for an expert to spot this post. I have not yet had the 'pleasure' of replacing the heater matrix.

[RichardW]

http://www.frenchcarforum.co.uk/forum/v ... 11&t=29981" onclick="window.open(this.href);return false; Contains a link to a thread with info. There are lots of other threads on here if you search - if you find them, post them up, and I will add to the reference post!!

Good luck!

[xf1ref]

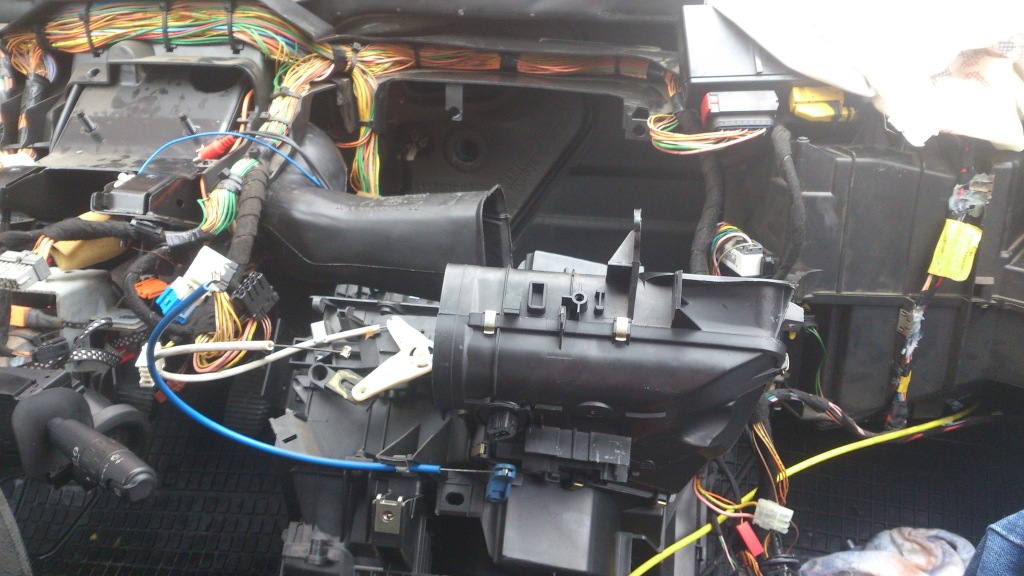

Thank you all, but I think I read all threads on this forum for replace heated matrix. I have seen all photos and I know that I have to pull the heater assembly but my biggest concern is for a.c. pipes. I'm afraid to break something.

[taffy]

omg look at all those wires!!!!

[VertVega]

I know that I have to pull the heater assembly but my biggest concern is for a.c. pipes. I'm afraid to break something.

Hi, I was lucky that my Xantia didn't suffer this common fault. I have removed the heater matrix (just for fun) in a scrap car As far as I remember you don't have to touch/remove any air condition pipes but be careful with this connection of heater hoses which are in the engine room side. They should be disconnected carefully. There are two O-ring seals on them which might be also good to replace.

I might add some pics but first I have to search them

-------------------------------------------------------------------
Edit: I guess you also have LHD car so pics will be more familiar

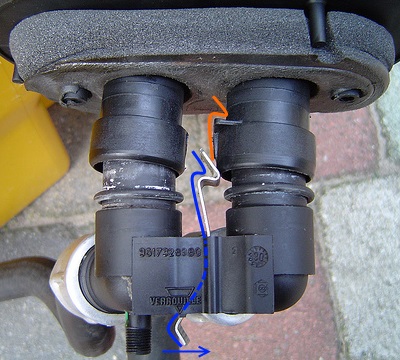

This pic is not taken by me but I just edited it to show the clip locking mechanism.
When it is locked it stays there as shown with orange colored line.

In order to remove:
1. move the metal clip to the right with your thumb in the arrow direction (see pic).
2. when the locking part is free, still keeping your thumb on the clip (forcing it to the right side)
3. at the same time pull equally both hoses off (pull towards the engine)

[NewcastleFalcon]

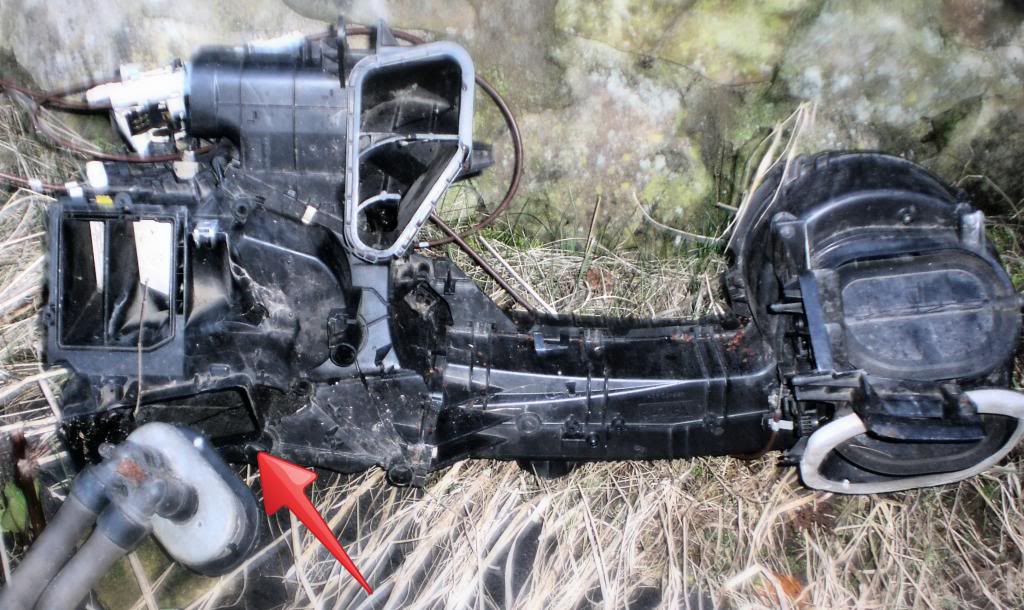

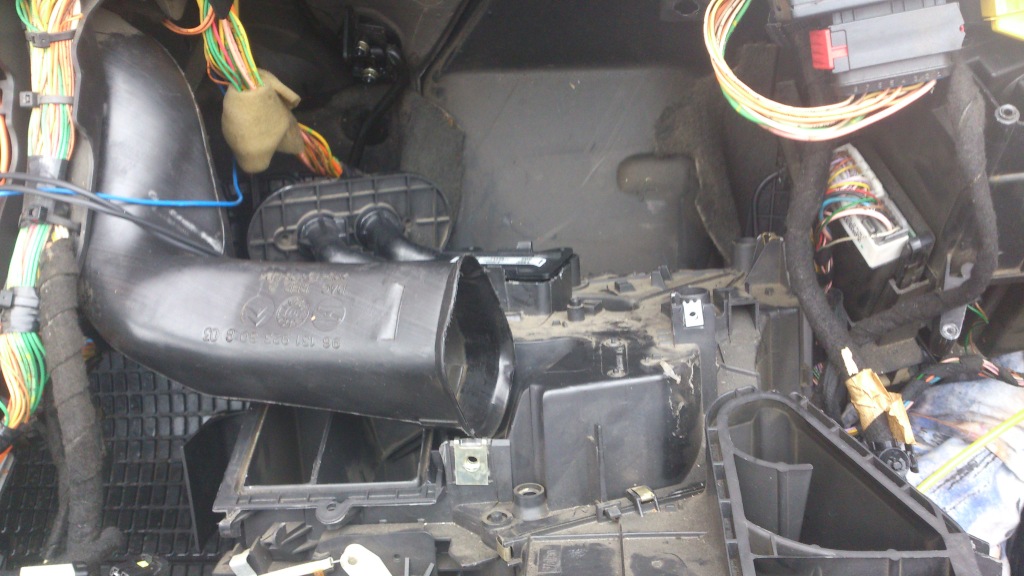

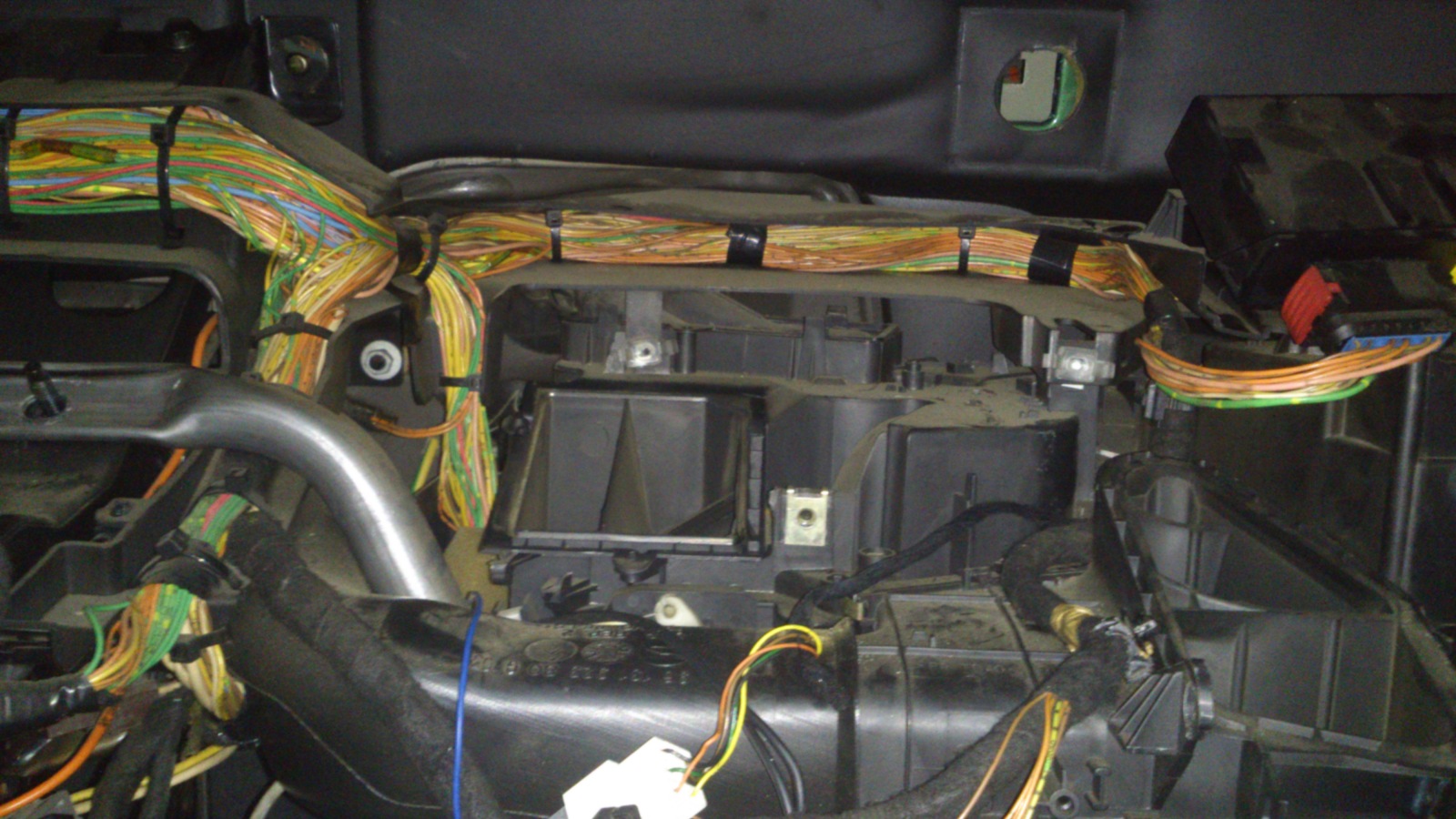

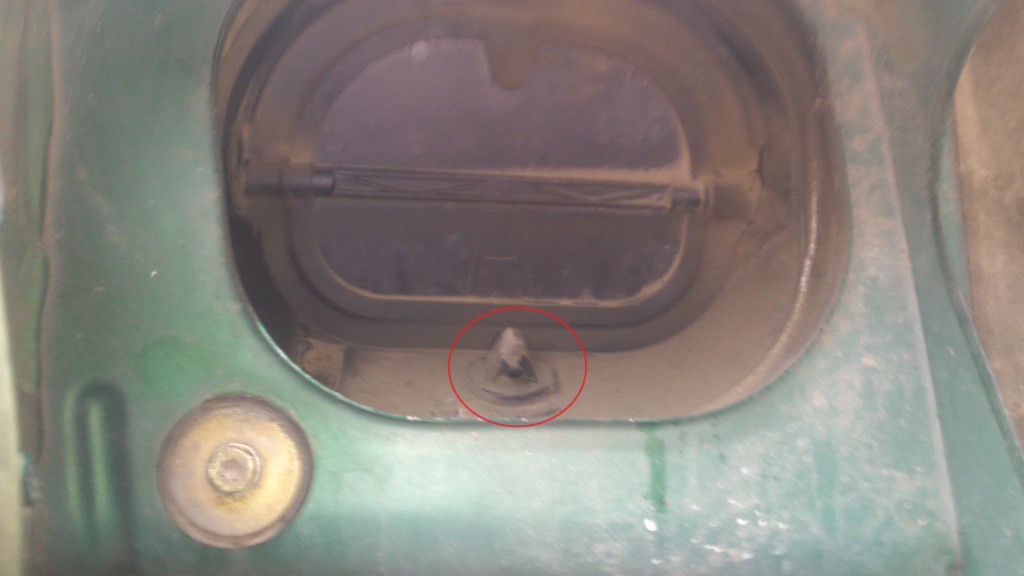

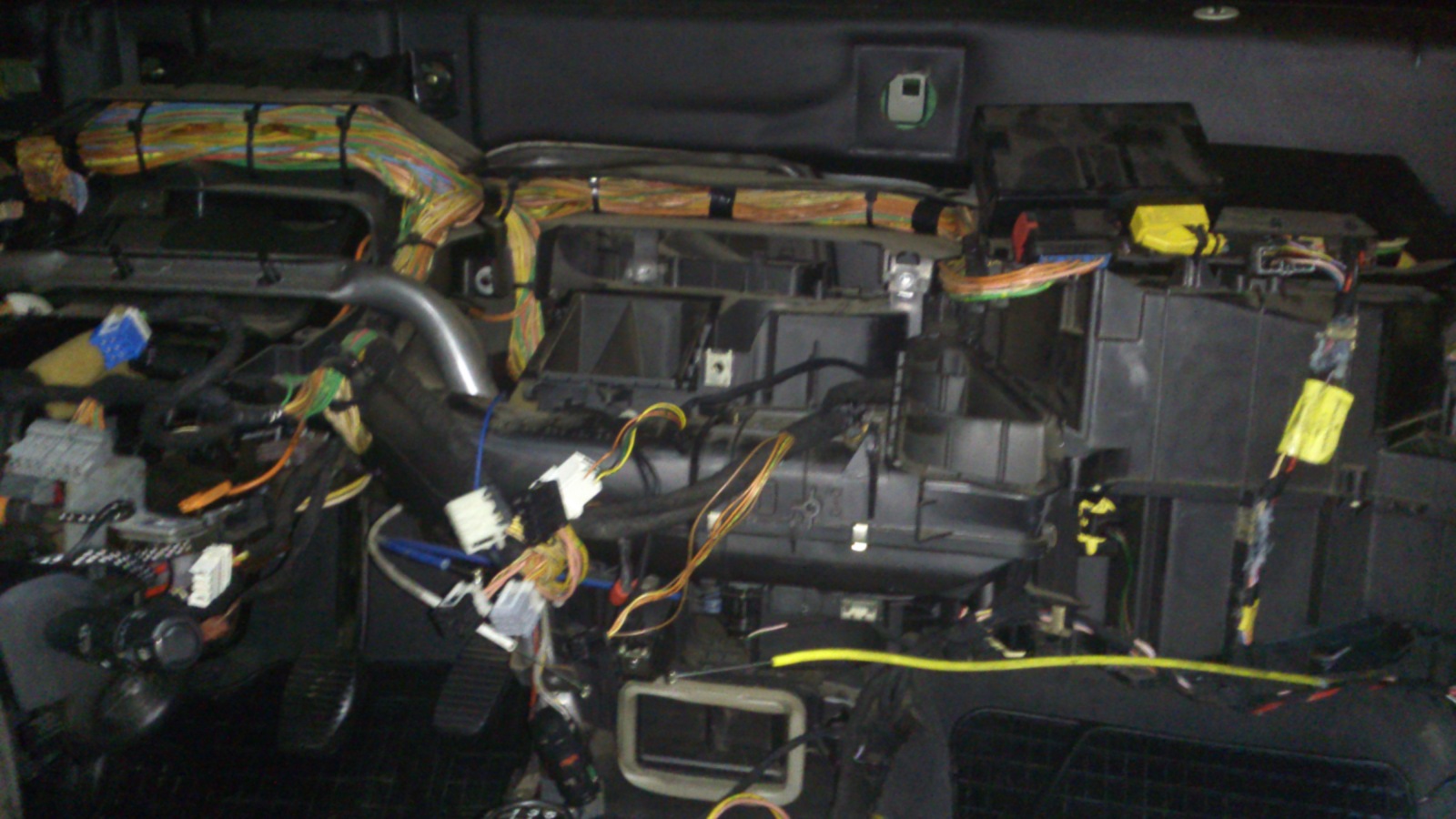

If this is of any help great.......the heater assembly is a huge chunk of the finest plastic, and the matrix is in a little box right at the back (red pointer)





kind regards Neil

[VertVega]

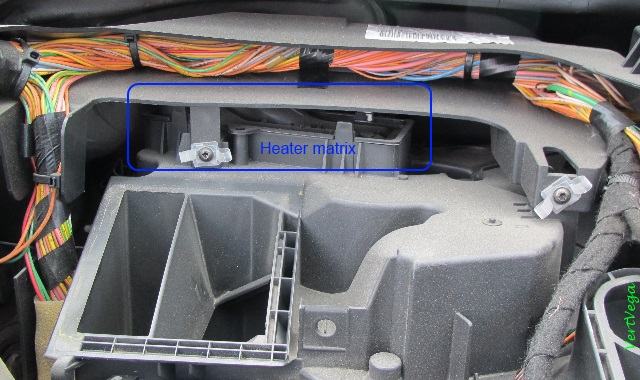

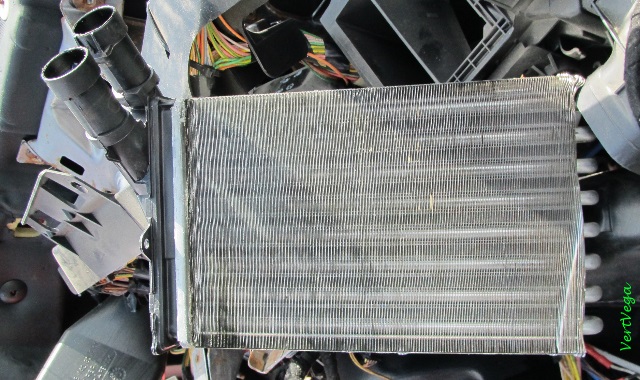

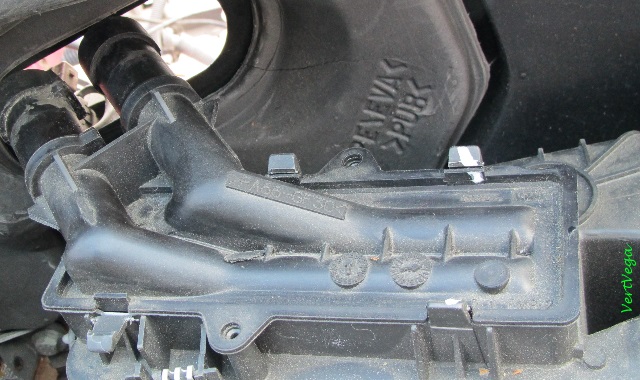

Here are Xantia MK2 (LHD) heater matrix pics I have taken from a scrap car.
If you make mirror image of these then it becomes a RHD Xantia

[lexi]

The amount and thickness of wiring on these older cars is what new CanBus addresses..

[taffy]

dont worry mines gone to but on a 306...gota do it sometime next week boo

[xantia_v6]

Thank you all, but I think I read all threads on this forum for replace heated matrix. I have seen all photos and I know that I have to pull the heater assembly but my biggest concern is for a.c. pipes. I'm afraid to break something.

If you haven't figured it out already, you don't touch the A/C and blower housing, the housing with the heater matrix comes off the firewall separately.

[xf1ref]

Thank to all for advices and pictures.

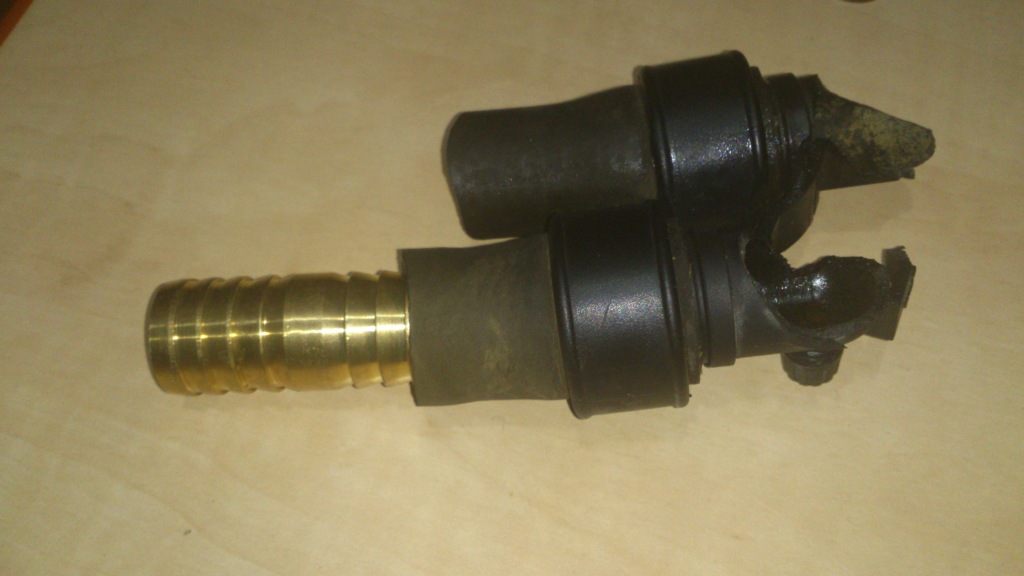

Is too late to be careful with heater hoses connector . The plastic of that elbow was very brittle and finally it broke.
I managed to separate the heater assembly and to change te old matrix and yesterday I finished to put all back together. All the whole thing took me a week, every day after work.
Now I wait to receive the heater elbow connector and to feel the heat without antifreeze on the windcreen.
By the way, in the first picture what it that black thing? A temperature sensor?

[xf1ref]

A good man from my country citro forum sent me a connector with hoses from a 1.9 td xantia. He have several cars in the backyard for spare parts.

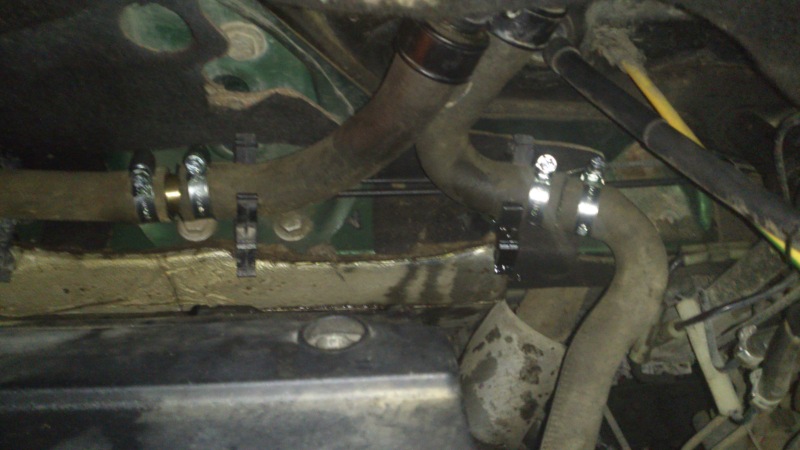

I hope tomorrow I will receive the connector and I will use two connecting pipes with four hose clamp.

[xf1ref]

Done, now It's like summer in my car . Thanks to all for help!

[VertVega]

Good news, happy kilometers
