Replacement of housing-seal of Bosch VE Dieselpump

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
bigjim
Posts: 26
Joined: 22 Oct 2013, 01:31
Location: Rotterdam
My Cars:

Replacement of housing-seal of Bosch VE Dieselpump

Post by bigjim »

Currently working on my Xantia 1.9TD (1997- 500.000 KM) dieselpump.
It leaks in winter, therefor I want to replace the seal in between the upper aluminium body, containing the gashandle axle and the pump housing.
I got stuck now due to a cover over the solenoid. I do NOT need to get to this solenoid, but this anti-theft cover now does not allow me to remove 2 of the 4 screws that holds the top part of the aluminium housing.
Does anyone have experience to do this while the pump is in the car? Can I grind of the edges only of the cover with a Dremel.
Any tricks of the trade are most welcome!

The anti-theft cover is visible on the right hand side of the pump (taken before I commenced):

Anti-theft cover as seen from the outlet-side of the pump (One screw removed, one rivet-screw visible, other is below outside of this picture):
Last edited by bigjim on 22 Oct 2013, 10:54, edited 1 time in total.
Previous:
Citroen BX 1.9 D - Break - Upto 320.000 Kms
Citroen BX 1.9 D - Break - Upto 360.000 Kms
Citroen BX 1.1 - Upto 220.000 Kms
Citroen BX 1.6 - Upto 280.000 Kms
Citroen BX 1.4 TX - Upto 240.000 Kms
Current: Citroen Xantia 1.9 TD - Break - 500.000 Kms and going
User avatar
KennyW
(Donor 2022)
Posts: 2499
Joined: 17 Jan 2006, 21:22
Location: Letham, Fife
My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate
x 132

Re: Replacement of housing-seal of Bosch VE Dieselpump

Post by KennyW »

Welcome to the forum Bigjim,

I used a dremel with a diamond cutting blade to put a notch in the head of the screw and turned same with a screwdriver.

Also have had to used a persuader (small chisel and hammer) and gentle tap it to move then screwdriver.

I have thread from 4 years ago about my struggles with the pump, citrojim is the authority on all things fuel pumps. He has a thread about same as well worth a read.

Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
taffy
Posts: 1018
Joined: 08 Oct 2012, 00:35
Location: swindon
My Cars:
x 1

Re: Replacement of housing-seal of Bosch VE Dieselpump

Post by taffy »

yea i remeber getting that of one of my old cars...took me (-expletive removed-) ages!! and all because one of those wires going into it had snapped!
99 silver 2.1td exclusive xantia
99 red 2.0 hdi exclusive xantia..
00 black 2.0 hdi exclusive xantia
99 blue 2.0 hdi exclusive xantia
06 silver 1.6 hdi vtr c5
57 blue C4 GP 1.6hdi exclusive
08 black C4 GP 2.0hdi vtr
bigjim
Posts: 26
Joined: 22 Oct 2013, 01:31
Location: Rotterdam
My Cars:

Re: Replacement of housing-seal of Bosch VE Dieselpump

Post by bigjim »

KennyW wrote:Welcome to the forum Bigjim,

I used a dremel with a diamond cutting blade to put a notch in the head of the screw and turned same with a screwdriver.

Also have had to used a persuader (small chisel and hammer) and gentle tap it to move then screwdriver.

I have thread from 4 years ago about my struggles with the pump, citrojim is the authority on all things fuel pumps. He has a thread about same as well worth a read.

Kenny
Thanks Kenny!
Yes, this worked thus was a good idea, used a circular blade as delivered with the Dremel. I was able to cut into two bolts. By hammering with a chisel they came loose and could be turned out easily.
After removing a hexagon (allen) bolt and a torx bolt at the back I could give the cover even more play. But it will not go out until the bracket plate is taken away. I released the nut at the bottom where it is connected to the engine. And also another (....) torx bolt. But it seems there are another two rivet-type bolts to be taken out. :(
Not there yet.
Previous:
Citroen BX 1.9 D - Break - Upto 320.000 Kms
Citroen BX 1.9 D - Break - Upto 360.000 Kms
Citroen BX 1.1 - Upto 220.000 Kms
Citroen BX 1.6 - Upto 280.000 Kms
Citroen BX 1.4 TX - Upto 240.000 Kms
Current: Citroen Xantia 1.9 TD - Break - 500.000 Kms and going
Online
Stewart(oily)
Posts: 893
Joined: 07 Oct 2005, 16:31
Location: North Wales
My Cars: Citroens since 1990, BX Diesel, GTI, TZD with 1.9 TD running extra boost before it was fashionable!, ZX Volcane TD, S2 Xantia break 1.9TD, Xantia HDI 110, currently zipping about in a C2 Diesel. C2 died from the dreaded worm, C3 Picasso HDI Exclusive, the adventure continues.
x 31

Re: Replacement of housing-seal of Bosch VE Dieselpump

Post by Stewart(oily) »

Awful job! had to do one a few years ago after replacing an engine, why I had not thought of it while the thing was lying on the floor :idea:
BXs since 1993 built 1.9 TZD turbo, got a S2 Xantia estate, brilliant car! 2013, Xantia HDI LX 110 2000 new car with 122,000, l C2 HDI Rusty rocket, C3 Picasso HDI new to me.
User avatar
CitroJim
A very naughty boy
Posts: 49526
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Replacement of housing-seal of Bosch VE Dieselpump

Post by CitroJim »

Jim, I'm sorry, I'm a bit late to the party here... You have already received some excellent advice.

However, my rebuild guide here may still be of some use.

One method I've used in the past is a hammer drill running backwards with a small masonry drill that's just bigger than pilot holes drilled in the bolt heads. It works like an impact gun...
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
KennyW
(Donor 2022)
Posts: 2499
Joined: 17 Jan 2006, 21:22
Location: Letham, Fife
My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate
x 132

Re: Replacement of housing-seal of Bosch VE Dieselpump

Post by KennyW »

Jim,

The cover plate is held on by the bolts but also a small pin which is the pain to remove.
I'll find my photos and post them up.

Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
User avatar
KennyW
(Donor 2022)
Posts: 2499
Joined: 17 Jan 2006, 21:22
Location: Letham, Fife
My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate
x 132

Re: Replacement of housing-seal of Bosch VE Dieselpump

Post by KennyW »

Jim,


and


and the pin :!:


Pump 4 shows where pin is place in armour, please note pump removed for clarity :-D
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
bigjim
Posts: 26
Joined: 22 Oct 2013, 01:31
Location: Rotterdam
My Cars:

Re: Replacement of housing-seal of Bosch VE Dieselpump

Post by bigjim »

I finalised the replacement of the seals, bush and o-ring. I did spend lots of hours. Mainly due to the badly accible little bolts and also the armoured cover. I worked with a grinder in the car, with lots of sparks, I hate that. Later used the Dremel as stated to make a groove for a normal flat big screw-driver.
There were 5 of these ant-theft bolts.
Anyway, I took some pictures so if anyone is interested please let me know.
So after assembly of the pump, and being my first work on a diesel-pump, I was very nervous if the engine would ever run again. Well it did and I took the Xantia for a test-drive.

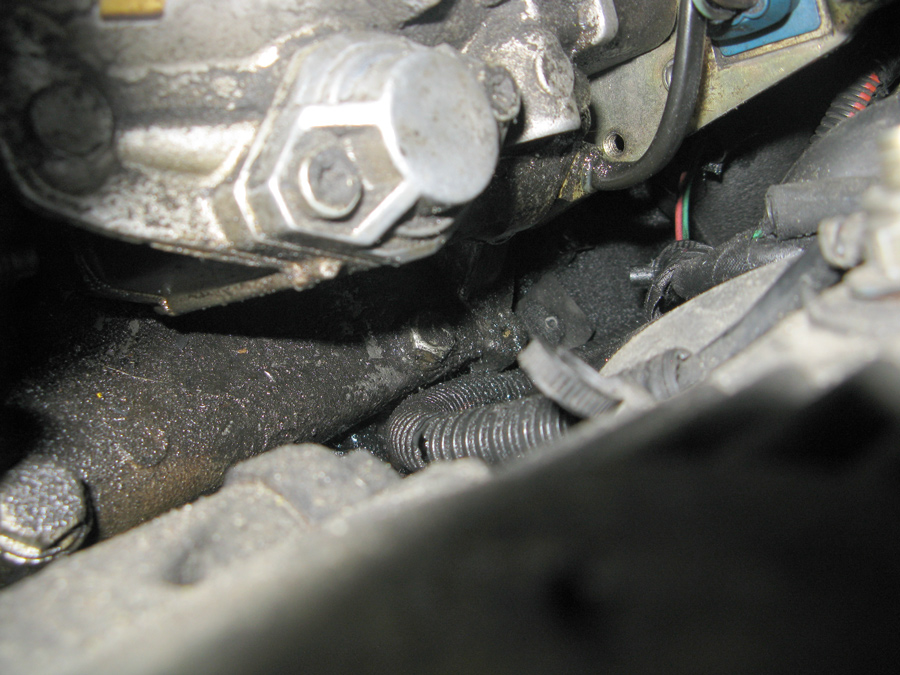

After a 10 Km drive I parked the car in front of my garage and inspected the engine-compartment with the engine running. I noticed that there were drops falling from the bottom of the diesel-pump onto the lowerpart of the engine block. So... my work seem to be in vane. Although a doctor would say I have just excluded one possibility of the leak.
I am quite convinced that the leak is not in the upper aluminium cover. The seal has been replaced and everything is dry. About 1 drop of Diesel is produced (leaked) per 30 seconds with a stationary engine.
Since I cannot manouvre my head under the diesel-pump it is difficult to see where it might be coming from. My camera can get lower so I let it take a picture.

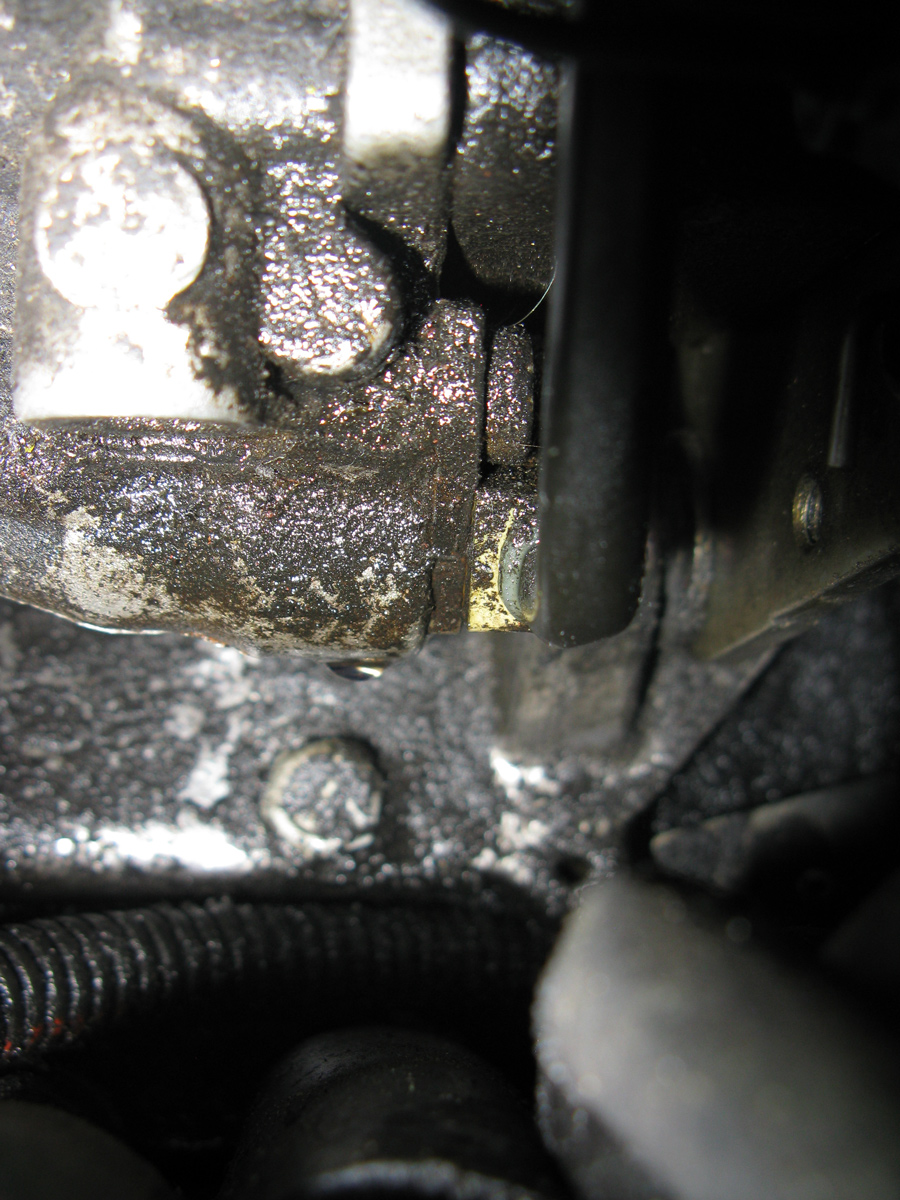

Here is one with a diesel-drop just about to fall...
I am interested in a suggestion were this comes from. I can imagine the sensor on the right, is not sealed right (what does this sensor do by the way?). Or the distribution end head has a faulty seal. Or there might be a seal at the back.
Previous:
Citroen BX 1.9 D - Break - Upto 320.000 Kms
Citroen BX 1.9 D - Break - Upto 360.000 Kms
Citroen BX 1.1 - Upto 220.000 Kms
Citroen BX 1.6 - Upto 280.000 Kms
Citroen BX 1.4 TX - Upto 240.000 Kms
Current: Citroen Xantia 1.9 TD - Break - 500.000 Kms and going
bigjim
Posts: 26
Joined: 22 Oct 2013, 01:31
Location: Rotterdam
My Cars:

Bosch Dieselpump leaking

Post by bigjim »

I finalised the replacement of the seals, bush and o-ring of my Xantia 1.9 TD. I did spend lots of hours. Mainly due to the badly accessible little bolts and also the armoured cover. I worked with a grinder in the car, with lots of sparks, I hate that. Later used the Dremel as stated to make a groove for a normal flat big screw-driver.
There were 5 of these ant-theft bolts.
Anyway, I took some pictures so if anyone is interested please let me know.

So, after assembly of the pump, and being my first work on a diesel-pump, I was very nervous if the engine would ever run again. Well it did and I took the Xantia for a test-drive.
After a 10 Km drive I parked the car in front of my garage and inspected the engine-compartment with the engine running. I noticed that there were drops falling from the bottom of the diesel-pump onto the lowerpart of the engine block. So... my work seem to be in vane. Although a doctor would say I have just excluded one possibility of the leak.
I am quite convinced that the leak is not in the upper aluminium cover. The seal has been replaced and everything is dry. About 1 drop of Diesel is produced (leaked) per 30 seconds with a stationary engine.
Since I cannot manouvre my head under the diesel-pump it is difficult to see where it might be coming from. My camera can get lower so I let it take a picture.
Here is one with a diesel-drop just about to fall...


I am interested in a suggestion were this comes from. I can imagine the sensor on the right, is not sealed right (what does this sensor do by the way?). Or the distribution end head has a faulty seal. Or there might be a seal at the back. Can anyone give an opinion on what this could be, or proably is.
Previous:
Citroen BX 1.9 D - Break - Upto 320.000 Kms
Citroen BX 1.9 D - Break - Upto 360.000 Kms
Citroen BX 1.1 - Upto 220.000 Kms
Citroen BX 1.6 - Upto 280.000 Kms
Citroen BX 1.4 TX - Upto 240.000 Kms
Current: Citroen Xantia 1.9 TD - Break - 500.000 Kms and going
User avatar
CitroJim
A very naughty boy
Posts: 49526
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Re: Replacement of housing-seal of Bosch VE Dieselpump

Post by CitroJim »

Jim, that sensor is not a sensor but the timing actuator. It's basically an electronically controlled injector that feeds diesel to the timing device piston to control its movement hydraulically. It's sealed with a big O ring.

So what seals exactly did you replace?
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
Xaccers
Posts: 7654
Joined: 07 Feb 2007, 23:46
Location: Milling around Milton Keynes
My Cars:
x 184

Re: Bosch Dieselpump leaking

Post by Xaccers »

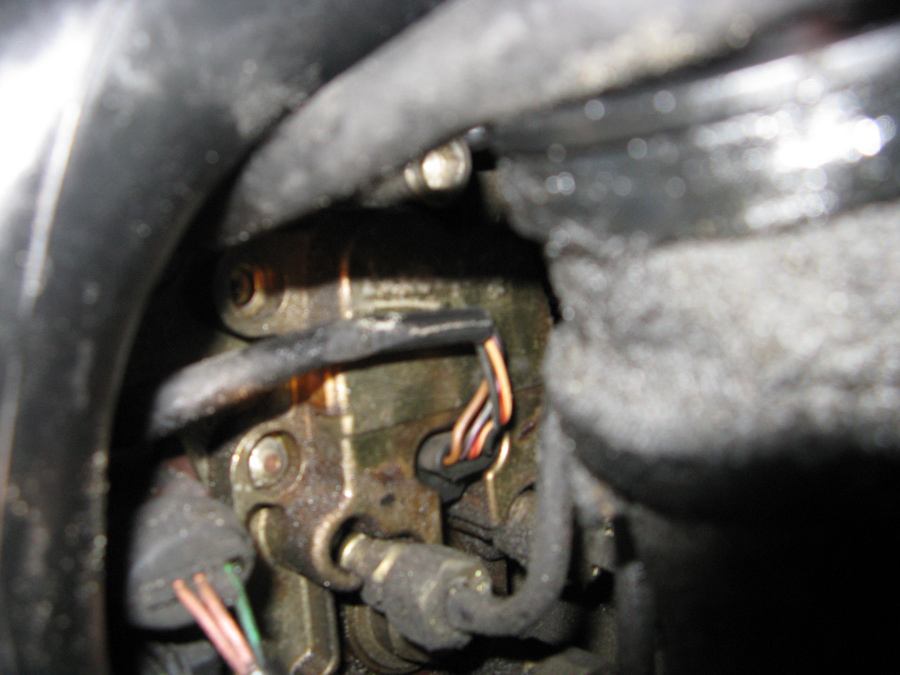

Those are the control wires for the timing electrovalve which is under the cap in the center of the photo.
