C.Morewoods Odd Strut unions

Post by citroenxm »

Looked a bit closer at the HDi90 thats in for breaking... Its one of the odd batch of cars with the larger unions on 3.5mm pipes At the STRUT end only from the looks of it..

This is what they look like...




This is all I can offer at the moment..
Last edited by citroenxm on 21 Oct 2013, 22:38, edited 1 time in total.
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
c.morewood
Donor 2023
Posts: 1041
Joined: 05 Nov 2004, 14:38
Location: Kemnay, Nr Aberdeen, United Kingdom
My Cars: '00 Xantia 110 bhp Hdi SX Estate 65K "W"
'99 Xantia 110 bhp Hdi SX Estate 310K SORN "V"
'98 Xantia 1.9TD SX Estate 150K Sold "T"
x 47

Re: C.Morwoods Odd Strut unions

Post by c.morewood »

It's MorEwood Paul:-)
Once I get hold of these I'll go along to some of the suppliers in Aberdeen and see if they are a stock item.. or at least can be got hold of easily..If not I'll make upnew pipes for my car and have the others on loan to members.
Chris
Tesla Model 3 LR DM AWD Blue White
'00 Xant 110HdiSX Est 83K "W"
'99 Xant 110HdiSX Est 320K "V"
'98 Xant 1.9TDSX Est 150K "T"
'97 Xant 1.9TD 20k Est
'94 Fiat TipoTd 40K

'85 BMW K100RT 330K Garaged 26yrs '80 Honda CB250 twin Superdream
citroenxm
Posts: 8061
Joined: 30 Dec 2004, 23:10
Location: Somewhere in North Wales, Anglesey
My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto

2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising
x 70

Re: C.Morewoods Odd Strut unions

Post by citroenxm »

Oooppps. it is sorry.. corrected now.

Do you want me to save the pipes or litterally just the unions?

Whats the harm of making your own? Not sure what the thread pitch or size is but if a bolt the same size can be found whats the harm in drilling a 3.5mm hole through it.. then flaring your own pipe after. Im gonna try that for the other set of strut tops and make some adapter pipes for them to sell on..
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
c.morewood
Donor 2023
Posts: 1041
Joined: 05 Nov 2004, 14:38
Location: Kemnay, Nr Aberdeen, United Kingdom
My Cars: '00 Xantia 110 bhp Hdi SX Estate 65K "W"
'99 Xantia 110 bhp Hdi SX Estate 310K SORN "V"
'98 Xantia 1.9TD SX Estate 150K Sold "T"
x 47

Re: C.Morewoods Odd Strut unions

Post by c.morewood »

Well Paul I thought it might be easier to get just the unions sent up here.
I had ordered a new pipe... yes I found one, from a dealer but having orderd it from his supplier , it arrived damaged and had to be sent back.
So I thought just sending the unions in the post would minimise the chance for damage and also allow me to have new pipes which i would coat with some shrink plastic to protect them?
I never thought of making my own.
I take it that the RPO was within the accepted range? You said you were going to make sure Monday.
Off up to Shetland for a couple of days from Wed so I won't be able to reply from then till Sat.
Chris
Tesla Model 3 LR DM AWD Blue White
'00 Xant 110HdiSX Est 83K "W"
'99 Xant 110HdiSX Est 320K "V"
'98 Xant 1.9TDSX Est 150K "T"
'97 Xant 1.9TD 20k Est
'94 Fiat TipoTd 40K

'85 BMW K100RT 330K Garaged 26yrs '80 Honda CB250 twin Superdream
c.morewood
Donor 2023
Posts: 1041
Joined: 05 Nov 2004, 14:38
Location: Kemnay, Nr Aberdeen, United Kingdom
My Cars: '00 Xantia 110 bhp Hdi SX Estate 65K "W"
'99 Xantia 110 bhp Hdi SX Estate 310K SORN "V"
'98 Xantia 1.9TD SX Estate 150K Sold "T"
x 47

Re: C.Morewoods Odd Strut unions

Post by c.morewood »

I believe Paul has discovered that the odd pipe unions fitted to Xantia suspension cylinders RPO 8209 -8518 are a standard fit on C5's
I'm multi posting this just in case it can help someone searching in the future
Chris
Tesla Model 3 LR DM AWD Blue White
'00 Xant 110HdiSX Est 83K "W"
'99 Xant 110HdiSX Est 320K "V"
'98 Xant 1.9TDSX Est 150K "T"
'97 Xant 1.9TD 20k Est
'94 Fiat TipoTd 40K

'85 BMW K100RT 330K Garaged 26yrs '80 Honda CB250 twin Superdream
citroenxm
Posts: 8061
Joined: 30 Dec 2004, 23:10
Location: Somewhere in North Wales, Anglesey
My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto

2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising
x 70

Re: C.Morewoods Odd Strut unions

Post by citroenxm »

I only did a visual on the struts Chris..

I removed your unions today.... What lies behind the union is gonna make them ummm unique and un makeable again!

I think the way to go on these small batch of cars for the future is to swap the rear cylinders back to older types..

Heres why...

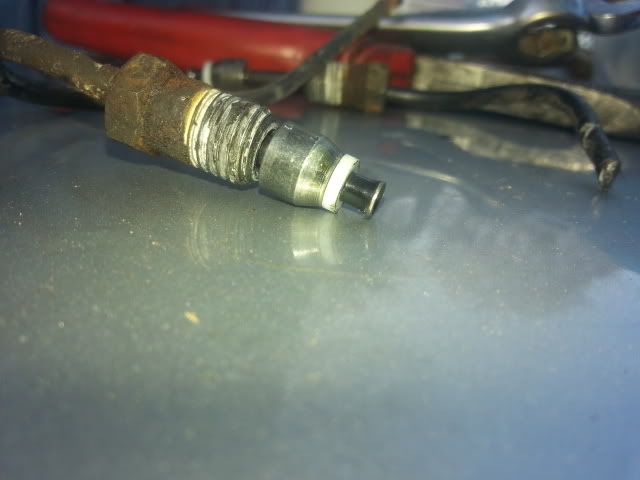

YES, it is what you see! NO thats NOT a rubber seal! Yes thats a small nylon end seal, and YES that pipe end is flared at the tip!

The pipe came out like that... the metal "Block" is a VERY tight fit on the pipe, I had to grip it with pliers before the pipe would turn in it..

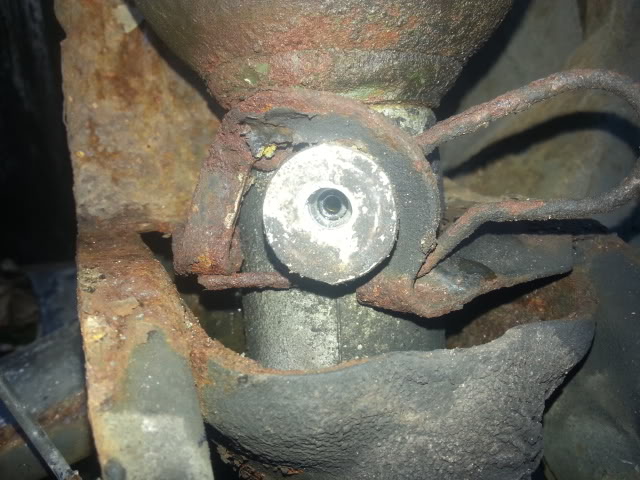

There NO rubber seal. and, heres the view inside of the strut pipe orface...
