Lucas EPIC Injection Pump Overhaul Guide

Post by CitroJim »

The Lucas EPIC Injection Pump as used on the XUD11BTE engine as fitted to 2.1TD Xantias and later 2.1TD XMs is generally reliable but can suffer leaks and problems with the ESOS valves. Both are relatively easy to resolve but need the pump to be fully disassembled. This is a guide on how to do just that and covers the complete disassembly and reassembly.

The EPIC, compared to the earlier DPC and the Bosch VP/AS series is actually quite and easy pump to work on. One job needs a press but for most jobs you will not need to disassemble this far.

(Due to how I'm covering this job over on Club-XM it is at the moment a little out of sequence as I've actually done the most difficult reassembly bit first after my initial experimental disassembly. This will be corrected in due course and so I can insert the relevant stages later I've made some place-holder threads)

Before disassembly the entire pump must be thoroughly cleaned and drained of all diesel as far as possible.

To disassemble fully a hydraulic press will be needed. Apart from that no other specialist tools are required bar for a good Torx set, a 32mm spanner and a few pin punches.

Your work area must be spotlessly clean and tidy. Dirt is the enemy of diesel pumps. Use LHM for reassembly lubrication.

(initial disassembly guide to follow)
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Online
User avatar
CitroJim
A very naughty boy
Posts: 49521
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6158
Contact:

Re: Lucas EPIC Injection Pump Overhaul Guide

Post by CitroJim »

(Next disassembly place-holder)
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Online
User avatar
CitroJim
A very naughty boy
Posts: 49521
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6158
Contact:

Re: Lucas EPIC Injection Pump Overhaul Guide

Post by CitroJim »

Right, here we go. Part 1 of how to reassemble an EPIC.

This is how to reassemble the most difficult bit - the driveshaft and lift pump in the front housing.

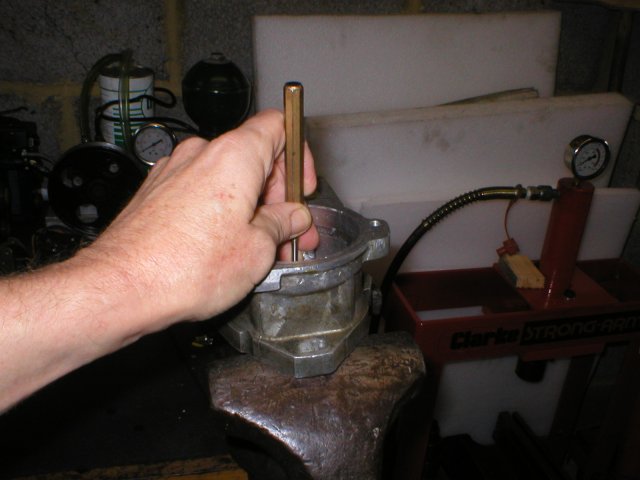

Start by driving out the front seal with a pin punch:


Begin lift pump assembly by placing the pump bottom plate in the housing with the grooved face facing up. You can't actually get it wrong because the screw holes will only line up one way. Lubricate everything as you go. I use clean LHM.

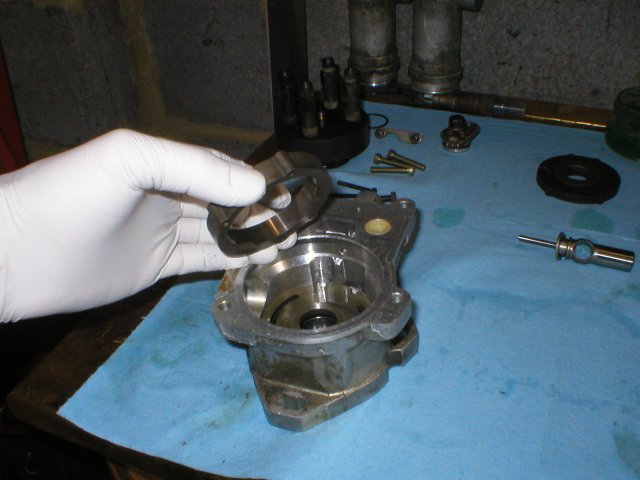

Next, place the rotor housing in place with the cutouts facing the bottom plate. Again, it will fit only one way.

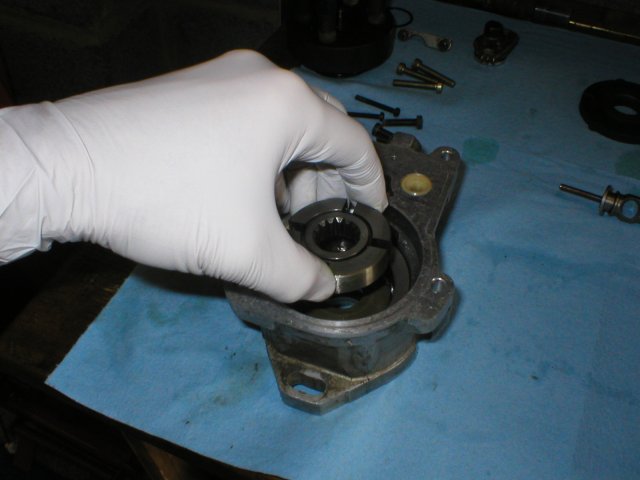

Insert the rotor:

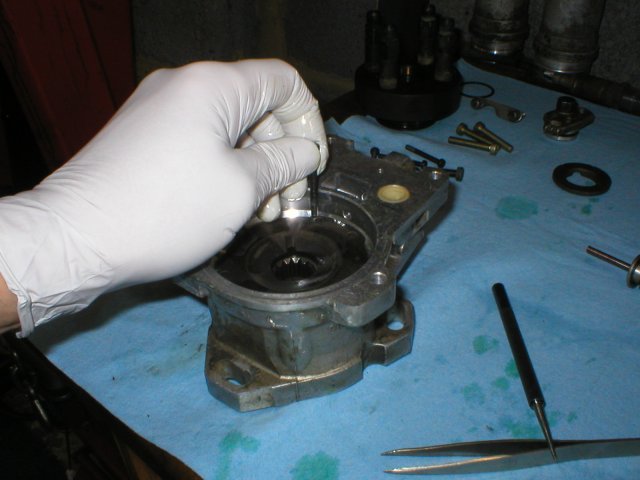

Followed by the four pump vanes. beware of the small springs behind each vane. Ease them in with a small jewellers screwdriver and ensue they sit correctly.

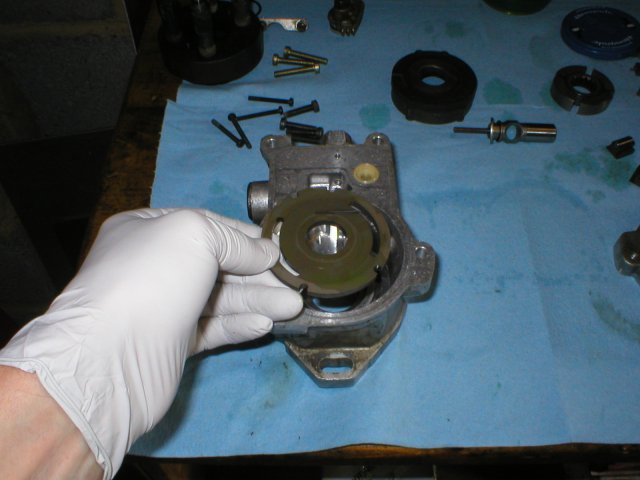

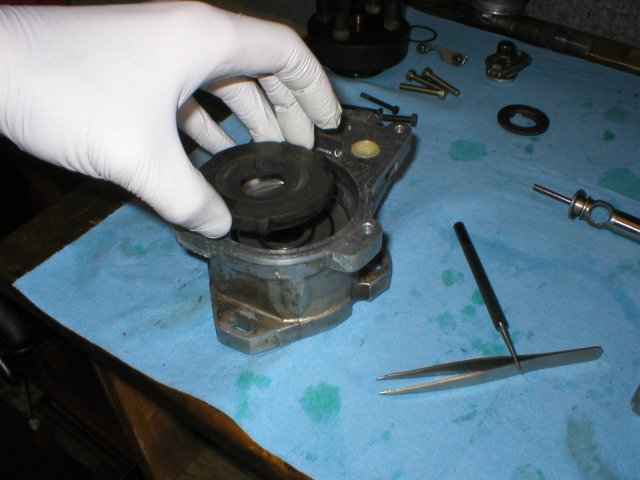

Place the top plate onto the lift pump with the dished face upwards. Again it'll only go one way:


And the lift pump screws:

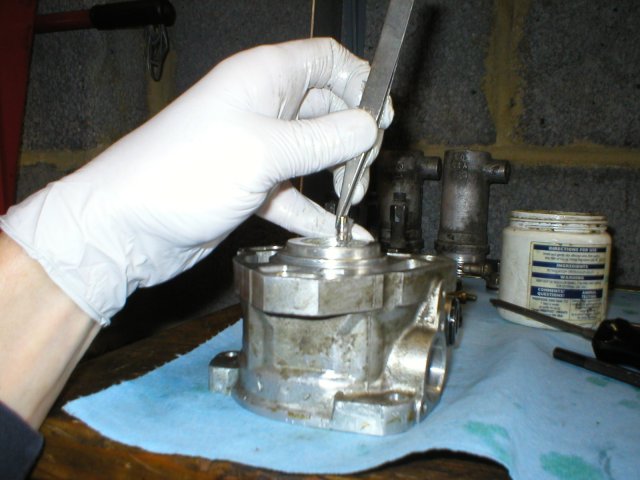

Rebuild the front roller bearing by coating the outer race and rollers in Vaseline and carefully assembling, ensuring all stay very firmly in place.

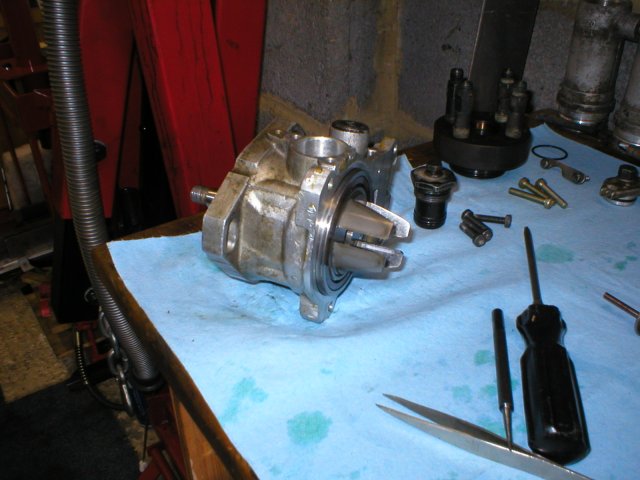

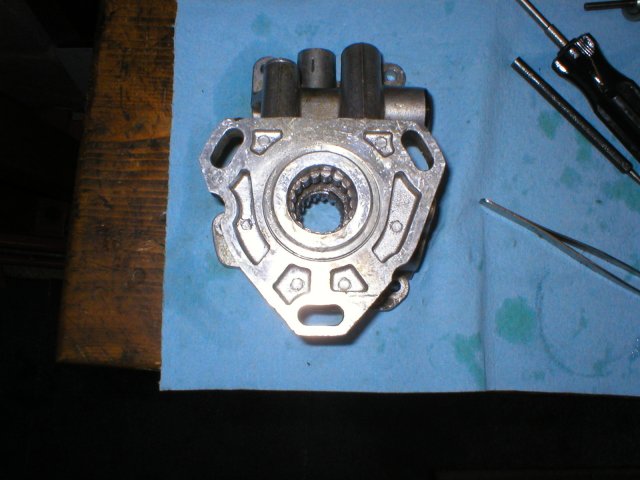

It should then look like this when fully reassembled:


Great care is now needed to ensure the rollers don't fall out but if enough Vaseline is used they will be OK.

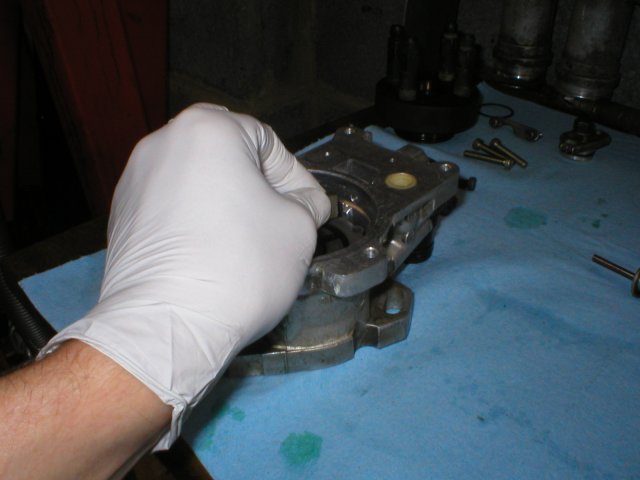

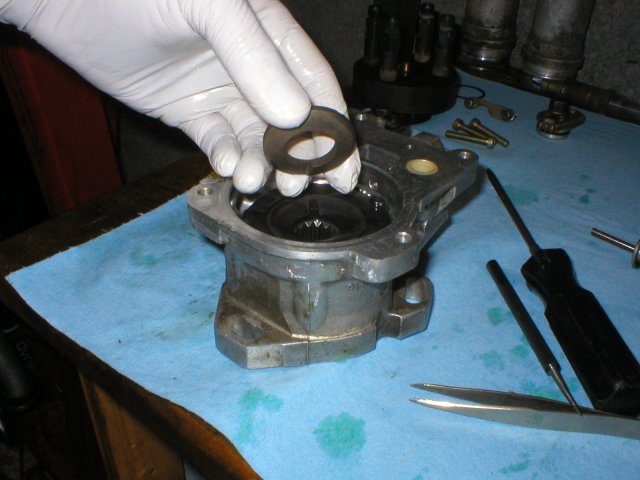

Invert the body and replace the dished washer on top of the lift pump assembly making sure the tang and groove is correctly engaged:

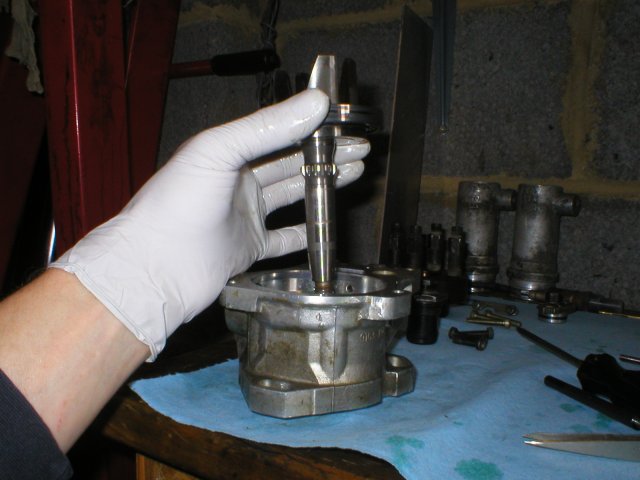

Carefully insert the driveshaft whilst turning the housing through 90 degrees. Ensure the dished washer and rollers remain in place.


If all is in place correctly the big bearing will poke out of the housing about as far as shown here:


Now we come to the very tricky bit and that's pressing the front bearing inner sleeve into the bearing and onto the driveshaft. This is an interference fit.

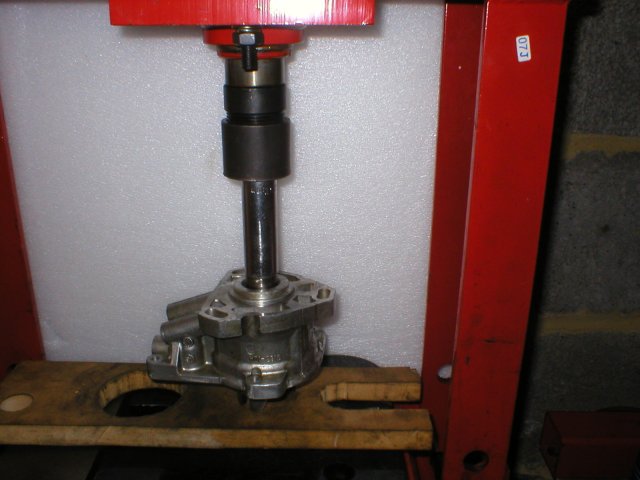

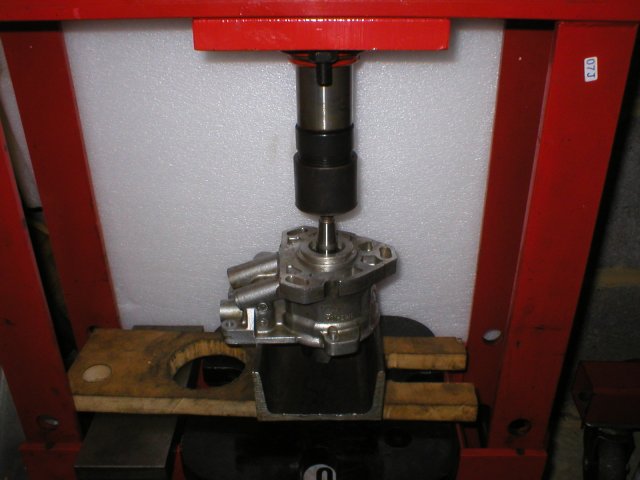

Set up the press with an MDF pad on the pressbed. Place the pump body with the drive end of the driveshaft facing up. Be careful to enause the dished washer does not fall out of place by keeping the large bearing held in the housing. Lubricate the bearing inner sleeve with LHM and slip it onto the end of the drive shaft with the grooved end facing toward the pump body. The sleeve will go down a little way and then stop just above the bearing rollers. use a 19mm deep socket as a mandrel and carefully press until the sleeve is around half way in. It wont' take too much pressure.


All the time you are pressing keep the housing moving to ensure the bearing sleeve properly centres. A little more pressure will be needed to press the sleeve all the way and when the sleeve is fully home the pump will seize. Some end-float is needed here but I do not know and cannot determine from the documentation how much there should be. I'd say a tad.

To achieve this, reverse the pressing direction by inverting and supporting the pump on a suitable fixture (I used a piece of U channel) and press down on the end of the drive shaft until it gives a little.


Repeat the above until the right amount of end-float is achieved. Fine adjustment can be carried out by carefully striking dead-blows on the end of the driveshaft from a heavy hammer. Screw on the driveshaft nut and strike on that, not the naked end of the shaft.

Ensure the driveshaft spins easily and smoothly.

The rest of the assembly will follow in subsequent posts but is relatively easy compared to this!
