Please could someone give me some pointers as to how to remove the centre trim strip on a Mk 2 Xantia dashboard ?
The clock has been dicky for a while, but is now randomly switching itself on and off, so it's time to try to fix it.
Car is a 2001 Xantia Exclusive
Many thanks
Xantia dashboard clock removal
Moderator: RichardW
- CitroenCrazy
- (Donor 2020)
- Posts: 125
- Joined: 20 Mar 2005, 18:17
- Location: Leicestershire
- My Cars: 2000 Xantia Estate Exclusive, HDi
1999 Xantia Estate Exclusive, HDi,
C6 2.2 Manual
They're the modern ones..... - x 63
Re: Xantia dashboard clock removal
Watching this topic with interest Not only to find out the best way to remove the clock, but also to see what you find to be wrong with the clock itself.
Mine has been playing games for nearly a year now, randomly resetting to midnight or fading out...
Mine has been playing games for nearly a year now, randomly resetting to midnight or fading out...
Simon
1997 Xantia S1 3.0 V6 Auto Exclusive in Silex Grey
2016 Nissan Leaf Tekna 30kWh in White
2011 Peugeot Ion Full Electric in Silver
1977 G Special 1129cc LHD
1978 CX 2400
1997 Xantia S1 2.0i Auto VSX
1998 Xantia S2 3.0 V6 Auto Exclusive
1997 Xantia S1 3.0 V6 Auto Exclusive in Silex Grey
2016 Nissan Leaf Tekna 30kWh in White
2011 Peugeot Ion Full Electric in Silver
1977 G Special 1129cc LHD
1978 CX 2400
1997 Xantia S1 2.0i Auto VSX
1998 Xantia S2 3.0 V6 Auto Exclusive
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13
Re: Xantia dashboard clock removal
If I remember right in Xantia MK2 models the clock is attached to the long trim (#3).
You have to remove all those torx screws and most of them are hidden behind some others parts.

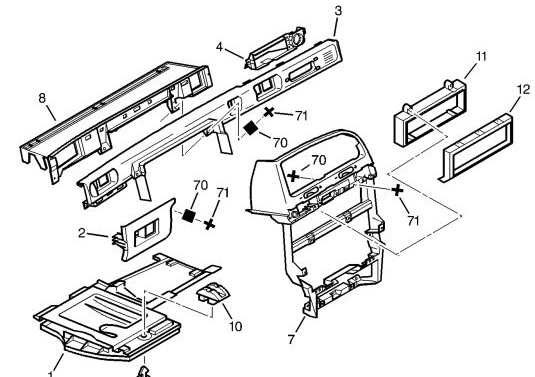

This pic is for LHD and for RHD you can make a mirror image of it.
* Start by removing steering wheel covers (upper and lower) which are fixed with 3 torx screws.
* Some of the screws are behind the trim #1 in pic (User manual pocket, cabin fuses and OBD connection).
Edit: * After that #2 must be removed. Behind it there are 2-3 screws are hidden.
* Third group is hidden behind radio frame. You don't have to remove #7 but only #11 or #12 (may be both).
I don't have a chance to check from the car since I don't have Xantia anymore.
You need only Torx tool (T20) for the screws . No other tool is needed.
You have to remove all those torx screws and most of them are hidden behind some others parts.
This pic is for LHD and for RHD you can make a mirror image of it.
* Start by removing steering wheel covers (upper and lower) which are fixed with 3 torx screws.
* Some of the screws are behind the trim #1 in pic (User manual pocket, cabin fuses and OBD connection).
Edit: * After that #2 must be removed. Behind it there are 2-3 screws are hidden.
* Third group is hidden behind radio frame. You don't have to remove #7 but only #11 or #12 (may be both).
I don't have a chance to check from the car since I don't have Xantia anymore.
You need only Torx tool (T20) for the screws . No other tool is needed.
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
-
- Donor 2023
- Posts: 13727
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 2993
Re: Xantia dashboard clock removal
Once you have removed the clock, I bet that you will find a failed/cracked solder join on its connector (the one on the cable normally is OK) that is causing the problem. I had this on my BX, and a quick go with the soldering iron sorted it out.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 70
Re: Xantia dashboard clock removal
Well, NO ONE gonna explain it...??
Remove the steering wheel Shrouds..behind there you should see two screws, position 70 in the diagram above should help you, and at the opposite side too, then to the right of the shrouds is a plastic section (Item No.2), theres a screw holding that adjacent behind the ignition switch, and the other one to remove is behind the fold down flap in the recess where the flap catch goes.. remove that, and theres another screw in the corner holding it on..
Now, remove the radio! Seriously remove the radio...
Then under the trim edge theres 4 more screws holding it on only visible after radio removal...
Once you found all those it pulls as one unit owards you... remove the plugs as you go..
Remove the steering wheel Shrouds..behind there you should see two screws, position 70 in the diagram above should help you, and at the opposite side too, then to the right of the shrouds is a plastic section (Item No.2), theres a screw holding that adjacent behind the ignition switch, and the other one to remove is behind the fold down flap in the recess where the flap catch goes.. remove that, and theres another screw in the corner holding it on..
Now, remove the radio! Seriously remove the radio...
Then under the trim edge theres 4 more screws holding it on only visible after radio removal...
Once you found all those it pulls as one unit owards you... remove the plugs as you go..
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
- CitroenCrazy
- (Donor 2020)
- Posts: 125
- Joined: 20 Mar 2005, 18:17
- Location: Leicestershire
- My Cars: 2000 Xantia Estate Exclusive, HDi
1999 Xantia Estate Exclusive, HDi,
C6 2.2 Manual
They're the modern ones..... - x 63
Re: Xantia dashboard clock removal
Thanks All.
I'm very grateful for the info. I'm normally the sort of person who tends to pull just that bit too hard, and only find the last retaining screw when I've just broken something.
My ability to turn a modest task into an extravaganza has to be witnessed to be believed.
I will report back after the weekend
I'm very grateful for the info. I'm normally the sort of person who tends to pull just that bit too hard, and only find the last retaining screw when I've just broken something.
My ability to turn a modest task into an extravaganza has to be witnessed to be believed.
I will report back after the weekend
-
- Donor 2023
- Posts: 1041
- Joined: 05 Nov 2004, 14:38
- Location: Kemnay, Nr Aberdeen, United Kingdom
- My Cars: '00 Xantia 110 bhp Hdi SX Estate 65K "W"
'99 Xantia 110 bhp Hdi SX Estate 310K SORN "V"
'98 Xantia 1.9TD SX Estate 150K Sold "T" - x 47
Re: Xantia dashboard clock removal
This may help
viewtopic.php?f=3&t=40038&p=321895&hilit=speedo#p321895
viewtopic.php?f=3&t=40038&p=321895&hilit=speedo#p321895
Chris
Tesla Model 3 LR DM AWD Blue White
'00 Xant 110HdiSX Est 83K "W"
'99 Xant 110HdiSX Est 320K "V"
'98 Xant 1.9TDSX Est 150K "T"
'97 Xant 1.9TD 20k Est
'94 Fiat TipoTd 40K
'85 BMW K100RT 330K Garaged 26yrs '80 Honda CB250 twin Superdream
Tesla Model 3 LR DM AWD Blue White
'00 Xant 110HdiSX Est 83K "W"
'99 Xant 110HdiSX Est 320K "V"
'98 Xant 1.9TDSX Est 150K "T"
'97 Xant 1.9TD 20k Est
'94 Fiat TipoTd 40K
'85 BMW K100RT 330K Garaged 26yrs '80 Honda CB250 twin Superdream
-
- Posts: 1626
- Joined: 26 Feb 2004, 23:21
- Location: Cloud Cuckooland
- My Cars: C5 V6 Mk1 assainated by wife
Renault Kangoo 1.6 auto, tarted up and remapped
Still missing the Xantia V6
Not missing the AX - Contact:
Re: Xantia dashboard clock removal
Mine had the same thing, never did get round to fixing it. Even bought a new clock off ebay. It was the thought of all those screws putting me off, having already done the heater matrixMandrake wrote:Watching this topic with interest Not only to find out the best way to remove the clock, but also to see what you find to be wrong with the clock itself.
Mine has been playing games for nearly a year now, randomly resetting to midnight or fading out...
It infuriates me to be wrong when I know I'm right
Lexia ponce
http://perception.dyndns.biz/~avengineering/index.htm
Lexia ponce
http://perception.dyndns.biz/~avengineering/index.htm
-
- Donor 2023
- Posts: 1041
- Joined: 05 Nov 2004, 14:38
- Location: Kemnay, Nr Aberdeen, United Kingdom
- My Cars: '00 Xantia 110 bhp Hdi SX Estate 65K "W"
'99 Xantia 110 bhp Hdi SX Estate 310K SORN "V"
'98 Xantia 1.9TD SX Estate 150K Sold "T" - x 47
Re: Xantia dashboard clock removal
I think it was about an hour to dismantle and reassemble.. that was the third time of doing it and I knew where all the sneakily hidden screws were..
Chris
Tesla Model 3 LR DM AWD Blue White
'00 Xant 110HdiSX Est 83K "W"
'99 Xant 110HdiSX Est 320K "V"
'98 Xant 1.9TDSX Est 150K "T"
'97 Xant 1.9TD 20k Est
'94 Fiat TipoTd 40K
'85 BMW K100RT 330K Garaged 26yrs '80 Honda CB250 twin Superdream
Tesla Model 3 LR DM AWD Blue White
'00 Xant 110HdiSX Est 83K "W"
'99 Xant 110HdiSX Est 320K "V"
'98 Xant 1.9TDSX Est 150K "T"
'97 Xant 1.9TD 20k Est
'94 Fiat TipoTd 40K
'85 BMW K100RT 330K Garaged 26yrs '80 Honda CB250 twin Superdream
-
- Donor 2023
- Posts: 1758
- Joined: 22 Nov 2004, 00:21
- Location: Nottingham - UK
- My Cars: 2013 Peugeot 3008 Allure 1.6HDi - FD63 FWA VF3**************[VIN obfuscated, can be read by forum staff]
1995 Citroen Xantia 1.9TD S1 - M728 GDL VF7**************[VIN obfuscated, can be read by forum staff]
1996 Citroen Xantia 1.9TD SX S1 - N707 MGP (Currrently laid up)
2000 Citroen Xantia 2.0 HDi S2 - X435 JGJ VF7**************[VIN obfuscated, can be read by forum staff] (Clutch died Dec 2017 - Resurrected Easter Sunday 2021)
1997 Citroen ZX SX TD - P788 AJL
1959 Landrover Defender S2 - Two owners from new
1968 Triumph Vitesse Convertible 2.0
1980 Ford Escort RS2000 Customer - 2nd Owner
1988 Saab 900 T16S - A 1980's exercise in understated Hooliganism...
Oh! and two Harley Davidsons - A 1990 Sportster and a 2003 Fatboy 100th Anniversary (the only vehicle I have owned from new) - x 78
Re: Xantia dashboard clock removal
Nearly 10 years on and I’m still waiting for the solution!CitroenCrazy wrote: ↑13 Aug 2013, 20:54 Thanks All.
I'm very grateful for the info. I'm normally the sort of person who tends to pull just that bit too hard, and only find the last retaining screw when I've just broken something.
My ability to turn a modest task into an extravaganza has to be witnessed to be believed.
I will report back after the weekend
Can you recall if you fixed it?
I’ve ripped mine apart and cannot see any issues with solder joints. Not obvious ones under 10x magnification anyway…
Perhaps I should get the rework air gun on it abd see if I can remedy mine.
Like you, I have a penchant for turning things into an unnecessary extravaganza.
I reckon I’ll be blowing those tiny resistors and capacitors away with too high an air speed!
