Hi
In the following link there is a pic of the hydraulic pump assembly.
http://imageshack.us/photo/my-images/24" onclick="window.open(this.href);return false; ... esized.jpg
With respect to the above pic , does part #3 ( ring ) orientation is correct. In my Xantia the pump was removed and it looks like part #3 is inserted to the bracket inside out i.e. the ring shoulder (part #3) is between the pump body and bracket , as oppose to the pic at which the ring shoulder is between the bolt head and the bracket. I checked it with two other Xantias and it is assembled the same way as my Xantia , but it may that in all Xantias the pump was detached and assembled in the wrong way
Regards
Zohar
Xantia – Help needed correct assembly of hydraulic pump
Moderator: RichardW
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Xantia – Help needed correct assembly of hydraulic pump
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Re: Xantia – Help needed correct assembly of hydraulic pump
Can anyone help with this ?
Thanks
Zohar
Thanks
Zohar
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Re: Xantia – Help needed correct assembly of hydraulic pump
Your image link is broken...
I've had the pump out of my previous Xantia, in fact I stripped the pump right down but its years ago now so I can't remember small details like the orientation of spacers...
Also there are many variations of the hydraulic pump and mounting bracket depending on year, engine model, A/C fitted or not etc, so nobody is going to know unless we know these details.
I've had the pump out of my previous Xantia, in fact I stripped the pump right down but its years ago now so I can't remember small details like the orientation of spacers...
Also there are many variations of the hydraulic pump and mounting bracket depending on year, engine model, A/C fitted or not etc, so nobody is going to know unless we know these details.
Simon
1997 Xantia S1 3.0 V6 Auto Exclusive in Silex Grey
2016 Nissan Leaf Tekna 30kWh in White
2011 Peugeot Ion Full Electric in Silver
1977 G Special 1129cc LHD
1978 CX 2400
1997 Xantia S1 2.0i Auto VSX
1998 Xantia S2 3.0 V6 Auto Exclusive
1997 Xantia S1 3.0 V6 Auto Exclusive in Silex Grey
2016 Nissan Leaf Tekna 30kWh in White
2011 Peugeot Ion Full Electric in Silver
1977 G Special 1129cc LHD
1978 CX 2400
1997 Xantia S1 2.0i Auto VSX
1998 Xantia S2 3.0 V6 Auto Exclusive
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Re: Xantia – Help needed correct assembly of hydraulic pump
Hi
The car is 2.0 V16 make year 200o with A/C. The photo I provided the link to is from Citroen Service per my Xanti's VIN number. Can't you use the link ? At least from my computer when I click it the image appears .
Regards
Zohar
The car is 2.0 V16 make year 200o with A/C. The photo I provided the link to is from Citroen Service per my Xanti's VIN number. Can't you use the link ? At least from my computer when I click it the image appears .
Regards
Zohar
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Re: Xantia – Help needed correct assembly of hydraulic pump
Thanks Addo
Yes that's exactly what I speaking about. Can you upload close up photos of the upper and lower spacers. BTW I tried to upload photos I took and they didn't show up (only a small blank square with "Image" written in red ) , can you explain how to upload photos, so I can upload the photos I took.
Thnaks
Zohar
Yes that's exactly what I speaking about. Can you upload close up photos of the upper and lower spacers. BTW I tried to upload photos I took and they didn't show up (only a small blank square with "Image" written in red ) , can you explain how to upload photos, so I can upload the photos I took.
Thnaks
Zohar
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Re: Xantia – Help needed correct assembly of hydraulic pump
Thanks I'll try it
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Re: Xantia – Correct assembly of hydraulic pump - with photo
Hi

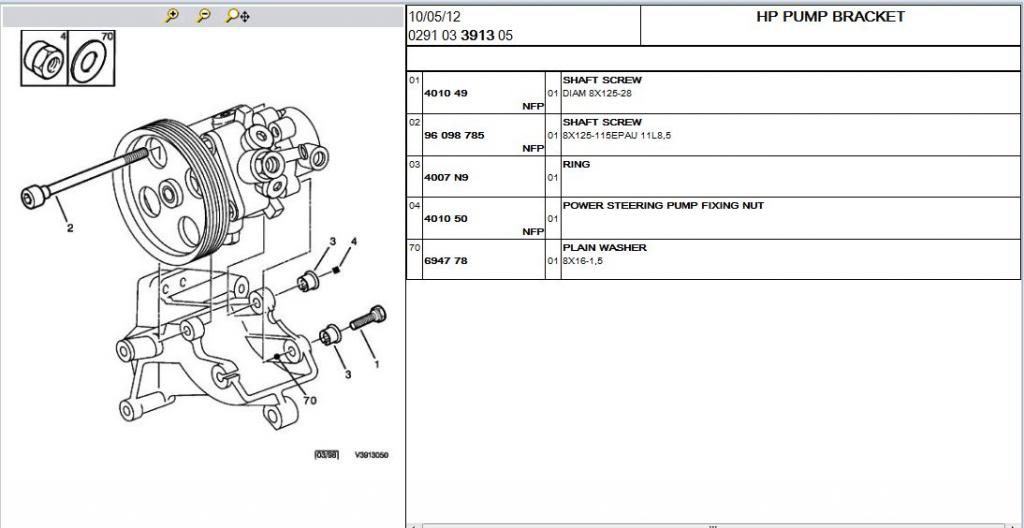

In the following link there is a pic of the hydraulic pump assembly as copied from citroen service per the VIN of my Xantia.
With respect to the above pic , does part #3 ( ring ) orientation is correct. In my Xantia the pump was removed and it looks like part #3 is inserted to the bracket inside out i.e. the ring shoulder (part #3) is between the pump body and bracket , as oppose to the pic at which the ring shoulder is between the bolt head and the bracket.

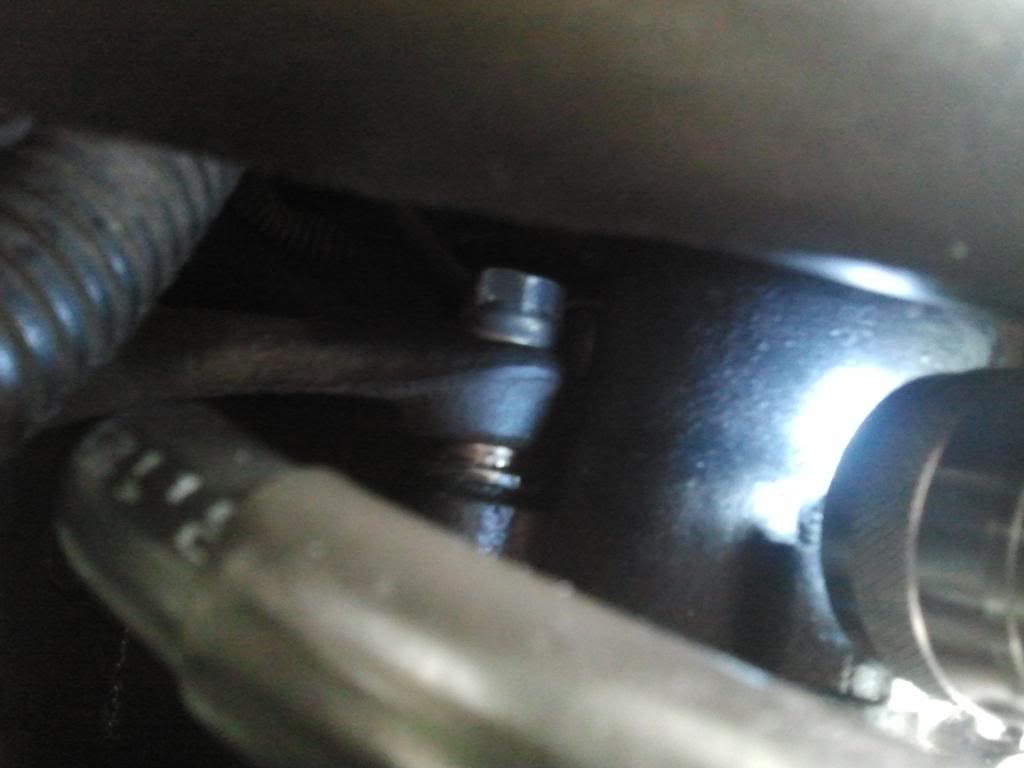

Pic of upper bolt

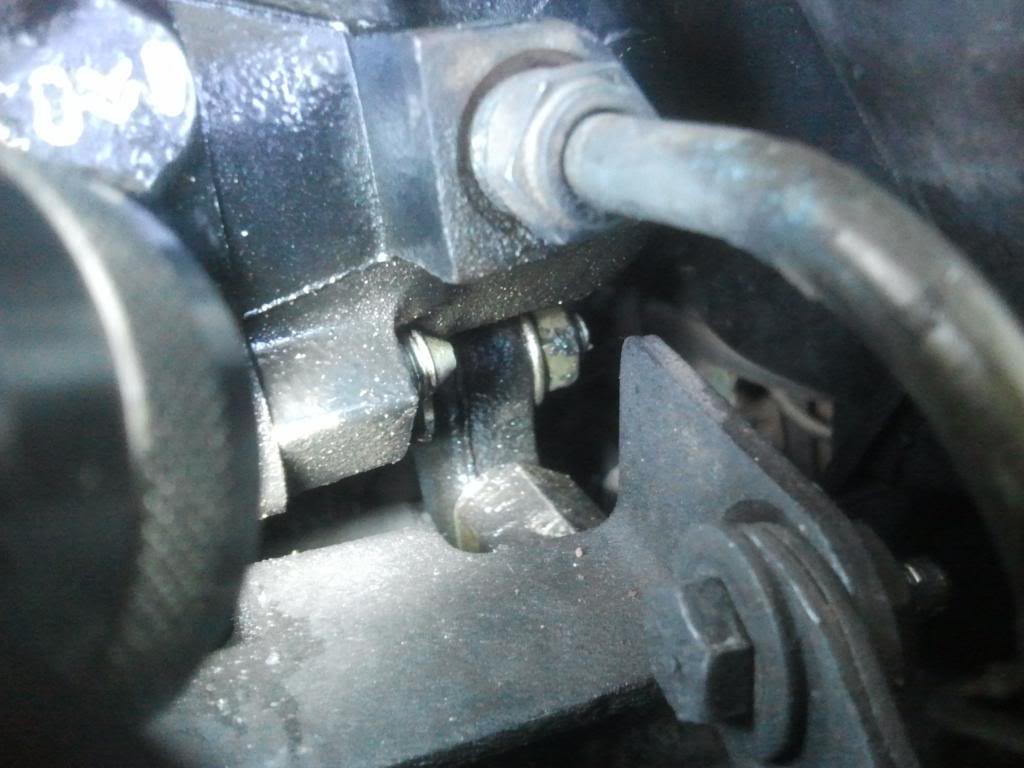

Pic of lower bolt
I checked it with two other Xantias and it is assembled the same way as my Xantia , but it may that in all Xantias the pump was detached and assembled in the wrong way.

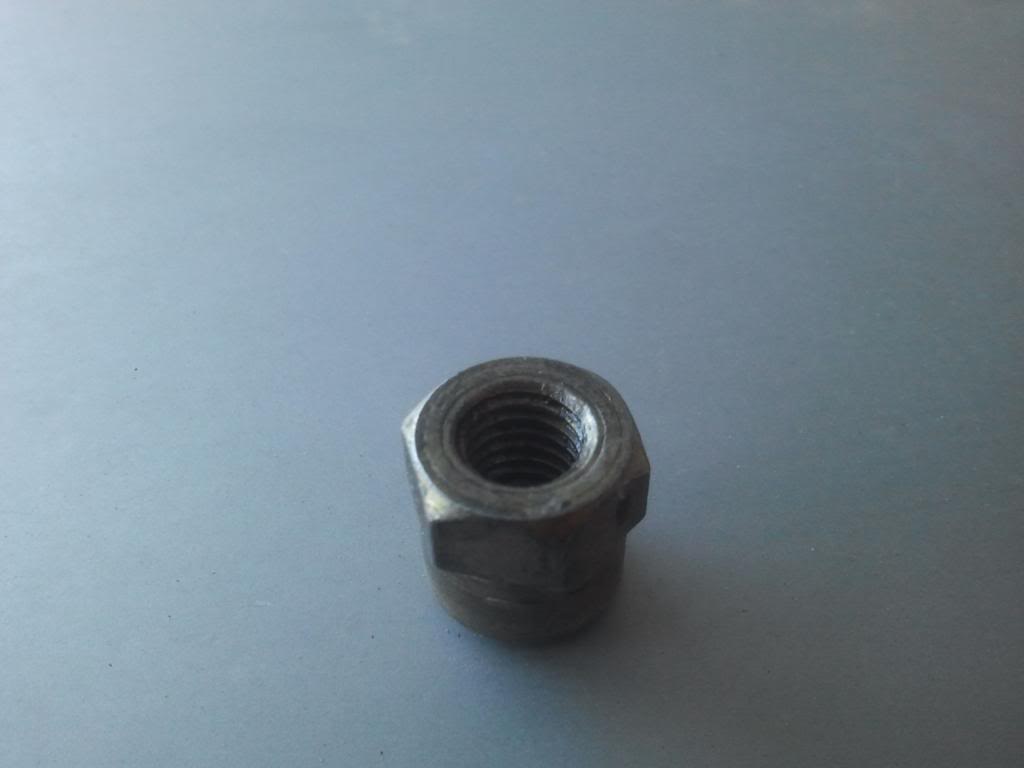

After the pump was attached I found the following nut on the AC, it looks like part #4 in the assembly , is that correct
Regards
Zohar
In the following link there is a pic of the hydraulic pump assembly as copied from citroen service per the VIN of my Xantia.
With respect to the above pic , does part #3 ( ring ) orientation is correct. In my Xantia the pump was removed and it looks like part #3 is inserted to the bracket inside out i.e. the ring shoulder (part #3) is between the pump body and bracket , as oppose to the pic at which the ring shoulder is between the bolt head and the bracket.
Pic of upper bolt
Pic of lower bolt
I checked it with two other Xantias and it is assembled the same way as my Xantia , but it may that in all Xantias the pump was detached and assembled in the wrong way.
After the pump was attached I found the following nut on the AC, it looks like part #4 in the assembly , is that correct
Regards
Zohar
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
-
- Sara Watson's Stalker
- Posts: 7098
- Joined: 19 Aug 2008, 12:38
- Location: NEW South Wales, Australia. I'll show you "Far, far away" ;-)
- My Cars: Peugeot 605
Citroën Berlingo
Alfa 147 - x 93
I was incorrectly informed by the Service Citroën illustrations, too.
The way these parts work, is what I call "slip and grip". The flanged sleeve is free to slide left or right until you tighten the bolt/nut with a conical face - this cone expands the sleeve and locks the part into position just like a masonry bolt.
My pump has remained perfectly aligned since I refitted these parts in the correct order (using sense, not the illustrations). It's a little bit dark now to get a good clear picture, unfortunately.
The way these parts work, is what I call "slip and grip". The flanged sleeve is free to slide left or right until you tighten the bolt/nut with a conical face - this cone expands the sleeve and locks the part into position just like a masonry bolt.
My pump has remained perfectly aligned since I refitted these parts in the correct order (using sense, not the illustrations). It's a little bit dark now to get a good clear picture, unfortunately.
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Re: Xantia – Help needed correct assembly of hydraulic pump
Hi Addo
If you look at the pic I named "Pic of lower bolt" ( third one ) it looks like the mechanics used to wrong nut , and the nut should be switched with the one I found on the AC compressor took its photo ( last photo ) right ?Once you will have daylight I'll appreciate if you can post a photo of both bolts used to attach the pump to its bracket ( the bottom one is a bit difficult to take its photo )
Regards
Zohar
If you look at the pic I named "Pic of lower bolt" ( third one ) it looks like the mechanics used to wrong nut , and the nut should be switched with the one I found on the AC compressor took its photo ( last photo ) right ?Once you will have daylight I'll appreciate if you can post a photo of both bolts used to attach the pump to its bracket ( the bottom one is a bit difficult to take its photo )
Regards
Zohar
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Re: Xantia – Help needed correct assembly of hydraulic pump
Hi
I replace the nut that secure the lower bolt with the one I found on the AC Compressor ( part #4 ) and the rattles disappeared
