My Gordian Knot, Unpicked

This is the Forum for all your Citroen Technical Questions, Problems or Advice.
addo
Sara Watson's Stalker
Posts: 7098
Joined: 19 Aug 2008, 12:38
x 95

My Gordian Knot, Unpicked

Unread post by addo »

As seen here:


I'm putting an XU10J4R from an early '99 Xantia in a Berlingo. I intend to splice the looms and use the key chip as designed - not a chav unlock. Will be using the Berlingo clocks, too.

Have stripped the donor looms out and have been snipping away totally redundant stuff like blinkers, power windows, Hydractive, radio harness etc. What you see here is the current "state of play" with the donor dash wires. :shock:

A lot more needs to go, but I need some urgent help with diagrams for the RF locking box (not deadlocking, not alarmed) and dash wiring (telltales and senders). It's just too different from the Pug 605 and Berlingo arrangements, for suitable guesswork.

Thanks, Adam.
Last edited by addo on 06 Aug 2013, 07:03, edited 1 time in total.
Top
Xantidote
Posts: 1146
Joined: 03 May 2009, 22:07
x 5

Re: My Gordian Knot

Unread post by Xantidote »

All I can say Addo, is:-- You obviously like a challenge :-D
Martin

1995 Xantia TDLX (deceased :( )
Top
User avatar
Mandrake
Posts: 8692
Joined: 10 Apr 2005, 17:23
x 694

Re: My Gordian Knot

Unread post by Mandrake »

Xantidote wrote:All I can say Addo, is:-- You obviously like a challenge :-D
My thoughts exactly. :lol:
Simon

2016 Nissan Leaf Tekna 30kWh in White

1997 Xantia S1 3.0 V6 Auto Exclusive in Silex Grey
2011 Peugeot Ion Full Electric in Silver
1998 Xantia S2 3.0 V6 Auto Exclusive
1997 Xantia S1 2.0i Auto VSX
1978 CX 2400
1977 G Special 1129cc LHD
Top
addo
Sara Watson's Stalker
Posts: 7098
Joined: 19 Aug 2008, 12:38
x 95

Unread post by addo »

The dash harness is chockers with redundant wires as its the same loom for Activa, Hydractive, LX, V6, HDi, alarm or not, deadlocking or not, etc etc. So there are heaps of telltales that do nothing. The main engine bay harness is similarly loaded up with redundancies including aux power and heating.

At the end of it all, I need to make sure the ECU - only 55 pins - is receiving correct inputs, and that the outputs are being received correctly. This is how I can remain relatively calm about it...
Top
davetherave
Posts: 880
Joined: 01 Apr 2009, 21:06
x 4

Re: My Gordian Knot

Unread post by davetherave »

And my family think I'm nuts! Good luck!
(95) XM Silver 2.1td Exclusive.
(87) Cx 2.5 DTR T1 undergoing major cosmetic surgery.
GPZ500s
Top
User avatar
CitroJim
A very naughty boy
Posts: 54850
Joined: 30 Apr 2005, 23:33
x 8234

Re: My Gordian Knot

Unread post by CitroJim »

Adam,

I'd better fire up the scanner I guess....

So, you want the relevant schematic and harness diagrams that relate to an S2 2.0 16V I presume.

I'll see what I can do. Won't be today, will try to do so tomorrow if that's OK...

Just before I do fire up the scanner, what engine ECU is it? Bosch, Sagem or Magnetti Spaghetti?

Speaking of spaghetti :roll: :lol:
Jim

A bit of a Citroen AX fan...
Top
addo
Sara Watson's Stalker
Posts: 7098
Joined: 19 Aug 2008, 12:38
x 95

Unread post by addo »

It's a Bosch 5.2 engine ECU, you've previously posted the 5.1 pinouts but some numbering varies. The clocks' wiring and all immobiliser pin outs are the really sticky bits.
Top
User avatar
CitroJim
A very naughty boy
Posts: 54850
Joined: 30 Apr 2005, 23:33
x 8234

Re: My Gordian Knot

Unread post by CitroJim »

OK Adam, I'll see what I can do...

Give me a day though...
Jim

A bit of a Citroen AX fan...
Top
addo
Sara Watson's Stalker
Posts: 7098
Joined: 19 Aug 2008, 12:38
x 95

Unread post by addo »

That's fine. I'm building a double bed for a client today (yes, I get some unusual jobs).
Top
User avatar
CitroJim
A very naughty boy
Posts: 54850
Joined: 30 Apr 2005, 23:33
x 8234

Re:

Unread post by CitroJim »

addo wrote:That's fine. I'm building a double bed for a client today (yes, I get some unusual jobs).
If the client is pretty, do you get to road test it with her for a night to check your workmanship? I think you should :wink:

Right, try these diagrams Adam...

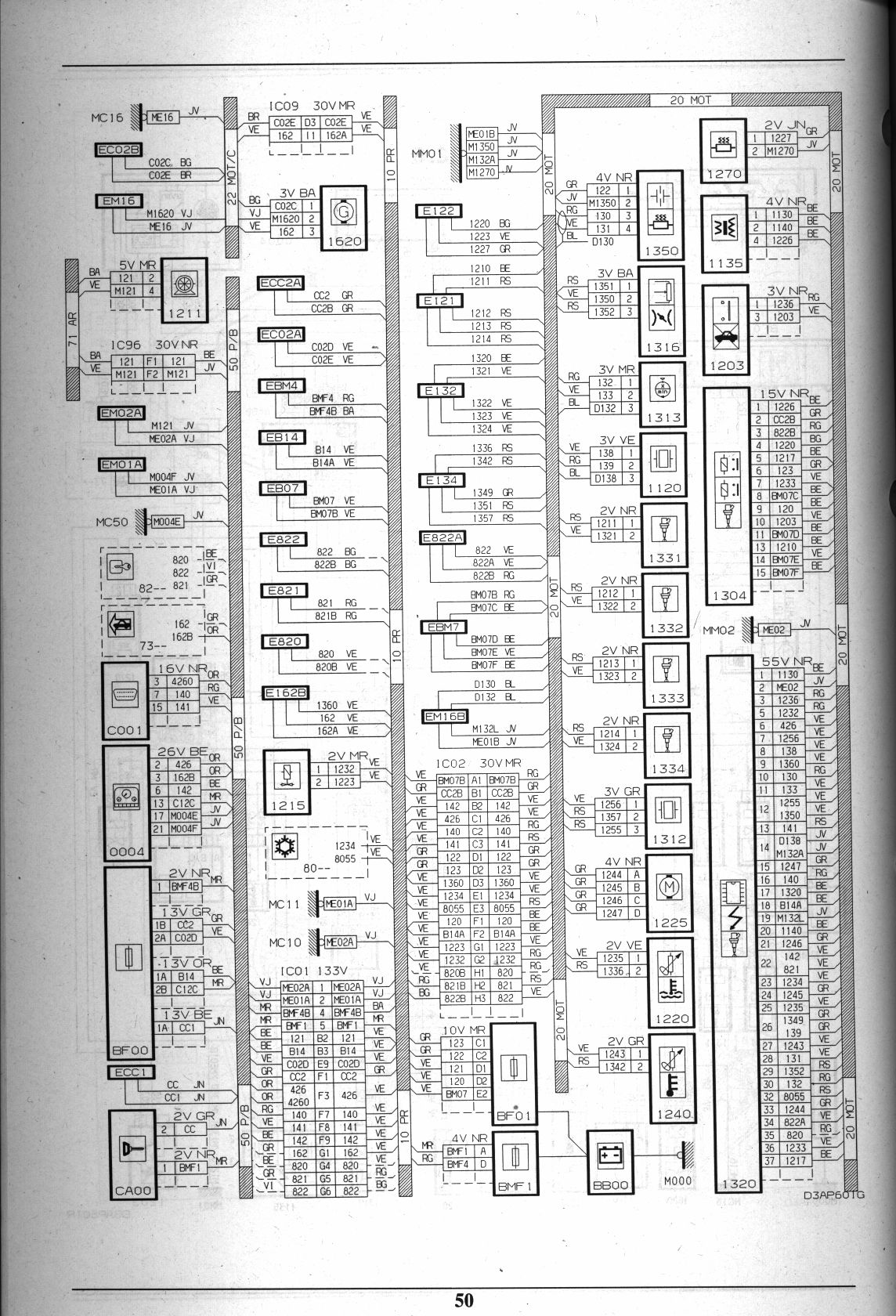

Injection Circuit

Injection Harness

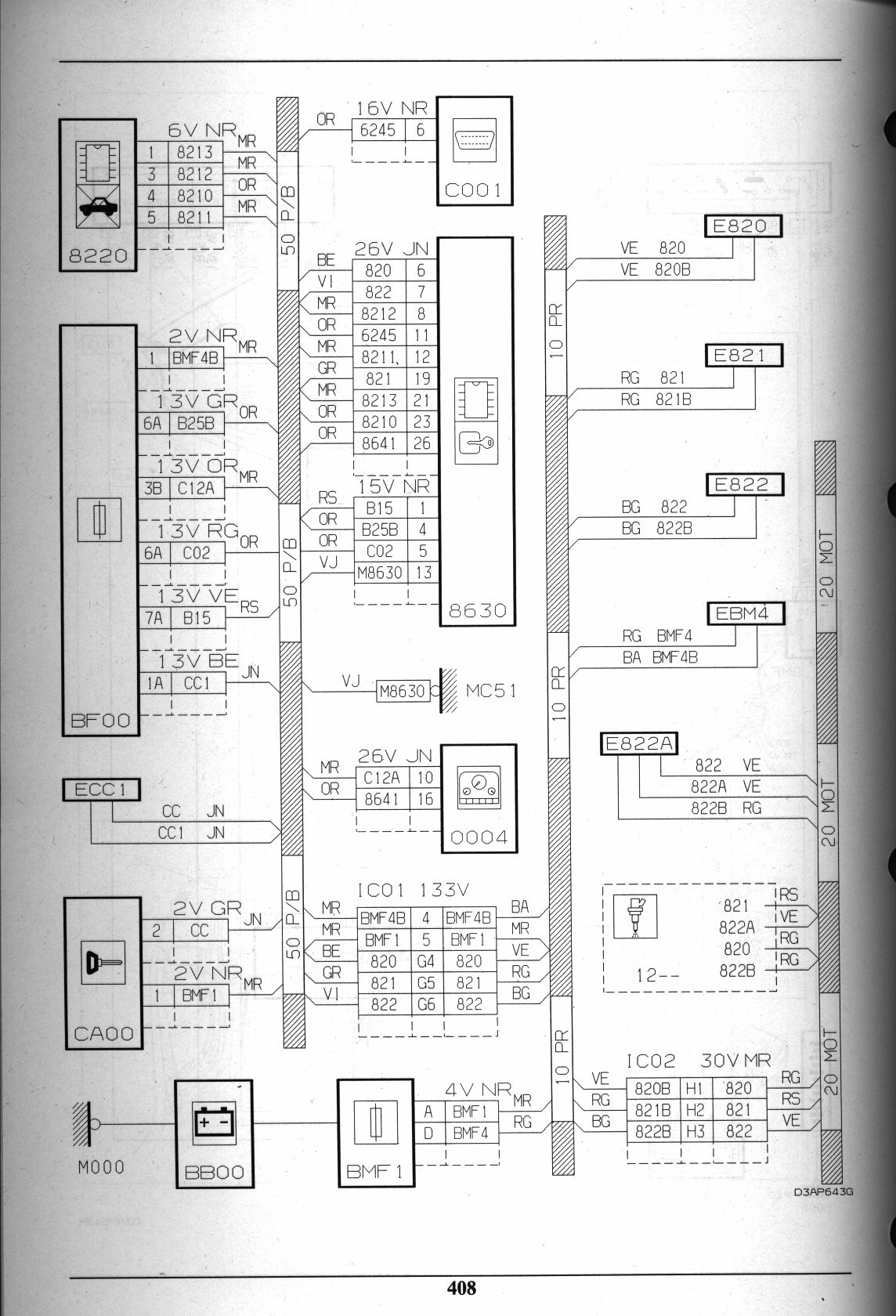

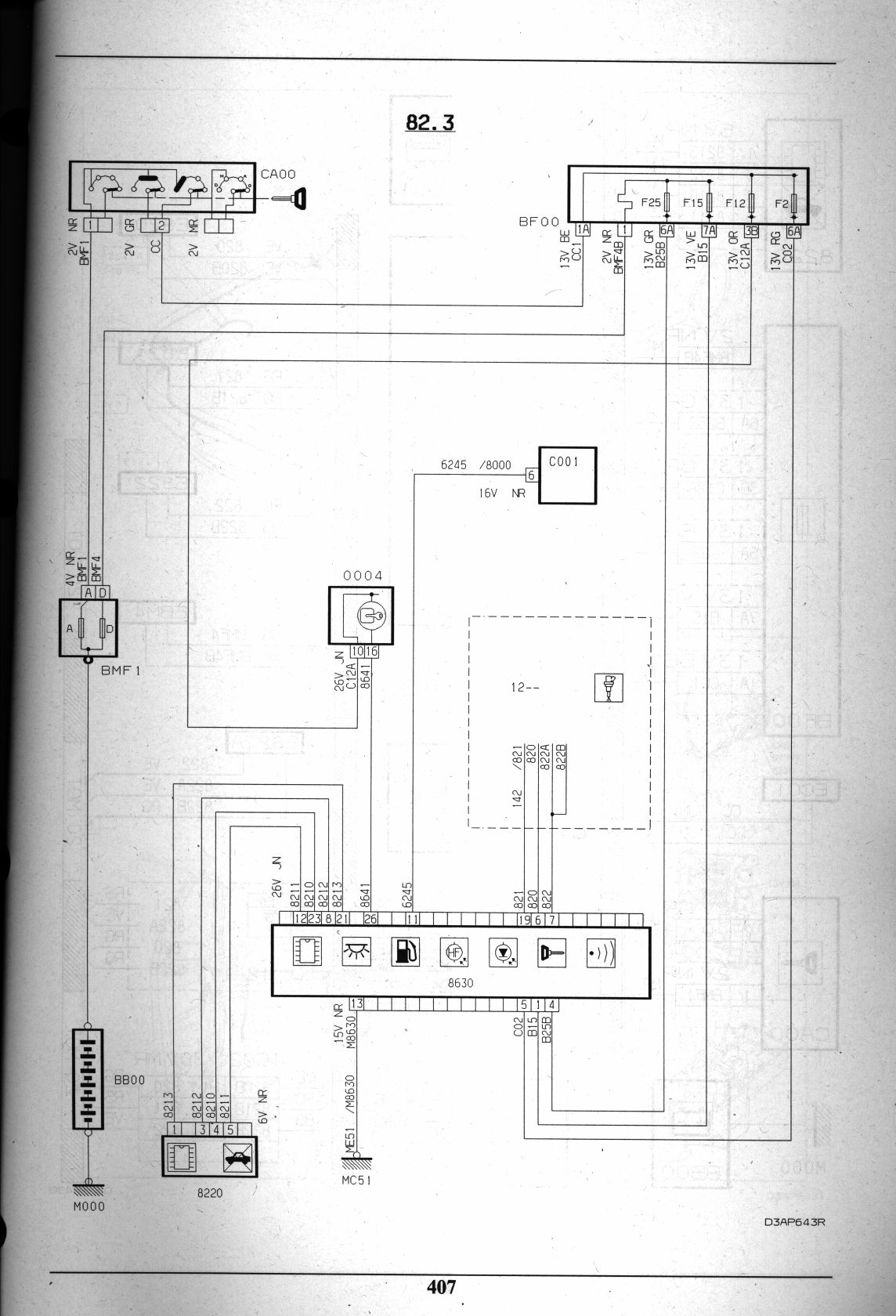

Transponder Circuit

Transponder Harness

I've scanned them big so they are easy to read...Download my not be all that quick due to their size...

Hope they help and if you need any others, just shout...
Jim

A bit of a Citroen AX fan...
Top
User avatar
Mandrake
Posts: 8692
Joined: 10 Apr 2005, 17:23
x 694

Re: My Gordian Knot

Unread post by Mandrake »

Very clear and legible Jim, just incomprehensible :lol:
Simon

2016 Nissan Leaf Tekna 30kWh in White

1997 Xantia S1 3.0 V6 Auto Exclusive in Silex Grey
2011 Peugeot Ion Full Electric in Silver
1998 Xantia S2 3.0 V6 Auto Exclusive
1997 Xantia S1 2.0i Auto VSX
1978 CX 2400
1977 G Special 1129cc LHD
Top
User avatar
CitroJim
A very naughty boy
Posts: 54850
Joined: 30 Apr 2005, 23:33
x 8234

Re: My Gordian Knot

Unread post by CitroJim »

Mandrake wrote:Very clear and legible Jim, just incomprehensible :lol:
They're not that bad Simon, you just need to know how to read them... Most useful are the harness diagrams as that's how the car is physically wired...

Hope Adam doesn't find them incomprehensible :lol: :lol: :lol:
Jim

A bit of a Citroen AX fan...
Top
addo
Sara Watson's Stalker
Posts: 7098
Joined: 19 Aug 2008, 12:38
x 95

Unread post by addo »

Ta, that's a great start to the simplifying of things. Weather's chucking it down presently (albeit at 0400H) so the next session may be a day off.

No road tests on beds, I was a bad dog on NYE and feel I'm only just off the hook now!
Top
addo
Sara Watson's Stalker
Posts: 7098
Joined: 19 Aug 2008, 12:38
x 95

Unread post by addo »

Starting to get it together.

The engine is sat in place, sans PAS pump, AC compressor, all wires and water outlet housings. Have pruned all the auto box stuff from Harness 22.
Top
User avatar
CitroJim
A very naughty boy
Posts: 54850
Joined: 30 Apr 2005, 23:33
x 8234

Re: My Gordian Knot

Unread post by CitroJim »

Excellent! Good to see progress Adam :-D
Jim

A bit of a Citroen AX fan...
Top
