as above really, circuit wise is there anything unique to check as the other windows all work. There is just no life whatsoever from it. Also where does it draw it's power from?
Cheers guys
S2 XM n/s/f window not working
Moderator: RichardW
S2 XM n/s/f window not working
2006 C5 HDi 170
1998 Xantia Activa S1
1971 D Special
2006 C3 1.6 HDi SX,
1998 Xantia Activa S1
1971 D Special
2006 C3 1.6 HDi SX,
A 1/3 of Team WFA 'Clarkson'CitroJim wrote: I'm a pink fairy
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 71
Re: S2 XM n/s/f window not working
Switch's are a common thing firstly for not working... dust gets in and plays with the contacts.
The drivers switch needs to be working for the passenger side switch to work the window, dont ask, I think they have to be in line so that both switchs can operate the same window... Check for broken wires between the door and car on BOTH sides, more so on the drivers side.. IIRC she has a few miles on her... so broken wire could be a possibility..
The drivers switch needs to be working for the passenger side switch to work the window, dont ask, I think they have to be in line so that both switchs can operate the same window... Check for broken wires between the door and car on BOTH sides, more so on the drivers side.. IIRC she has a few miles on her... so broken wire could be a possibility..
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
-
- (Donor 2020)
- Posts: 2504
- Joined: 29 May 2008, 15:59
- Location: Zomerzet UK
- My Cars:
- x 54
Re: S2 XM n/s/f window not working
I've had the same problem on mine but intermittently.
Here are the pin outs for the drivers window switch with the one touch buttons so you can rule the switch in or out:
1 One touch up
2 Illumination bulbs
3 Up
4 Down
5 Ground
6 One touch up
I'm sure the pin numbers are marked on either the loom connector or switch. As far as I can see in the wiring diagram, power comes from F35, into the motor/regulator unit, out to the switch then to ground.
On top of Pauls things to check, unscrew the door loom multiplug on the outside bit of the door and look for corrosion on the millions of pins. I had a fair amount of green corrosion on mine. Now it's cleaned up the window seems to be behaving itself and the intermittent central locking problem has also fixed itself!
I'll scan in the wiring diagrams in the next couple of days.
Here are the pin outs for the drivers window switch with the one touch buttons so you can rule the switch in or out:
1 One touch up
2 Illumination bulbs
3 Up
4 Down
5 Ground
6 One touch up
I'm sure the pin numbers are marked on either the loom connector or switch. As far as I can see in the wiring diagram, power comes from F35, into the motor/regulator unit, out to the switch then to ground.
On top of Pauls things to check, unscrew the door loom multiplug on the outside bit of the door and look for corrosion on the millions of pins. I had a fair amount of green corrosion on mine. Now it's cleaned up the window seems to be behaving itself and the intermittent central locking problem has also fixed itself!
I'll scan in the wiring diagrams in the next couple of days.
Kev
'19 C4 Cactus 130 Flair
'19 C4 Cactus 130 Flair
-
- (Donor 2020)
- Posts: 2504
- Joined: 29 May 2008, 15:59
- Location: Zomerzet UK
- My Cars:
- x 54
Re: S2 XM n/s/f window not working

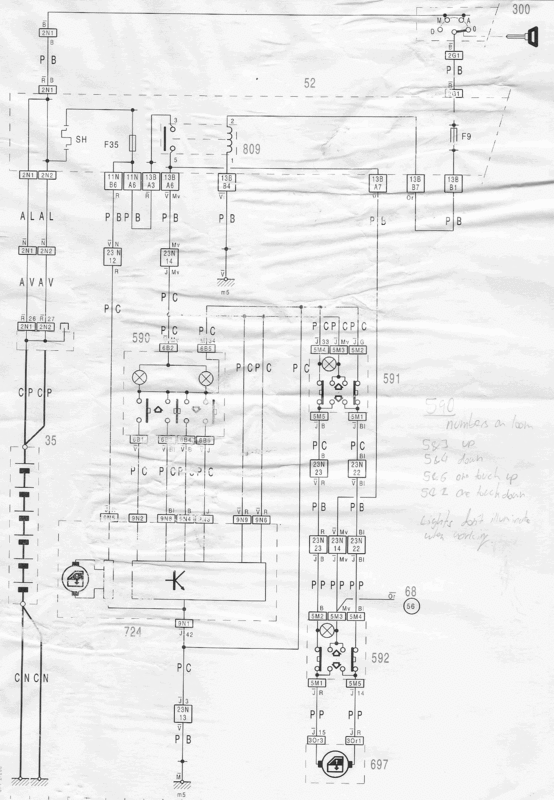

That covers the front electric windows on XMs with anti pinch from RP 7329 onwards.
