Thought the bulb had gone- as you do, fitted another still no light, old bulb tested OK. I have a resistance of about 25 ohms from one lead to earth and about 50 on the other, is there a relay for one side - or is it something horrible?
Peter
406 Hdi o/s dip headlamp
Moderator: RichardW
- spider
- Posts: 3949
- Joined: 05 Jan 2010, 14:28
- Location: Derby.
- My Cars: Soon, I hope...
- x 77
- Contact:
Re: 406 Hdi o/s dip headlamp
From what I see, the relays for it (at 2001) had to guess your build code as its plexed will be in the BSi , have you checked all fuses including engine bay ? , I do seem to think each beam is individually fused, according to that F8 to F12.
See pics, although the plexed diagrams are weird.

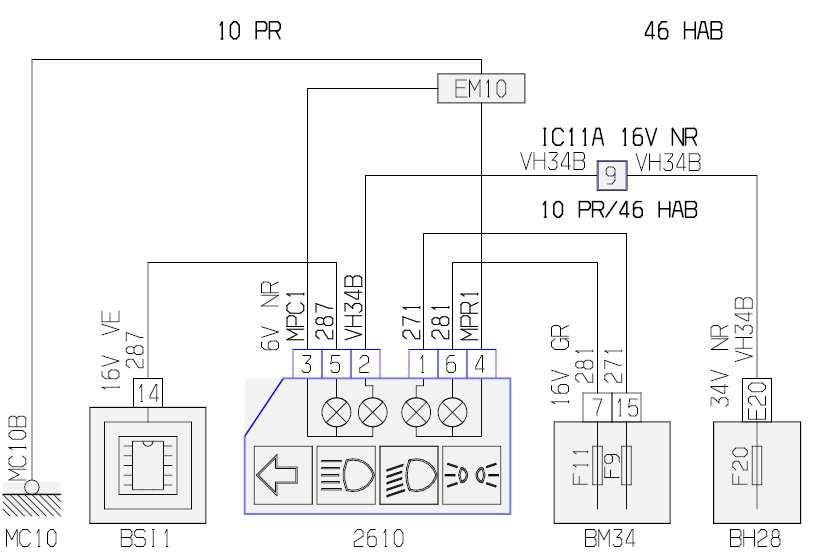

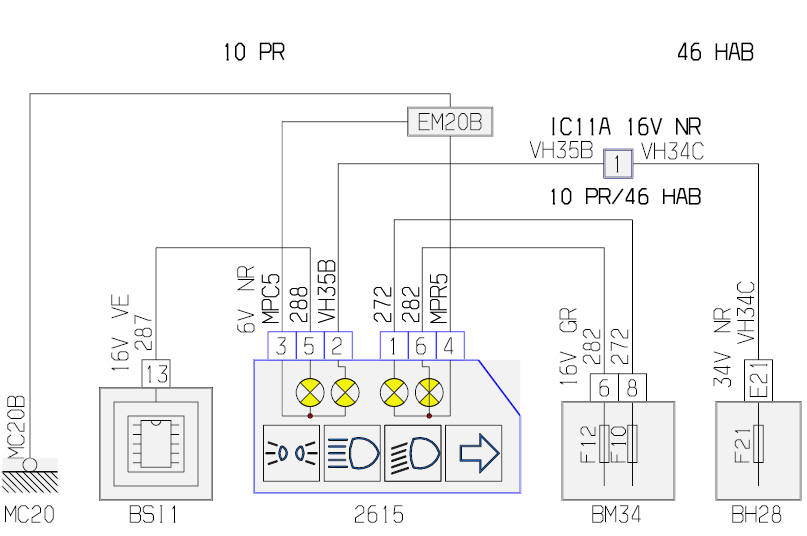

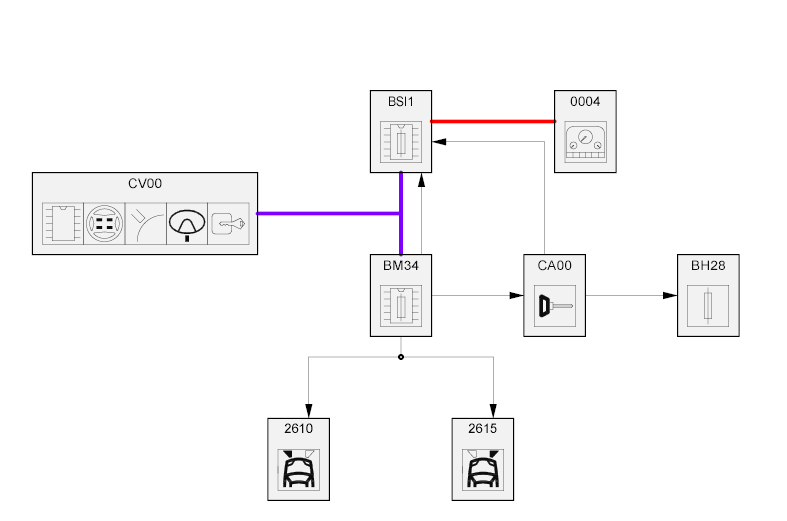

These are: Overview / ns light / os light
See pics, although the plexed diagrams are weird.
These are: Overview / ns light / os light
Andy.
91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
-
- Moderating Team
- Posts: 11574
- Joined: 02 Apr 2005, 16:11
- Location: Charmouth,Dorset
- My Cars: Currently:
C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red
In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars. - x 1204
Re: 406 Hdi o/s dip headlamp
Thanks for that Spider, never thought of anything as technical as checking the fuses In any event they all looked fine, I then found that I had changed the wrong bulb I checked the correct one and it had gone, full of confidence I changed it - and it still didn't work. I suspect it has blown a fuse so I am having to take them out one by one and test them, the fuse layout in the handbook bears little on no relation to the one on the car so I am having to go through them all. Kneeling on the concrete with my head facing the wrong direction is taking its toll so I will do the rest after lunch.
Peter
Peter
-
- Moderating Team
- Posts: 11574
- Joined: 02 Apr 2005, 16:11
- Location: Charmouth,Dorset
- My Cars: Currently:
C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red
In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars. - x 1204
Re: 406 Hdi o/s dip headlamp
Have checked all the fuses by removal and testing, all OK of course. I have no continuity from the dip lead on the headlamp plug so the wiring must have gone o/c somewhere, I suspect on the back of the fuseboard but I think the easiest thing to do would be to fit a relay powered by the other headlamp - won't be the first time.
