Xantia VSX Estate middle rear sealt belt nightmare

Post by Napoleon »

Well it was a nightmare trying to work out how to access the damned thing!

The Story
I had the seats down to collect a freezer. When I went to put the seat back upright, it moved about five inches then.... nothing. It was jammed. Then I remembered the reason the guy I bought it off had removed the seal belt anchor point on the floor... I didn't want to do that, so eventually I found out all the bolts holding the pivot point of the seat upright. I could then invert the seat back and cut open and rooted around inside the seat back for the tensioner.

Much cursing later, It is clear that the tensioner is jammed. It simply swallows the belt.

Now I'm stuck, as we need the middle belt to carry a third passenger in a week's time, and I am at a loss as to what to do.

Any help most gratefully welcomed, please.

Before I do myself some harm!

Thanks guys.

Tim
Tim
2009 HV09 C5 2.2
1996 N679 Xantia TD VSX estate - sold August 2012
1995 M289 Xantia TD SX hatch - sold March 2012

Tarte au Citroen

2009 24" iMac 3.06GHZ
User avatar
Napoleon
Posts: 647
Joined: 04 Nov 2008, 18:32
Location: Walmington-on-Sea AKA Bristol
My Cars:
x 4
Contact:

Re: Xantia VSX Estate middle rear sealt belt nightmare

Post by Napoleon »

Better add a couple of photos. (btw, having put the seat back in place (yes, I had to remove the floor bolt), the tensioner has released the belt, so I could just put the bolt back and carry on as normal, but reluctant to ever put the seats down again!

DSC05516 by Tim Redberry, on Flickr

DSC05517 by Tim Redberry, on Flickr
Tim
2009 HV09 C5 2.2
1996 N679 Xantia TD VSX estate - sold August 2012
1995 M289 Xantia TD SX hatch - sold March 2012

Tarte au Citroen

2009 24" iMac 3.06GHZ
Online
User avatar
CitroJim
A very naughty boy
Posts: 49532
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6163
Contact:

Re: Xantia VSX Estate middle rear sealt belt nightmare

Post by CitroJim »

Tim, the reason the belt jams in the first place is because it goes too far into the seat back. There's a button on the webbing that should cause the belt retracting as soon as this button hits the plastic slot on the top of the seat. Often the slot becomes displaced or worn and the button can pass by it.

I had it happen when I had an estate. Picking up my girls and a couple of their friends on a cold, wet night 9a bit like it is here now). I had to do a disassembly job like you with four small girls standing in the rain and shivering...

But anyway, that's the reason and the fix is to make sure the plastic slot is 100% in place and narrow enough to prevent the seatbelt button passing through it...
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
Napoleon
Posts: 647
Joined: 04 Nov 2008, 18:32
Location: Walmington-on-Sea AKA Bristol
My Cars:
x 4
Contact:

Re: Xantia VSX Estate middle rear sealt belt nightmare

Post by Napoleon »

Hi Jim

Yes, that slot was out of place ever since I picked the car up.

So the solution is NOT a new tensioner/belt at all, but do as you say and keep that slot in one place - the correct place?

Any tips on keeping it where it should be?
Tim
2009 HV09 C5 2.2
1996 N679 Xantia TD VSX estate - sold August 2012
1995 M289 Xantia TD SX hatch - sold March 2012

Tarte au Citroen

2009 24" iMac 3.06GHZ
Online
User avatar
CitroJim
A very naughty boy
Posts: 49532
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6163
Contact:

Re: Xantia VSX Estate middle rear sealt belt nightmare

Post by CitroJim »

Absolutely yes!
Napoleon wrote: Any tips on keeping it where it should be?
Umm, you may find it has a broken clip on it. One of the ones that hold it into the seat back. You may need to find one or carefully glue it in place...

Not sure if they're available as a spare part. I'll have a look...
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
Napoleon
Posts: 647
Joined: 04 Nov 2008, 18:32
Location: Walmington-on-Sea AKA Bristol
My Cars:
x 4
Contact:

Re: Xantia VSX Estate middle rear sealt belt nightmare

Post by Napoleon »

Any mileage in putting a large (long) pin of some sort through the belt? If that might be dodgy, what about a clip around the belt at that point. But yes, possibly the clip is damaged/missing a clip. I'll go check. (don't envy your situation messing about with this while passnegers await!)
Tim
2009 HV09 C5 2.2
1996 N679 Xantia TD VSX estate - sold August 2012
1995 M289 Xantia TD SX hatch - sold March 2012

Tarte au Citroen

2009 24" iMac 3.06GHZ
Online
User avatar
CitroJim
A very naughty boy
Posts: 49532
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6163
Contact:

Re: Xantia VSX Estate middle rear sealt belt nightmare

Post by CitroJim »

Yes it s Tim :-D

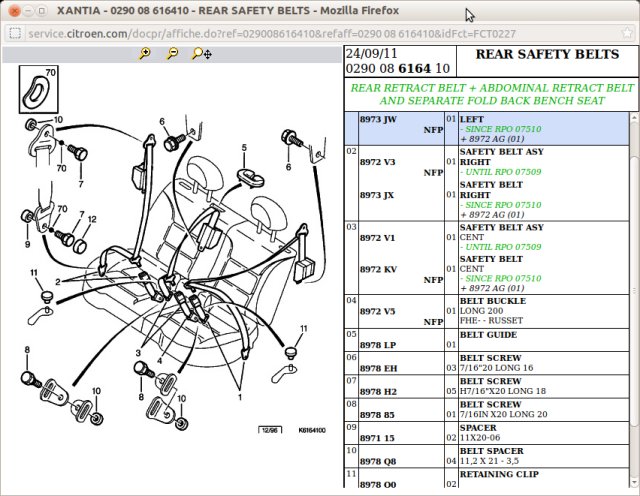

You need one of Item 5 in the picture below (8978 LP)
