Berlingo diesel DW8 engine (1868cc) fuel pump

Post by ito »

Hi folks, could somebody tell me what the differences are between the Lucas DWLP11 and the DWLP12 pumps besides the obvious advance system? I have tried fitting the earlier mechanical advance pump (DWLP11) to and engine which runs just fine (on tickover) on the later pump, no engine issues(i.e timing, compression, glow plugs or feed, starter etc), no fuel delivery problems (i.e. coded stop solenoid) but cannot get the thing to start, not a hint, and the pump delivers a fine spray pattern from the injectors exactly as I would expect. How rare is it for an injection pump to lose its internal timing but still pump ok? The earlier pumps were used on the DW8 engine from 1998 up to 2001, later pumps from early 2001 on. The aluminium cradle that these two pumps bolt into look identical in every respect, also the pumps, except for the advance system, also look identical. Thanks! This is an engine replacement issue, original engine (older) broken cam, later engine out of a late 01 reg van, my van has no ECU or BSI hence the need to use the earlier pump.
wheeler
Posts: 6847
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by wheeler »

Does the engine fire on a sniff of easy start ??
User avatar
spider
Posts: 3949
Joined: 05 Jan 2010, 14:28
Location: Derby.
My Cars: Soon, I hope...
x 77
Contact:

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by spider »

As far as I am aware (I don't have access to my notes / data at the moment) the only difference is the electronic advance really and a couple of external (not relevant) items such as the post heat control microswitches and egr microswitch, but it would run without these anyway.

Its mainly the electronic vs mechanical advance, I am not aware of any other major differences.

IIRC, if you power up the later electronic pump without the advance being connected / faulty it will lock to full advance which (apart from the noise!) might be very difficult to start.

DW8's are adjustable on the sprockets though, it is possible to get them out. There is a procedure to undo the three bolts and move the sprockets fully one way, fit the belt etc and move check they are not fully the other way etc.

The cradles are the same part number (I remember that as I looked into this for something else a couple of weeks back)

As I say I don't have any notes to hand just going from memory although it has been a long time since I saw one in the metal, so to speak now.
Andy.

91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
Peter.N.
Moderating Team
Posts: 11563
Joined: 02 Apr 2005, 16:11
Location: Charmouth,Dorset
My Cars: Currently:

C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red

In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars.
x 1199

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by Peter.N. »

Many years ago I fitted a Bosch pump to a BX in place of the Lucas one and had the same problem and it was because the injection order was different so it was injecting fuel into the wrong cylinders at the wrong time, when I changed the injector pipes for the Bosch type it worked fine. Both of yours being Lucas I wouldn't have thought they would be different but you never know. If fuel is being injected in but its not firing it can only be that the timing isn't right - all other things being equal.

Peter
ito
Posts: 25
Joined: 15 Jan 2012, 10:41
Location:
My Cars:

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by ito »

Hi Peter, you are spot on, although the firing order remains the same (1342), Peugeot/Citroen in their infinate wisdom have decided to alter the sequence by 90 degrees, I suspect to deter the likes of myself of installing a non electronic pump in an electronically controlled engine. Once the correct order was established, the engine fired up on the button, so basically anyone reading this, the pipework is matched to the pump, DWLP11 pipes will not run a DWLP12 pump and vicy verky. Solution found, thankyou French Car Forum, and Peter for bothering to apply your time and grey cells to my problem.
Last edited by ito on 17 Jan 2012, 09:07, edited 1 time in total.
User avatar
CitroJim
A very naughty boy
Posts: 49518
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6156
Contact:

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by CitroJim »

Excellent result :-D

And good knowledge too... I'm amazed the firing order between two variants of Lucas pumps changed though... Would never have thought of that so well done Peter!
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Peter.N.
Moderating Team
Posts: 11563
Joined: 02 Apr 2005, 16:11
Location: Charmouth,Dorset
My Cars: Currently:

C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red

In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars.
x 1199

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by Peter.N. »

I didn't think it would vary between pumps of the same make but I thought it would be worth a shot. What was it Sherlock Holmes said 'when you have eliminated the impossible ......'.

Peter
ito
Posts: 25
Joined: 15 Jan 2012, 10:41
Location:
My Cars:

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by ito »

just a bit of detail for others if encountering the same!
Last edited by GiveMeABreak on 10 Dec 2021, 13:43, edited 1 time in total.
Reason: Invalid Filenames (User Error)
User avatar
spider
Posts: 3949
Joined: 05 Jan 2010, 14:28
Location: Derby.
My Cars: Soon, I hope...
x 77
Contact:

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by spider »

Interesting :) Thank you for sharing.

The general consensus then is if using (or wanting to use) the earlier pump with the later engines simply ensure you have the earlier pipework too.
Andy.

91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
paddybloomer
Posts: 6
Joined: 09 Dec 2021, 23:15
Location: n. ireland
My Cars: dispatch dw8b, berlingo dw8
x 1

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by paddybloomer »

i ran in to this problem a few years ago and never solved it so i had to refit the dwlp 12 pump. as my advance solenoid and asociated wireing is giving probems again i want to try again whith this new knoledge to fit the dwlp11 i wonder can i find the correct pipes. i cant see the image atached above, how can i get it?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by GiveMeABreak »

The post was nearly 10 years ago and the files were invalid, hence why they never appeared. I've deleted them now as there is nothing to show.
Please Don't PM Me For Technical Help

Marc
paddybloomer
Posts: 6
Joined: 09 Dec 2021, 23:15
Location: n. ireland
My Cars: dispatch dw8b, berlingo dw8
x 1

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by paddybloomer »

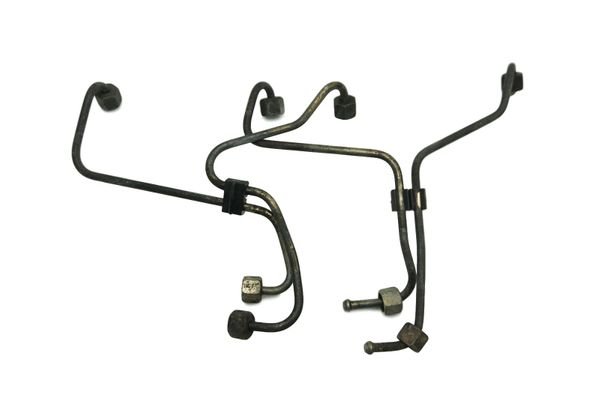

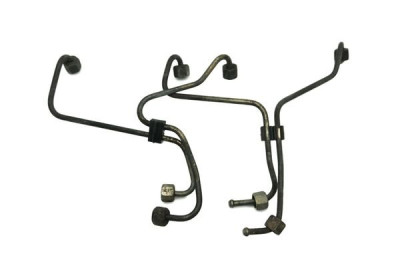

DW8B injejtor pipes for dwlp12 part no. 1570 A4
Attachments
Last edited by paddybloomer on 24 Dec 2021, 18:39, edited 1 time in total.
paddybloomer
Posts: 6
Joined: 09 Dec 2021, 23:15
Location: n. ireland
My Cars: dispatch dw8b, berlingo dw8
x 1

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by paddybloomer »

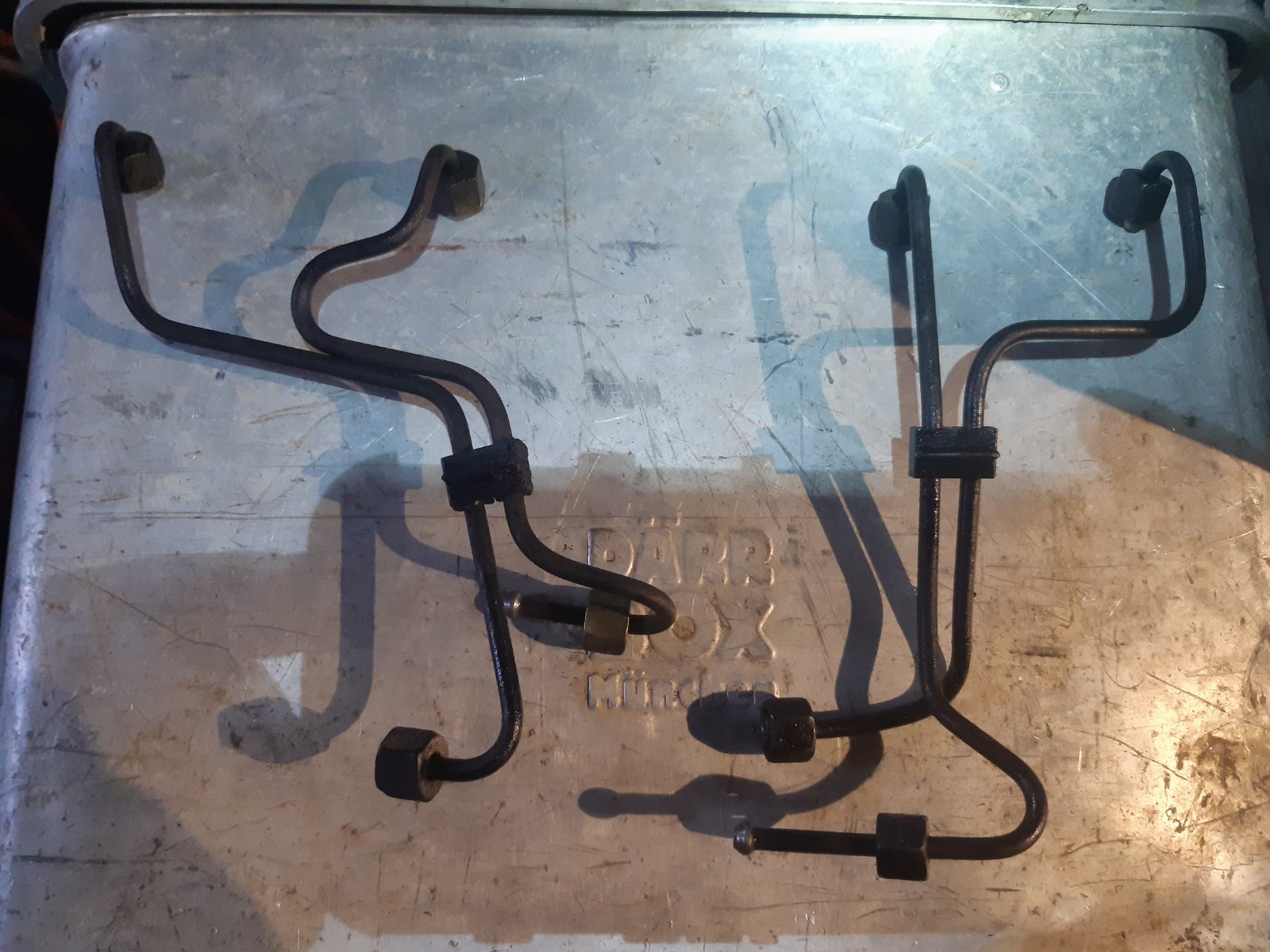

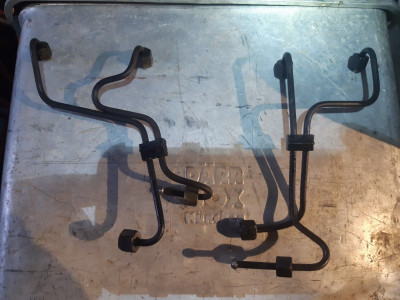

dw8 injector pipes for DWLP11 pump part no. DW8 1570 81
Attachments
Peter.N.
Moderating Team
Posts: 11563
Joined: 02 Apr 2005, 16:11
Location: Charmouth,Dorset
My Cars: Currently:

C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red

In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars.
x 1199

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by Peter.N. »

The Bosch and CAV pumps had different pipe arrangements similar to that on the XUD engine.

Peter
paddybloomer
Posts: 6
Joined: 09 Dec 2021, 23:15
Location: n. ireland
My Cars: dispatch dw8b, berlingo dw8
x 1

Re: Berlingo diesel DW8 engine (1868cc) fuel pump

Post by paddybloomer »

i was aware of the different pipes for the Bosch pump but would never have suspected the there would be 2 different pipes for the Lucas. i have my van running now and am no longer plagued by intermittent faults affecting the electronic advance system, hooray. the dwlp11 pump has a solenoid on the backside i don't know what it does buy the engine is running fine with it disconnected. i wonder what else i can disconnect, the ecu cant be up to much now.
