Sooo, a new leak has sprung up from the HP.

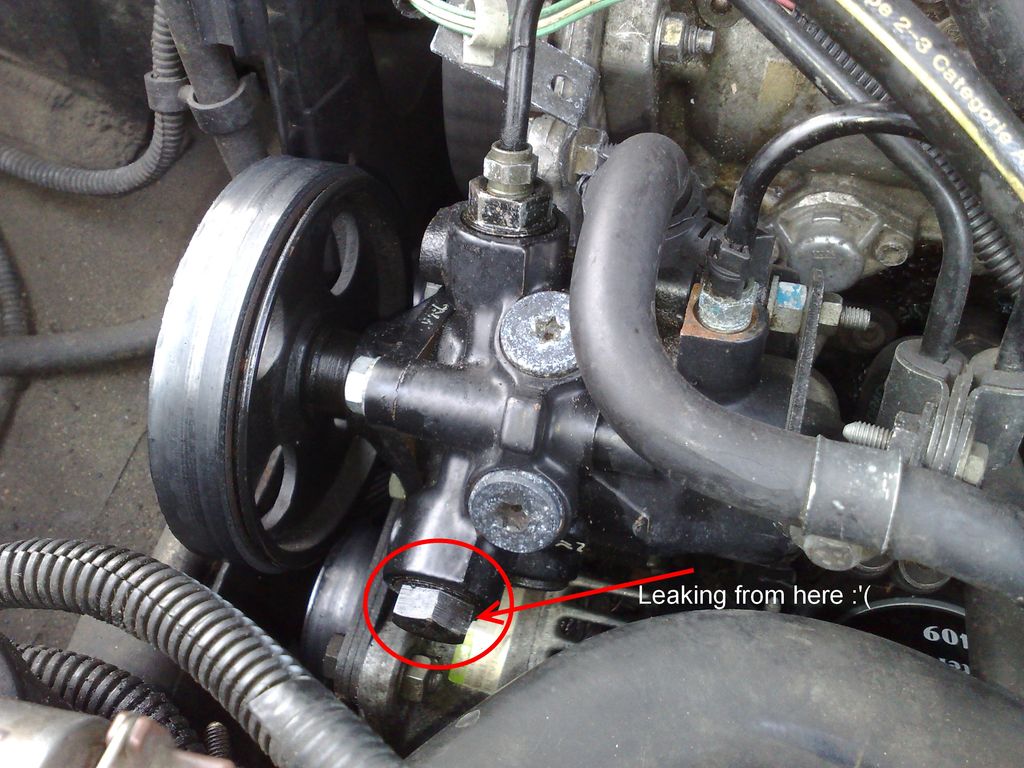

It's from this bolt.
Unlike last time, Citroen pulled up the exploded diagrams for steering, brakes, suspension and the pump itself but it did not show an O-ring or even the bolt removed.
Anyone know what this rather large bolt is for and if there is an O-ring seal that can be replaced behind it and the size? :/
Cheers guys
Romie
1996 Xantia Estate MK1
It's from this bolt.
Unlike last time, Citroen pulled up the exploded diagrams for steering, brakes, suspension and the pump itself but it did not show an O-ring or even the bolt removed.
Anyone know what this rather large bolt is for and if there is an O-ring seal that can be replaced behind it and the size? :/
Cheers guys
Romie
1996 Xantia Estate MK1
Last edited by romie on 12 Jan 2012, 14:54, edited 1 time in total.
Citroen Xantia 1.9TD 1996 estate 100% veg 323k
Ford Transit Tourneo 2.5L Di 1999 165k
Yamaha R1 1999 26k
Kawasaki ZXR750 L1 1993 66k (to LPG?)
Suzuki Bandit GSF400 1992 x 2
Mountain bike, skateboards, snowboards, surfboard, longboard and feet!
Ford Transit Tourneo 2.5L Di 1999 165k
Yamaha R1 1999 26k
Kawasaki ZXR750 L1 1993 66k (to LPG?)
Suzuki Bandit GSF400 1992 x 2
Mountain bike, skateboards, snowboards, surfboard, longboard and feet!
Re: New leak from HP. Citroën doesn't know :(
ok, lets try this:
Citroen Xantia 1.9TD 1996 estate 100% veg 323k
Ford Transit Tourneo 2.5L Di 1999 165k
Yamaha R1 1999 26k
Kawasaki ZXR750 L1 1993 66k (to LPG?)
Suzuki Bandit GSF400 1992 x 2
Mountain bike, skateboards, snowboards, surfboard, longboard and feet!
Ford Transit Tourneo 2.5L Di 1999 165k
Yamaha R1 1999 26k
Kawasaki ZXR750 L1 1993 66k (to LPG?)
Suzuki Bandit GSF400 1992 x 2
Mountain bike, skateboards, snowboards, surfboard, longboard and feet!
- Dommo
- Posts: 1191
- Joined: 11 Apr 2009, 09:43
- Location: Stoke-on-Trent
- My Cars: Current
07 C5 VTX+ 2.2 HDi 173hp
97 S1 Activa
06 Boxster S
93 XM 2.1 Turbo SD
Previous cars
91 Toyota Soarer UZZ32 Active Suspension
97 S1 VSX 1.9 Turbo D
99 Xantia Activa
98 2.1TD Xantia
99 306 - x 19
Re: New leak from HP. Citroën doesn't know :(
Yes I've replaced that little bugger in mine, was dribbling all over the alternator, give me a few minutes and I'll get the part number.
- CitroJim
- A very naughty boy
- Posts: 49518
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6156
- Contact:
Re: New leak from HP. Citroën doesn't know :(
That's easy All you need to do is replace the O ring under the hexagon. It's precisely the same O ring as for the other hexagon - the one with the delivery pipe in it.
I can't get hold of the part number right now but if I'm not beaten to it I'll post it later...
I think I can cut the Citroen parts person a bit of slack here as I don't belive the exploded diagram shows this hexagon as having an O ring.
I can't get hold of the part number right now but if I'm not beaten to it I'll post it later...
I think I can cut the Citroen parts person a bit of slack here as I don't belive the exploded diagram shows this hexagon as having an O ring.
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
- Dommo
- Posts: 1191
- Joined: 11 Apr 2009, 09:43
- Location: Stoke-on-Trent
- My Cars: Current
07 C5 VTX+ 2.2 HDi 173hp
97 S1 Activa
06 Boxster S
93 XM 2.1 Turbo SD
Previous cars
91 Toyota Soarer UZZ32 Active Suspension
97 S1 VSX 1.9 Turbo D
99 Xantia Activa
98 2.1TD Xantia
99 306 - x 19
Re: New leak from HP. Citroën doesn't know :(
Ok so theres no part number for it... As you said!
However I'm sure it'll be part number 4026 87 or 4026 88, I have a feeling it's 88 as it's the bigger one of the two however I can't be sure.
Edit - having seen Jim's reply, the delivery pipe one is 4026 88, so that'll be the one!
A little word of warning when you do replace it, I'm sure there's something inside that has a habit of trying to fall out when you remove the hexagon, and a lot of LHM can come out if you're slow at replacing it, so unscrew it and keep someone handy to either plug up the hole with something or get them to swap the o-ring as you plug up the hole!
However I'm sure it'll be part number 4026 87 or 4026 88, I have a feeling it's 88 as it's the bigger one of the two however I can't be sure.
Edit - having seen Jim's reply, the delivery pipe one is 4026 88, so that'll be the one!
A little word of warning when you do replace it, I'm sure there's something inside that has a habit of trying to fall out when you remove the hexagon, and a lot of LHM can come out if you're slow at replacing it, so unscrew it and keep someone handy to either plug up the hole with something or get them to swap the o-ring as you plug up the hole!
- CitroJim
- A very naughty boy
- Posts: 49518
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6156
- Contact:
Re: New leak from HP. Citroën doesn't know :(
Thanks for posting up the part number Dom
To save loosing the spring and it's friends, when you unscrew the hexagon, keep a finger or something on the end of the spring at all times to ensure it stays absolutely put.
The problem is that removing thgis hexagon will allow the contents of the LHM tank to syphon out so I recvommend disconneting the LHM suction pipe at the tank end and allowing the resitual LHM in the pump to drain before you fully remove the hexagon.
Not 'alf on both counts There's a spring, a ballcup, a ball and a piston all ready to make a bid for freedom and as you say Dom, it'll bleed LHM like a stuck pig and that's not good for the alternator.Dommo wrote:A little word of warning when you do replace it, I'm sure there's something inside that has a habit of trying to fall out when you remove the hexagon, and a lot of LHM can come out if you're slow at replacing it, so unscrew it and keep someone handy to either plug up the hole with something or get them to swap the o-ring as you plug up the hole!
To save loosing the spring and it's friends, when you unscrew the hexagon, keep a finger or something on the end of the spring at all times to ensure it stays absolutely put.
The problem is that removing thgis hexagon will allow the contents of the LHM tank to syphon out so I recvommend disconneting the LHM suction pipe at the tank end and allowing the resitual LHM in the pump to drain before you fully remove the hexagon.
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Re: New leak from HP. Citroën doesn't know :(

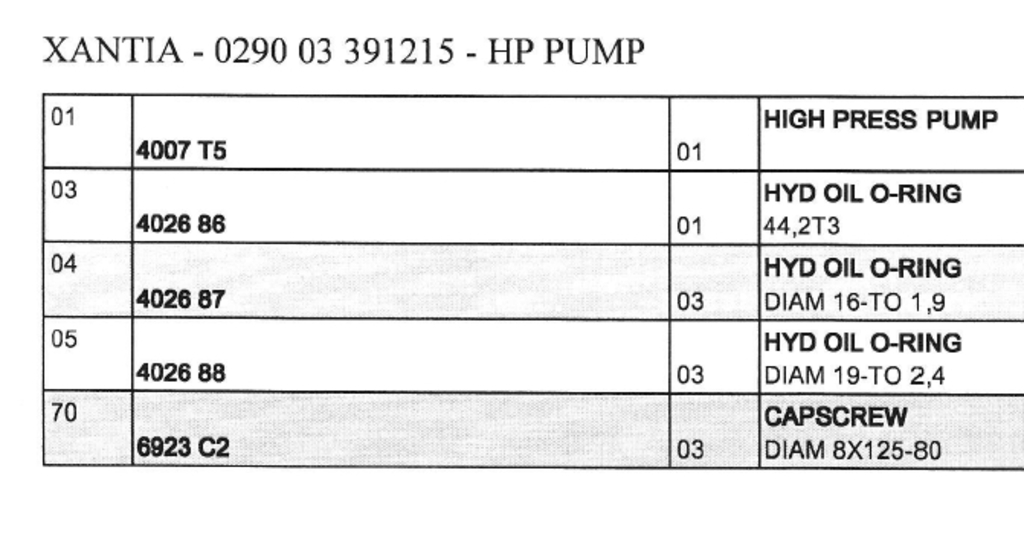

here is part No.'s and size's
i think No. 4 is the one you require for that bung,
04
4026 87
HYD OIL O-RING
DIAM 16-TO 1,9
05
4026 88
HYD OIL O-RING
DIAM 19-TO 2,4
and here is price and part No.'s
Part Number Description Quantity Price excl. VAT Price incl. VAT Total incl. VAT Selection
0000402687 HYD OIL O-RING 1.36 GBP 1.63 GBP 1.63 GBP
0000402688 HYD OIL O-RING 1.16 GBP 1.39 GBP 1.39 GBP
regards malcolm
i think No. 4 is the one you require for that bung,
04
4026 87
HYD OIL O-RING
DIAM 16-TO 1,9
05
4026 88
HYD OIL O-RING
DIAM 19-TO 2,4
and here is price and part No.'s
Part Number Description Quantity Price excl. VAT Price incl. VAT Total incl. VAT Selection
0000402687 HYD OIL O-RING 1.36 GBP 1.63 GBP 1.63 GBP
0000402688 HYD OIL O-RING 1.16 GBP 1.39 GBP 1.39 GBP
regards malcolm
Re: New leak from HP. Citroën doesn't know :(
Ah, such fast answers guys!!

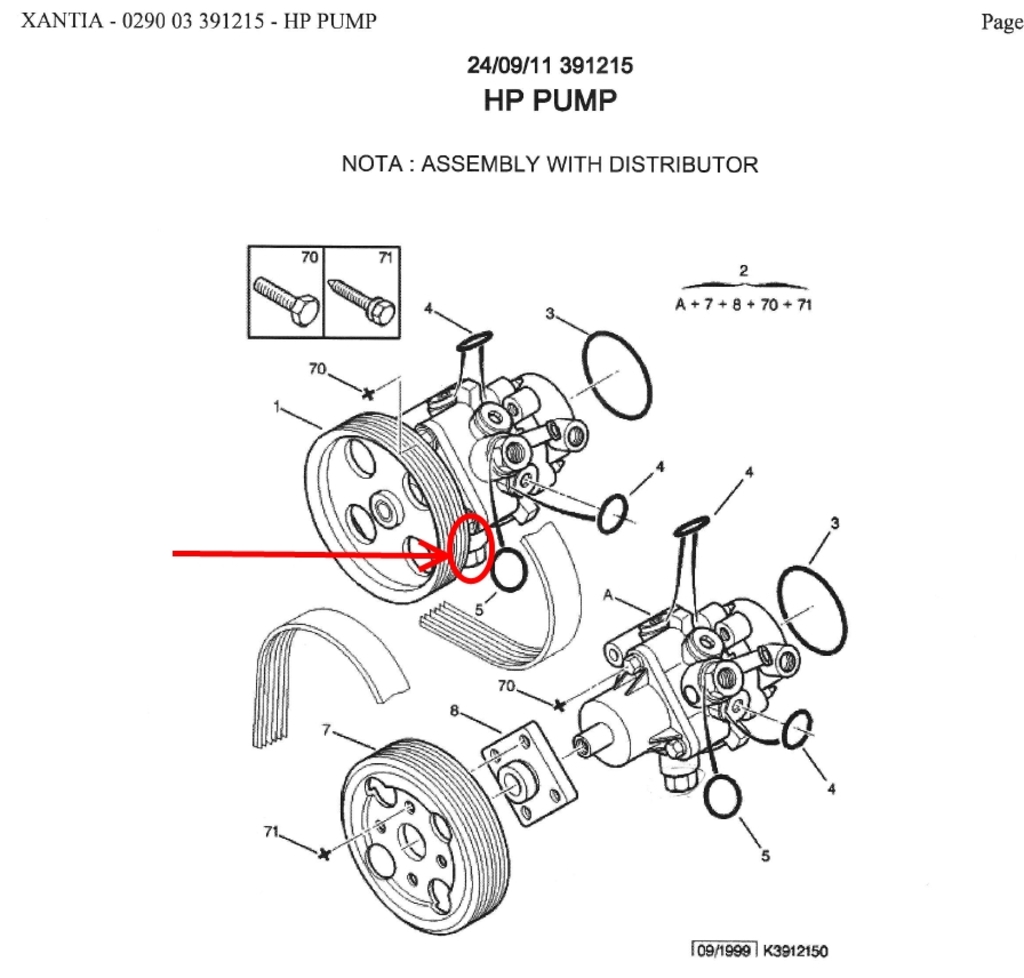

Out of interest this is the hp side of what I got from Citroen along with part numbers (see below).
