806 relays+more

Post by Harlequin »

trying to find a sticking/dead indicator relay - but have the fuse diagram but not relay one :(

can anyone help?

indicators just stopped working - but its not teh fuse (F26 - 15A) hazards gone as well.
Last edited by Harlequin on 12 Oct 2011, 15:29, edited 1 time in total.
User avatar
spider
Posts: 3949
Joined: 05 Jan 2010, 14:28
Location: Derby.
My Cars: Soon, I hope...
x 77
Contact:

Post by spider »

According to my information, its in the fusebox

Part number is 632324 should be black given the description:
6323 24 01
FLASHERUNIT
NR BLACK
EDIT... I seem to recall there's another box on some on the offside wing area, take a look there if you cannot see one in the usual places under the dash.
Andy.

91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Post by Harlequin »

managed to find that part number myself - BUT theres no black relays in the gloves box (green , orange,blue and grey lol)

loving the way they are locked in - twist and turn....

also do you have the part number for the front fog relay?
User avatar
spider
Posts: 3949
Joined: 05 Jan 2010, 14:28
Location: Derby.
My Cars: Soon, I hope...
x 77
Contact:

Post by spider »

655533 although I can do a bit better than that ;)



But that's *all* the information I have regarding their location / colouring etc. If I remember correctly its sparse in the official workshop data too, as is the case with most things electrickery related.
Andy.

91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Post by Harlequin »

found it and also found the problem:


Uploaded with ImageShack.us



ass

pulled it and the indicators are working again
User avatar
spider
Posts: 3949
Joined: 05 Jan 2010, 14:28
Location: Derby.
My Cars: Soon, I hope...
x 77
Contact:

Post by spider »

Ooops

Bad contact causing it to heat up you think ? , or something else ?
Andy.

91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Post by Harlequin »

i`ll have a looky for the right relay - the one in there looks old and is green oO

not actually even sure its the right relay - took them all out and put them back in and the indicators are working so either the relay is blue and needed reseating to work , or it is in fact that gone with the burn mark and theres an issue.
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Post by Harlequin »

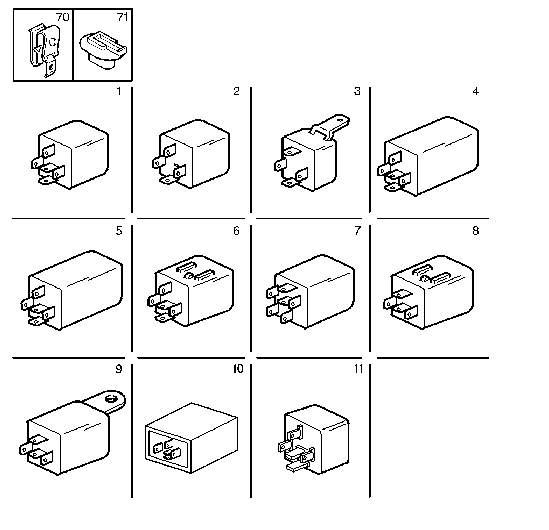

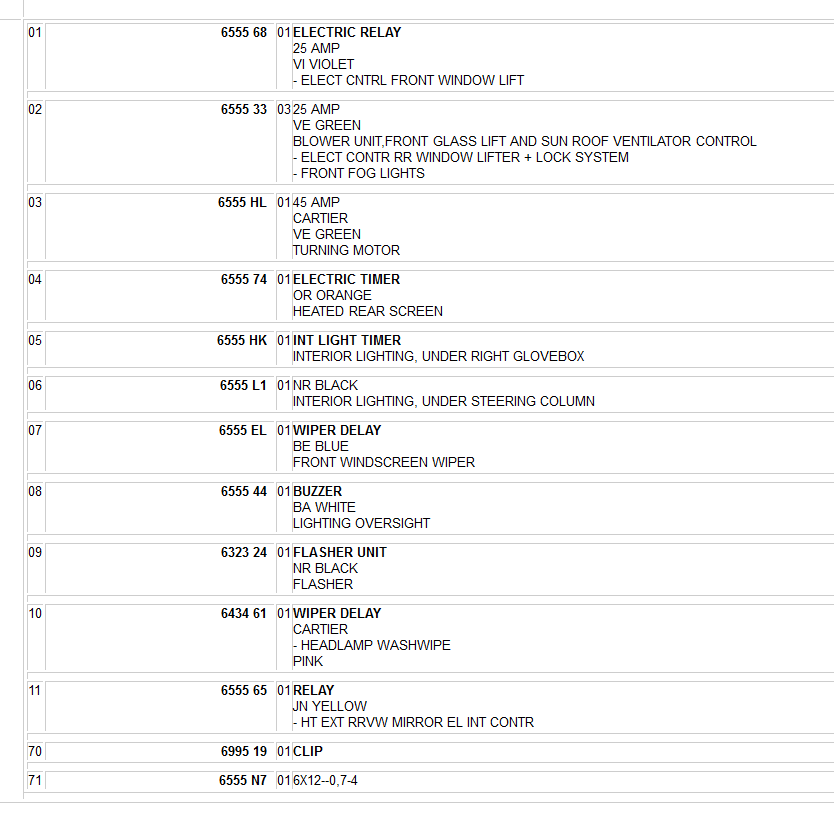

reading your awesome chart - i can sumise i have:

655533 - colour green for front electric windows and fogs;
655574 colour orange for heated rear screen
6555EL colour blue for wiper delay/ front wiper

and the flasher is green , not black as listed , its set as 12v/25a but who knows whats inside it :(

can take a pic of it , if it`ll help anyone?
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Post by Harlequin »

today - a new day and a new fun day , airbag light flashing ;) - quick search and quick clean and reseat of underseat connector - and sorrted (for now lol)

much better than the ` omg needs a main dealer` to work on - hmmm started stuttering at constant speeed - any thoughts?
User avatar
spider
Posts: 3949
Joined: 05 Jan 2010, 14:28
Location: Derby.
My Cars: Soon, I hope...
x 77
Contact:

Post by spider »

Coil pack starting to break down possibility. Blocking fuel filter not unknown as it tends to be out of sight out of mind...
Andy.

91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Post by Harlequin »

grrr dont say about the coil pack as i just done the ht leads and plugs lol
User avatar
spider
Posts: 3949
Joined: 05 Jan 2010, 14:28
Location: Derby.
My Cars: Soon, I hope...
x 77
Contact:

Post by spider »

Oh is it the one with separate leads ? , do you have a distributor or just the module ?

I'd check / replace the fuel filter if in doubt as they tend to get ignored.
Andy.

91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Post by Harlequin »

yeah it says peugeot on it so best get it done asap

and parts wise the one i have looks like:

http://www.ebay.co.uk/itm/PEUGEOT-106-2 ... 45f8400896

still after some rear shocks as well if you know of any
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: 806 relays+more

Post by Harlequin »

awesome - so far the topped up the cooling system , and the electric (airbag and inicator) faults have gone away (touch wood) havent got a clue why....

edit:

and 20 mins later the airbag light is back on flashing
Simon
Harlequin
Donor 2023
Posts: 912
Joined: 11 Jan 2006, 21:11
Location: Eastbourne , East Sussex
My Cars: Xantia Activa - one day I`ll own her again! Also miss my `old` 405 GLx4
2005 C5 3 Litre V6 Exclusive in Mauritius Blue and my 1997 Xantia Exclusive V6
x 23

Re: 806 relays+more

Post by Harlequin »

airbag light is back on ,pulled the connector block apart and theres nothing soldered oO - also it terminates into a plastic connection under the seat - and 2 of the wires dont go into anything



Uploaded with ImageShack.us

heres a picture - the screwdriver is covering the wires which dont seem to actually go anywhere

any help?
Simon
