C5 Question Center Suspension Sphere Removal

Post by cachaciero »

Tried to change the center sphere on my C5 today and failed......:-(
The problem was that we couldn't see how to remove the old sphere and get the new one in. Citroens own documentation just says rather glibly unscrew the sphere and remove it, but how? It wont come out or go up through the hole in the subframe the hole aint big enough.

So a question, has anybody changed the front center Sphere on an H3+ C5? and if so by what route / method did they get the old sphere out and the new one in?


cachaciero
2006 Toyota Prius T Spirit
2001 2.2 C5 Exclusive SE
1996 XM 2.1 TD Auto VSX
1995 XM 2.1 TD Auto SX died @ 140K
1987 CX 2.5 Gti Turbo II dead
1984 Ford Scorpio
1981 CX 2.4 Pallas Auto
Renault 21
1220 GS Club
Rover P6 2000TC
pete@co.uk
Posts: 396
Joined: 22 Jan 2005, 18:47
Location: west midlands
My Cars:

Post by pete@co.uk »

Hi cachaciero

I noticed this when i was doing my front lower arm on my c5 this week all you can see is the slot in the subframe with a little of the sphere showing through it, and i thought the same thing. Mine don't need replacing but i thought how would you do it if need be hope you don't mind but im watching this post for answers

Pete...........
Drives
51 Reg Citroen C5 SX 2.0 16v
Citroenmad
Posts: 8125
Joined: 04 Dec 2008, 22:08
Location: Northeast
My Cars: 07 Citroen C6 V6 HDi Exclusive - Red
07 Citroen C5 HDi VTR - Red
09 Citroen C3 1.4i VTR - Silver
01 Citroen Saxo 1.1i Forte - Mango Orange
93 Ford Mondeo 2.0i GLX
19 Hyundai i10
x 110

Post by Citroenmad »

pete@co.uk wrote:Hi cachaciero

I noticed this when i was doing my front lower arm on my c5 this week all you can see is the slot in the subframe with a little of the sphere showing through it, and i thought the same thing. Mine don't need replacing but i thought how would you do it if need be hope you don't mind but im watching this post for answers

Pete...........
Im surprised a 2.0 16v SX is hydractive+ :shock:
Chris
07 Citroen C6 V6 HDi Exclusive - Red
07 Citroen C5 HDi VTR - Red
09 Citroen C3 1.4i VTR - Silver
01 Citroen Saxo 1.1i Forte - Mango Orange
.
93 Ford Mondeo 2.0i GLX
19 Hyundai i10
pete@co.uk
Posts: 396
Joined: 22 Jan 2005, 18:47
Location: west midlands
My Cars:

Post by pete@co.uk »

Hi citroenmad

Yes mine has H3+ suspension it also has the full parking aid kit too it must have been requested and added when the car was new it also has climate control coupled with a sunroof very rare

Pete..............
Drives
51 Reg Citroen C5 SX 2.0 16v
cachaciero
Posts: 1407
Joined: 13 Apr 2009, 07:24
Location: West Sussex U.K
My Cars:
x 9

Post by cachaciero »

That makes it pretty close to full Exclusive spec, bout the only thing lacking would be the Xenon Headlamps.

Interesting because when looking for another I wouldn't normally have given an SX a second look that was a good find.


cachaciero
2006 Toyota Prius T Spirit
2001 2.2 C5 Exclusive SE
1996 XM 2.1 TD Auto VSX
1995 XM 2.1 TD Auto SX died @ 140K
1987 CX 2.5 Gti Turbo II dead
1984 Ford Scorpio
1981 CX 2.4 Pallas Auto
Renault 21
1220 GS Club
Rover P6 2000TC
Citroenmad
Posts: 8125
Joined: 04 Dec 2008, 22:08
Location: Northeast
My Cars: 07 Citroen C6 V6 HDi Exclusive - Red
07 Citroen C5 HDi VTR - Red
09 Citroen C3 1.4i VTR - Silver
01 Citroen Saxo 1.1i Forte - Mango Orange
93 Ford Mondeo 2.0i GLX
19 Hyundai i10
x 110

Post by Citroenmad »

I don't know much about the petrol C5s but the H3+ was never an option, only standard fit. So all 2.0 16v SX C5s must be H3+, interesting!

I knew the 2.0 HPi petrol engines are H3+ but didn't know the 2.0 16v was too. That is a lot of spec for an SX, its a fairly early one so maybe it was a press demo perhaps.
Chris
07 Citroen C6 V6 HDi Exclusive - Red
07 Citroen C5 HDi VTR - Red
09 Citroen C3 1.4i VTR - Silver
01 Citroen Saxo 1.1i Forte - Mango Orange
.
93 Ford Mondeo 2.0i GLX
19 Hyundai i10
pete@co.uk
Posts: 396
Joined: 22 Jan 2005, 18:47
Location: west midlands
My Cars:

Post by pete@co.uk »

Hi All

Here Is The Spec of the c5 Sx Range According to Parkers I think you will find this interesting

http://www.parkers.co.uk/cars/equipment ... 15&years=3

My car also includes the monochrome sat nav not the colour version

Pete........
Drives
51 Reg Citroen C5 SX 2.0 16v
Citroenmad
Posts: 8125
Joined: 04 Dec 2008, 22:08
Location: Northeast
My Cars: 07 Citroen C6 V6 HDi Exclusive - Red
07 Citroen C5 HDi VTR - Red
09 Citroen C3 1.4i VTR - Silver
01 Citroen Saxo 1.1i Forte - Mango Orange
93 Ford Mondeo 2.0i GLX
19 Hyundai i10
x 110

Post by Citroenmad »

Its a shame the diesel SX didn't get H3+, though I quite like it how it is.

Monochrome sat nav and not the colour one, what does that look like? :?
Chris
07 Citroen C6 V6 HDi Exclusive - Red
07 Citroen C5 HDi VTR - Red
09 Citroen C3 1.4i VTR - Silver
01 Citroen Saxo 1.1i Forte - Mango Orange
.
93 Ford Mondeo 2.0i GLX
19 Hyundai i10
pete@co.uk
Posts: 396
Joined: 22 Jan 2005, 18:47
Location: west midlands
My Cars:

Post by pete@co.uk »

Hi citroenmad

Its just like the normal size LCD screen like on all c5,s but with a different layout more information on 2 screens which you change by using the stork on the steering wheel its difficult to explain ill have to upload a picture when i can get round to doing it

Pete...............
Drives
51 Reg Citroen C5 SX 2.0 16v
cachaciero
Posts: 1407
Joined: 13 Apr 2009, 07:24
Location: West Sussex U.K
My Cars:
x 9

Post by cachaciero »

Yes, but how does one get the center sphere out? :-)

cachaciero
2006 Toyota Prius T Spirit
2001 2.2 C5 Exclusive SE
1996 XM 2.1 TD Auto VSX
1995 XM 2.1 TD Auto SX died @ 140K
1987 CX 2.5 Gti Turbo II dead
1984 Ford Scorpio
1981 CX 2.4 Pallas Auto
Renault 21
1220 GS Club
Rover P6 2000TC
KevMayer
Posts: 1051
Joined: 12 Sep 2003, 22:01
Location: Staffordshire, United Kingdom
My Cars:
x 2

Post by KevMayer »

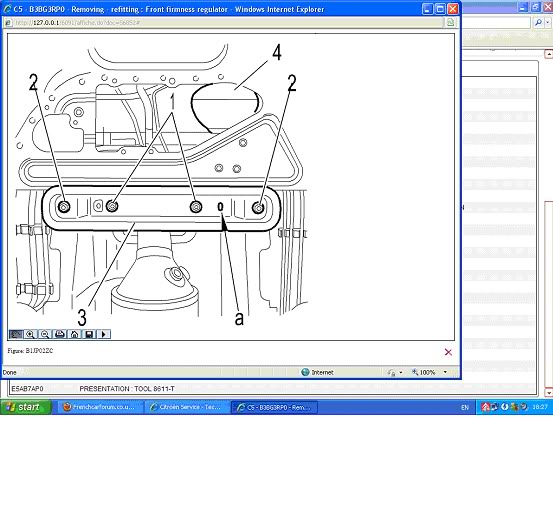

Does this help ?
