Guess the Rack !!!!!!!!!!!!!!!!!!!
Hi All,

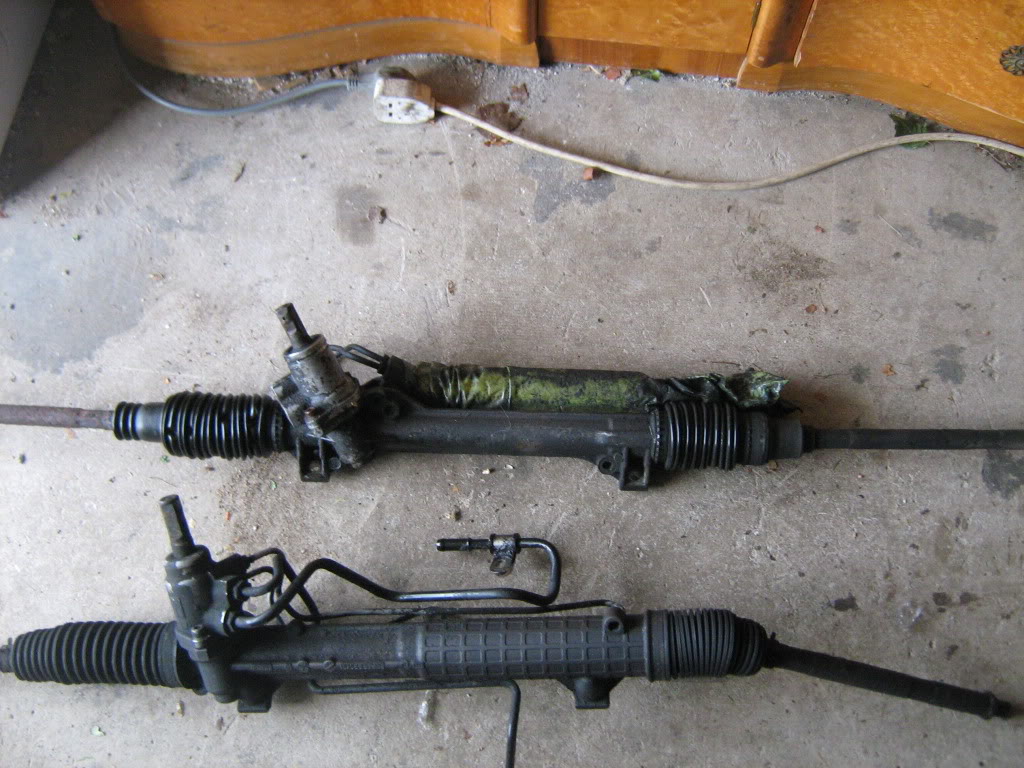

I've got 2 steering racks in my garage which I don't know what model of Xantia they came from
Any ideas
I've got 2 steering racks in my garage which I don't know what model of Xantia they came from
Any ideas
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
- CitroJim
- A very naughty boy
- Posts: 49658
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6204
- Contact:
Toby_HDi wrote:How disappointing!
I thought this thread was something entirely different

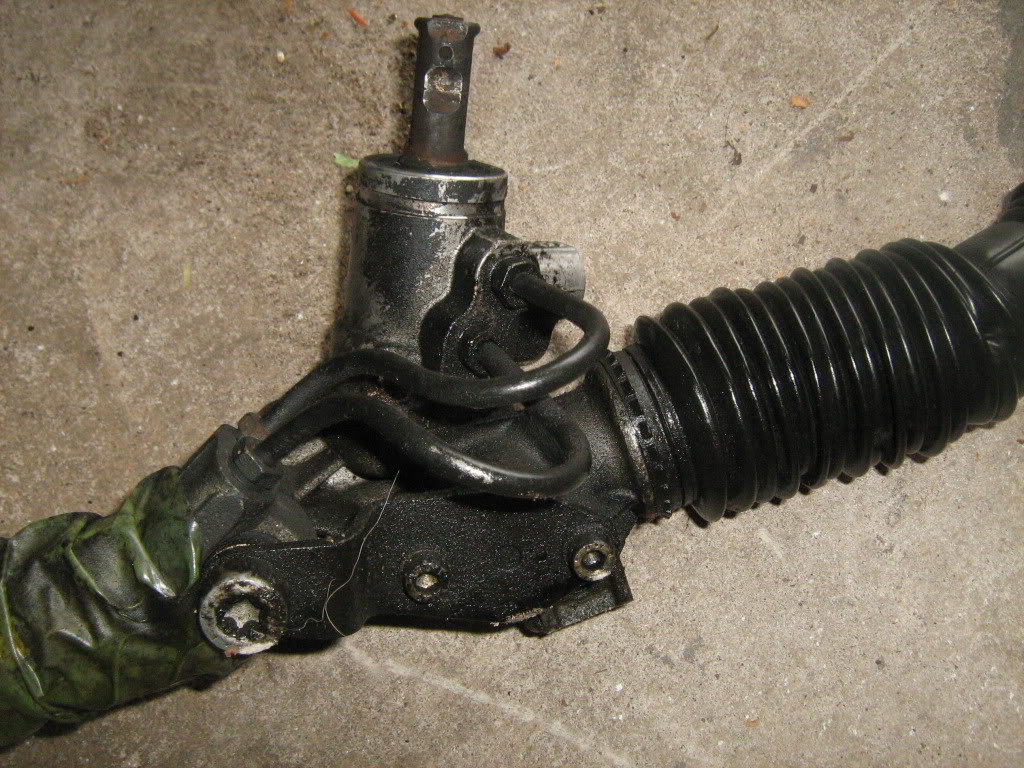

Kenny, The rack in the top of the first picture (the one with its ram in a bag) is typical of the rack found on an anti-sink Xantia..

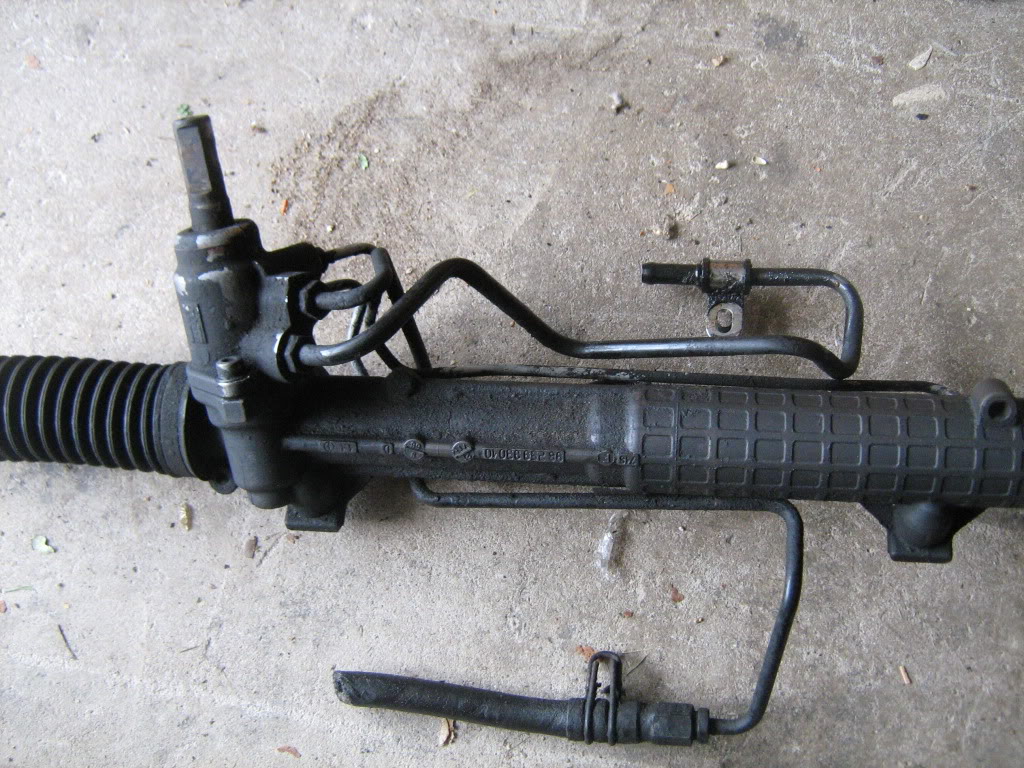

The other one I cannot identify... TBH, I don't even think it's a Xantia but could be wrong if it's off a sinker...
