can anybody draw me a diagram of fuel lines into my xud9 te engine?
im loosely aware there is a feed in and a return, however i have a few loose ends and im not sure which goes where?
all i have in place is the line from the filter to the pump
ta!
fuel lines , whwere do they go???
Moderator: RichardW
-
- Posts: 43
- Joined: 30 Jan 2011, 12:42
- Location:
- My Cars:
- spider
- Posts: 3949
- Joined: 05 Jan 2010, 14:28
- Location: Derby.
- My Cars: Soon, I hope...
- x 77
- Contact:
It basically goes like this:
Two pipes from the bulkhead area:
Feeding pipe (at bulkhead) > primer bulb > filter > pump inlet
Pump Outlet > Return pipe (at bulkhead)
Some feed the return back to the filter, obviously the leak off pipes will return there too.

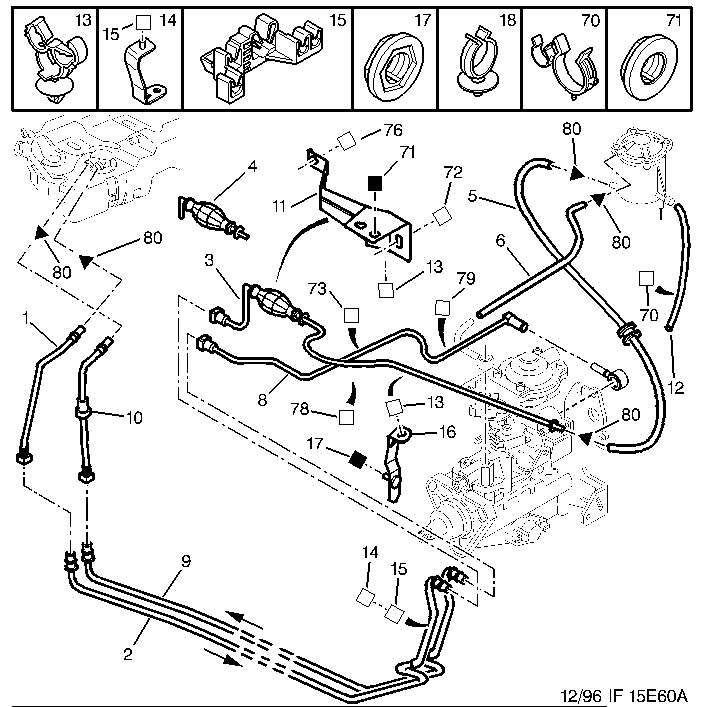

Quick pic of 406 1.9TD: , I don't seem to have many pics of this area though, this is actually the only one.
Two pipes from the bulkhead area:
Feeding pipe (at bulkhead) > primer bulb > filter > pump inlet
Pump Outlet > Return pipe (at bulkhead)
Some feed the return back to the filter, obviously the leak off pipes will return there too.
Quick pic of 406 1.9TD: , I don't seem to have many pics of this area though, this is actually the only one.
Andy.
