citroen c5 hdi

This is the Forum for all your Citroen Technical Questions, Problems or Advice.
portergiest
Posts: 2
Joined: 14 Dec 2010, 21:01

citroen c5 hdi

Unread post by portergiest »

i replaced 2 rockers on my c5 2.2hdi. how do i set up the camshaft marks for the chain? please help!!!
Top
KevMayer
Posts: 1051
Joined: 12 Sep 2003, 22:01
x 2

Unread post by KevMayer »

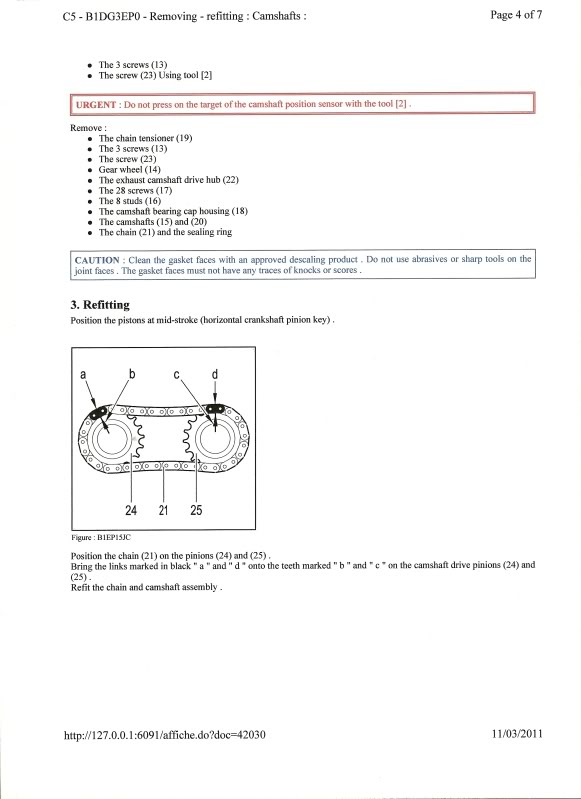

In my info I have the following description of refitting the camshafts:-


Cheers, Kev

02 plate C5 2.2 Hdi Exclusive SE (now 170k miles 03/21).

Used to have:- Xantia 1.9 TurboD SX. 1996 Blue & 1998 Silver Activa. + 1992 BX TZD Turbo.
Top
KevMayer
Posts: 1051
Joined: 12 Sep 2003, 22:01
x 2

Unread post by KevMayer »

The link to my image has been corrected.
Cheers, Kev

02 plate C5 2.2 Hdi Exclusive SE (now 170k miles 03/21).

Used to have:- Xantia 1.9 TurboD SX. 1996 Blue & 1998 Silver Activa. + 1992 BX TZD Turbo.
